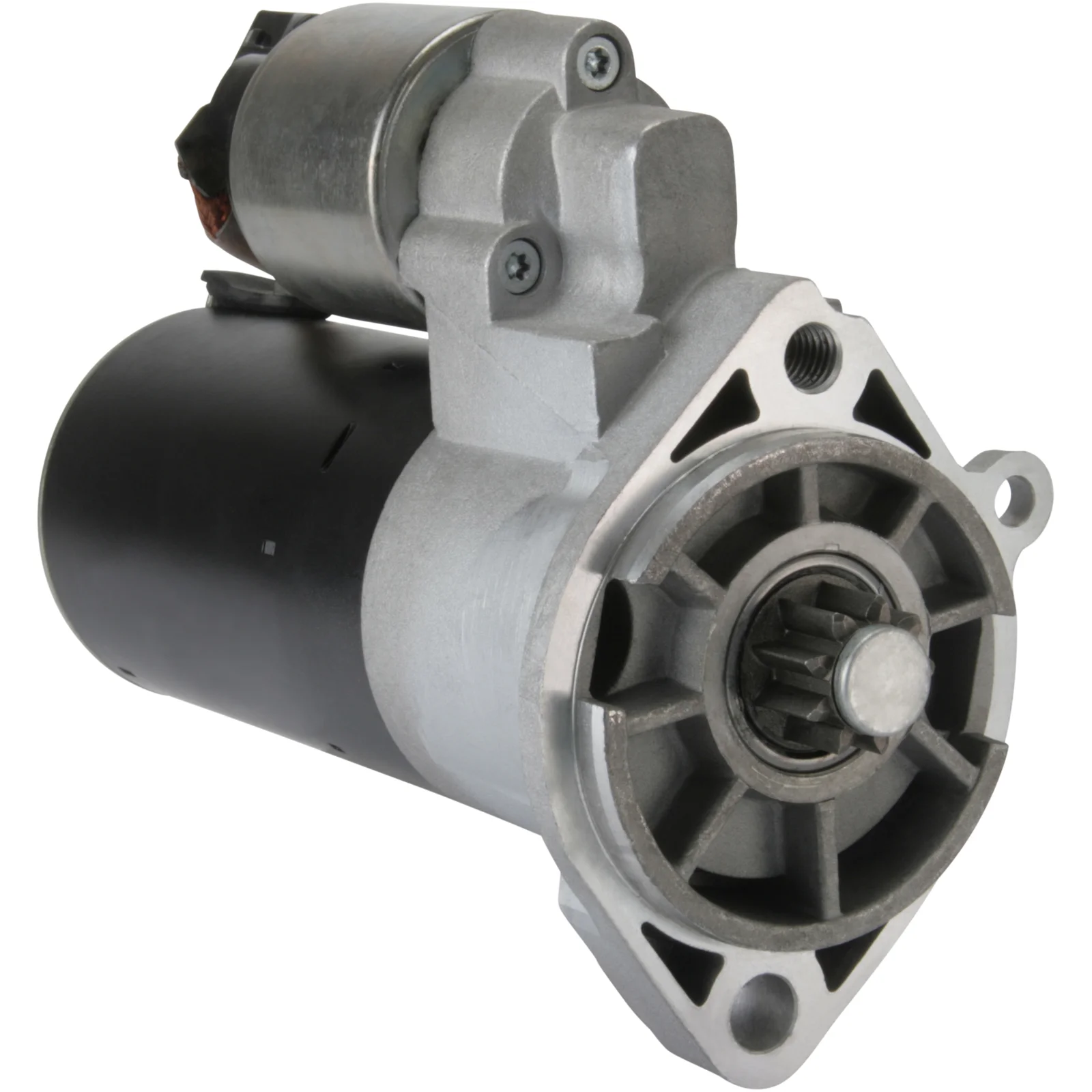

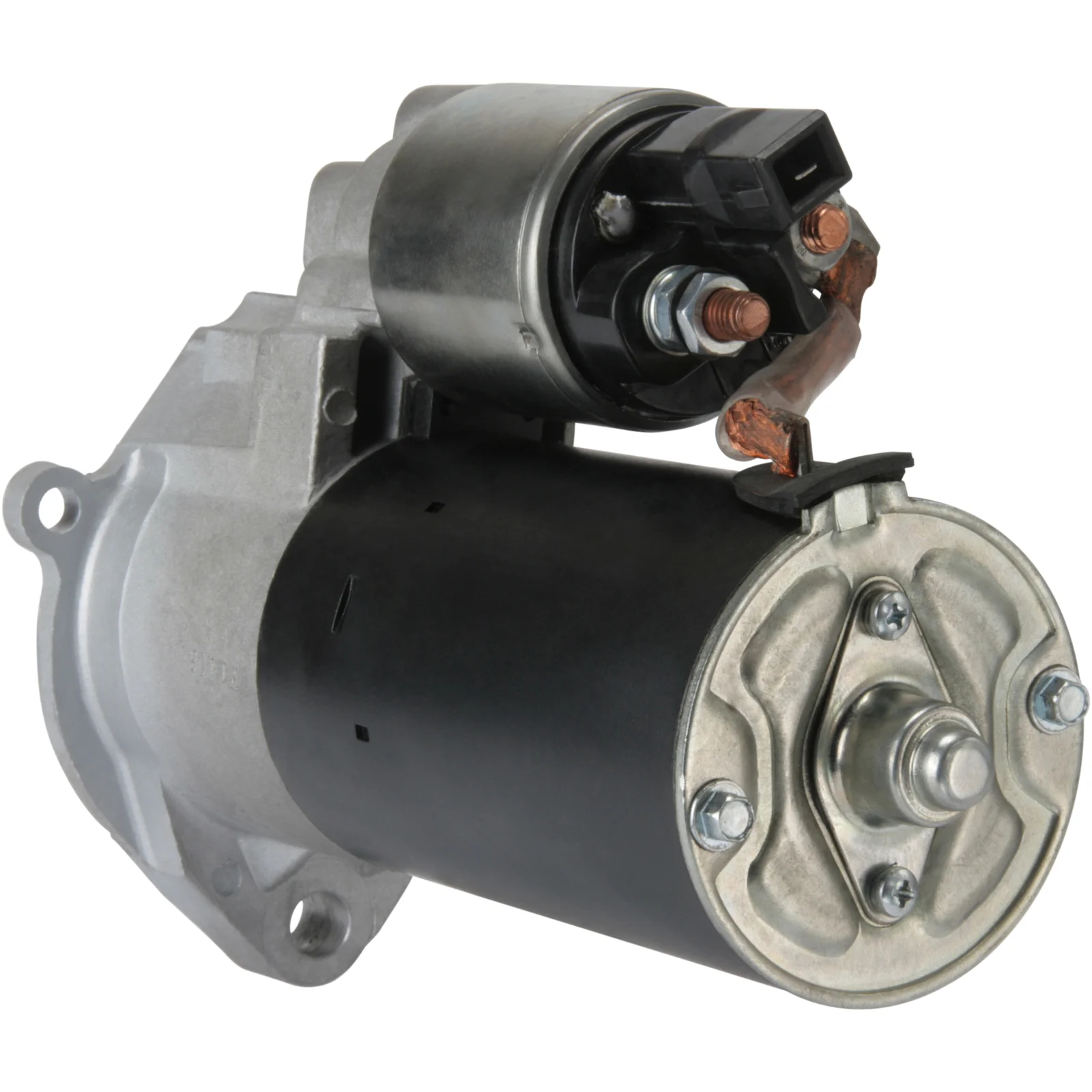

HC-Cargo Startmotor
HC-Cargo Startmotor
Artikelnr: F032112430

HC-Cargo Startmotor

Teknisk info:

Voltage: 12, kW: 2.0, No./teeth: 9, Rotation: CW

Beskrivning

Voltage: 12
kW: 2.0
Mount. flange: 82.50
Drive dist.: 21.00
Mount. hole 2 mm: 11.00
Dist./back: 203.00
Dist./front: 25.00
No./teeth: 9
B+: M8
Position/50: 60
Terminal 50: 4.80
Gear type: GR
Dist. mm: 104.50
Rotation: CW
Total length mm: 229.50
Clutch type: Dry
Drive type: Steel
Prod. info: BN
Waterproof: No
Oil sealed: No
No./mount. holes: 2 (1)

Filer

Specifikation

B+ M8
No./teeth 9
Mount. flange 82.50
Oil sealed No
No./mount. holes 2 (1)
Position/50 60
Clutch type Dry
Prod. info BN
Rotation CW
Dist./back 203.00
Dist./front 25.00
Drive dist. 21.00
Drive type Steel
Gear type GR
kW 2.0
Terminal 50 4.80
Voltage 12
Total length 229.50 mm
Waterproof No
Dist. 104.50 mm
Mount. hole 2 11.00 mm

  • OEM
    cs1187, F032112430, 1986S00819, 0001125507, 0001125508, 0001125517, 0001125518, 1516682R, 069911023j, 069911023JX, 069911023m, 069911023MX

  • Konkurrentreferens
    CST10296, DRS8940, F032US0053, F042S02188, F042S0H121, LRS01540, S0192, STR-H121, 8EA012527-371, 25-3024, 311.097.092, 32553N, 101187, 104734, 220651, 220651A, 458538, 726923, 8212301, 11018940, 0986018940, 944280189400

  • Normaliserat artikelnummer
    cs1187, cst10296, drs8940, f032112430, f032us0053, f042s02188, f042s0h121, lrs01540, s0192, strh121, 8ea012527371, 1986s00819, 32553n, 101187, 104734, 220651, 220651a, 253024, 458538, 726923, 0001125507, 0001125508, 0001125517, 0001125518, 1516682r, 8212301, 11018940, 069911023j, 069911023jx, 069911023m, 069911023mx, 311097092, 0986018940, 944280189400

  • Passar modeller
    VW Model: LT Model series: LT 28-35 Type of engine: TDi Size of motor: 2.5 Brand of engine: ANJ Body: Bus From date: 01-05-1999 To date: 01-07-2006 Fuel: Diesel Approved: Yes
    VW Model: LT Model series: LT 28-35 Type of engine: TDi Size of motor: 2.5 Brand of engine: ANJ Body: Platform / Chassis From date: 01-05-1999 To date: 01-07-2006 Fuel: Diesel Approved: Yes
    VW Model: LT Model series: LT 28-35 Type of engine: TDi Size of motor: 2.5 Brand of engine: ANJ Body: Van From date: 01-05-1999 To date: 01-07-2006 Fuel: Diesel Approved: Yes
    VW Model: LT Model series: LT 28-35 Type of engine: TDi Size of motor: 2.5 Brand of engine: APA Body: Bus From date: 01-05-1999 To date: 01-07-2006 Fuel: Diesel Approved: Yes
    VW Model: LT Model series: LT 28-35 Type of engine: TDi Size of motor: 2.5 Brand of engine: AVR Body: Bus From date: 01-05-1999 To date: 01-07-2006 Fuel: Diesel Approved: Yes
    VW Model: LT Model series: LT 28-35 Type of engine: TDi Size of motor: 2.5 Brand of engine: AVR Body: Platform / Chassis From date: 01-05-1999 To date: 01-07-2006 Fuel: Diesel Approved: Yes
    VW Model: LT Model series: LT 28-35 Type of engine: TDi Size of motor: 2.5 Brand of engine: AVR Body: Van From date: 01-05-1999 To date: 01-07-2006 Fuel: Diesel Approved: Yes
    VW Model: LT Model series: LT 40-55 Type of engine: TDi Size of motor: 2.5 Brand of engine: ANJ Body: Platform / Chassis From date: 01-05-1999 To date: 01-07-2006 Fuel: Diesel Approved: Yes
    VW Model: LT Model series: LT 40-55 Type of engine: TDi Size of motor: 2.5 Brand of engine: ANJ Body: Van From date: 01-05-1999 To date: 01-07-2006 Fuel: Diesel Approved: Yes
    VW Model: LT Model series: LT 40-55 Type of engine: TDi Size of motor: 2.5 Brand of engine: AVR Body: Platform / Chassis From date: 01-05-1999 To date: 01-07-2006 Fuel: Diesel Approved: Yes
    1 / 2
  • Beskrivning
    Voltage: 12
    kW: 2.0
    Mount. flange: 82.50
    Drive dist.: 21.00
    Mount. hole 2 mm: 11.00
    Dist./back: 203.00
    Dist./front: 25.00
    No./teeth: 9
    B+: M8
    Position/50: 60
    Terminal 50: 4.80
    Gear type: GR
    Dist. mm: 104.50
    Rotation: CW
    Total length mm: 229.50
    Clutch type: Dry
    Drive type: Steel
    Prod. info: BN
    Waterproof: No
    Oil sealed: No
    No./mount. holes: 2 (1)

    Filer

  • Specifikation
    B+ M8
    No./teeth 9
    Mount. flange 82.50
    Oil sealed No
    No./mount. holes 2 (1)
    Position/50 60
    Clutch type Dry
    Prod. info BN
    Rotation CW
    Dist./back 203.00
    Dist./front 25.00
    Drive dist. 21.00
    Drive type Steel
    Gear type GR
    kW 2.0
    Terminal 50 4.80
    Voltage 12
    Total length 229.50 mm
    Waterproof No
    Dist. 104.50 mm
    Mount. hole 2 11.00 mm
  • Fordonsmatchning

    • OEM
      cs1187, F032112430, 1986S00819, 0001125507, 0001125508, 0001125517, 0001125518, 1516682R, 069911023j, 069911023JX, 069911023m, 069911023MX

    • Konkurrentreferens
      CST10296, DRS8940, F032US0053, F042S02188, F042S0H121, LRS01540, S0192, STR-H121, 8EA012527-371, 25-3024, 311.097.092, 32553N, 101187, 104734, 220651, 220651A, 458538, 726923, 8212301, 11018940, 0986018940, 944280189400

    • Normaliserat artikelnummer
      cs1187, cst10296, drs8940, f032112430, f032us0053, f042s02188, f042s0h121, lrs01540, s0192, strh121, 8ea012527371, 1986s00819, 32553n, 101187, 104734, 220651, 220651a, 253024, 458538, 726923, 0001125507, 0001125508, 0001125517, 0001125518, 1516682r, 8212301, 11018940, 069911023j, 069911023jx, 069911023m, 069911023mx, 311097092, 0986018940, 944280189400

    • Passar modeller
      VW Model: LT Model series: LT 28-35 Type of engine: TDi Size of motor: 2.5 Brand of engine: ANJ Body: Bus From date: 01-05-1999 To date: 01-07-2006 Fuel: Diesel Approved: Yes
      VW Model: LT Model series: LT 28-35 Type of engine: TDi Size of motor: 2.5 Brand of engine: ANJ Body: Platform / Chassis From date: 01-05-1999 To date: 01-07-2006 Fuel: Diesel Approved: Yes
      VW Model: LT Model series: LT 28-35 Type of engine: TDi Size of motor: 2.5 Brand of engine: ANJ Body: Van From date: 01-05-1999 To date: 01-07-2006 Fuel: Diesel Approved: Yes
      VW Model: LT Model series: LT 28-35 Type of engine: TDi Size of motor: 2.5 Brand of engine: APA Body: Bus From date: 01-05-1999 To date: 01-07-2006 Fuel: Diesel Approved: Yes
      VW Model: LT Model series: LT 28-35 Type of engine: TDi Size of motor: 2.5 Brand of engine: AVR Body: Bus From date: 01-05-1999 To date: 01-07-2006 Fuel: Diesel Approved: Yes
      VW Model: LT Model series: LT 28-35 Type of engine: TDi Size of motor: 2.5 Brand of engine: AVR Body: Platform / Chassis From date: 01-05-1999 To date: 01-07-2006 Fuel: Diesel Approved: Yes
      VW Model: LT Model series: LT 28-35 Type of engine: TDi Size of motor: 2.5 Brand of engine: AVR Body: Van From date: 01-05-1999 To date: 01-07-2006 Fuel: Diesel Approved: Yes
      VW Model: LT Model series: LT 40-55 Type of engine: TDi Size of motor: 2.5 Brand of engine: ANJ Body: Platform / Chassis From date: 01-05-1999 To date: 01-07-2006 Fuel: Diesel Approved: Yes
      VW Model: LT Model series: LT 40-55 Type of engine: TDi Size of motor: 2.5 Brand of engine: ANJ Body: Van From date: 01-05-1999 To date: 01-07-2006 Fuel: Diesel Approved: Yes
      VW Model: LT Model series: LT 40-55 Type of engine: TDi Size of motor: 2.5 Brand of engine: AVR Body: Platform / Chassis From date: 01-05-1999 To date: 01-07-2006 Fuel: Diesel Approved: Yes
