Artikelnr: F032112344

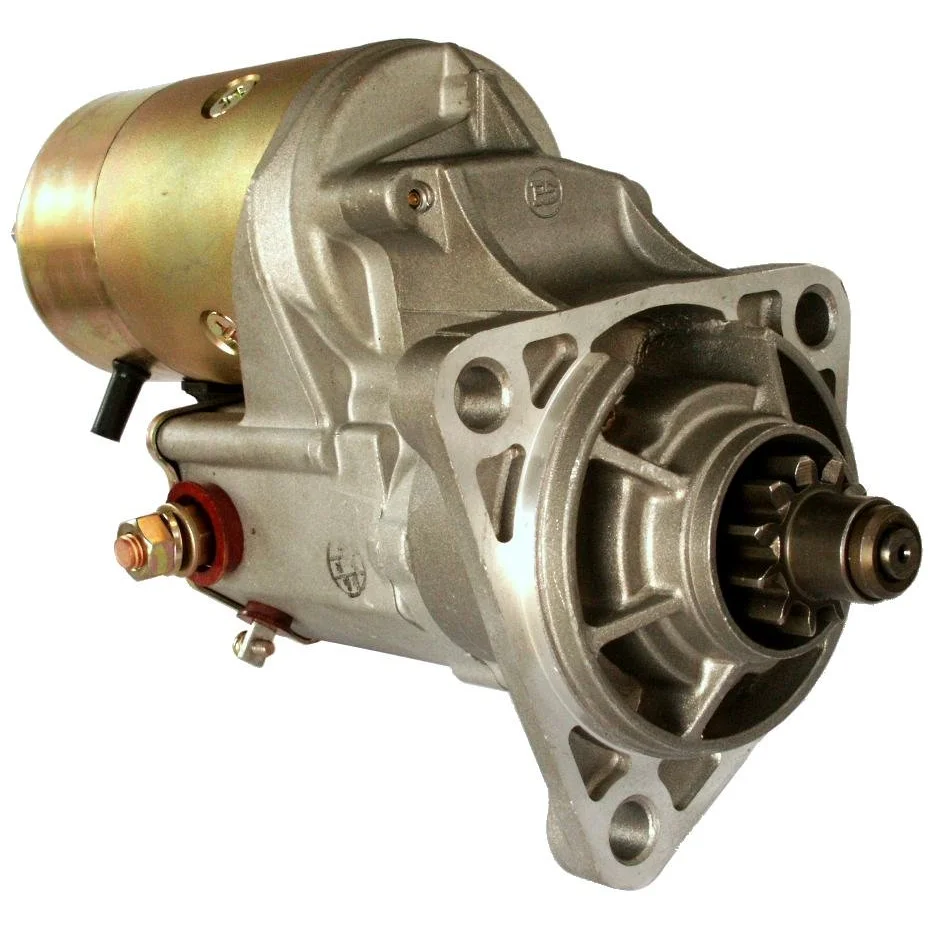

HC-Cargo Startmotor

Teknisk info:

Voltage: 12, kW: 2.5, No./teeth: 11, Rotation: CW

Beskrivning

Voltage: 12
kW: 2.5
Mount. flange: 105.00
Drive dist.: 41.50
Mount. hole 3 mm: 13.20
Mount. hole 2 mm: 13.20
Mount. hole 1 mm: 13.20
Dist./back: 171.00
Dist./front: 65.00
No./teeth: 11
B+: M12
Position/50: 25
Terminal 50: M5
Gear type: GR
Dist. 2: 111.00
Dist. 3: 111.00
Dist. mm: 135.00
Rotation: CW
Total length mm: 298.00
Drive type: Steel
Prod. info: BN
Waterproof: No
Oil sealed: No
No./mount. holes: 3 (0)

Filer

Specifikation

B+ M12
No./teeth 11
Mount. flange 105.00
Oil sealed No
No./mount. holes 3 (0)
Position/50 25
Prod. info BN
Dist. 2 111.00
Dist. 3 111.00
Rotation CW
Dist./back 171.00
Dist./front 65.00
Drive dist. 41.50
Drive type Steel
Gear type GR
kW 2.5
Terminal 50 M5
Voltage 12
Total length 298.00 mm
Waterproof No
Dist. 135.00 mm
Mount. hole 3 13.20 mm
Mount. hole 2 13.20 mm
Mount. hole 1 13.20 mm

  • OEM
    F032112344, 65.26201-7050, 65.26201-7078, 03111-5020, 03111-5021, 6526201-7078, 65262017078B

  • Konkurrentreferens
    230.001.113, 835.513.105

  • Normaliserat artikelnummer
    f032112344, 031115020, 031115021, 230001113, 835513105, 65262017050, 65262017078, 65262017078b

  • Passar modeller
    Atlas Copco Model: PL350S Model series: PL350S Model type: PL350S Brand of engine: B3.3-65 ELITE Approved: Yes
    Daewoo Model: Various Models Model series: Various Models Approved: Yes
    Doosan Model: 450 PLUS Model series: 450 PLUS Model type: Skid Steer Loaders Brand of engine: B3.3-65 ELITE Approved: Yes
    Doosan Model: 460 PLUS Model series: 460 PLUS Model type: Skid Steer Loaders Brand of engine: B3.3-65 ELITE Approved: Yes
    Doosan Model: 470 PLUS Model series: 470 PLUS Model type: Skid Steer Loaders Brand of engine: B3.3-65 ELITE Approved: Yes
    Doosan Model: D20G, D25G & D30G Model series: D20G, D25G & D30G Model type: Forklifts Brand of engine: B3.3-65 ELITE Approved: Yes
    Doosan Model: D20S-5 & D25S-5 Model series: D20S-5 & D25S-5 Model type: Forklifts Brand of engine: B3.3-65 ELITE Approved: Yes
    Doosan Model: D30S-5, D33S-5 & D35C-5 Model series: D30S-5, D33S-5 & D35C-5 Model type: Forklifts Brand of engine: B3.3-65 ELITE Approved: Yes
    JCB Model: VM46 Model series: VM46 Model type: Rollers Brand of engine: B3.3-65 ELITE Approved: Yes
    Manitou Model: 2066 Model series: 2066 Model type: Skid Steer Loaders Brand of engine: B3.3-65 ELITE Approved: Yes
    1 / 2
  • Beskrivning
    Voltage: 12
    kW: 2.5
    Mount. flange: 105.00
    Drive dist.: 41.50
    Mount. hole 3 mm: 13.20
    Mount. hole 2 mm: 13.20
    Mount. hole 1 mm: 13.20
    Dist./back: 171.00
    Dist./front: 65.00
    No./teeth: 11
    B+: M12
    Position/50: 25
    Terminal 50: M5
    Gear type: GR
    Dist. 2: 111.00
    Dist. 3: 111.00
    Dist. mm: 135.00
    Rotation: CW
    Total length mm: 298.00
    Drive type: Steel
    Prod. info: BN
    Waterproof: No
    Oil sealed: No
    No./mount. holes: 3 (0)

    Filer

  • Specifikation
    B+ M12
    No./teeth 11
    Mount. flange 105.00
    Oil sealed No
    No./mount. holes 3 (0)
    Position/50 25
    Prod. info BN
    Dist. 2 111.00
    Dist. 3 111.00
    Rotation CW
    Dist./back 171.00
    Dist./front 65.00
    Drive dist. 41.50
    Drive type Steel
    Gear type GR
    kW 2.5
    Terminal 50 M5
    Voltage 12
    Total length 298.00 mm
    Waterproof No
    Dist. 135.00 mm
    Mount. hole 3 13.20 mm
    Mount. hole 2 13.20 mm
    Mount. hole 1 13.20 mm
  • Fordonsmatchning

    • OEM
      F032112344, 65.26201-7050, 65.26201-7078, 03111-5020, 03111-5021, 6526201-7078, 65262017078B

    • Konkurrentreferens
      230.001.113, 835.513.105

    • Normaliserat artikelnummer
      f032112344, 031115020, 031115021, 230001113, 835513105, 65262017050, 65262017078, 65262017078b

    • Passar modeller
      Atlas Copco Model: PL350S Model series: PL350S Model type: PL350S Brand of engine: B3.3-65 ELITE Approved: Yes
      Daewoo Model: Various Models Model series: Various Models Approved: Yes
      Doosan Model: 450 PLUS Model series: 450 PLUS Model type: Skid Steer Loaders Brand of engine: B3.3-65 ELITE Approved: Yes
      Doosan Model: 460 PLUS Model series: 460 PLUS Model type: Skid Steer Loaders Brand of engine: B3.3-65 ELITE Approved: Yes
      Doosan Model: 470 PLUS Model series: 470 PLUS Model type: Skid Steer Loaders Brand of engine: B3.3-65 ELITE Approved: Yes
      Doosan Model: D20G, D25G & D30G Model series: D20G, D25G & D30G Model type: Forklifts Brand of engine: B3.3-65 ELITE Approved: Yes
      Doosan Model: D20S-5 & D25S-5 Model series: D20S-5 & D25S-5 Model type: Forklifts Brand of engine: B3.3-65 ELITE Approved: Yes
      Doosan Model: D30S-5, D33S-5 & D35C-5 Model series: D30S-5, D33S-5 & D35C-5 Model type: Forklifts Brand of engine: B3.3-65 ELITE Approved: Yes
      JCB Model: VM46 Model series: VM46 Model type: Rollers Brand of engine: B3.3-65 ELITE Approved: Yes
      Manitou Model: 2066 Model series: 2066 Model type: Skid Steer Loaders Brand of engine: B3.3-65 ELITE Approved: Yes
