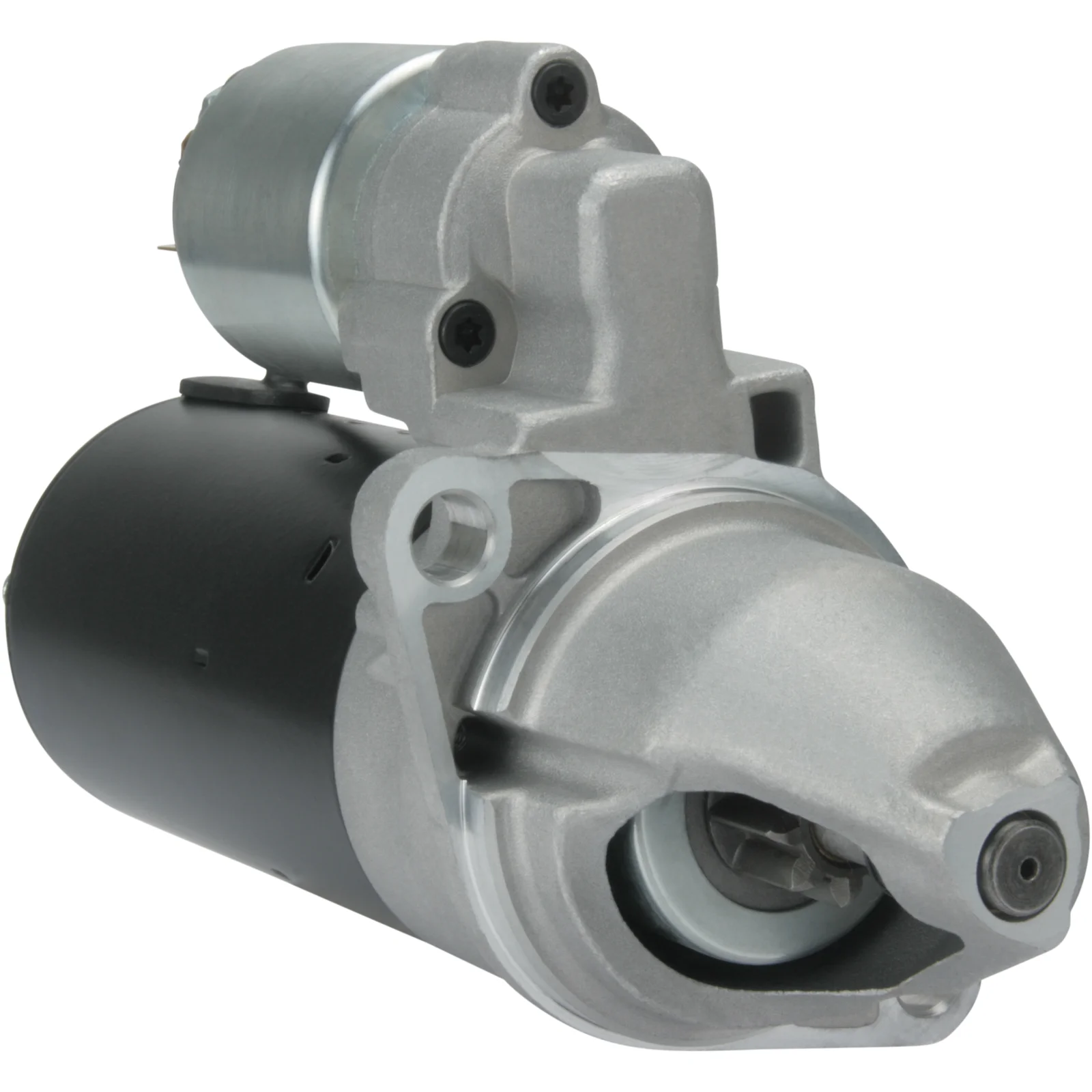

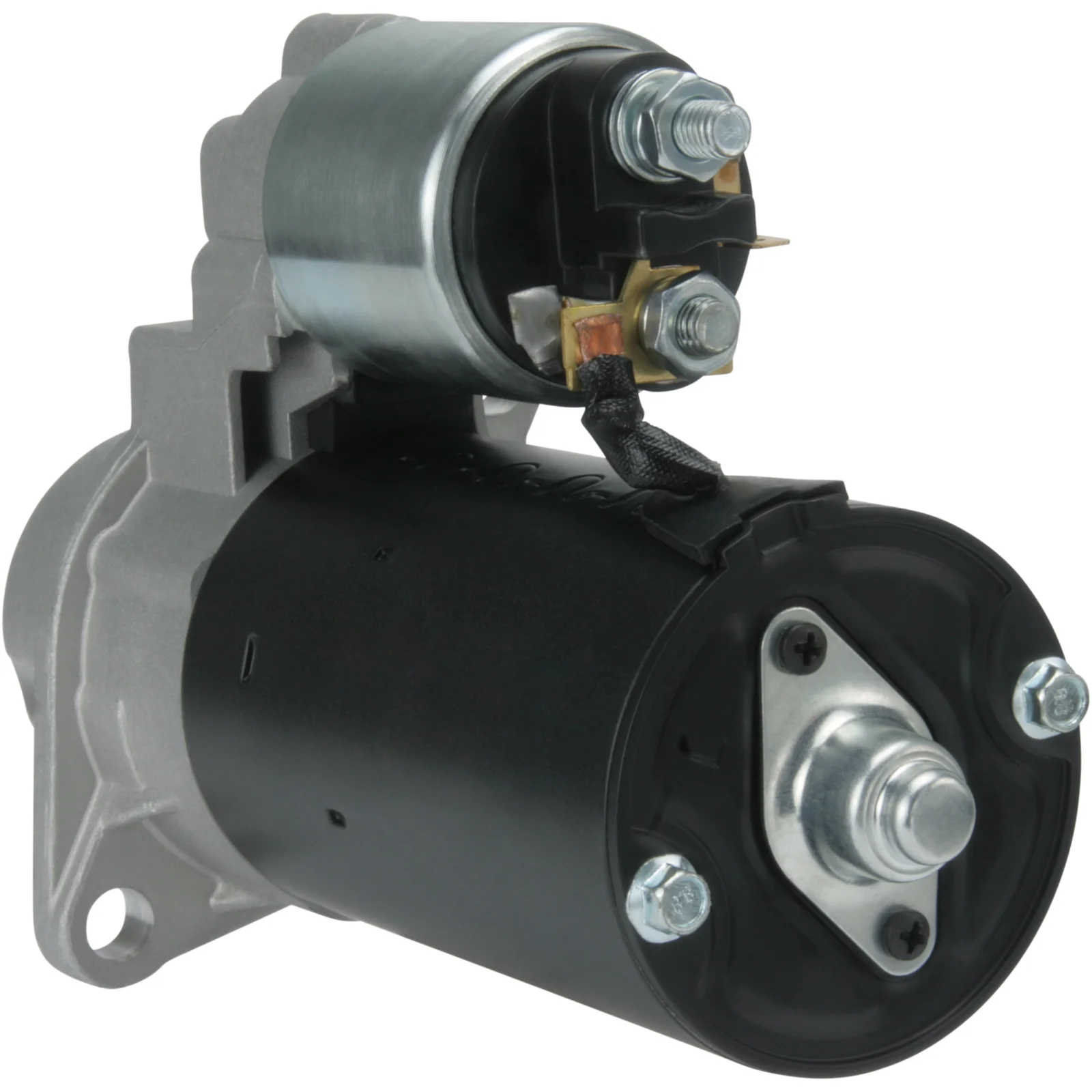

HC-Cargo Startmotor
HC-Cargo Startmotor
Artikelnr: F032112304

HC-Cargo Startmotor

Teknisk info:

Voltage: 12, kW: 1.4, No./teeth: 9, Rotation: CCW

Beskrivning

Voltage: 12
kW: 1.4
Mount. flange: 76.20
Drive dist.: 35.00
Mount. hole 2 mm: 11.00
Mount. hole 1 mm: 11.00
Dist./back: 158.00
Dist./front: 72.00
No./teeth: 9
B+: M8
Position/50: 15
Terminal 50: 6.30
Gear type: GR
Dist. mm: 105.00
Rotation: CCW
Total length mm: 242.00
Drive type: Steel
Prod. info: BN
Waterproof: No
Oil sealed: No
No./mount. holes: 2 (0)

Filer

Specifikation

B+ M8
No./teeth 9
Mount. flange 76.20
Oil sealed No
No./mount. holes 2 (0)
Position/50 15
Prod. info BN
Rotation CCW
Dist./back 158.00
Dist./front 72.00
Drive dist. 35.00
Drive type Steel
Gear type GR
kW 1.4
Terminal 50 6.30
Voltage 12
Total length 242.00 mm
Waterproof No
Dist. 105.00 mm
Mount. hole 2 11.00 mm
Mount. hole 1 11.00 mm

  • OEM
    aze2502, cs1182, F032112304, 11.130.417, 2110-3708010, 5702.3708, 0001108194, 0001108203, 2110370801003, 2110370801004, 21100370801002, 21110370801003, 211003708010002

  • Konkurrentreferens
    CST10485, CST49101, DRS3715, F04200L000, F042S0L000, is0417, LRS02306, MS189, S0267, S9009, S9105, STR-L020, STRL020, 25-2348, 323.003.092, 33306N, 101182, 104757, 8080318, 11023780, 11090143, 0986023730, 0986023780

  • Normaliserat artikelnummer
    aze2502, cs1182, cst10485, cst49101, drs3715, f032112304, f04200l000, f042s0l000, is0417, lrs02306, ms189, s0267, s9009, s9105, strl020, 33306n, 101182, 104757, 252348, 0001108194, 0001108203, 8080318, 11023780, 11090143, 11130417, 57023708, 323003092, 0986023730, 0986023780, 21103708010, 2110370801003, 2110370801004, 21100370801002, 21110370801003, 211003708010002

  • Passar modeller
    Lada Model: 110 Model series: 110 Size of motor: 1.5 Brand of engine: BA32111 From date: 01-01-1995 To date: 01-12-2005 Fuel: Gasoline Approved: Yes
    Lada Model: 110 Model series: 110 Size of motor: 1.5 Brand of engine: VAZ-2111 From date: 01-01-1995 To date: 01-12-2005 Fuel: Gasoline Approved: Yes
    Lada Model: 110 Model series: 110 Type of engine: 16V Size of motor: 1.5 Brand of engine: VAZ-2112 From date: 01-01-1995 To date: 01-12-2005 Fuel: Gasoline Approved: Yes
    Lada Model: 111 Model series: 111 Size of motor: 1.5 Brand of engine: VAZ-2111 Body: Estate From date: 01-01-1996 To date: 01-12-2005 Fuel: Gasoline Approved: Yes
    Lada Model: 111 Model series: 111 Size of motor: 1.6 Brand of engine: VAZ-21114 Body: Estate From date: 01-09-2004 To date: 01-02-2009 Fuel: Gasoline Approved: Yes
    Lada Model: 111 Model series: 111 Size of motor: 1.6 Brand of engine: VAZ-21124 Body: Estate From date: 01-09-2004 To date: 01-12-2007 Fuel: Gasoline Approved: Yes
    Lada Model: 111 Model series: 111 Type of engine: 16V Size of motor: 1.5 Brand of engine: VAZ-2112 Body: Estate From date: 01-01-1995 To date: 01-08-2002 Fuel: Gasoline Approved: Yes
    Lada Model: 112 Model series: 112 Size of motor: 1.5 Brand of engine: VAZ-2111 Body: Hatchback From date: 01-01-1995 To date: 01-09-2004 Fuel: Gasoline Approved: Yes
    Lada Model: 112 Model series: 112 Type of engine: 16V Size of motor: 1.5 Brand of engine: VAZ-2112 Body: Hatchback From date: 01-01-1995 To date: 01-09-2000 Fuel: Gasoline Approved: Yes
    Lada Model: Kalina Model series: Kalina Size of motor: 1.6 Brand of engine: VAZ-11186 Type description: 2194 Body: Estate From date: 01-11-2013 To date: 01-09-2018 Fuel: Gasoline Approved: Yes Manufacture type: Kombi
    Lada Model: Kalina Model series: Kalina Size of motor: 1.6 Brand of engine: VAZ-21114, VAZ-21124 Type description: 1118 From date: 01-10-2004 To date: 01-12-2013 Fuel: Gasoline Approved: Yes
    Lada Model: Priora Model series: Priora Size of motor: 1.8 Brand of engine: 21128 Type description: 2170_ From date: 01-10-2014 To date: 01-08-2016 Fuel: Petrol Approved: Yes
    Lada Model: Samara Model series: Samara Model type: 1500 Forma Size of motor: 1.5 Brand of engine: BA32111 Type description: 2108 From date: 01-11-1994 To date: 01-12-2006 Fuel: Gasoline Approved: Yes
    Lada Model: Samara Model series: Samara Model type: 1500 Size of motor: 1.5 Brand of engine: BA32111 Type description: 2108 Body: Hatchback From date: 01-02-1995 To date: 01-12-2006 Fuel: Gasoline Approved: Yes
    Lada Model: Samara Model series: Samara Size of motor: 1.5 Type description: 2110 From date: 01-03-1993 Fuel: Gasoline Approved: Yes
    Lada Model: Samara Model series: Samara Size of motor: 1.6 Brand of engine: 11183 Type description: 2108, 2109, 2113, 2114 Body: Hatchback Fuel: Petrol Approved: Yes
    1 / 4
  • Beskrivning
    Voltage: 12
    kW: 1.4
    Mount. flange: 76.20
    Drive dist.: 35.00
    Mount. hole 2 mm: 11.00
    Mount. hole 1 mm: 11.00
    Dist./back: 158.00
    Dist./front: 72.00
    No./teeth: 9
    B+: M8
    Position/50: 15
    Terminal 50: 6.30
    Gear type: GR
    Dist. mm: 105.00
    Rotation: CCW
    Total length mm: 242.00
    Drive type: Steel
    Prod. info: BN
    Waterproof: No
    Oil sealed: No
    No./mount. holes: 2 (0)

    Filer

  • Specifikation
    B+ M8
    No./teeth 9
    Mount. flange 76.20
    Oil sealed No
    No./mount. holes 2 (0)
    Position/50 15
    Prod. info BN
    Rotation CCW
    Dist./back 158.00
    Dist./front 72.00
    Drive dist. 35.00
    Drive type Steel
    Gear type GR
    kW 1.4
    Terminal 50 6.30
    Voltage 12
    Total length 242.00 mm
    Waterproof No
    Dist. 105.00 mm
    Mount. hole 2 11.00 mm
    Mount. hole 1 11.00 mm
  • Fordonsmatchning

    • OEM
      aze2502, cs1182, F032112304, 11.130.417, 2110-3708010, 5702.3708, 0001108194, 0001108203, 2110370801003, 2110370801004, 21100370801002, 21110370801003, 211003708010002

    • Konkurrentreferens
      CST10485, CST49101, DRS3715, F04200L000, F042S0L000, is0417, LRS02306, MS189, S0267, S9009, S9105, STR-L020, STRL020, 25-2348, 323.003.092, 33306N, 101182, 104757, 8080318, 11023780, 11090143, 0986023730, 0986023780

    • Normaliserat artikelnummer
      aze2502, cs1182, cst10485, cst49101, drs3715, f032112304, f04200l000, f042s0l000, is0417, lrs02306, ms189, s0267, s9009, s9105, strl020, 33306n, 101182, 104757, 252348, 0001108194, 0001108203, 8080318, 11023780, 11090143, 11130417, 57023708, 323003092, 0986023730, 0986023780, 21103708010, 2110370801003, 2110370801004, 21100370801002, 21110370801003, 211003708010002

    • Passar modeller
      Lada Model: 110 Model series: 110 Size of motor: 1.5 Brand of engine: BA32111 From date: 01-01-1995 To date: 01-12-2005 Fuel: Gasoline Approved: Yes
      Lada Model: 110 Model series: 110 Size of motor: 1.5 Brand of engine: VAZ-2111 From date: 01-01-1995 To date: 01-12-2005 Fuel: Gasoline Approved: Yes
      Lada Model: 110 Model series: 110 Type of engine: 16V Size of motor: 1.5 Brand of engine: VAZ-2112 From date: 01-01-1995 To date: 01-12-2005 Fuel: Gasoline Approved: Yes
      Lada Model: 111 Model series: 111 Size of motor: 1.5 Brand of engine: VAZ-2111 Body: Estate From date: 01-01-1996 To date: 01-12-2005 Fuel: Gasoline Approved: Yes
      Lada Model: 111 Model series: 111 Size of motor: 1.6 Brand of engine: VAZ-21114 Body: Estate From date: 01-09-2004 To date: 01-02-2009 Fuel: Gasoline Approved: Yes
      Lada Model: 111 Model series: 111 Size of motor: 1.6 Brand of engine: VAZ-21124 Body: Estate From date: 01-09-2004 To date: 01-12-2007 Fuel: Gasoline Approved: Yes
      Lada Model: 111 Model series: 111 Type of engine: 16V Size of motor: 1.5 Brand of engine: VAZ-2112 Body: Estate From date: 01-01-1995 To date: 01-08-2002 Fuel: Gasoline Approved: Yes
      Lada Model: 112 Model series: 112 Size of motor: 1.5 Brand of engine: VAZ-2111 Body: Hatchback From date: 01-01-1995 To date: 01-09-2004 Fuel: Gasoline Approved: Yes
      Lada Model: 112 Model series: 112 Type of engine: 16V Size of motor: 1.5 Brand of engine: VAZ-2112 Body: Hatchback From date: 01-01-1995 To date: 01-09-2000 Fuel: Gasoline Approved: Yes
      Lada Model: Kalina Model series: Kalina Size of motor: 1.6 Brand of engine: VAZ-11186 Type description: 2194 Body: Estate From date: 01-11-2013 To date: 01-09-2018 Fuel: Gasoline Approved: Yes Manufacture type: Kombi
      Lada Model: Kalina Model series: Kalina Size of motor: 1.6 Brand of engine: VAZ-21114, VAZ-21124 Type description: 1118 From date: 01-10-2004 To date: 01-12-2013 Fuel: Gasoline Approved: Yes
      Lada Model: Priora Model series: Priora Size of motor: 1.8 Brand of engine: 21128 Type description: 2170_ From date: 01-10-2014 To date: 01-08-2016 Fuel: Petrol Approved: Yes
      Lada Model: Samara Model series: Samara Model type: 1500 Forma Size of motor: 1.5 Brand of engine: BA32111 Type description: 2108 From date: 01-11-1994 To date: 01-12-2006 Fuel: Gasoline Approved: Yes
      Lada Model: Samara Model series: Samara Model type: 1500 Size of motor: 1.5 Brand of engine: BA32111 Type description: 2108 Body: Hatchback From date: 01-02-1995 To date: 01-12-2006 Fuel: Gasoline Approved: Yes
      Lada Model: Samara Model series: Samara Size of motor: 1.5 Type description: 2110 From date: 01-03-1993 Fuel: Gasoline Approved: Yes
      Lada Model: Samara Model series: Samara Size of motor: 1.6 Brand of engine: 11183 Type description: 2108, 2109, 2113, 2114 Body: Hatchback Fuel: Petrol Approved: Yes
