Artikelnr: F032112301

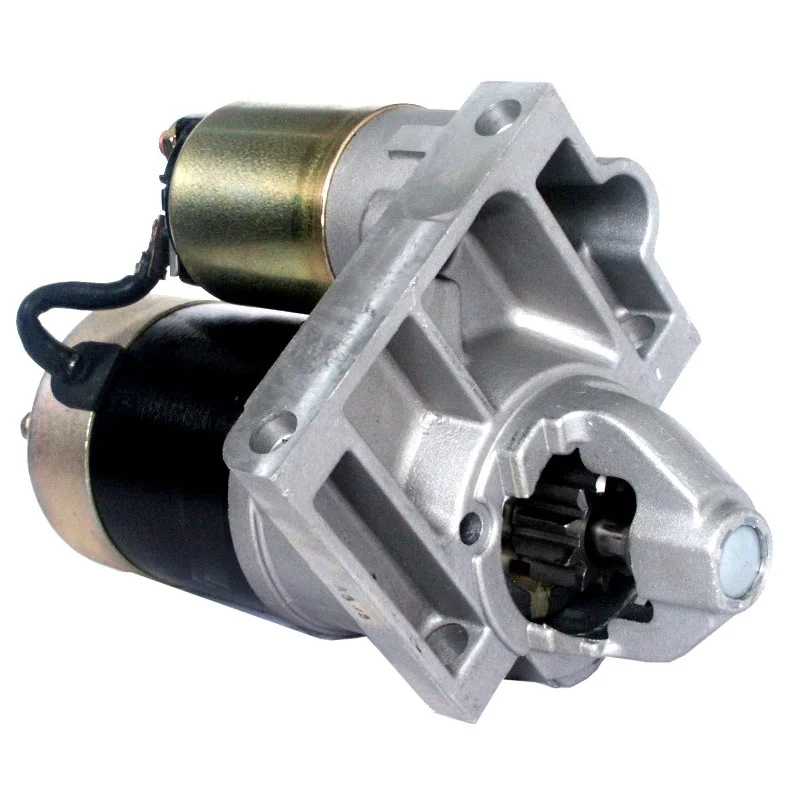

HC-Cargo Startmotor

Teknisk info:

Voltage: 12, kW: 1.2, No./teeth: 10, Rotation: CW

Beskrivning

Voltage: 12
kW: 1.2
Mount. flange: 60.00
Drive dist.: 18.00
Mount. hole 2 mm: 9.70
Mount. hole 1 mm: 9.70
Dist./back: 153.00
Dist./front: 55.00
No./teeth: 10
B+: M8
Thread length mm: 16.50
Position/50: 45
Terminal 50: M5
Gear type: GR
Dist. mm: 86.00
Rotation: CW
Total length mm: 207.50
Clutch type: Dry
Drive type: Steel
Prod. info: BN
Waterproof: No
Oil sealed: No
No./mount. holes: 2 (0)

Filer

Specifikation

B+ M8
No./teeth 10
Mount. flange 60.00
Oil sealed No
No./mount. holes 2 (0)
Position/50 45
Clutch type Dry
Prod. info BN
Rotation CW
Dist./back 153.00
Dist./front 55.00
Drive dist. 18.00
Drive type Steel
Gear type GR
kW 1.2
Terminal 50 M5
Voltage 12
Total length 207.50 mm
Waterproof No
Dist. 86.00 mm
Thread length 16.50 mm
Mount. hole 2 9.70 mm
Mount. hole 1 9.70 mm

  • OEM
    cs1175, F032112301, M001T79481, M001T79482, m1t79481, m1t79482, 4796981, 56027904, 56041013

  • Konkurrentreferens
    BSO7125, CST35204, drz5172, ds17564, F042001064, F042S01064, lrt00102, QS1655, s1282m, S5125, sc-0070r, smt0087, SR6520X, STR-3069, STR3069, 2-1782-mi, 8EA012528-311, 25-1240, 25-3242, 35-2586, 670.005.102, 3855, 17253, 17564, 17564N, 17564R, 31486, 101175, 104756, 458612, 11040759

  • Normaliserat artikelnummer
    bso7125, cs1175, cst35204, drz5172, ds17564, f032112301, f042001064, f042s01064, lrt00102, m001t79481, m001t79482, m1t79481, m1t79482, qs1655, s1282m, s5125, sc0070r, smt0087, sr6520x, str3069, 8ea012528311, 3855, 17253, 17564, 17564n, 17564r, 21782mi, 31486, 101175, 104756, 251240, 253242, 352586, 458612, 4796981, 11040759, 56027904, 56041013, 670005102

  • Passar modeller
    Dodge Model: Dakota Model series: Dakota Size of motor: 2.5 From date: 01-01-1996 To date: 01-01-1996 Fuel: Gasoline Approved: Yes
    Dodge Model: Dakota Model series: Dakota Size of motor: 2.5 From date: 01-01-1997 To date: 01-01-1997 Fuel: Gasoline Approved: Yes
    Dodge Model: Dakota Model series: Dakota Size of motor: 2.5 From date: 01-01-1998 To date: 01-01-1998 Fuel: Gasoline Approved: Yes
    Jeep Model: Cherokee Model series: Cherokee Model type: 4x4 Size of motor: 2.5 Brand of engine: EPE Type description: XJ Body: Closed Off-Road Vehicle From date: 01-10-1990 To date: 01-09-1996 Fuel: Petrol Approved: Yes
    Jeep Model: Cherokee Model series: Cherokee Model type: SE Size of motor: 2.5 From date: 01-01-1994 To date: 01-01-1997 Fuel: Gasoline Approved: Yes
    Jeep Model: Cherokee Model series: Cherokee Size of motor: 2.5 From date: 01-01-1998 To date: 01-01-1998 Fuel: Gasoline Approved: Yes
    Jeep Model: Cherokee Model series: Cherokee Type of engine: i Size of motor: 2.5 Brand of engine: EPE Type description: XJ From date: 01-10-1984 To date: 01-09-2001 Fuel: Gasoline Approved: Yes
    Jeep Model: Cherokee Model series: Cherokee Type of engine: i Size of motor: 2.5 Brand of engine: EPE Type description: XJ From date: 01-12-1991 To date: 01-09-2001 Fuel: Gasoline Approved: Yes
    Jeep Model: Cherokee Model series: Cherokee Type of engine: i Size of motor: 2.5 Brand of engine: HX Type description: XJ From date: 01-12-1991 To date: 01-09-2001 Fuel: Gasoline Approved: Yes
    Jeep Model: Wagoneer Model series: Wagoneer Model type: Rio Grande Size of motor: 2.5 From date: 01-01-1995 To date: 01-01-1995 Fuel: Gasoline Approved: Yes
    Jeep Model: Wagoneer Model series: Wagoneer Model type: SE Size of motor: 2.5 From date: 01-01-1994 To date: 01-01-1997 Fuel: Gasoline Approved: Yes
    Jeep Model: Wrangler Model series: Wrangler Size of motor: 2.5 Brand of engine: EPE Type description: YJ, SJ_ From date: 01-12-1991 To date: 01-08-1996 Fuel: Gasoline Approved: Yes
    Jeep Model: Wrangler Model series: Wrangler Size of motor: 2.5 Brand of engine: P00 Body: Convertible From date: 01-08-1996 To date: 01-04-2007 Fuel: Gasoline Approved: Yes
    Jeep Model: Wrangler Model series: Wrangler Size of motor: 2.5 From date: 01-01-1998 To date: 01-01-1998 Fuel: Gasoline Approved: Yes
