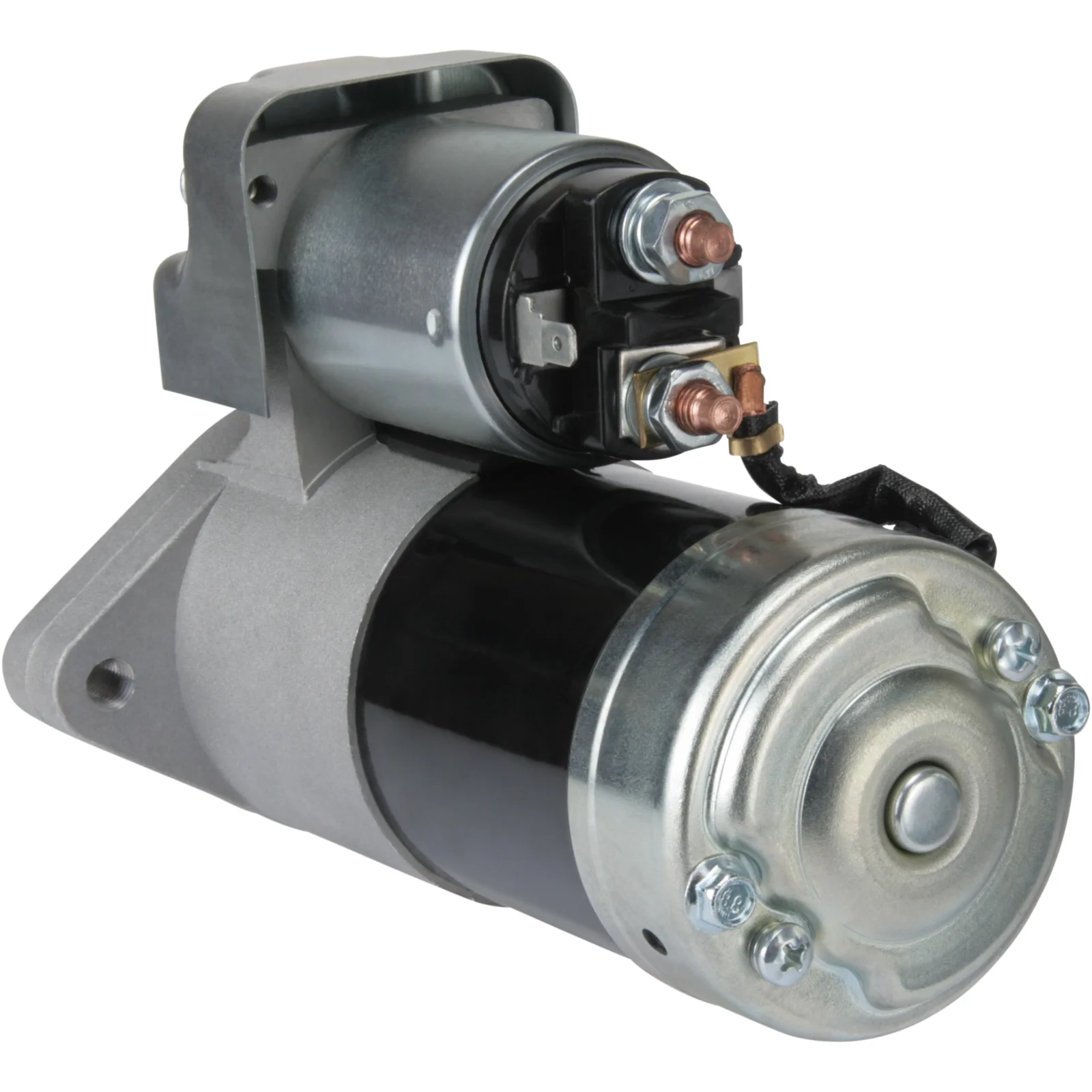

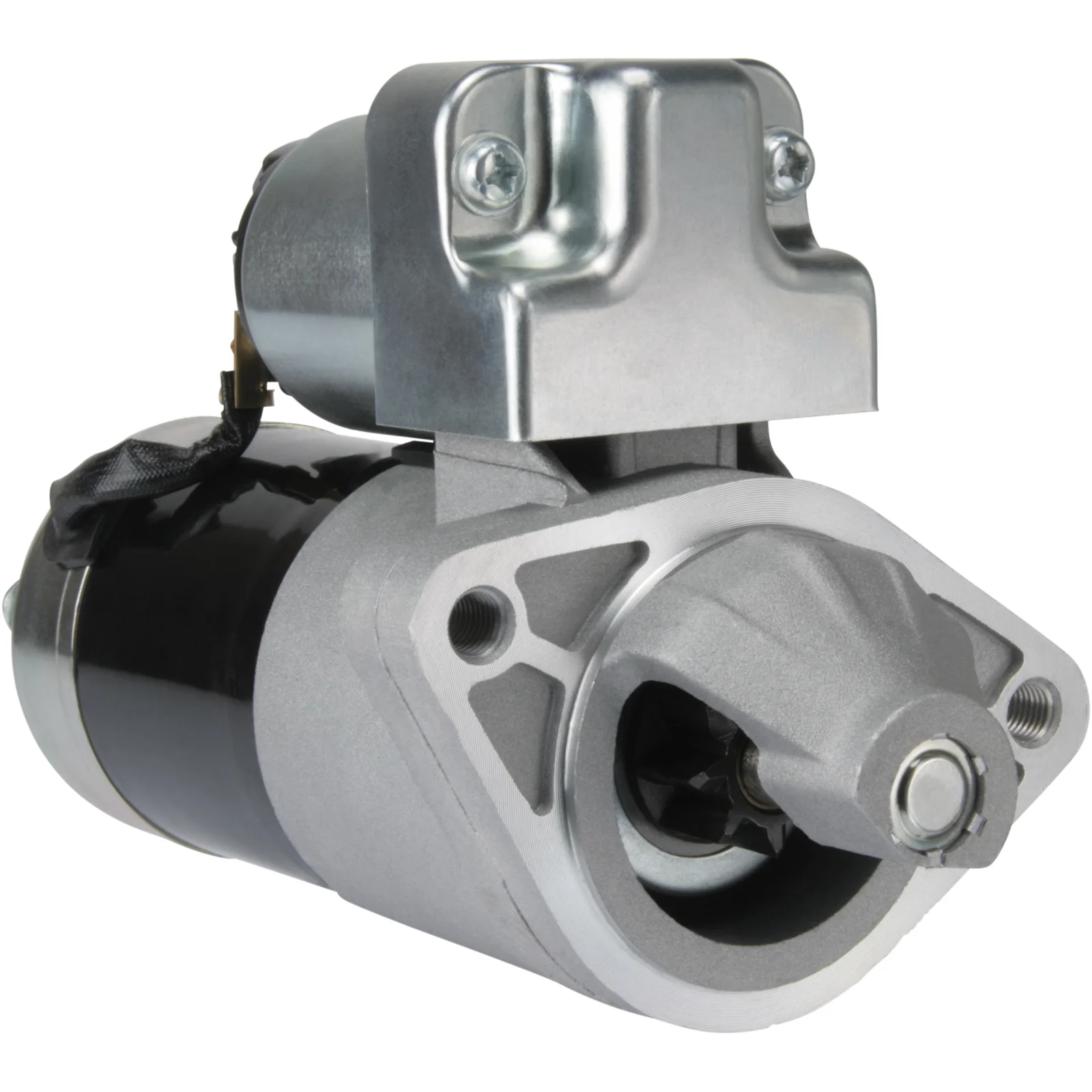

HC-Cargo Startmotor
HC-Cargo Startmotor
Artikelnr: F032112300

HC-Cargo Startmotor

Teknisk info:

Voltage: 12, kW: 1.4, No./teeth: 8, Rotation: CW

Beskrivning

Voltage: 12
kW: 1.4
Mount. flange: 66.00
Drive dist.: 4.50
Dist./back: 163.50
Dist./front: 40.00
No./teeth: 8
B+: M8
Position/50: 45
Terminal 50: 6.30
Gear type: GR
Dist. mm: 100.00
Rotation: CW
Total length mm: 208.00
Drive type: Steel
Prod. info: BN
Waterproof: No
Oil sealed: No
No./mount. holes: 2 (2)

Filer

Specifikation

B+ M8
No./teeth 8
Mount. flange 66.00
Oil sealed No
No./mount. holes 2 (2)
Position/50 45
Prod. info BN
Rotation CW
Dist./back 163.50
Dist./front 40.00
Drive dist. 4.50
Drive type Steel
Gear type GR
kW 1.4
Terminal 50 6.30
Voltage 12
Total length 208.00 mm
Waterproof No
Dist. 100.00 mm

  • OEM
    F032112300, js1153, M000T85681, M000T85681ZC, M000T85881, M001T76481, M001T79581, M001T86181, m0t85681, M0T85681ZC, m0t85881, m1t76481, m1t79581, M1T86181, 1A5018400, 6840, 31100-65da0, 31100-67D10, 31100-67D20, 31100-77e10, 31100-77E10-000, 31100-77E11, 31100-77E11-000, 31100-77e20, 31100-77E20-000, 31100-77e22

  • Konkurrentreferens
    CST35138, DRS3885, F042001100, F042S01100, J5218014, s-8770, S5139, sj-0081r, STR-3514, STR71064, 2-1991-mi, 8EA737741-001, 25-2150, 345.015.082, 345.016.082, 17686, 17783, 17783N, 104755, 105363, 201153, 220597, 220597A, 458577, 8212393, 11040626, 0986020501

  • Normaliserat artikelnummer
    cst35138, drs3885, f032112300, f042001100, f042s01100, j5218014, js1153, m000t85681, m000t85681zc, m000t85881, m001t76481, m001t79581, m001t86181, m0t85681, m0t85681zc, m0t85881, m1t76481, m1t79581, m1t86181, s5139, s8770, sj0081r, str3514, str71064, 1a5018400, 8ea737741001, 6840, 17686, 17783, 17783n, 21991mi, 104755, 105363, 201153, 220597, 220597a, 252150, 458577, 3110065da0, 3110067d10, 3110067d20, 3110077e10, 3110077e10000, 3110077e11, 3110077e11000, 3110077e20, 3110077e20000, 3110077e22, 8212393, 11040626, 345015082, 345016082, 0986020501

  • Passar modeller
    Chevrolet Model: Grand Vitara Model series: Grand Vitara Model type: 4WD Size of motor: 2.0 Brand of engine: J20A Body: Closed Off-Road Vehicle Fuel: Petrol Approved: Yes
    Chevrolet Model: Tracker Model series: Tracer Size of motor: 1.6 From date: 01-01-1999 To date: 01-01-2000 Fuel: Gasoline Approved: Yes
    Chevrolet Model: Tracker Model series: Tracker Size of motor: 2.0 Brand of engine: J20A From date: 01-01-1999 To date: 01-01-2003 Fuel: Gasoline Approved: Yes
    Suzuki Model: Grand Vitara Model series: Grand Vitara Model type: 4x4 (SQ 420) Size of motor: 2.0 Brand of engine: J20A Type description: FT, HT Body: Closed Off-Road Vehicle From date: 01-09-1998 To date: 01-12-2003 Fuel: Petrol Approved: Yes
    Suzuki Model: Grand Vitara Model series: Grand Vitara Model type: 4x4 Size of motor: 2.0 Brand of engine: J20A Type description: FT, GT From date: 01-04-1998 To date: 01-08-2005 Fuel: Gasoline Approved: Yes
    Suzuki Model: Grand Vitara Model series: Grand Vitara Model type: All-wheel Drive (JB627) Size of motor: 2.7 Brand of engine: H27A Type description: JT, TE, TD Body: Closed Off-Road Vehicle From date: 01-10-2006 To date: 01-11-2007 Fuel: Petrol Approved: Yes
    Suzuki Model: Grand Vitara Model series: Grand Vitara Model type: XL-7 Size of motor: 2.7 Brand of engine: H27A Type description: FT, GT From date: 01-04-2003 To date: 01-07-2003 Fuel: Gasoline Approved: Yes
    Suzuki Model: Grand Vitara Model series: Grand Vitara Model type: XL-7 Size of motor: 2.7 From date: 01-01-2001 To date: 01-01-2001 Fuel: Gasoline Approved: Yes
    Suzuki Model: Grand Vitara Model series: Grand Vitara Model type: XL-7 Size of motor: 2.7 From date: 01-01-2002 To date: 01-01-2002 Fuel: Gasoline Approved: Yes
    Suzuki Model: Grand Vitara Model series: Grand Vitara Size of motor: 2.0 Brand of engine: J20A From date: 01-10-2005 To date: 01-02-2015 Fuel: Gasoline Approved: Yes
    Suzuki Model: Grand Vitara Model series: Grand Vitara Size of motor: 2.5 From date: 01-01-1999 To date: 01-01-2000 Fuel: Gasoline Approved: Yes
    Suzuki Model: Grand Vitara Model series: Grand Vitara Size of motor: 2.5 From date: 01-01-2001 To date: 01-01-2002 Fuel: Gasoline Approved: Yes
    Suzuki Model: Grand Vitara Model series: Grand Vitara Size of motor: 2.5 From date: 01-01-2003 To date: 01-01-2003 Fuel: Gasoline Approved: Yes
    Suzuki Model: Grand Vitara Model series: Grand Vitara Type of engine: V6 24V Size of motor: 2.5 Brand of engine: H25A Type description: FT, GT From date: 01-04-2001 To date: 01-07-2003 Fuel: Gasoline Approved: Yes
    Suzuki Model: Grand Vitara Model series: Grand Vitara Type of engine: V6 Size of motor: 2.7 Brand of engine: H27A From date: 01-09-2001 To date: 01-07-2003 Fuel: Gasoline Approved: Yes
    Suzuki Model: Vitara Model series: Vitara Model type: Lang Type of engine: i Size of motor: 2.0 Brand of engine: H20A From date: 01-12-1994 To date: 01-03-1998 Fuel: Gasoline Approved: Yes
    Suzuki Model: Vitara Model series: Vitara Size of motor: 1.6 From date: 01-01-1999 To date: 01-01-2001 Fuel: Gasoline Approved: Yes
    Suzuki Model: Vitara Model series: Vitara Size of motor: 2.0 From date: 01-01-1999 To date: 01-01-2000 Fuel: Gasoline Approved: Yes
    Suzuki Model: Vitara Model series: Vitara Type of engine: i 24V Size of motor: 2.5 Brand of engine: H25A Type description: ET From date: 01-12-1995 To date: 01-03-1998 Fuel: Gasoline Approved: Yes
    Suzuki Model: Vitara Model series: Vitara Type of engine: V6 24V Size of motor: 2.5 Brand of engine: H25A From date: 01-04-1998 To date: 01-07-2003 Fuel: Gasoline Approved: Yes
    1 / 4
  • Beskrivning
    Voltage: 12
    kW: 1.4
    Mount. flange: 66.00
    Drive dist.: 4.50
    Dist./back: 163.50
    Dist./front: 40.00
    No./teeth: 8
    B+: M8
    Position/50: 45
    Terminal 50: 6.30
    Gear type: GR
    Dist. mm: 100.00
    Rotation: CW
    Total length mm: 208.00
    Drive type: Steel
    Prod. info: BN
    Waterproof: No
    Oil sealed: No
    No./mount. holes: 2 (2)

    Filer

  • Specifikation
    B+ M8
    No./teeth 8
    Mount. flange 66.00
    Oil sealed No
    No./mount. holes 2 (2)
    Position/50 45
    Prod. info BN
    Rotation CW
    Dist./back 163.50
    Dist./front 40.00
    Drive dist. 4.50
    Drive type Steel
    Gear type GR
    kW 1.4
    Terminal 50 6.30
    Voltage 12
    Total length 208.00 mm
    Waterproof No
    Dist. 100.00 mm
  • Fordonsmatchning

    • OEM
      F032112300, js1153, M000T85681, M000T85681ZC, M000T85881, M001T76481, M001T79581, M001T86181, m0t85681, M0T85681ZC, m0t85881, m1t76481, m1t79581, M1T86181, 1A5018400, 6840, 31100-65da0, 31100-67D10, 31100-67D20, 31100-77e10, 31100-77E10-000, 31100-77E11, 31100-77E11-000, 31100-77e20, 31100-77E20-000, 31100-77e22

    • Konkurrentreferens
      CST35138, DRS3885, F042001100, F042S01100, J5218014, s-8770, S5139, sj-0081r, STR-3514, STR71064, 2-1991-mi, 8EA737741-001, 25-2150, 345.015.082, 345.016.082, 17686, 17783, 17783N, 104755, 105363, 201153, 220597, 220597A, 458577, 8212393, 11040626, 0986020501

    • Normaliserat artikelnummer
      cst35138, drs3885, f032112300, f042001100, f042s01100, j5218014, js1153, m000t85681, m000t85681zc, m000t85881, m001t76481, m001t79581, m001t86181, m0t85681, m0t85681zc, m0t85881, m1t76481, m1t79581, m1t86181, s5139, s8770, sj0081r, str3514, str71064, 1a5018400, 8ea737741001, 6840, 17686, 17783, 17783n, 21991mi, 104755, 105363, 201153, 220597, 220597a, 252150, 458577, 3110065da0, 3110067d10, 3110067d20, 3110077e10, 3110077e10000, 3110077e11, 3110077e11000, 3110077e20, 3110077e20000, 3110077e22, 8212393, 11040626, 345015082, 345016082, 0986020501

    • Passar modeller
      Chevrolet Model: Grand Vitara Model series: Grand Vitara Model type: 4WD Size of motor: 2.0 Brand of engine: J20A Body: Closed Off-Road Vehicle Fuel: Petrol Approved: Yes
      Chevrolet Model: Tracker Model series: Tracer Size of motor: 1.6 From date: 01-01-1999 To date: 01-01-2000 Fuel: Gasoline Approved: Yes
      Chevrolet Model: Tracker Model series: Tracker Size of motor: 2.0 Brand of engine: J20A From date: 01-01-1999 To date: 01-01-2003 Fuel: Gasoline Approved: Yes
      Suzuki Model: Grand Vitara Model series: Grand Vitara Model type: 4x4 (SQ 420) Size of motor: 2.0 Brand of engine: J20A Type description: FT, HT Body: Closed Off-Road Vehicle From date: 01-09-1998 To date: 01-12-2003 Fuel: Petrol Approved: Yes
      Suzuki Model: Grand Vitara Model series: Grand Vitara Model type: 4x4 Size of motor: 2.0 Brand of engine: J20A Type description: FT, GT From date: 01-04-1998 To date: 01-08-2005 Fuel: Gasoline Approved: Yes
      Suzuki Model: Grand Vitara Model series: Grand Vitara Model type: All-wheel Drive (JB627) Size of motor: 2.7 Brand of engine: H27A Type description: JT, TE, TD Body: Closed Off-Road Vehicle From date: 01-10-2006 To date: 01-11-2007 Fuel: Petrol Approved: Yes
      Suzuki Model: Grand Vitara Model series: Grand Vitara Model type: XL-7 Size of motor: 2.7 Brand of engine: H27A Type description: FT, GT From date: 01-04-2003 To date: 01-07-2003 Fuel: Gasoline Approved: Yes
      Suzuki Model: Grand Vitara Model series: Grand Vitara Model type: XL-7 Size of motor: 2.7 From date: 01-01-2001 To date: 01-01-2001 Fuel: Gasoline Approved: Yes
      Suzuki Model: Grand Vitara Model series: Grand Vitara Model type: XL-7 Size of motor: 2.7 From date: 01-01-2002 To date: 01-01-2002 Fuel: Gasoline Approved: Yes
      Suzuki Model: Grand Vitara Model series: Grand Vitara Size of motor: 2.0 Brand of engine: J20A From date: 01-10-2005 To date: 01-02-2015 Fuel: Gasoline Approved: Yes
      Suzuki Model: Grand Vitara Model series: Grand Vitara Size of motor: 2.5 From date: 01-01-1999 To date: 01-01-2000 Fuel: Gasoline Approved: Yes
      Suzuki Model: Grand Vitara Model series: Grand Vitara Size of motor: 2.5 From date: 01-01-2001 To date: 01-01-2002 Fuel: Gasoline Approved: Yes
      Suzuki Model: Grand Vitara Model series: Grand Vitara Size of motor: 2.5 From date: 01-01-2003 To date: 01-01-2003 Fuel: Gasoline Approved: Yes
      Suzuki Model: Grand Vitara Model series: Grand Vitara Type of engine: V6 24V Size of motor: 2.5 Brand of engine: H25A Type description: FT, GT From date: 01-04-2001 To date: 01-07-2003 Fuel: Gasoline Approved: Yes
      Suzuki Model: Grand Vitara Model series: Grand Vitara Type of engine: V6 Size of motor: 2.7 Brand of engine: H27A From date: 01-09-2001 To date: 01-07-2003 Fuel: Gasoline Approved: Yes
      Suzuki Model: Vitara Model series: Vitara Model type: Lang Type of engine: i Size of motor: 2.0 Brand of engine: H20A From date: 01-12-1994 To date: 01-03-1998 Fuel: Gasoline Approved: Yes
      Suzuki Model: Vitara Model series: Vitara Size of motor: 1.6 From date: 01-01-1999 To date: 01-01-2001 Fuel: Gasoline Approved: Yes
      Suzuki Model: Vitara Model series: Vitara Size of motor: 2.0 From date: 01-01-1999 To date: 01-01-2000 Fuel: Gasoline Approved: Yes
      Suzuki Model: Vitara Model series: Vitara Type of engine: i 24V Size of motor: 2.5 Brand of engine: H25A Type description: ET From date: 01-12-1995 To date: 01-03-1998 Fuel: Gasoline Approved: Yes
      Suzuki Model: Vitara Model series: Vitara Type of engine: V6 24V Size of motor: 2.5 Brand of engine: H25A From date: 01-04-1998 To date: 01-07-2003 Fuel: Gasoline Approved: Yes
