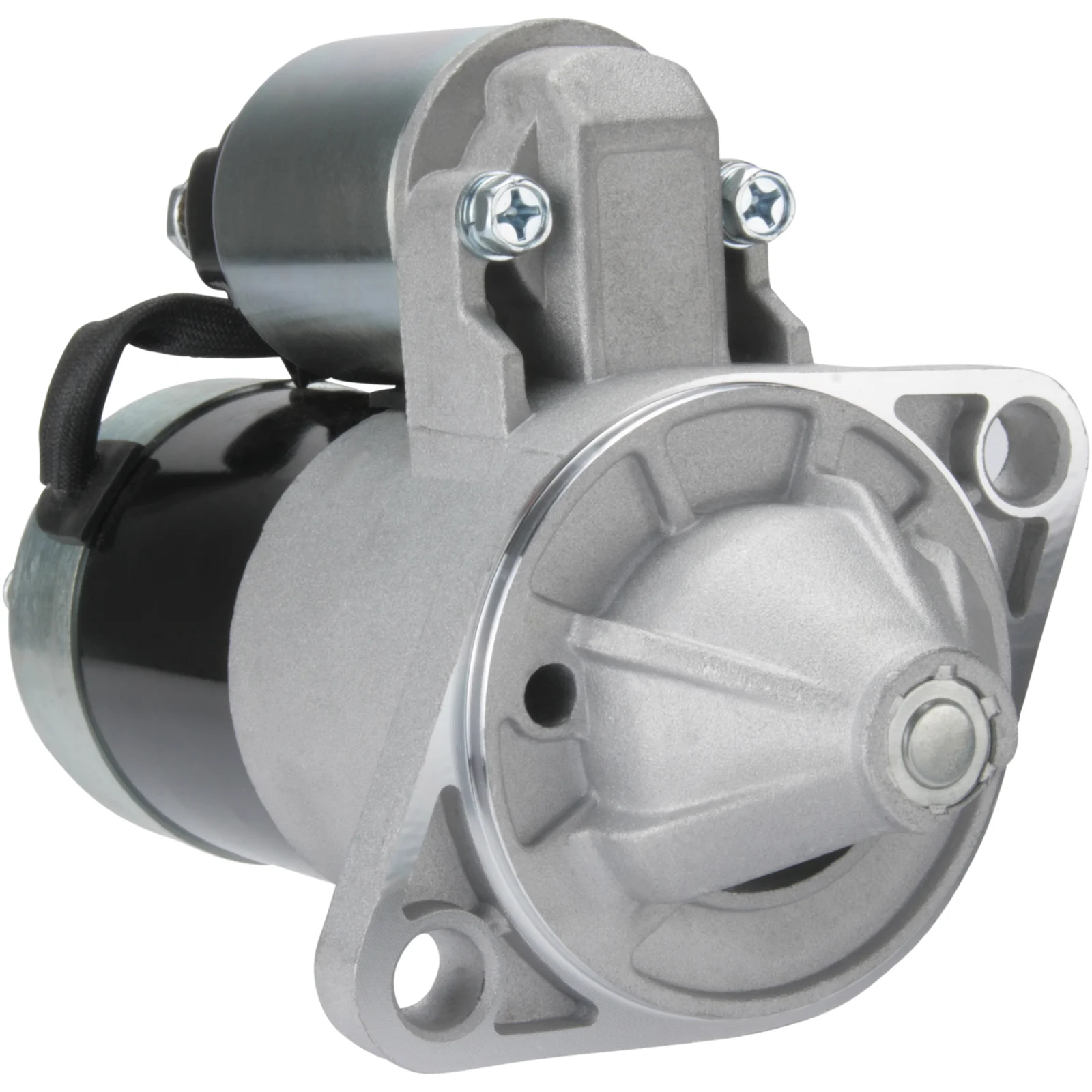

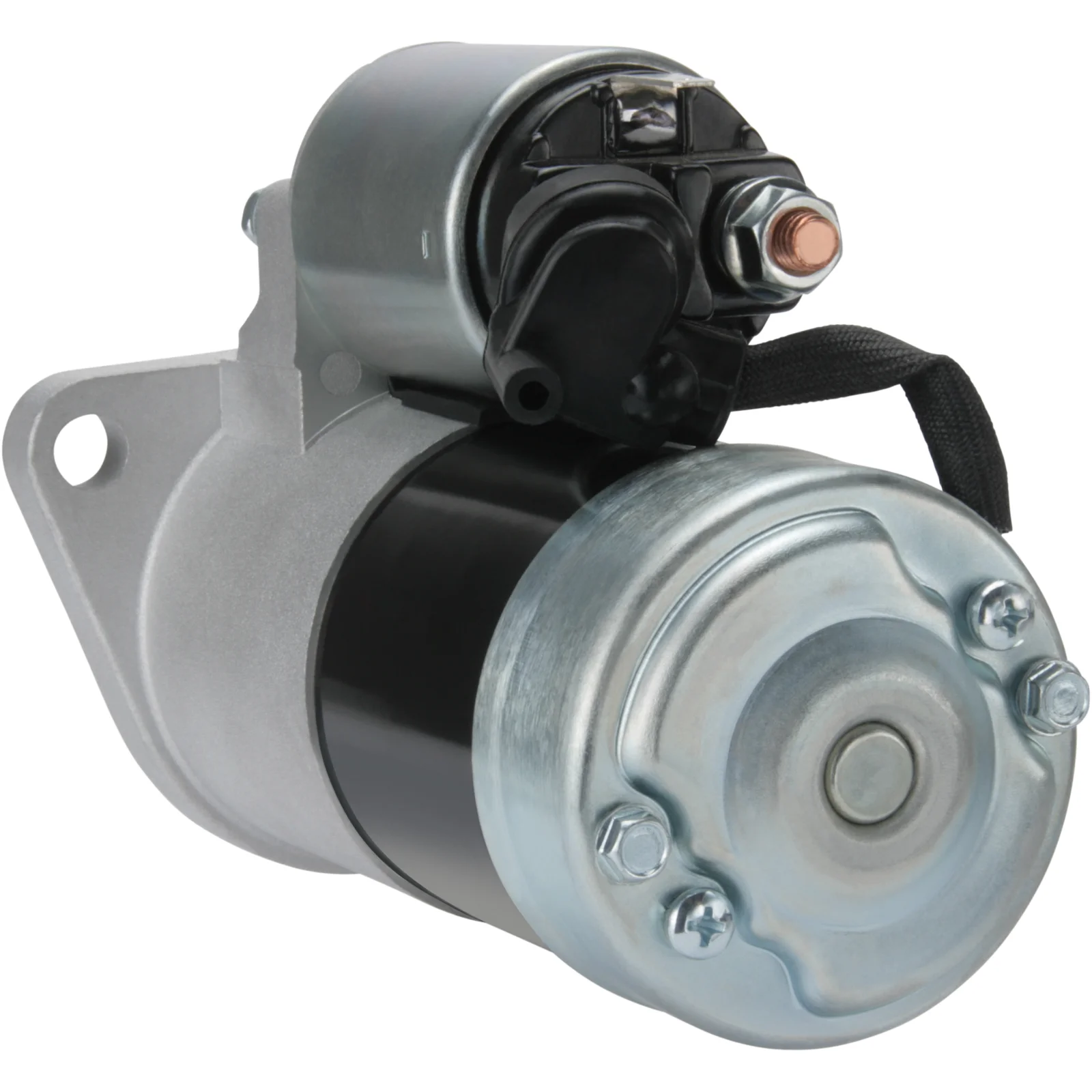

HC-Cargo Startmotor
HC-Cargo Startmotor
Artikelnr: F032112296

HC-Cargo Startmotor

Teknisk info:

Voltage: 12, kW: 1.0, No./teeth: 9, Rotation: CW

Beskrivning

Voltage: 12
kW: 1.0
Mount. flange: 82.00
Drive dist.: 7.00
Mount. hole 2 mm: 11.50
Mount. hole 1 mm: 11.50
Dist./back: 161.50
Dist./front: 42.00
No./teeth: 9
B+: M8
Position/50: 60
Terminal 50: 6.30
Gear type: DD/GR
Dist. mm: 110.00
Rotation: CW
Total length mm: 206.50
Drive type: Steel
Prod. info: BN
Waterproof: No
Oil sealed: No
Info: Not oilproof.
No./mount. holes: 2 (0)

Filer

Specifikation

B+ M8
No./teeth 9
Mount. flange 82.00
Oil sealed No
No./mount. holes 2 (0)
Position/50 60
Prod. info BN
Rotation CW
Dist./back 161.50
Dist./front 42.00
Drive dist. 7.00
Drive type Steel
Gear type DD/GR
Info Not oilproof.
kW 1.0
Terminal 50 6.30
Voltage 12
Total length 206.50 mm
Waterproof No
Dist. 110.00 mm
Mount. hole 2 11.50 mm
Mount. hole 1 11.50 mm

  • OEM
    F032112296, s114-134, s114-194, 104211-77010, 104211-77011, 114211-77010

  • Konkurrentreferens
    CST20171, LRS02185, s-2062, sfd0006, STR23001, 2-1884-FD-1, 25-0243, 91-02-5856, 682.002.092, 6648R, 16191, 16191N, 33872

  • Normaliserat artikelnummer
    cst20171, f032112296, lrs02185, s114134, s114194, s2062, sfd0006, str23001, 6648r, 16191, 16191n, 21884fd1, 33872, 250243, 91025856, 682002092, 10421177010, 10421177011, 11421177010

  • Passar modeller
    Yanmar Model: Various Models Model series: Various Models Approved: Yes
  • Beskrivning
    Voltage: 12
    kW: 1.0
    Mount. flange: 82.00
    Drive dist.: 7.00
    Mount. hole 2 mm: 11.50
    Mount. hole 1 mm: 11.50
    Dist./back: 161.50
    Dist./front: 42.00
    No./teeth: 9
    B+: M8
    Position/50: 60
    Terminal 50: 6.30
    Gear type: DD/GR
    Dist. mm: 110.00
    Rotation: CW
    Total length mm: 206.50
    Drive type: Steel
    Prod. info: BN
    Waterproof: No
    Oil sealed: No
    Info: Not oilproof.
    No./mount. holes: 2 (0)

    Filer

  • Specifikation
    B+ M8
    No./teeth 9
    Mount. flange 82.00
    Oil sealed No
    No./mount. holes 2 (0)
    Position/50 60
    Prod. info BN
    Rotation CW
    Dist./back 161.50
    Dist./front 42.00
    Drive dist. 7.00
    Drive type Steel
    Gear type DD/GR
    Info Not oilproof.
    kW 1.0
    Terminal 50 6.30
    Voltage 12
    Total length 206.50 mm
    Waterproof No
    Dist. 110.00 mm
    Mount. hole 2 11.50 mm
    Mount. hole 1 11.50 mm
  • Fordonsmatchning

    • OEM
      F032112296, s114-134, s114-194, 104211-77010, 104211-77011, 114211-77010

    • Konkurrentreferens
      CST20171, LRS02185, s-2062, sfd0006, STR23001, 2-1884-FD-1, 25-0243, 91-02-5856, 682.002.092, 6648R, 16191, 16191N, 33872

    • Normaliserat artikelnummer
      cst20171, f032112296, lrs02185, s114134, s114194, s2062, sfd0006, str23001, 6648r, 16191, 16191n, 21884fd1, 33872, 250243, 91025856, 682002092, 10421177010, 10421177011, 11421177010

    • Passar modeller
      Yanmar Model: Various Models Model series: Various Models Approved: Yes
