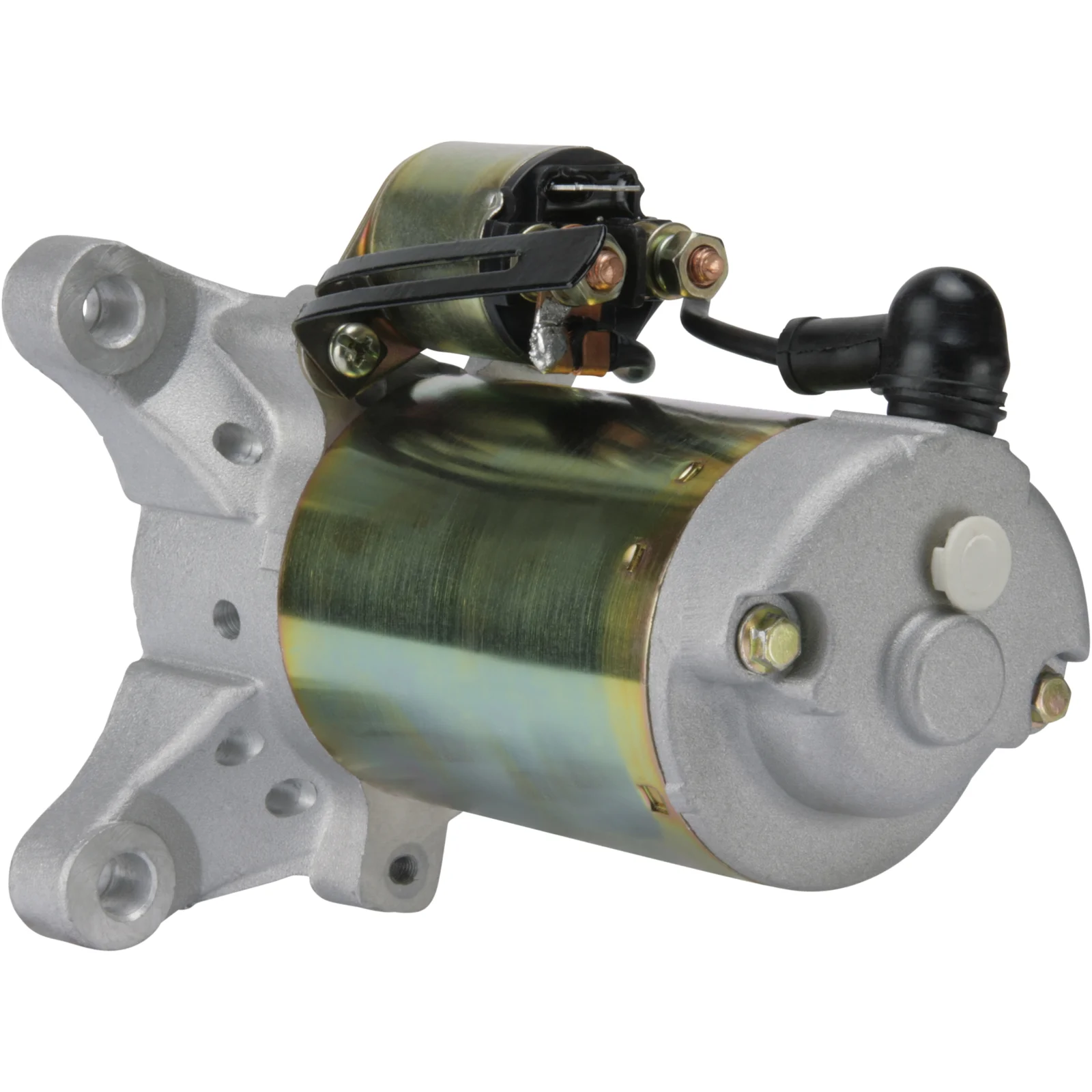

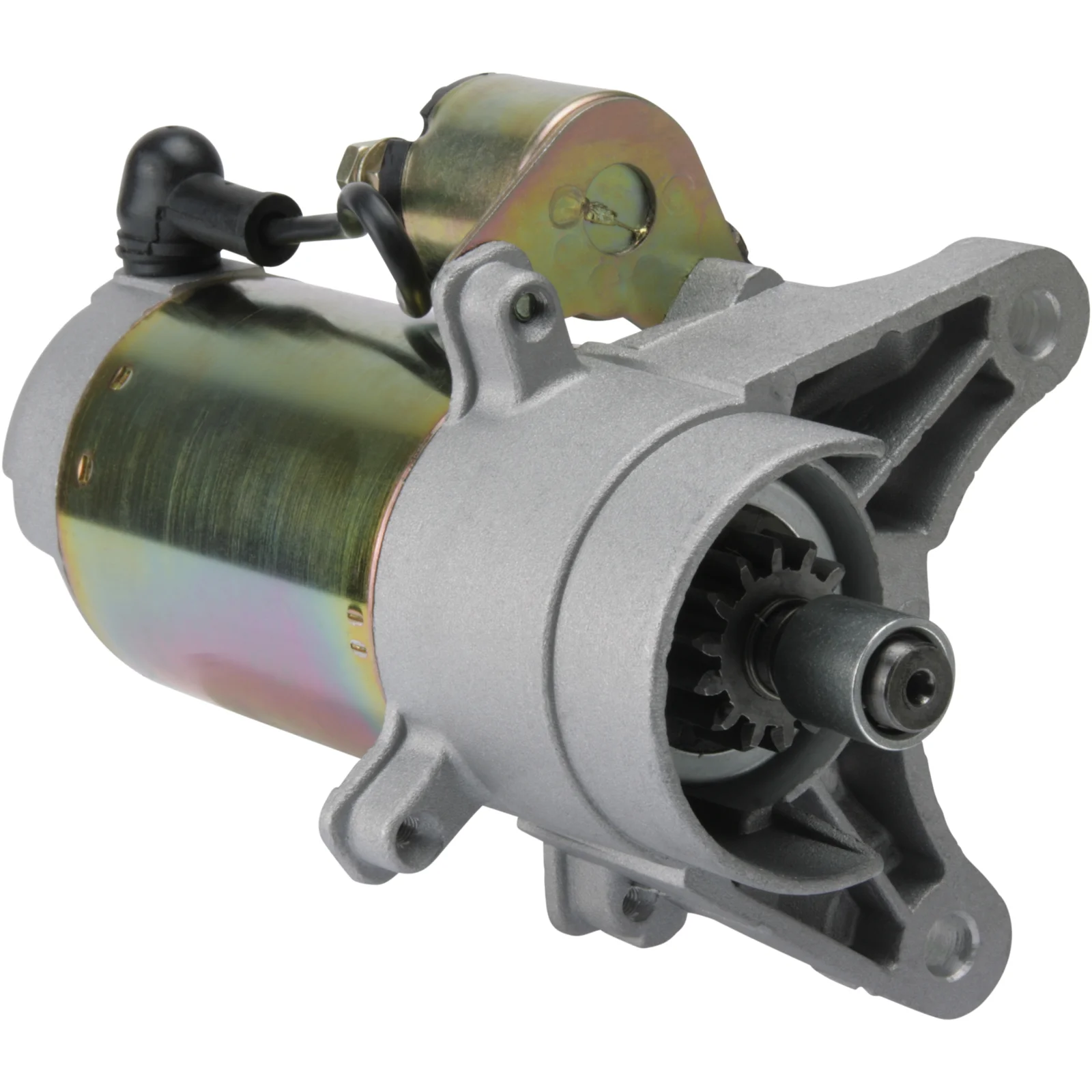

HC-Cargo Startmotor
HC-Cargo Startmotor
Artikelnr: F032112246

HC-Cargo Startmotor

Teknisk info:

Voltage: 12, kW: 0.6, No./teeth: 14, Rotation: CCW

Beskrivning

Voltage: 12
kW: 0.6
Mount. flange: 62.50
Drive dist.: 10.00
Mount. hole 2 mm: 8.70
Mount. hole 1 mm: 8.70
Dist./back: 152.50
Dist./front: 39.00
No./teeth: 14
B+: M6
Thread length mm: 6.50
Position/50: 60
Terminal 50: 6.30
Gear type: DD
Dist. mm: 91.00
Rotation: CCW
Total length mm: 193.00
Clutch type: Dry
Drive type: Steel
Prod. info: BN
Waterproof: No
Oil sealed: No
Remarks: Solenoid: HC-CARGO 133711.
No./mount. holes: 2 (0)

Filer

Specifikation

B+ M6
No./teeth 14
Mount. flange 62.50
Oil sealed No
No./mount. holes 2 (0)
Position/50 60
Clutch type Dry
Prod. info BN
Remarks Solenoid: HC-CARGO 133711.
Rotation CCW
Dist./back 152.50
Dist./front 39.00
Drive dist. 10.00
Drive type Steel
Gear type DD
kW 0.6
Terminal 50 6.30
Voltage 12
Total length 193.00 mm
Waterproof No
Dist. 91.00 mm
Thread length 6.50 mm
Mount. hole 2 8.70 mm
Mount. hole 1 8.70 mm

  • OEM
    DB5DP, DB5X2, F032112246, 028000-6110, 028000-6111, 028000-8410, 028000-8411, 31100-za1-0030, 31200-ZA1-0030, 31200-ZE8-801, 31200-ze8-8010, 128000-2950, 128000-4600, 128000-4601, 128000-5290

  • Konkurrentreferens
    CST40260, DRS0586, LRS01149, LRS02278, snd0081, STR30031, 25-1113, 91-29-5397, 120.021.142, 622.004.142, 18350, 18350N, 254476

  • Normaliserat artikelnummer
    cst40260, db5dp, db5x2, drs0586, f032112246, lrs01149, lrs02278, snd0081, str30031, 18350, 18350n, 31100za10030, 31200za10030, 31200ze8801, 31200ze88010, 251113, 254476, 91295397, 120021142, 0280006110, 0280006111, 0280008410, 0280008411, 622004142, 1280002950, 1280004600, 1280004601, 1280005290

  • Passar modeller
    Honda Model: GX Model series: GX340DE33 Approved: Yes
    Honda Model: GX Model series: GXV390SE33 Approved: Yes
    John Deere Model: Various Models Model series: Various Models Fuel: Diesel Approved: Yes
  • Beskrivning
    Voltage: 12
    kW: 0.6
    Mount. flange: 62.50
    Drive dist.: 10.00
    Mount. hole 2 mm: 8.70
    Mount. hole 1 mm: 8.70
    Dist./back: 152.50
    Dist./front: 39.00
    No./teeth: 14
    B+: M6
    Thread length mm: 6.50
    Position/50: 60
    Terminal 50: 6.30
    Gear type: DD
    Dist. mm: 91.00
    Rotation: CCW
    Total length mm: 193.00
    Clutch type: Dry
    Drive type: Steel
    Prod. info: BN
    Waterproof: No
    Oil sealed: No
    Remarks: Solenoid: HC-CARGO 133711.
    No./mount. holes: 2 (0)

    Filer

  • Specifikation
    B+ M6
    No./teeth 14
    Mount. flange 62.50
    Oil sealed No
    No./mount. holes 2 (0)
    Position/50 60
    Clutch type Dry
    Prod. info BN
    Remarks Solenoid: HC-CARGO 133711.
    Rotation CCW
    Dist./back 152.50
    Dist./front 39.00
    Drive dist. 10.00
    Drive type Steel
    Gear type DD
    kW 0.6
    Terminal 50 6.30
    Voltage 12
    Total length 193.00 mm
    Waterproof No
    Dist. 91.00 mm
    Thread length 6.50 mm
    Mount. hole 2 8.70 mm
    Mount. hole 1 8.70 mm
  • Fordonsmatchning

    • OEM
      DB5DP, DB5X2, F032112246, 028000-6110, 028000-6111, 028000-8410, 028000-8411, 31100-za1-0030, 31200-ZA1-0030, 31200-ZE8-801, 31200-ze8-8010, 128000-2950, 128000-4600, 128000-4601, 128000-5290

    • Konkurrentreferens
      CST40260, DRS0586, LRS01149, LRS02278, snd0081, STR30031, 25-1113, 91-29-5397, 120.021.142, 622.004.142, 18350, 18350N, 254476

    • Normaliserat artikelnummer
      cst40260, db5dp, db5x2, drs0586, f032112246, lrs01149, lrs02278, snd0081, str30031, 18350, 18350n, 31100za10030, 31200za10030, 31200ze8801, 31200ze88010, 251113, 254476, 91295397, 120021142, 0280006110, 0280006111, 0280008410, 0280008411, 622004142, 1280002950, 1280004600, 1280004601, 1280005290

    • Passar modeller
      Honda Model: GX Model series: GX340DE33 Approved: Yes
      Honda Model: GX Model series: GXV390SE33 Approved: Yes
      John Deere Model: Various Models Model series: Various Models Fuel: Diesel Approved: Yes
