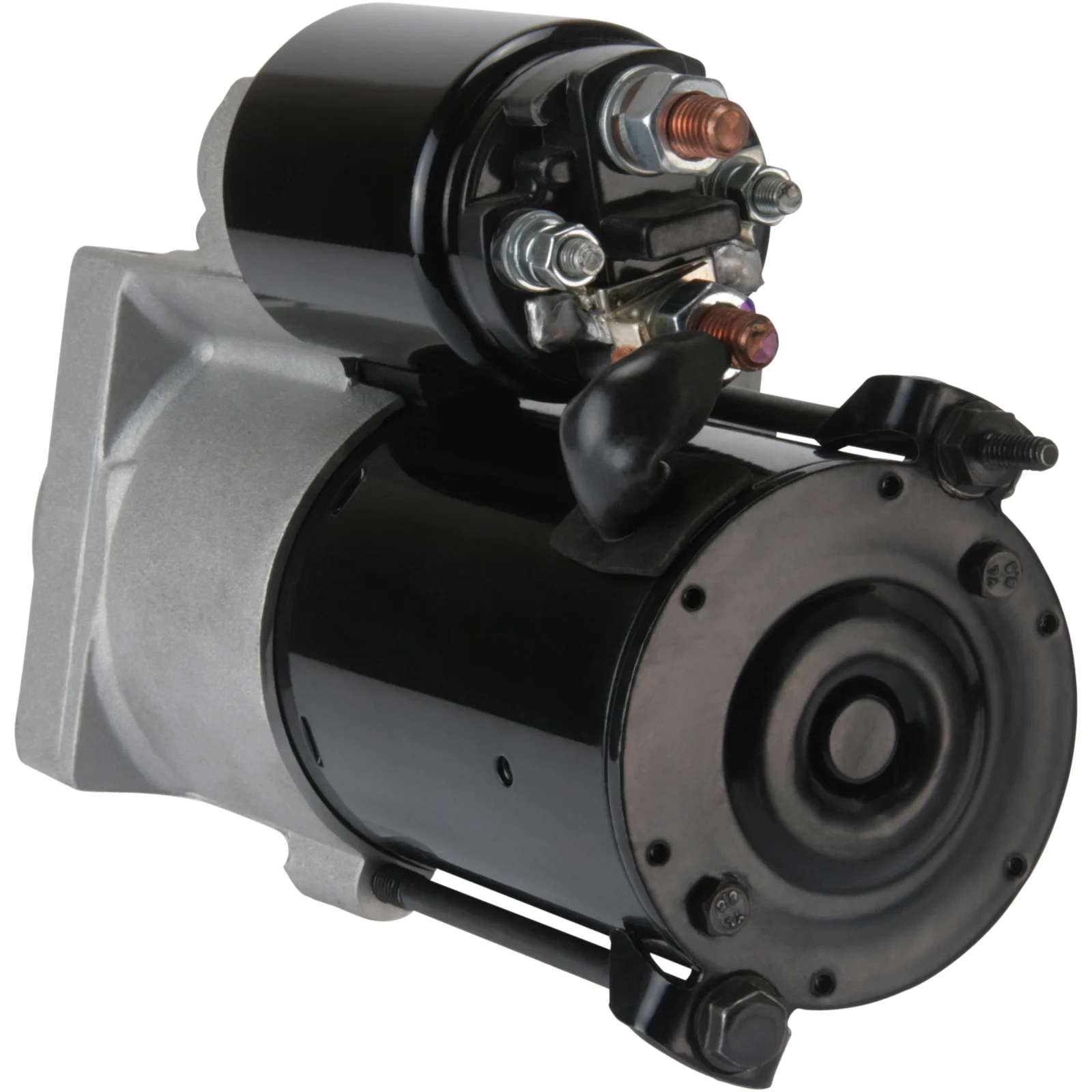

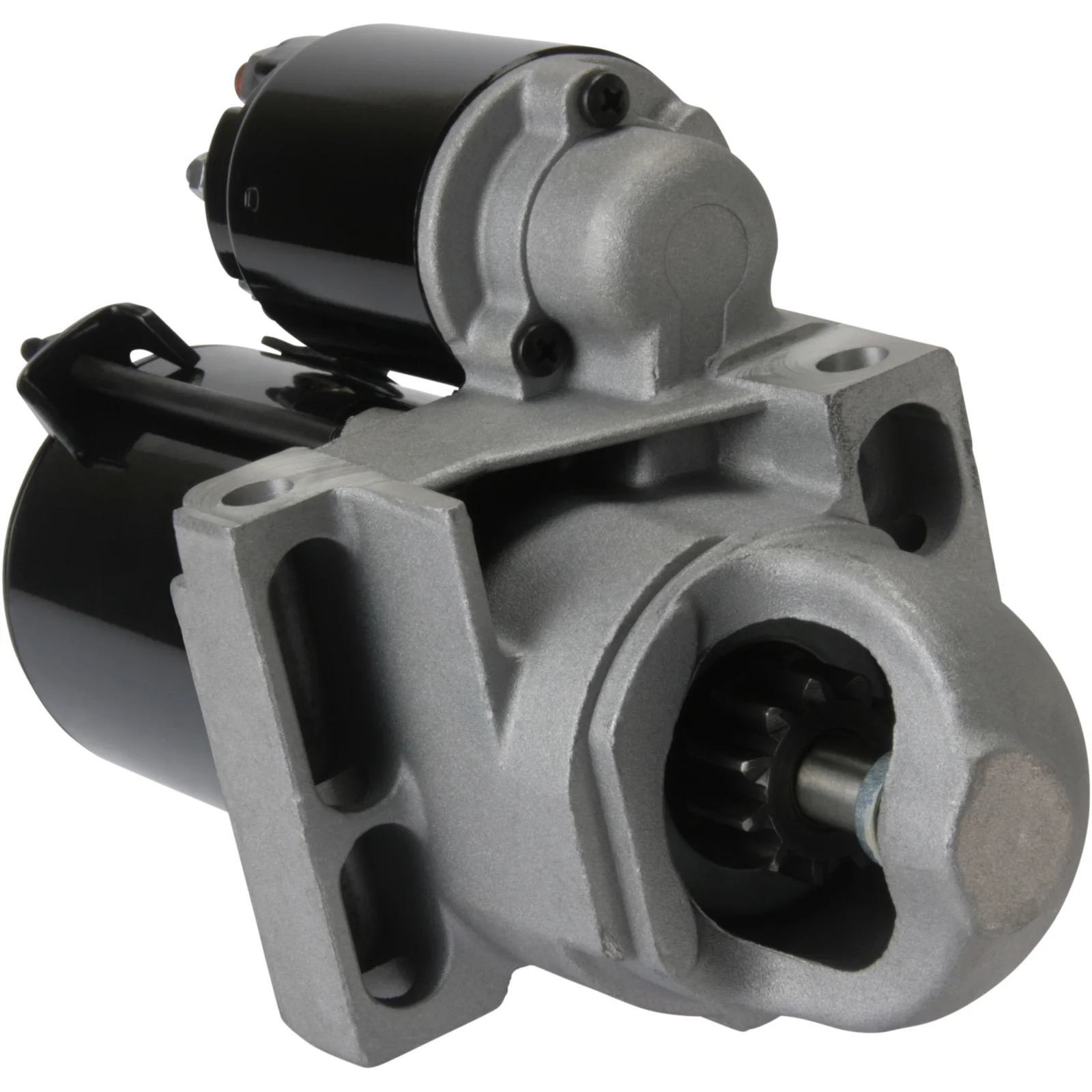

HC-Cargo Startmotor
HC-Cargo Startmotor
Artikelnr: F032112239

HC-Cargo Startmotor

Teknisk info:

Voltage: 12, kW: 1.4, No./teeth: 9, Rotation: CW

Beskrivning

Start. 12V-1.4kW passar Penta 12V - 1.4kW, 9/11k, 4 term. Alternative ST-6562 passar fast 1.7kw och lite längre För Yourex produkt order ST-6792

Voltage: 12
kW: 1.4
Mount. flange: 68.00
Drive dist.: 18.00
Mount. hole 2 mm: 10.00
Mount. hole 1 mm: 10.00
Dist./back: 162.00
Dist./front: 57.00
No./teeth: 9
B+: M8
Position/15a: 45
Terminal 15a: M5
Thread length mm: 11.00
Position/50: 15
Terminal 50: M5
Gear type: GR
Dist. mm: 82.50
Rotation: CW
Total length mm: 232.00
Drive type: Steel
Prod. info: BN
Waterproof: No
Oil sealed: No
Remarks: Replacing: PG260f1
No./mount. holes: 2 (0)

Filer

Specifikation

B+ M8
No./teeth 9
Mount. flange 68.00
Oil sealed No
No./mount. holes 2 (0)
Position/15a 45
Position/50 15
Prod. info BN
Remarks Replacing: PG260f1
Rotation CW
Dist./back 162.00
Dist./front 57.00
Drive dist. 18.00
Drive type Steel
Gear type GR
kW 1.4
Terminal 50 M5
Voltage 12
Total length 232.00 mm
Waterproof No
Dist. 82.50 mm
Thread length 11.00 mm
Terminal 15A M5 mm
Mount. hole 2 10.00 mm
Mount. hole 1 10.00 mm

  • OEM
    F032112239, 50-809904A1, 50-809904a1, 50-863007A1, 3660566, 3860566, 8000282, 9000839, 9000840, 9000884

  • Konkurrentreferens
    S1008, S1248S, 2-1999-DR, 2-1999-DR-2, 6791, 6792BN

  • Bilmärken
    Mercury Marine, Mariner Outboard, Volvo Penta

  • Normaliserat artikelnummer
    f032112239, s1008, s1248s, 6791, 6792bn, 21999dr, 21999dr2, 3660566, 3860566, 8000282, 9000839, 9000840, 9000884, 50809904a1, 50863007a1

  • Passar modeller
    Mercruiser Model: Engine Model series: Various Models Size of motor: 3.0 Approved: Yes
    Mercruiser Model: Engine Model series: Various Models Size of motor: 4.3 Approved: Yes
    Mercruiser Model: Engine Model series: Various Models Size of motor: 5.0 Approved: Yes
    Mercruiser Model: Engine Model series: Various Models Size of motor: 5.7 Approved: Yes
    Mercruiser, Mercury Marine Inboard & Stern Drive Model: 3.0 Engine volume: 3.0 Year: 01.99-
    Volvo Penta Series: Marin Model: WT 3.0
    1 / 2
  • Beskrivning
    Start. 12V-1.4kW passar Penta 12V - 1.4kW, 9/11k, 4 term. Alternative ST-6562 passar fast 1.7kw och lite längre För Yourex produkt order ST-6792

    Voltage: 12
    kW: 1.4
    Mount. flange: 68.00
    Drive dist.: 18.00
    Mount. hole 2 mm: 10.00
    Mount. hole 1 mm: 10.00
    Dist./back: 162.00
    Dist./front: 57.00
    No./teeth: 9
    B+: M8
    Position/15a: 45
    Terminal 15a: M5
    Thread length mm: 11.00
    Position/50: 15
    Terminal 50: M5
    Gear type: GR
    Dist. mm: 82.50
    Rotation: CW
    Total length mm: 232.00
    Drive type: Steel
    Prod. info: BN
    Waterproof: No
    Oil sealed: No
    Remarks: Replacing: PG260f1
    No./mount. holes: 2 (0)

    Filer

  • Specifikation
    B+ M8
    No./teeth 9
    Mount. flange 68.00
    Oil sealed No
    No./mount. holes 2 (0)
    Position/15a 45
    Position/50 15
    Prod. info BN
    Remarks Replacing: PG260f1
    Rotation CW
    Dist./back 162.00
    Dist./front 57.00
    Drive dist. 18.00
    Drive type Steel
    Gear type GR
    kW 1.4
    Terminal 50 M5
    Voltage 12
    Total length 232.00 mm
    Waterproof No
    Dist. 82.50 mm
    Thread length 11.00 mm
    Terminal 15A M5 mm
    Mount. hole 2 10.00 mm
    Mount. hole 1 10.00 mm
  • Fordonsmatchning

    • OEM
      F032112239, 50-809904A1, 50-809904a1, 50-863007A1, 3660566, 3860566, 8000282, 9000839, 9000840, 9000884

    • Konkurrentreferens
      S1008, S1248S, 2-1999-DR, 2-1999-DR-2, 6791, 6792BN

    • Bilmärken
      Mercury Marine, Mariner Outboard, Volvo Penta

    • Normaliserat artikelnummer
      f032112239, s1008, s1248s, 6791, 6792bn, 21999dr, 21999dr2, 3660566, 3860566, 8000282, 9000839, 9000840, 9000884, 50809904a1, 50863007a1

    • Passar modeller
      Mercruiser Model: Engine Model series: Various Models Size of motor: 3.0 Approved: Yes
      Mercruiser Model: Engine Model series: Various Models Size of motor: 4.3 Approved: Yes
      Mercruiser Model: Engine Model series: Various Models Size of motor: 5.0 Approved: Yes
      Mercruiser Model: Engine Model series: Various Models Size of motor: 5.7 Approved: Yes
      Mercruiser, Mercury Marine Inboard & Stern Drive Model: 3.0 Engine volume: 3.0 Year: 01.99-
      Volvo Penta Series: Marin Model: WT 3.0
