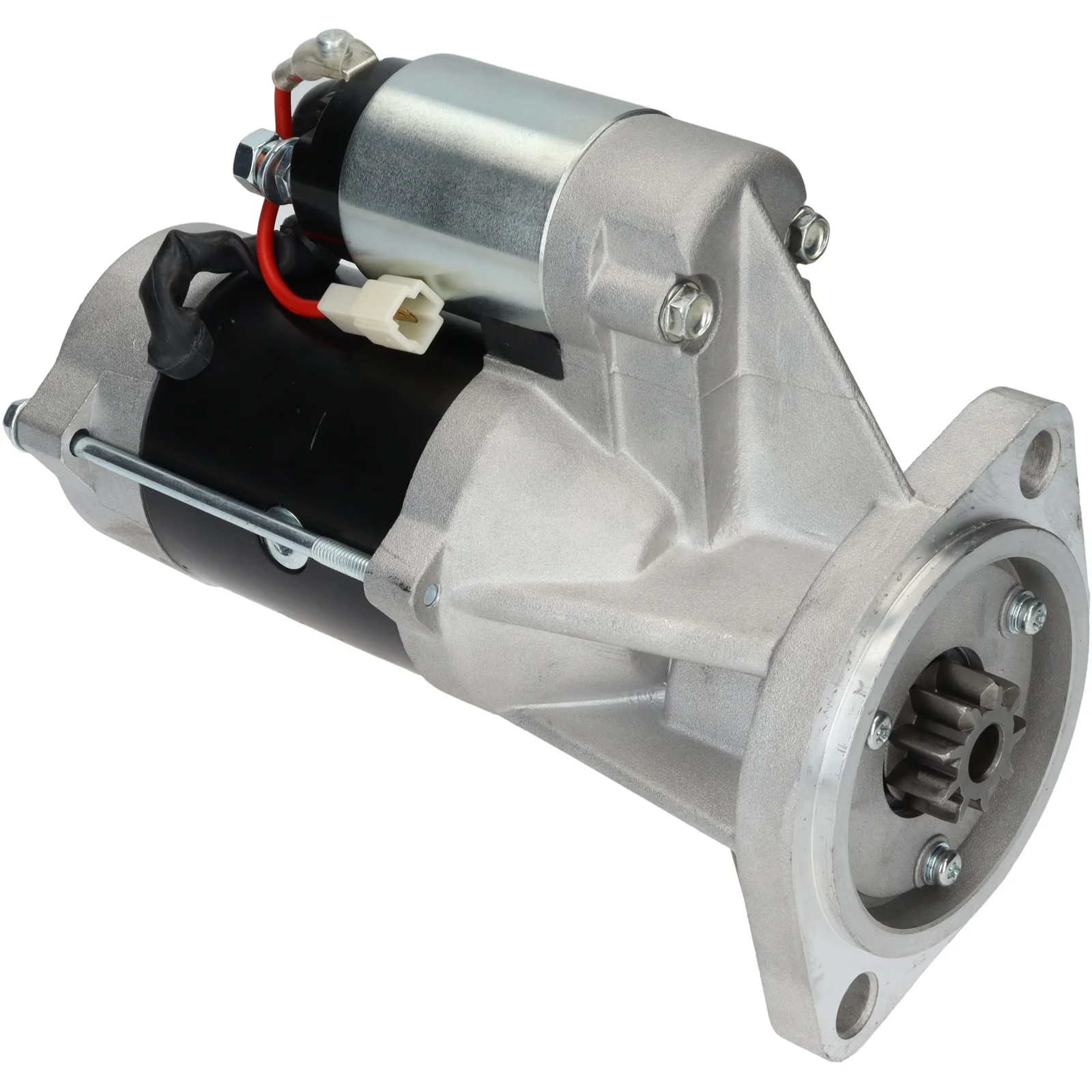

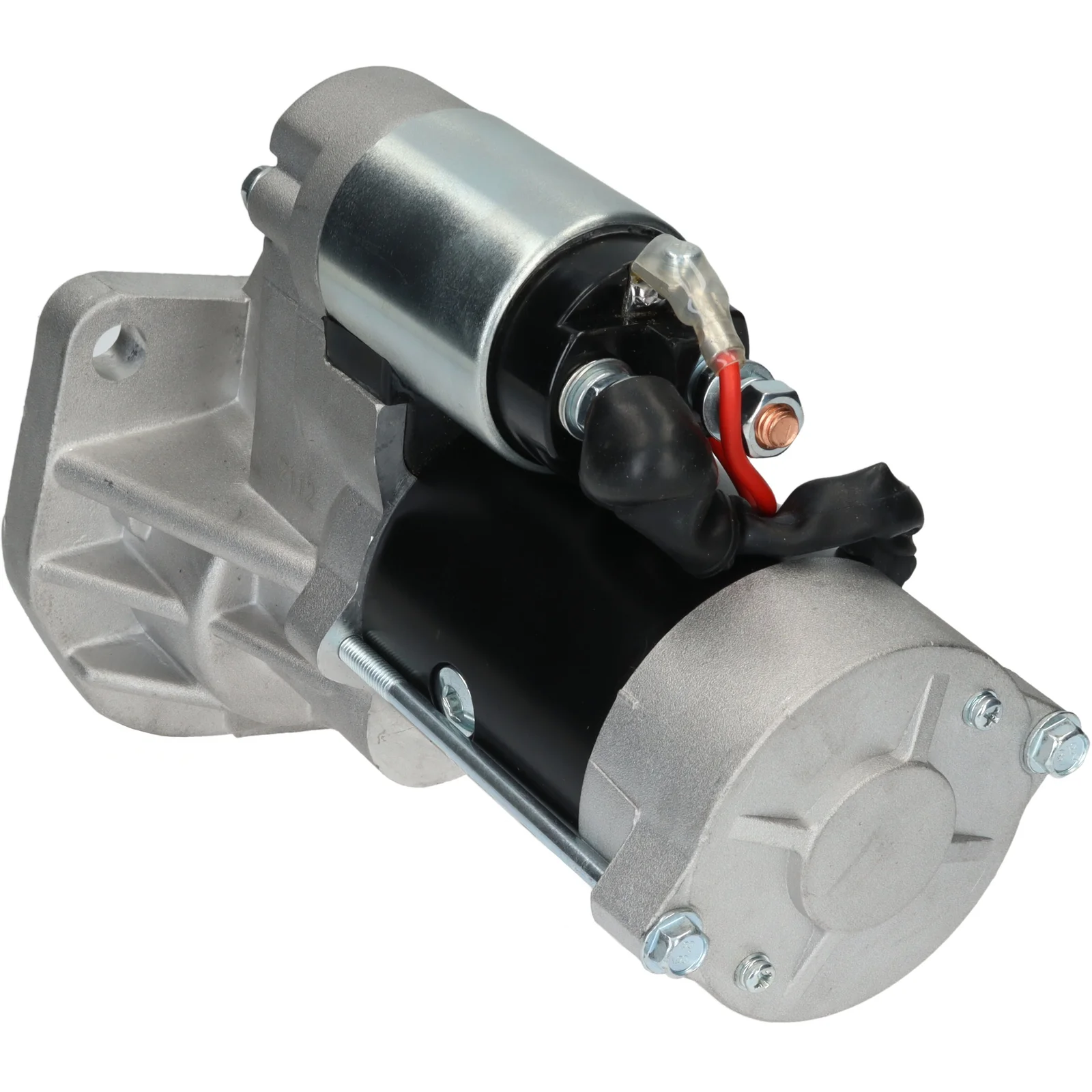

HC-Cargo Startmotor
HC-Cargo Startmotor
Artikelnr: F032112083

HC-Cargo Startmotor

Teknisk info:

Voltage: 12, kW: 2.8, No./teeth: 9, Rotation: CW

Beskrivning

Voltage: 12
kW: 2.8
Mount. flange: 95.00
Drive dist.: 11.50
Mount. hole 2 mm: 13.00
Mount. hole 1 mm: 13.00
Dist./back: 216.00
Dist./front: 11.50
No./teeth: 9
B+: M8
Thread length mm: 18.50
Position/50: 60
Terminal 50: M4-6.30
Gear type: GR
Dist. mm: 120.00
Rotation: CW
Total length mm: 230.00
Clutch type: Dry
Drive type: Steel
Prod. info: BN
Waterproof: No
Oil sealed: No
No./mount. holes: 2 (0)

Filer

Specifikation

B+ M8
No./teeth 9
Mount. flange 95.00
Oil sealed No
No./mount. holes 2 (0)
Position/50 60
Clutch type Dry
Prod. info BN
Rotation CW
Dist./back 216.00
Dist./front 11.50
Drive dist. 11.50
Drive type Steel
Gear type GR
kW 2.8
Terminal 50 M4-6.30
Voltage 12
Total length 230.00 mm
Waterproof No
Dist. 120.00 mm
Thread length 18.50 mm
Mount. hole 2 13.00 mm
Mount. hole 1 13.00 mm

  • OEM
    ADZ91211, F032112083, js999, s13-514, S13-555, S13-555A, S13-555B, s14-03, 1202154, 1519632, 9120560, 9120561, 9120565, 94387653, 97136688, 97255390, 8930281980, 8941337582, 8941337583, 8941337584, 8943876530, 8944339122, 8971203560, 8972236530, 8972553901, 8973658240

  • Konkurrentreferens
    CST20186, DRS0458, drs3223, drs3616, GA22001, GA24890, J5219014, LRS02368, lrt00114, LRT00222, QS1906, S2010, STR72041, 8ea737190-001, 25-1478, 25-4040, 343.013.092, 643.029.092, 4447, 9964, 18296N, 18449N, 31229R, 31230N, 31230R, 220202, 220202A, 254464, 458547, 8080027, 11040435, 11040840, 0986016681

  • Normaliserat artikelnummer
    adz91211, cst20186, drs0458, drs3223, drs3616, f032112083, ga22001, ga24890, j5219014, js999, lrs02368, lrt00114, lrt00222, qs1906, s13514, s13555, s13555a, s13555b, s1403, s2010, str72041, 8ea737190001, 4447, 9964, 18296n, 18449n, 31229r, 31230n, 31230r, 220202, 220202a, 251478, 254040, 254464, 458547, 1202154, 1519632, 8080027, 9120560, 9120561, 9120565, 11040435, 11040840, 94387653, 97136688, 97255390, 343013092, 643029092, 0986016681, 8930281980, 8941337582, 8941337583, 8941337584, 8943876530, 8944339122, 8971203560, 8972236530, 8972553901, 8973658240

  • Passar modeller
    Isuzu Model: Trooper Model series: Trooper Type of engine: TD Size of motor: 3.1 Brand of engine: 4JG2T Type description: UB Body: Convertible From date: 01-08-1991 To date: 01-07-1998 Fuel: Diesel Approved: Yes
    Opel Model: Campo Model series: Campo Model type: 4x4 Type of engine: DTi Size of motor: 2.5 Brand of engine: 4JA1 Type description: TF_ Body: Pick Up From date: 01-07-2001 To date: 01-12-2001 Fuel: Diesel Approved: Yes
    Opel Model: Campo Model series: Campo Model type: 4x4 Type of engine: TD Size of motor: 2.5 Brand of engine: 4JA1 Body: Pick Up From date: 01-08-1991 To date: 01-06-1994 Fuel: Diesel Approved: Yes
    Opel Model: Campo Model series: Campo Model type: 4x4 Type of engine: TD Size of motor: 2.5 Brand of engine: 4JA1T Type description: TFR54 Body: Pick Up From date: 01-07-1994 To date: 01-06-2001 Fuel: Diesel Approved: Yes
    Opel Model: Campo Model series: Campo Model type: 4x4 Type of engine: TD Size of motor: 3.1 Brand of engine: 4JG2T Body: Pick Up From date: 01-12-1992 To date: 01-06-2001 Fuel: Diesel Approved: Yes
    Opel Model: Campo Model series: Campo Type of engine: Diesel Size of motor: 2.5 Brand of engine: 4JA1 From date: 01-09-1991 To date: 01-11-1995 Fuel: Diesel Approved: Yes
    Opel Model: Campo Model series: Campo Type of engine: DTi Size of motor: 2.5 Brand of engine: 4JA1 Type description: TF_ Body: Pick Up From date: 01-07-2001 To date: 01-12-2001 Fuel: Diesel Approved: Yes
    Opel Model: Campo Model series: Campo Type of engine: TD Size of motor: 2.5 Brand of engine: 4JA1 Body: Pick Up From date: 01-08-1991 To date: 01-06-1994 Fuel: Diesel Approved: Yes
    Opel Model: Campo Model series: Campo Type of engine: TD Size of motor: 2.5 Brand of engine: 4JA1T Type description: TFR54 Body: Pick Up From date: 01-07-1994 To date: 01-06-2001 Fuel: Diesel Approved: Yes
    Opel Model: Campo Model series: Campo Type of engine: TD Size of motor: 3.1 Brand of engine: 4JG2T Body: Pick Up From date: 01-12-1992 To date: 01-06-2001 Fuel: Diesel Approved: Yes
    Opel Model: Monterey Model series: Monterey A Type of engine: TD Size of motor: 3.1 Brand of engine: 4JG2TC From date: 01-09-1991 To date: 01-07-1998 Fuel: Diesel Approved: Yes
    Opel Model: Monterey Model series: Monterey B Type of engine: DTi Size of motor: 3.0 Brand of engine: 4JX1 From date: 01-07-1998 To date: 01-08-1999 Fuel: Diesel Approved: Yes
    Vauxhall Model: Astra Model series: Astra MK IV Type of engine: 16V Size of motor: 2.2 Brand of engine: Z22SE Body: Hatchback From date: 01-03-2001 To date: 01-05-2005 Fuel: Gasoline Approved: Yes
    Vauxhall Model: Brava Model series: Brava Model type: 4x4 Type of engine: Diesel Size of motor: 2.5 Brand of engine: 4JA1T Body: Pick Up From date: 01-06-1990 To date: 01-06-1994 Fuel: Diesel Approved: Yes
    Vauxhall Model: Brava Model series: Brava Model type: 4x4 Type of engine: TD Size of motor: 2.5 Brand of engine: 4JA1T Type description: TFS54 Body: Pick Up From date: 01-07-1994 To date: 01-12-2002 Fuel: Diesel Approved: Yes
    Vauxhall Model: Brava Model series: Brava Type of engine: Diesel Size of motor: 2.5 Brand of engine: 4JA1 Type description: TFR54 Body: Pick Up From date: 01-08-1991 To date: 01-06-1994 Fuel: Diesel Approved: Yes
    Vauxhall Model: Brava Model series: Brava Type of engine: TD Size of motor: 2.5 Brand of engine: 4JA1T Type description: TFR54 Body: Pick Up From date: 01-07-1994 To date: 01-12-2002 Fuel: Diesel Approved: Yes
    Vauxhall Model: Monterey Model series: Monterey B Type of engine: DTi Size of motor: 3.0 Brand of engine: 4JX1 From date: 01-07-1998 To date: 01-08-1999 Fuel: Diesel Approved: Yes
    1 / 4
  • Beskrivning
    Voltage: 12
    kW: 2.8
    Mount. flange: 95.00
    Drive dist.: 11.50
    Mount. hole 2 mm: 13.00
    Mount. hole 1 mm: 13.00
    Dist./back: 216.00
    Dist./front: 11.50
    No./teeth: 9
    B+: M8
    Thread length mm: 18.50
    Position/50: 60
    Terminal 50: M4-6.30
    Gear type: GR
    Dist. mm: 120.00
    Rotation: CW
    Total length mm: 230.00
    Clutch type: Dry
    Drive type: Steel
    Prod. info: BN
    Waterproof: No
    Oil sealed: No
    No./mount. holes: 2 (0)

    Filer

  • Specifikation
    B+ M8
    No./teeth 9
    Mount. flange 95.00
    Oil sealed No
    No./mount. holes 2 (0)
    Position/50 60
    Clutch type Dry
    Prod. info BN
    Rotation CW
    Dist./back 216.00
    Dist./front 11.50
    Drive dist. 11.50
    Drive type Steel
    Gear type GR
    kW 2.8
    Terminal 50 M4-6.30
    Voltage 12
    Total length 230.00 mm
    Waterproof No
    Dist. 120.00 mm
    Thread length 18.50 mm
    Mount. hole 2 13.00 mm
    Mount. hole 1 13.00 mm
  • Fordonsmatchning

    • OEM
      ADZ91211, F032112083, js999, s13-514, S13-555, S13-555A, S13-555B, s14-03, 1202154, 1519632, 9120560, 9120561, 9120565, 94387653, 97136688, 97255390, 8930281980, 8941337582, 8941337583, 8941337584, 8943876530, 8944339122, 8971203560, 8972236530, 8972553901, 8973658240

    • Konkurrentreferens
      CST20186, DRS0458, drs3223, drs3616, GA22001, GA24890, J5219014, LRS02368, lrt00114, LRT00222, QS1906, S2010, STR72041, 8ea737190-001, 25-1478, 25-4040, 343.013.092, 643.029.092, 4447, 9964, 18296N, 18449N, 31229R, 31230N, 31230R, 220202, 220202A, 254464, 458547, 8080027, 11040435, 11040840, 0986016681

    • Normaliserat artikelnummer
      adz91211, cst20186, drs0458, drs3223, drs3616, f032112083, ga22001, ga24890, j5219014, js999, lrs02368, lrt00114, lrt00222, qs1906, s13514, s13555, s13555a, s13555b, s1403, s2010, str72041, 8ea737190001, 4447, 9964, 18296n, 18449n, 31229r, 31230n, 31230r, 220202, 220202a, 251478, 254040, 254464, 458547, 1202154, 1519632, 8080027, 9120560, 9120561, 9120565, 11040435, 11040840, 94387653, 97136688, 97255390, 343013092, 643029092, 0986016681, 8930281980, 8941337582, 8941337583, 8941337584, 8943876530, 8944339122, 8971203560, 8972236530, 8972553901, 8973658240

    • Passar modeller
      Isuzu Model: Trooper Model series: Trooper Type of engine: TD Size of motor: 3.1 Brand of engine: 4JG2T Type description: UB Body: Convertible From date: 01-08-1991 To date: 01-07-1998 Fuel: Diesel Approved: Yes
      Opel Model: Campo Model series: Campo Model type: 4x4 Type of engine: DTi Size of motor: 2.5 Brand of engine: 4JA1 Type description: TF_ Body: Pick Up From date: 01-07-2001 To date: 01-12-2001 Fuel: Diesel Approved: Yes
      Opel Model: Campo Model series: Campo Model type: 4x4 Type of engine: TD Size of motor: 2.5 Brand of engine: 4JA1 Body: Pick Up From date: 01-08-1991 To date: 01-06-1994 Fuel: Diesel Approved: Yes
      Opel Model: Campo Model series: Campo Model type: 4x4 Type of engine: TD Size of motor: 2.5 Brand of engine: 4JA1T Type description: TFR54 Body: Pick Up From date: 01-07-1994 To date: 01-06-2001 Fuel: Diesel Approved: Yes
      Opel Model: Campo Model series: Campo Model type: 4x4 Type of engine: TD Size of motor: 3.1 Brand of engine: 4JG2T Body: Pick Up From date: 01-12-1992 To date: 01-06-2001 Fuel: Diesel Approved: Yes
      Opel Model: Campo Model series: Campo Type of engine: Diesel Size of motor: 2.5 Brand of engine: 4JA1 From date: 01-09-1991 To date: 01-11-1995 Fuel: Diesel Approved: Yes
      Opel Model: Campo Model series: Campo Type of engine: DTi Size of motor: 2.5 Brand of engine: 4JA1 Type description: TF_ Body: Pick Up From date: 01-07-2001 To date: 01-12-2001 Fuel: Diesel Approved: Yes
      Opel Model: Campo Model series: Campo Type of engine: TD Size of motor: 2.5 Brand of engine: 4JA1 Body: Pick Up From date: 01-08-1991 To date: 01-06-1994 Fuel: Diesel Approved: Yes
      Opel Model: Campo Model series: Campo Type of engine: TD Size of motor: 2.5 Brand of engine: 4JA1T Type description: TFR54 Body: Pick Up From date: 01-07-1994 To date: 01-06-2001 Fuel: Diesel Approved: Yes
      Opel Model: Campo Model series: Campo Type of engine: TD Size of motor: 3.1 Brand of engine: 4JG2T Body: Pick Up From date: 01-12-1992 To date: 01-06-2001 Fuel: Diesel Approved: Yes
      Opel Model: Monterey Model series: Monterey A Type of engine: TD Size of motor: 3.1 Brand of engine: 4JG2TC From date: 01-09-1991 To date: 01-07-1998 Fuel: Diesel Approved: Yes
      Opel Model: Monterey Model series: Monterey B Type of engine: DTi Size of motor: 3.0 Brand of engine: 4JX1 From date: 01-07-1998 To date: 01-08-1999 Fuel: Diesel Approved: Yes
      Vauxhall Model: Astra Model series: Astra MK IV Type of engine: 16V Size of motor: 2.2 Brand of engine: Z22SE Body: Hatchback From date: 01-03-2001 To date: 01-05-2005 Fuel: Gasoline Approved: Yes
      Vauxhall Model: Brava Model series: Brava Model type: 4x4 Type of engine: Diesel Size of motor: 2.5 Brand of engine: 4JA1T Body: Pick Up From date: 01-06-1990 To date: 01-06-1994 Fuel: Diesel Approved: Yes
      Vauxhall Model: Brava Model series: Brava Model type: 4x4 Type of engine: TD Size of motor: 2.5 Brand of engine: 4JA1T Type description: TFS54 Body: Pick Up From date: 01-07-1994 To date: 01-12-2002 Fuel: Diesel Approved: Yes
      Vauxhall Model: Brava Model series: Brava Type of engine: Diesel Size of motor: 2.5 Brand of engine: 4JA1 Type description: TFR54 Body: Pick Up From date: 01-08-1991 To date: 01-06-1994 Fuel: Diesel Approved: Yes
      Vauxhall Model: Brava Model series: Brava Type of engine: TD Size of motor: 2.5 Brand of engine: 4JA1T Type description: TFR54 Body: Pick Up From date: 01-07-1994 To date: 01-12-2002 Fuel: Diesel Approved: Yes
      Vauxhall Model: Monterey Model series: Monterey B Type of engine: DTi Size of motor: 3.0 Brand of engine: 4JX1 From date: 01-07-1998 To date: 01-08-1999 Fuel: Diesel Approved: Yes
