HC-Cargo Startmotor
HC-Cargo Startmotor
Artikelnr: F032112074

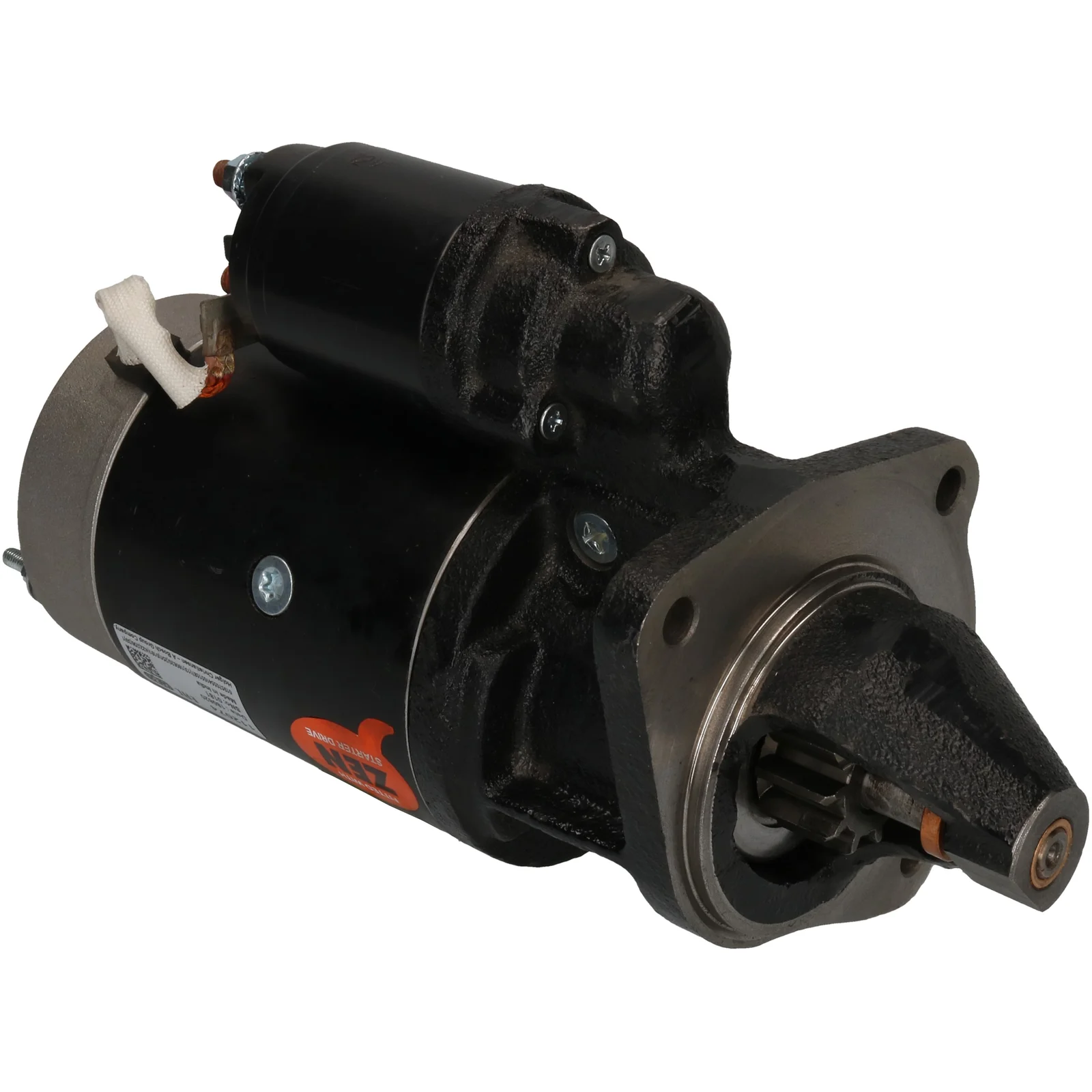

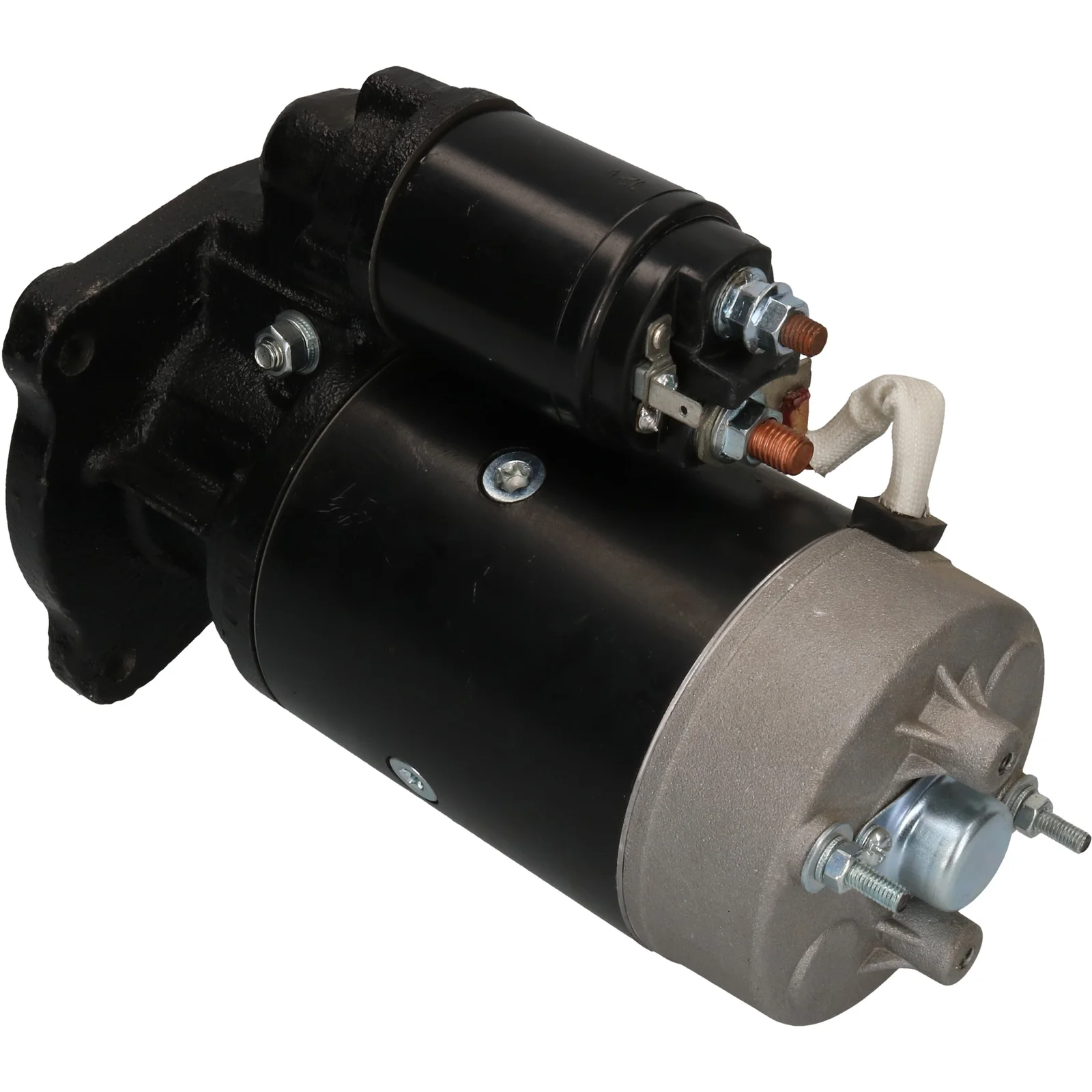

HC-Cargo Startmotor

Teknisk info:

Voltage: 12, kW: 3.1, No./teeth: 10, Rotation: CW

Beskrivning

Voltage: 12
kW: 3.1
Mount. flange: 92.00
Drive dist.: 21.00
Mount. hole 3 mm: 10.50
Mount. hole 2 mm: 10.50
Mount. hole 1 mm: 10.50
Dist./back: 241.00
Dist./front: 68.00
No./teeth: 10
B+: M8
Position/50: 45
Terminal 50: 6.30
Gear type: DD
Dist. 2: 146.00
Dist. 3: 103.50
Dist. mm: 103.50
Rotation: CW
Total length mm: 329.00
Drive type: Steel
Prod. info: BN
Waterproof: No
Oil sealed: No
No./mount. holes: 3 (0)

Filer

Specifikation

B+ M8
No./teeth 10
Mount. flange 92.00
Oil sealed No
No./mount. holes 3 (0)
Position/50 45
Prod. info BN
Dist. 2 146.00
Dist. 3 103.50
Rotation CW
Dist./back 241.00
Dist./front 68.00
Drive dist. 21.00
Drive type Steel
Gear type DD
kW 3.1
Terminal 50 6.30
Voltage 12
Total length 329.00 mm
Waterproof No
Dist. 103.50 mm
Mount. hole 3 10.50 mm
Mount. hole 2 10.50 mm
Mount. hole 1 10.50 mm

  • OEM
    azj3201, C000900060200, cs1126, F032112074, F0NN11000BA, F0NN11000CA, FONN11000CA, 11.130.627, 0001367006, 0001369015, 0001369020, 0001369023, 3918688, 8775550R, 9142766, 0011327170, 11327170, 81866002, 82005342, 82007917, 82013922, 82021372C, 86513093, 86628964, 87653221, 89821291, 898821291

  • Konkurrentreferens
    BSO7184, CST10285, CST21169, DRS7510, is0627, LRS01322, MS25, MS357, S0583, S9197(LETRIKA), STR22105, 2-2085-BO, 8EA011612-181, 8ea737621-001, 25-0064, 25-2095, 320.002.102, 320.010.102, 540.019.103, 600.004.102, 620.005.102, 4590, 8678, 17646N, 18024, 18024N, 101126, 103675, 203000, 220277, 220277A, 254179, 458903, 11017510, 0986017510, 0986017513, 0986021787

  • Normaliserat artikelnummer
    azj3201, bso7184, c000900060200, cs1126, cst10285, cst21169, drs7510, f032112074, f0nn11000ba, f0nn11000ca, fonn11000ca, is0627, lrs01322, ms25, ms357, s0583, s9197letrika, str22105, 8ea011612181, 8ea737621001, 4590, 8678, 17646n, 18024, 18024n, 22085bo, 101126, 103675, 203000, 220277, 220277a, 250064, 252095, 254179, 458903, 0001367006, 0001369015, 0001369020, 0001369023, 3918688, 8775550r, 9142766, 11017510, 11130627, 0011327170, 11327170, 81866002, 82005342, 82007917, 82013922, 82021372c, 86513093, 86628964, 87653221, 89821291, 320002102, 320010102, 540019103, 600004102, 620005102, 898821291, 0986017510, 0986017513, 0986021787

  • Passar modeller
    Caterpillar Model: AP-200 Model series: AP-200 Model type: Pavers Brand of engine: BSD442 Approved: Yes
    Cummins Model: PETBOW Model series: PETBOW Model type: Generator Sets Brand of engine: BSD442 Approved: Yes
    Ford Model: 5810 Model series: 5810 Model type: Ag Tractors Brand of engine: BSD442 Approved: Yes
    Ford Model: 655A Model series: 655A Model type: Tractor/Loader/Backhoes Brand of engine: BSD442 Approved: Yes
    Ford Model: 7000 Series Model series: 7740 From date: 01-01-1992 To date: 01-01-1997 Fuel: Diesel Approved: Yes
    Ford Model: 7000 Series Model series: 7810 From date: 01-06-1990 To date: 01-06-2005 Fuel: Diesel Approved: Yes
    Ford Model: 7000 Series Model series: 7840 From date: 01-01-1992 To date: 01-01-1997 Fuel: Diesel Approved: Yes
    Ford Model: 8000 Series Model series: 8240 From date: 01-01-1992 To date: 01-01-1996 Fuel: Diesel Approved: Yes
    Ford Model: 8000 Series Model series: 8340 From date: 01-01-1992 To date: 01-01-1997 Fuel: Diesel Approved: Yes
    Ford Model: FORD TT Model series: FORD TT Model type: Terminal Tractors Brand of engine: BSD442 Approved: Yes
    Manitou Model: MB26JC Model series: MB26JC Model type: Rough Terrain Forklifts Brand of engine: BSD442 Approved: Yes
    Manitou Model: MB30JC Model series: MB30JC Model type: Rough Terrain Forklifts Brand of engine: BSD442 Approved: Yes
    Manitou Model: MC40FC Model series: MC40FC Model type: Rough Terrain Forklifts Brand of engine: BSD442 Approved: Yes
    Manitou Model: MC50FC Model series: MC50FC Model type: Rough Terrain Forklifts Brand of engine: BSD442 Approved: Yes
    Manitou Model: S SERIES Model series: S SERIES Model type: Rough Terrain Forklifts Brand of engine: BSD442 Approved: Yes
    New Holland Model: 5030 - 2 Model series: 5030 - 2 Model type: Ag Tractors Brand of engine: BSD442 Approved: Yes
    New Holland Model: 5030 - 4 Model series: 5030 - 4 Model type: Ag Tractors Brand of engine: BSD442 Approved: Yes
    New Holland Model: 555 Model series: 555 Model type: Tractor/Loader/Backhoes Brand of engine: BSD442 Approved: Yes
    New Holland Model: 5610 Model series: 5610 Model type: Ag Tractors Brand of engine: BSD442 Approved: Yes
    New Holland Model: 575 Model series: 575 Model type: Tractor/Loader/Backhoes Brand of engine: BSD442 Approved: Yes
    New Holland Model: 655 Model series: 655 Model type: Tractor/Loader/Backhoes Brand of engine: BSD442 Approved: Yes
    New Holland Model: M Model series: M SERIES From date: 01-09-1995 Approved: Yes
    New Holland Model: NH Model series: NH 95 Brand of engine: M8Y From date: 01-01-1996 Fuel: Diesel Approved: Yes
    New Holland Model: TL55E Model series: TL55E Model type: Ag Tractors Brand of engine: BSD442 Approved: Yes
    New Holland Model: TL65E Model series: TL65E Model type: Ag Tractors Brand of engine: BSD442 Approved: Yes
    New Holland Model: TL70 Model series: TL70 Model type: Ag Tractors Brand of engine: BSD442 Approved: Yes
