Artikelnr: F032112036

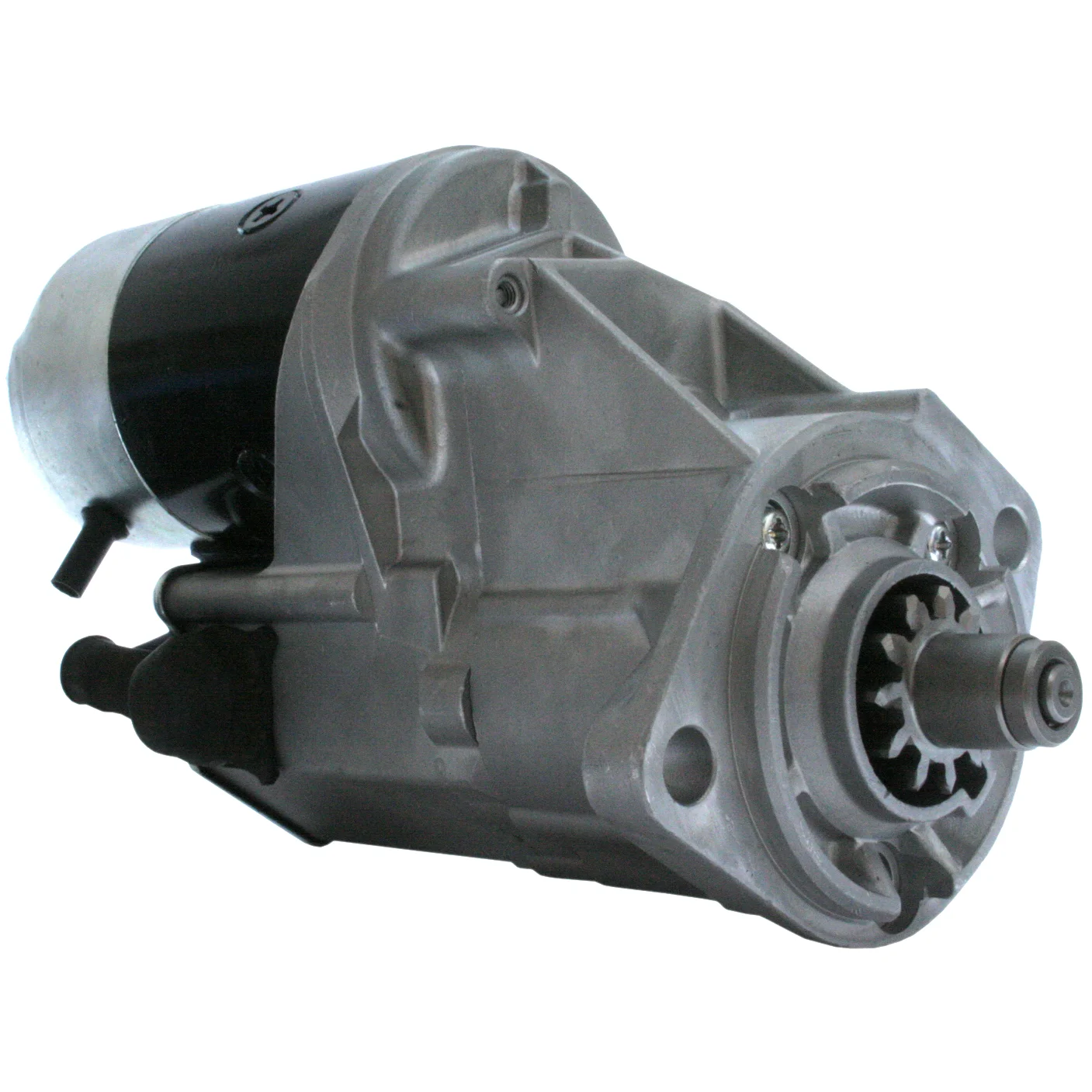

HC-Cargo Startmotor

Teknisk info:

Voltage: 12, kW: 2.5, No./teeth: 11, Rotation: CW

Beskrivning

Voltage: 12
kW: 2.5
Mount. flange: 90.00
Drive dist.: 16.00
Mount. hole 2 mm: 13.00
Mount. hole 1 mm: 13.00
Dist./back: 193.00
Dist./front: 41.50
No./teeth: 11
B+: M10
Position/50: 35
Terminal 50: M5
Gear type: GR
Dist. mm: 112.50
Rotation: CW
Total length mm: 291.00
Clutch type: Wet
Drive type: Steel
Prod. info: BN
Waterproof: No
Oil sealed: Yes
No./mount. holes: 2 (0)

Filer

Specifikation

B+ M10
No./teeth 11
Mount. flange 90.00
Oil sealed Yes
No./mount. holes 2 (0)
Position/50 35
Clutch type Wet
Prod. info BN
Rotation CW
Dist./back 193.00
Dist./front 41.50
Drive dist. 16.00
Drive type Steel
Gear type GR
kW 2.5
Terminal 50 M5
Voltage 12
Total length 291.00 mm
Waterproof No
Dist. 112.50 mm
Mount. hole 2 13.00 mm
Mount. hole 1 13.00 mm

  • OEM
    F032112036, 28100-40291-71, 28300-23040, 28300-23040-71, 128000-0970, 128000-0971, 128000-0972, 128000-0973, 128000-0974, 128000-4110, 128000-4111, 128000-4112, 128000-4113, 3049479

  • Konkurrentreferens
    ats-208, CST40127, DSN2111, DSN2112, lrs01447, s6117, STR6073, 8EA015642-041, 25-2373, 635.004.112, 17290N, 17311, 17311N, 254056, 8213373, 11040824

  • Normaliserat artikelnummer
    ats208, cst40127, dsn2111, dsn2112, f032112036, lrs01447, s6117, str6073, 8ea015642041, 17290n, 17311, 17311n, 252373, 254056, 3049479, 8213373, 11040824, 635004112, 1280000970, 1280000971, 1280000972, 1280000973, 1280000974, 1280004110, 1280004111, 1280004112, 1280004113, 2830023040, 281004029171, 283002304071

  • Passar modeller
    Toyota Model: 7FD Model series: 7FD20 From date: 01-01-1998 Approved: Yes
    Toyota Model: 7FD Model series: 7FD23 From date: 01-01-1998 Approved: Yes
  • Beskrivning
    Voltage: 12
    kW: 2.5
    Mount. flange: 90.00
    Drive dist.: 16.00
    Mount. hole 2 mm: 13.00
    Mount. hole 1 mm: 13.00
    Dist./back: 193.00
    Dist./front: 41.50
    No./teeth: 11
    B+: M10
    Position/50: 35
    Terminal 50: M5
    Gear type: GR
    Dist. mm: 112.50
    Rotation: CW
    Total length mm: 291.00
    Clutch type: Wet
    Drive type: Steel
    Prod. info: BN
    Waterproof: No
    Oil sealed: Yes
    No./mount. holes: 2 (0)

    Filer

  • Specifikation
    B+ M10
    No./teeth 11
    Mount. flange 90.00
    Oil sealed Yes
    No./mount. holes 2 (0)
    Position/50 35
    Clutch type Wet
    Prod. info BN
    Rotation CW
    Dist./back 193.00
    Dist./front 41.50
    Drive dist. 16.00
    Drive type Steel
    Gear type GR
    kW 2.5
    Terminal 50 M5
    Voltage 12
    Total length 291.00 mm
    Waterproof No
    Dist. 112.50 mm
    Mount. hole 2 13.00 mm
    Mount. hole 1 13.00 mm
  • Fordonsmatchning

    • OEM
      F032112036, 28100-40291-71, 28300-23040, 28300-23040-71, 128000-0970, 128000-0971, 128000-0972, 128000-0973, 128000-0974, 128000-4110, 128000-4111, 128000-4112, 128000-4113, 3049479

    • Konkurrentreferens
      ats-208, CST40127, DSN2111, DSN2112, lrs01447, s6117, STR6073, 8EA015642-041, 25-2373, 635.004.112, 17290N, 17311, 17311N, 254056, 8213373, 11040824

    • Normaliserat artikelnummer
      ats208, cst40127, dsn2111, dsn2112, f032112036, lrs01447, s6117, str6073, 8ea015642041, 17290n, 17311, 17311n, 252373, 254056, 3049479, 8213373, 11040824, 635004112, 1280000970, 1280000971, 1280000972, 1280000973, 1280000974, 1280004110, 1280004111, 1280004112, 1280004113, 2830023040, 281004029171, 283002304071

    • Passar modeller
      Toyota Model: 7FD Model series: 7FD20 From date: 01-01-1998 Approved: Yes
      Toyota Model: 7FD Model series: 7FD23 From date: 01-01-1998 Approved: Yes
