Artikelnr: F032112026

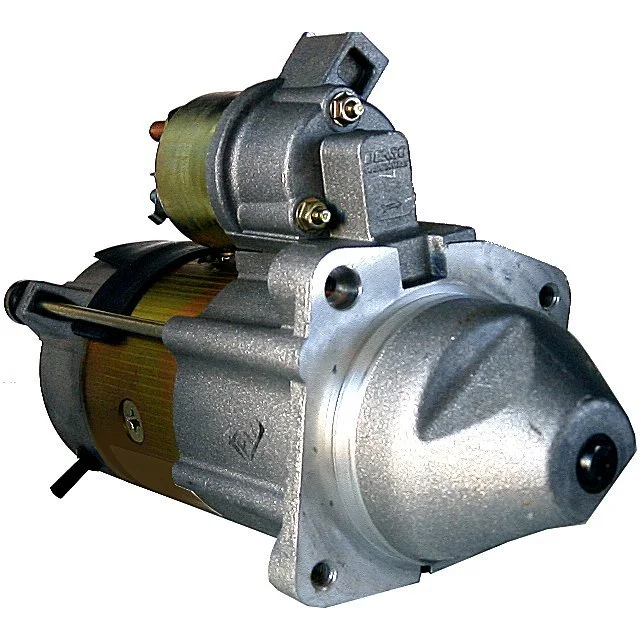

HC-Cargo Startmotor

Teknisk info:

Voltage: 12, kW: 2.6, No./teeth: 9, Rotation: CW

Beskrivning

Voltage: 12
kW: 2.6
Mount. flange: 81.50
Drive dist.: 23.00
Mount. hole 3 mm: M8
Dist./back: 209.00
Dist./front: 65.00
No./teeth: 9
B+: M8
Position/B+: 60
Position/50: 20
Terminal 50: M6
Gear type: GR
Dist. 2: 82.50
Dist. 3: 82.50
Dist. mm: 116.00
Rotation: CW
Total length mm: 276.00
Clutch type: Dry
Drive type: Steel
Prod. info: BN
Waterproof: No
Oil sealed: No
No./mount. holes: 3 (3)

Filer

Specifikation

B+ M8
No./teeth 9
Mount. flange 81.50
Oil sealed No
No./mount. holes 3 (3)
Position/50 20
Clutch type Dry
Position/B+ 60
Prod. info BN
Dist. 2 82.50
Dist. 3 82.50
Rotation CW
Dist./back 209.00
Dist./front 65.00
Drive dist. 23.00
Drive type Steel
Gear type GR
kW 2.6
Terminal 50 M6
Voltage 12
Total length 276.00 mm
Waterproof No
Dist. 116.00 mm
Mount. hole 3 M8 mm

  • OEM
    cs1109, F032112026, K1319555080, K1331329080, 46208436, 46231646, 63114014, 71721242, 71782324, 131955508, 1319555080, 1331329080, 063114014000, 063114014010

  • Konkurrentreferens
    BSO7196, CST30109, DENDSN502, drs3557, DSN502, DSN582, F042S0H036, LRT00188, MS666, QS2235, S4017, STR-H036, STR52002, 8EA011610-931, 8ea737526-001, 25-2232, 318.068.092, 4563, 5802Y9, 5802Z1, 33224N, 33224R, 101109, 220158, 220158A, 438392, 438497, 438515, 726132, 8080022, 063114014, 0986021041, 944280800220

  • Normaliserat artikelnummer
    bso7196, cs1109, cst30109, dendsn502, drs3557, dsn502, dsn582, f032112026, f042s0h036, k1319555080, k1331329080, lrt00188, ms666, qs2235, s4017, str52002, strh036, 8ea011610931, 8ea737526001, 4563, 5802y9, 5802z1, 33224n, 33224r, 101109, 220158, 220158a, 252232, 438392, 438497, 438515, 726132, 8080022, 46208436, 46231646, 063114014, 63114014, 71721242, 71782324, 131955508, 318068092, 0986021041, 1319555080, 1331329080, 063114014000, 063114014010, 944280800220

  • Passar modeller
    Citroen Model: Jumper Model series: Jumper Model type: 4x4 Type of engine: HDi Size of motor: 2.8 Brand of engine: 8140.43S Body: Van From date: 01-04-2002 Fuel: Diesel Approved: Yes
    Citroen Model: Jumper Model series: Jumper Type of engine: HDi Size of motor: 2.8 Brand of engine: 8140.43S Body: Bus From date: 01-04-2002 Fuel: Diesel Approved: Yes
    Citroen Model: Jumper Model series: Jumper Type of engine: HDi Size of motor: 2.8 Brand of engine: 8140.43S Body: Platform / Chassis From date: 01-04-2002 Fuel: Diesel Approved: Yes
    Citroen Model: Jumper Model series: Jumper Type of engine: HDi Size of motor: 2.8 Brand of engine: 8140.43S Body: Van From date: 01-04-2002 Fuel: Diesel Approved: Yes
    Fiat Model: Ducato Model series: Ducato Model type: 4x4 Type of engine: Diesel Size of motor: 2.5 Brand of engine: 8140.67 Type description: 230 Body: Platform / Chassis From date: 01-03-1994 To date: 01-04-2002 Fuel: Diesel Approved: Yes
    Fiat Model: Ducato Model series: Ducato Model type: 4x4 Type of engine: JTD Size of motor: 2.8 Brand of engine: 8140.43S Type description: 230 Body: Platform / Chassis From date: 01-10-2001 To date: 01-04-2002 Fuel: Diesel Approved: Yes
    Fiat Model: Ducato Model series: Ducato Model type: 4x4 Type of engine: TD Size of motor: 2.8 Brand of engine: 8140.43 Type description: 230L Body: Van From date: 01-05-1998 To date: 01-09-2001 Fuel: Diesel Approved: Yes
    Fiat Model: Ducato Model series: Ducato Model type: 4x4 Type of engine: TDi Size of motor: 2.5 Brand of engine: 8140.47 Type description: 230 Body: Platform / Chassis From date: 01-06-1998 To date: 01-04-2002 Fuel: Diesel Approved: Yes
    Fiat Model: Ducato Model series: Ducato Model type: 4x4 Type of engine: TDi Size of motor: 2.8 Brand of engine: 8140.43 Type description: 230 Body: Bus From date: 01-07-1999 To date: 01-04-2002 Fuel: Diesel Approved: Yes
    Fiat Model: Ducato Model series: Ducato Type of engine: Diesel Size of motor: 2.8 Brand of engine: 8140.63 Body: Bus From date: 01-02-1998 To date: 01-04-2002 Fuel: Diesel Approved: Yes
    Fiat Model: Ducato Model series: Ducato Type of engine: Diesel Size of motor: 2.8 Brand of engine: 8140.63 Body: Platform / Chassis From date: 01-02-1998 To date: 01-04-2002 Fuel: Diesel Approved: Yes
    Fiat Model: Ducato Model series: Ducato Type of engine: Diesel Size of motor: 2.8 Brand of engine: 8140.63 Body: Van From date: 01-05-1998 To date: 01-04-2002 Fuel: Diesel Approved: Yes
    Fiat Model: Ducato Model series: Ducato Type of engine: TDi Size of motor: 2.5 Brand of engine: 8140.47R Type description: 230 Body: Van From date: 01-03-1994 To date: 01-04-2002 Fuel: Diesel Approved: Yes
    Fiat Model: Ducato Model series: Ducato Type of engine: TDi Size of motor: 2.8 Brand of engine: 8140.43 Type description: 230 Body: Bus From date: 01-10-1997 To date: 01-04-2002 Fuel: Diesel Approved: Yes
    Fiat Model: Ducato Model series: Ducato Type of engine: TDi Size of motor: 2.8 Brand of engine: 8140.43 Type description: 230 Body: Van From date: 01-10-1997 To date: 01-04-2002 Fuel: Diesel Approved: Yes
    Peugeot Model: Boxer Model series: Boxer Model type: 4x4 Type of engine: HDi Size of motor: 2.8 Brand of engine: 8140.43S (F28DTCR) Body: Van From date: 01-04-2002 Fuel: Diesel Approved: Yes
    Peugeot Model: Boxer Model series: Boxer Model type: 4x4 Type of engine: HDi Size of motor: 2.8 Brand of engine: 8140.43S (F28DTCR) Type description: 244, Z_ Body: Bus From date: 01-04-2002 Fuel: Diesel Approved: Yes
    Peugeot Model: Boxer Model series: Boxer Model type: 4x4 Type of engine: HDi Size of motor: 2.8 Brand of engine: 8140.43S(F28DTCR) Body: Platform / Chassis From date: 01-04-2002 Fuel: Diesel Approved: Yes
    Peugeot Model: Boxer Model series: Boxer Type of engine: HDi Size of motor: 2.8 Brand of engine: 8140.43S (F28DTCR) Body: Bus From date: 01-04-2002 Fuel: Diesel Approved: Yes
    Peugeot Model: Boxer Model series: Boxer Type of engine: HDi Size of motor: 2.8 Brand of engine: 8140.43S (F28DTCR) Body: Van From date: 01-04-2002 Fuel: Diesel Approved: Yes
    Peugeot Model: Boxer Model series: Boxer Type of engine: HDi Size of motor: 2.8 Brand of engine: 8140.43S (F28DTCR) Type description: 230L Body: Van From date: 01-11-2000 To date: 01-04-2002 Fuel: Diesel Approved: Yes
    Peugeot Model: Boxer Model series: Boxer Type of engine: HDi Size of motor: 2.8 Brand of engine: 8140.43S (F28DTCR) Type description: ZCT_ Body: Platform / Chassis From date: 01-11-2000 To date: 01-04-2002 Fuel: Diesel Approved: Yes
    Peugeot Model: Boxer Model series: Boxer Type of engine: HDi Size of motor: 2.8 Brand of engine: 8140.43S Type description: 230P Body: Bus From date: 01-11-2000 To date: 01-04-2002 Fuel: Diesel Approved: Yes
    Peugeot Model: Boxer Model series: Boxer Type of engine: HDi Size of motor: 2.8 Brand of engine: 8140.43S(F28DTCR) Body: Platform / Chassis From date: 01-04-2002 Fuel: Diesel Approved: Yes
    Peugeot Model: Boxer Model series: Boxer Type of engine: HDi Size of motor: 2.8 Brand of engine: 8140.43S(F28DTCR) Type description: 244 Body: Van From date: 01-09-2005 To date: 01-09-2009 Fuel: Diesel Approved: Yes
