HC-Cargo Startmotor
HC-Cargo Startmotor
Artikelnr: F032111855

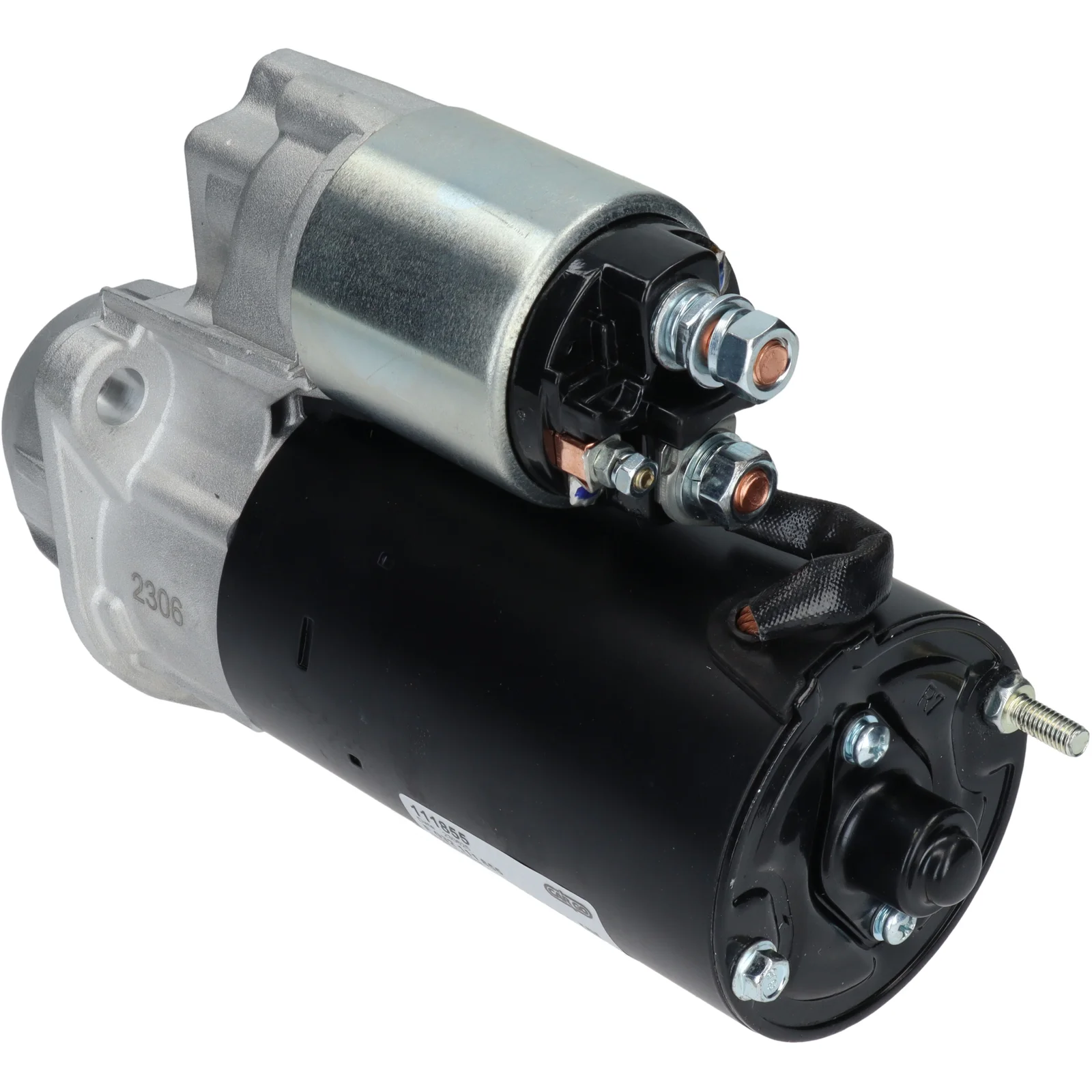

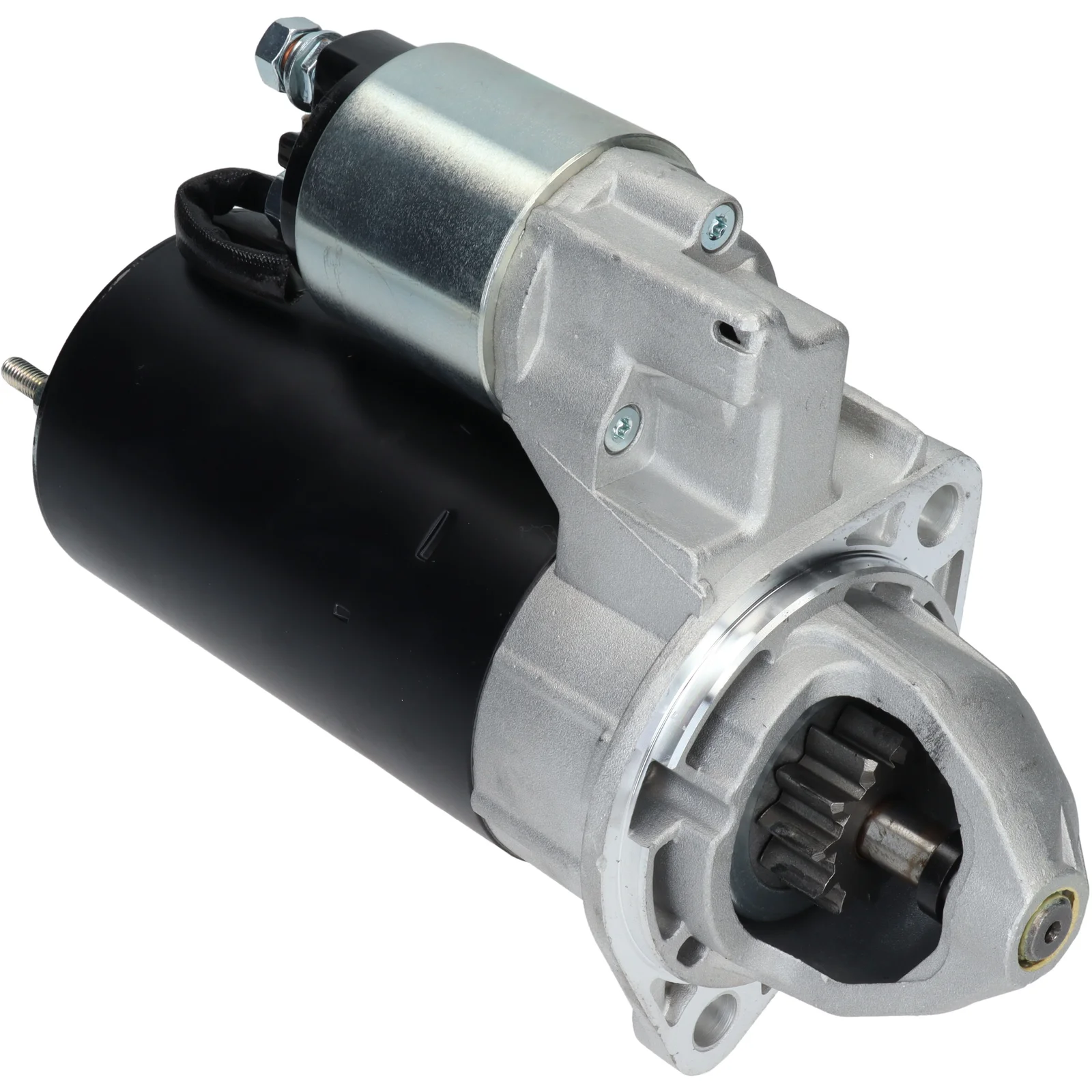

HC-Cargo Startmotor

Teknisk info:

Voltage: 12, kW: 2.2, No./teeth: 11, Rotation: CW

Beskrivning

KHD Startmotor 12V-2.2kW 12V - 2.2kW, 11k Alternativ : 91-273-4202 (3.2kW) För Yourex produkt order 91-273-1743

Voltage: 12
kW: 2.2
Mount. flange: 82.50
Drive dist.: 23.00
Mount. hole 2 mm: 11.00
Mount. hole 1 mm: 11.00
Dist./back: 193.50
Dist./front: 62.00
No./teeth: 11
B+: M8
Thread length mm: 10.50
Position/50: 40
Terminal 50: M5
Gear type: GR
Dist. mm: 101.00
Rotation: CW
Total length mm: 267.00
Clutch type: Dry
Drive type: Steel
Prod. info: BN
Waterproof: No
Oil sealed: No
No./mount. holes: 2 (0)

Filer

Specifikation

B+ M8
No./teeth 11
Mount. flange 82.50
Oil sealed No
No./mount. holes 2 (0)
Position/50 40
Clutch type Dry
Prod. info BN
Rotation CW
Dist./back 193.50
Dist./front 62.00
Drive dist. 23.00
Drive type Steel
Gear type GR
kW 2.2
Terminal 50 M5
Voltage 12
Total length 267.00 mm
Waterproof No
Dist. 101.00 mm
Thread length 10.50 mm
Mount. hole 2 11.00 mm
Mount. hole 1 11.00 mm

  • OEM
    aze4535, cs1185, F032111855, 0001 218 172, 0001 223 002, 11.131.109, 11.180.180, 0118 0180, 0118 0995, 0986 017 430, 1986S00756, 0001109370, 0001109461, 01180180, 1180180, 01180995, 01180995KZ, 1180995, 1180995KZ, 0001218172, 0001218772, 0001223002, 02934505, 2934505, 02934613, 2934613, 02934631, 03045250, 9142726, 9142900, 19083023, 069911023f, 9002904386, 443115142726

  • Konkurrentreferens
    BSO7227, CST10142, CST10443, DRS7430, DRS7430N, DRS8290, F042002059, F042002146, F042S02059, F042S02146, LRS01422, LRS01457, MS619, S0066, S0505, STR-2204, STR-B015, STR22027, STR22027AN, STR22039, 2-1946-BO, 2-2204-BO, 8EA015642-011, 8EA737793-001, 20-1137-11, 25-2321, 25-2390, 510.521.112, 510.522.112, 688.011.112, 688.016.112, 8505, 18230, 18230N, 19156N, 101185, 103673, 203002, 220333, 220333A, 438597, 458884, 8018290, 11017430, 11018290, 20513069, 0986017430, 0986017437, 0986018290, 0986018293, 0986018297

  • Bilmärken
    Genie, K.H.D. (Deutz), Volvo BM / Construction Equipment, Zettelmeyer

  • Normaliserat artikelnummer
    aze4535, bso7227, cs1185, cst10142, cst10443, drs7430, drs7430n, drs8290, f032111855, f042002059, f042002146, f042s02059, f042s02146, lrs01422, lrs01457, ms619, s0066, s0505, str22027, str22027an, str22039, str2204, strb015, 8ea015642011, 8ea737793001, 1986s00756, 8505, 18230, 18230n, 19156n, 21946bo, 22204bo, 101185, 103673, 203002, 220333, 220333a, 252321, 252390, 438597, 458884, 0001109370, 0001109461, 01180180, 1180180, 01180995, 01180995kz, 1180995, 1180995kz, 0001218172, 0001218772, 0001223002, 02934505, 2934505, 02934613, 2934613, 02934631, 03045250, 8018290, 9142726, 9142900, 11017430, 11018290, 11131109, 11180180, 19083023, 20113711, 20513069, 069911023f, 510521112, 510522112, 688011112, 688016112, 0986017430, 0986017437, 0986018290, 0986018293, 0986018297, 9002904386, 443115142726

  • Passar modeller
    Genie Series: S 60, 65 Engine type: Deutz F4L1011F
    Genie Series: Z 45-22 Engine type: Deutz F3L1011F
    K.H.D. (Deutz) Series: BF 4 L 1011 Engine volume: 2.7 Year: 01.95-
    K.H.D. (Deutz) Series: F 2 L 1011 Engine volume: 1.4 Year: 01.95-
    K.H.D. (Deutz) Series: F 3 L 1011 Engine volume: 2.0 Year: 01.95-
    K.H.D. (Deutz) Series: F 3 L 1011 F Model: 12V - 2.2kW 11kugg
    K.H.D. (Deutz) Series: F 4 L 1011 Engine volume: 2.7 Year: 01.95-
    KHD Model: Engine Model series: Engine Model type: 4L1011 Size of motor: 2,8 From date: 01-01-1995 Approved: Yes
    KHD Model: Engine Model series: Engine Size of motor: 1.4 Brand of engine: F2L1011 From date: 01-06-1989 Fuel: Diesel Approved: Yes
    KHD Model: Engine Model series: Engine Size of motor: 2.0 Brand of engine: F3L1011 From date: 01-06-1989 Fuel: Diesel Approved: Yes
    KHD Model: Engine Model series: Engine Size of motor: 2.7 Brand of engine: BF4L1011 From date: 01-06-1989 Fuel: Diesel Approved: Yes
    KHD Model: Engine Model series: Engine Size of motor: 2.7 Brand of engine: F4L1011 From date: 01-06-1989 Fuel: Diesel Approved: Yes
    Various Agriculture Vehicles Model: Various Agriculture Vehicles Approved: Yes
    Volvo BM / Construction Equipment Series: Lastare Model: L 30 B (11 kugg) Engine type: Deutz
    Volvo BM / Construction Equipment Series: Lastare Model: L 32 B (11 kugg) Engine type: Deutz
    Volvo BM / Construction Equipment Series: Lastare Model: L 32 Engine type: Deutz
    Volvo BM / Construction Equipment Series: Lastare Model: L 35 B (11 kugg) Engine type: Deutz
    Volvo BM / Construction Equipment Series: Lastare Model: L 35 Engine type: Deutz
    Zettelmeyer Series: Lastare Model: ZL 402 C Engine type: Deutz
    1 / 4
  • Beskrivning
    KHD Startmotor 12V-2.2kW 12V - 2.2kW, 11k Alternativ : 91-273-4202 (3.2kW) För Yourex produkt order 91-273-1743

    Voltage: 12
    kW: 2.2
    Mount. flange: 82.50
    Drive dist.: 23.00
    Mount. hole 2 mm: 11.00
    Mount. hole 1 mm: 11.00
    Dist./back: 193.50
    Dist./front: 62.00
    No./teeth: 11
    B+: M8
    Thread length mm: 10.50
    Position/50: 40
    Terminal 50: M5
    Gear type: GR
    Dist. mm: 101.00
    Rotation: CW
    Total length mm: 267.00
    Clutch type: Dry
    Drive type: Steel
    Prod. info: BN
    Waterproof: No
    Oil sealed: No
    No./mount. holes: 2 (0)

    Filer

  • Specifikation
    B+ M8
    No./teeth 11
    Mount. flange 82.50
    Oil sealed No
    No./mount. holes 2 (0)
    Position/50 40
    Clutch type Dry
    Prod. info BN
    Rotation CW
    Dist./back 193.50
    Dist./front 62.00
    Drive dist. 23.00
    Drive type Steel
    Gear type GR
    kW 2.2
    Terminal 50 M5
    Voltage 12
    Total length 267.00 mm
    Waterproof No
    Dist. 101.00 mm
    Thread length 10.50 mm
    Mount. hole 2 11.00 mm
    Mount. hole 1 11.00 mm
  • Fordonsmatchning

    • OEM
      aze4535, cs1185, F032111855, 0001 218 172, 0001 223 002, 11.131.109, 11.180.180, 0118 0180, 0118 0995, 0986 017 430, 1986S00756, 0001109370, 0001109461, 01180180, 1180180, 01180995, 01180995KZ, 1180995, 1180995KZ, 0001218172, 0001218772, 0001223002, 02934505, 2934505, 02934613, 2934613, 02934631, 03045250, 9142726, 9142900, 19083023, 069911023f, 9002904386, 443115142726

    • Konkurrentreferens
      BSO7227, CST10142, CST10443, DRS7430, DRS7430N, DRS8290, F042002059, F042002146, F042S02059, F042S02146, LRS01422, LRS01457, MS619, S0066, S0505, STR-2204, STR-B015, STR22027, STR22027AN, STR22039, 2-1946-BO, 2-2204-BO, 8EA015642-011, 8EA737793-001, 20-1137-11, 25-2321, 25-2390, 510.521.112, 510.522.112, 688.011.112, 688.016.112, 8505, 18230, 18230N, 19156N, 101185, 103673, 203002, 220333, 220333A, 438597, 458884, 8018290, 11017430, 11018290, 20513069, 0986017430, 0986017437, 0986018290, 0986018293, 0986018297

    • Bilmärken
      Genie, K.H.D. (Deutz), Volvo BM / Construction Equipment, Zettelmeyer

    • Normaliserat artikelnummer
      aze4535, bso7227, cs1185, cst10142, cst10443, drs7430, drs7430n, drs8290, f032111855, f042002059, f042002146, f042s02059, f042s02146, lrs01422, lrs01457, ms619, s0066, s0505, str22027, str22027an, str22039, str2204, strb015, 8ea015642011, 8ea737793001, 1986s00756, 8505, 18230, 18230n, 19156n, 21946bo, 22204bo, 101185, 103673, 203002, 220333, 220333a, 252321, 252390, 438597, 458884, 0001109370, 0001109461, 01180180, 1180180, 01180995, 01180995kz, 1180995, 1180995kz, 0001218172, 0001218772, 0001223002, 02934505, 2934505, 02934613, 2934613, 02934631, 03045250, 8018290, 9142726, 9142900, 11017430, 11018290, 11131109, 11180180, 19083023, 20113711, 20513069, 069911023f, 510521112, 510522112, 688011112, 688016112, 0986017430, 0986017437, 0986018290, 0986018293, 0986018297, 9002904386, 443115142726

    • Passar modeller
      Genie Series: S 60, 65 Engine type: Deutz F4L1011F
      Genie Series: Z 45-22 Engine type: Deutz F3L1011F
      K.H.D. (Deutz) Series: BF 4 L 1011 Engine volume: 2.7 Year: 01.95-
      K.H.D. (Deutz) Series: F 2 L 1011 Engine volume: 1.4 Year: 01.95-
      K.H.D. (Deutz) Series: F 3 L 1011 Engine volume: 2.0 Year: 01.95-
      K.H.D. (Deutz) Series: F 3 L 1011 F Model: 12V - 2.2kW 11kugg
      K.H.D. (Deutz) Series: F 4 L 1011 Engine volume: 2.7 Year: 01.95-
      KHD Model: Engine Model series: Engine Model type: 4L1011 Size of motor: 2,8 From date: 01-01-1995 Approved: Yes
      KHD Model: Engine Model series: Engine Size of motor: 1.4 Brand of engine: F2L1011 From date: 01-06-1989 Fuel: Diesel Approved: Yes
      KHD Model: Engine Model series: Engine Size of motor: 2.0 Brand of engine: F3L1011 From date: 01-06-1989 Fuel: Diesel Approved: Yes
      KHD Model: Engine Model series: Engine Size of motor: 2.7 Brand of engine: BF4L1011 From date: 01-06-1989 Fuel: Diesel Approved: Yes
      KHD Model: Engine Model series: Engine Size of motor: 2.7 Brand of engine: F4L1011 From date: 01-06-1989 Fuel: Diesel Approved: Yes
      Various Agriculture Vehicles Model: Various Agriculture Vehicles Approved: Yes
      Volvo BM / Construction Equipment Series: Lastare Model: L 30 B (11 kugg) Engine type: Deutz
      Volvo BM / Construction Equipment Series: Lastare Model: L 32 B (11 kugg) Engine type: Deutz
      Volvo BM / Construction Equipment Series: Lastare Model: L 32 Engine type: Deutz
      Volvo BM / Construction Equipment Series: Lastare Model: L 35 B (11 kugg) Engine type: Deutz
      Volvo BM / Construction Equipment Series: Lastare Model: L 35 Engine type: Deutz
      Zettelmeyer Series: Lastare Model: ZL 402 C Engine type: Deutz
      1 / 4
