HC-Cargo Startmotor
HC-Cargo Startmotor
Artikelnr: F032111805

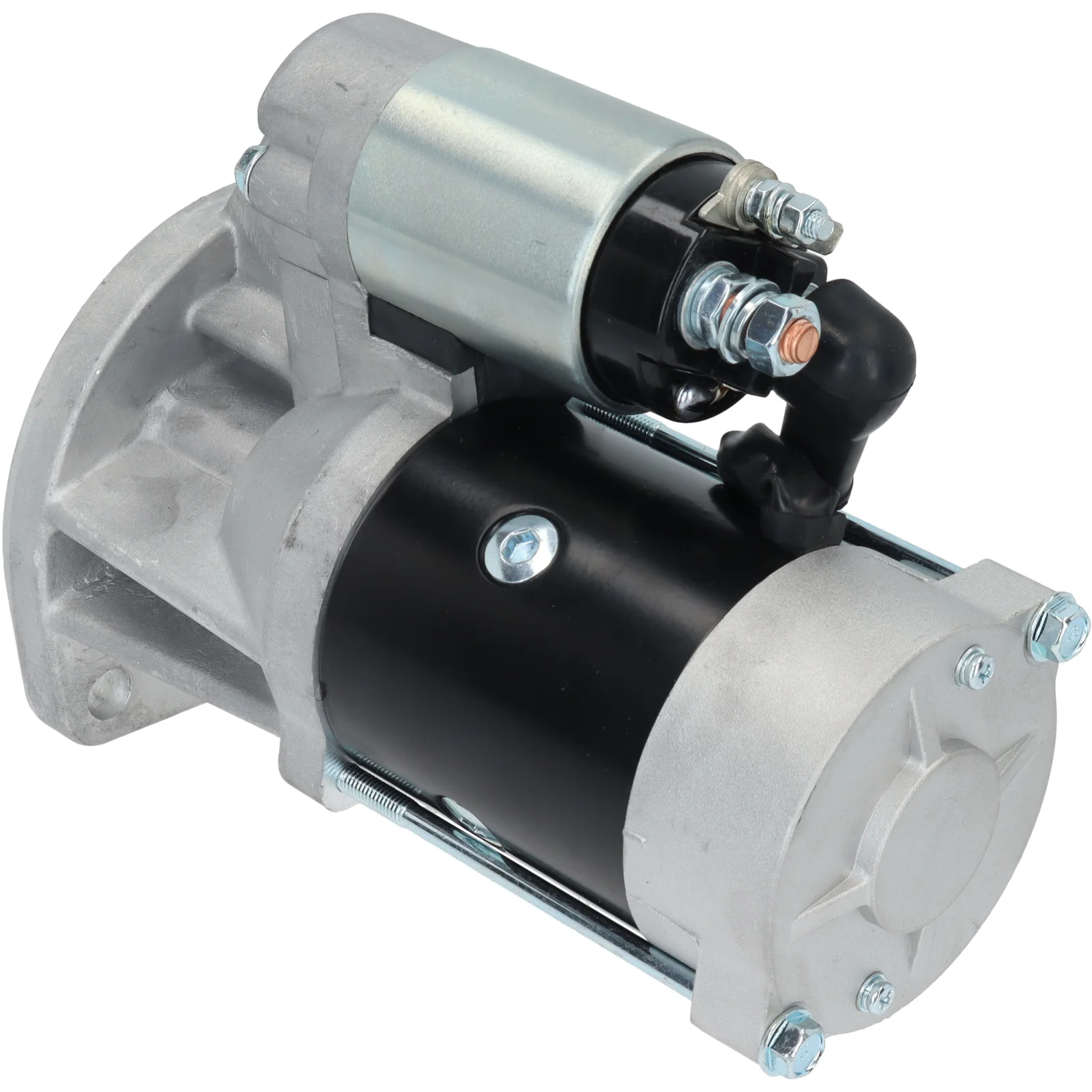

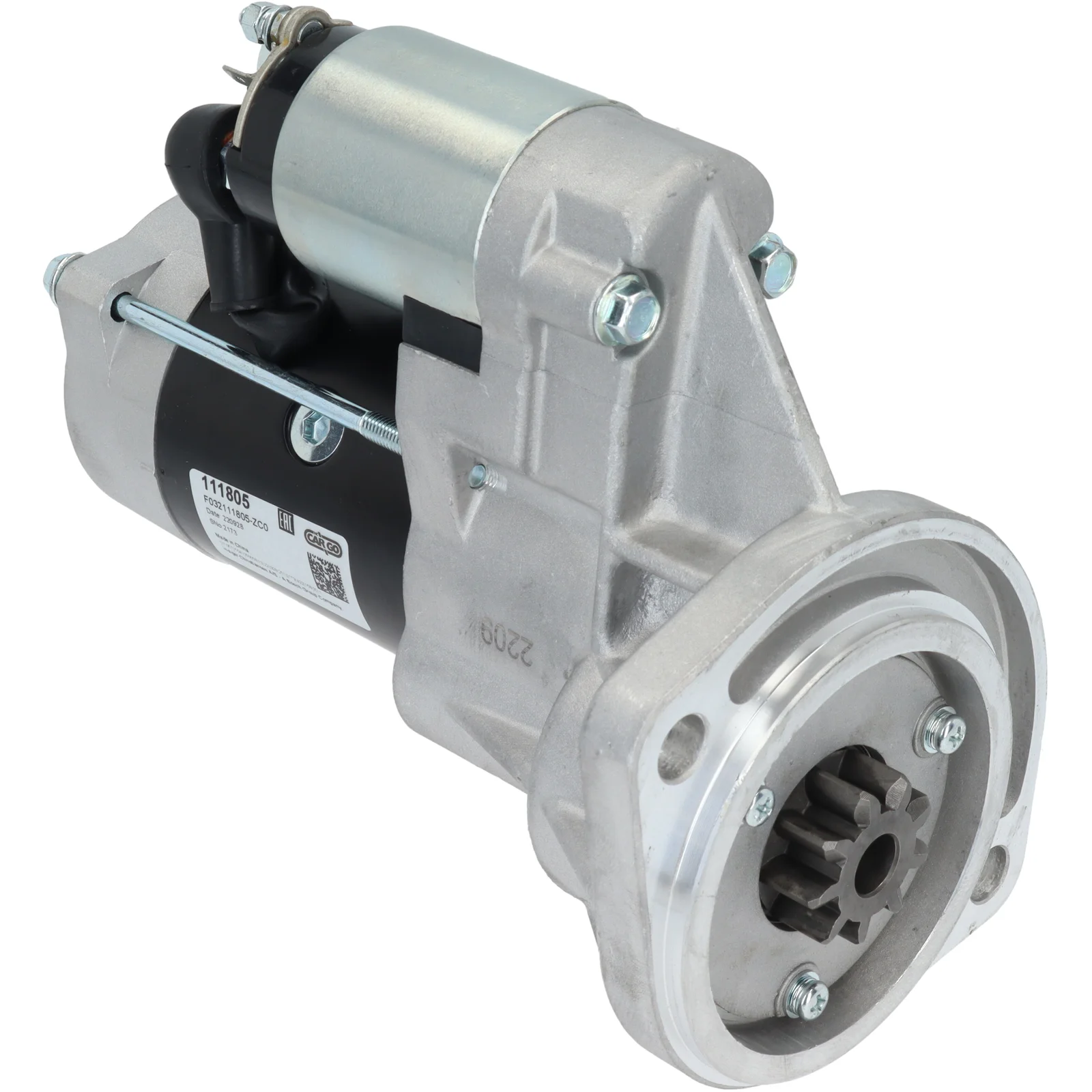

HC-Cargo Startmotor

Teknisk info:

Voltage: 12, kW: 2.5, No./teeth: 9, Rotation: CW

Beskrivning

Voltage: 12
kW: 2.5
Mount. flange: 95.00
Drive dist.: 11.50
Mount. hole 2 mm: 11.00
Mount. hole 1 mm: 11.00
Dist./back: 219.00
Dist./front: 11.50
No./teeth: 9
B+: M8
Position/50: 50
Terminal 50: 6.30
Gear type: GR
Dist. mm: 119.00
Rotation: CW
Total length mm: 228.00
Drive type: Steel
Prod. info: BN
Waterproof: No
Oil sealed: No
No./mount. holes: 2 (0)

Filer

Specifikation

B+ M8
No./teeth 9
Mount. flange 95.00
Oil sealed No
No./mount. holes 2 (0)
Position/50 50
Prod. info BN
Rotation CW
Dist./back 219.00
Dist./front 11.50
Drive dist. 11.50
Drive type Steel
Gear type GR
kW 2.5
Terminal 50 6.30
Voltage 12
Total length 228.00 mm
Waterproof No
Dist. 119.00 mm
Mount. hole 2 11.00 mm
Mount. hole 1 11.00 mm

  • OEM
    AZE4634, F032111805, js1214, s13-107, s13-107a, s13-127, s13-127a, s13-127c, 11.139.406, 17610-q1010, 23300-10t02, 23300-g2403, 23300-g2404, 23300-g2405, 23300-g2406, 111534, 1516934R, 9000331201, 9000331203

  • Konkurrentreferens
    ads-142, ads-187, BSO7119, CST20104, drs3165, DRS3165N, drs6740, F042004023, F042S04023, FRS604, IS9319, J5211075, lrs00727, lrt00106, MS215, QS1434, QS1605, S2005, S2007, STR-6008, 8EA011611-111, 8EA012527-031, 8ea726490-001, 8EA737807-001, 25-1074, 25-1165, 25-3039, 28-52.135, 327.031.092, 327.033.092, 327.060.092, 1356, 9542, 11727, 11732, 20517, 30276R, 30725N, 201106, 201214, 220000, 220000A, 220003, 220003A, 220204, 220204A, 438141, 458161, 458526, 726904, 8213187, 11040147, 943241031, 0986016031, 0986016740, 943241031010, 944280167400

  • Normaliserat artikelnummer
    ads142, ads187, aze4634, bso7119, cst20104, drs3165, drs3165n, drs6740, f032111805, f042004023, f042s04023, frs604, is9319, j5211075, js1214, lrs00727, lrt00106, ms215, qs1434, qs1605, s13107, s13107a, s13127, s13127a, s13127c, s2005, s2007, str6008, 8ea011611111, 8ea012527031, 8ea726490001, 8ea737807001, 1356, 9542, 11727, 11732, 17610q1010, 20517, 23300g2403, 23300g2404, 23300g2405, 23300g2406, 30276r, 30725n, 111534, 201106, 201214, 220000, 220000a, 220003, 220003a, 220204, 220204a, 251074, 251165, 253039, 438141, 458161, 458526, 726904, 1516934r, 2330010t02, 2852135, 8213187, 11040147, 11139406, 327031092, 327033092, 327060092, 943241031, 0986016031, 0986016740, 9000331201, 9000331203, 943241031010, 944280167400

  • Passar modeller
    Ford Model: Maverick Model series: Maverick Type of engine: TD Size of motor: 2.7 Brand of engine: TD27 From date: 01-02-1993 To date: 01-08-1996 Fuel: Diesel Approved: Yes
    Ford Model: Maverick Model series: Maverick Type of engine: TD Size of motor: 2.7 Brand of engine: TD27E Type description: UDS,UNS From date: 01-09-1996 To date: 01-04-1998 Fuel: Diesel Approved: Yes
    Nissan Model: King Van Model series: King Van Type of engine: TD Size of motor: 2.5 Brand of engine: TD25 Type description: E24 From date: 01-12-1988 To date: 01-07-1994 Fuel: Diesel Approved: Yes
    Nissan Model: Pick-Up Model series: Pick-Up Model type: 4WD Type of engine: Diesel Size of motor: 2.5 Brand of engine: TD25 Type description: D21 Body: Pick Up From date: 01-08-1987 To date: 01-02-1998 Fuel: Diesel Approved: Yes
    Nissan Model: Terrano Model series: Terrano Model type: 4WD Type of engine: TDi Size of motor: 2.7 Brand of engine: TD27TI Type description: R20 Body: Van From date: 01-06-1998 To date: 01-09-2007 Fuel: Diesel Approved: Yes
    Nissan Model: Terrano Model series: Terrano Model type: 4WD Type of engine: TDi Size of motor: 2.7 Brand of engine: TD27TI Type description: R20 From date: 01-05-1996 To date: 01-09-2007 Fuel: Diesel Approved: Yes
    Nissan Model: Terrano Model series: Terrano Type of engine: TD Size of motor: 2.7 Brand of engine: TD27T Type description: R20 From date: 01-02-1993 To date: 01-01-2002 Fuel: Diesel Approved: Yes
    Nissan Model: Terrano Model series: Terrano Type of engine: TD Size of motor: 2.7 Brand of engine: TD27T Type description: WD21 From date: 01-02-1989 To date: 01-02-1996 Fuel: Diesel Approved: Yes
    Nissan Model: Urvan Model series: Urvan Type of engine: Diesel Size of motor: 2.3 Brand of engine: TD23 Type description: E24 Body: Van From date: 01-01-1988 To date: 01-05-1997 Fuel: Diesel Approved: Yes
    Nissan Model: Urvan Model series: Urvan Type of engine: Diesel Size of motor: 2.5 Brand of engine: TD25 Type description: E24 Body: Van From date: 01-12-1988 To date: 01-05-1997 Fuel: Diesel Approved: Yes
    Nissan Model: Urvan Model series: Urvan Type of engine: Diesel Size of motor: 2.5 Brand of engine: TD25 Type description: E24L Body: Bus From date: 01-05-1989 To date: 01-10-1996 Fuel: Diesel Approved: Yes
