Artikelnr: F032111724

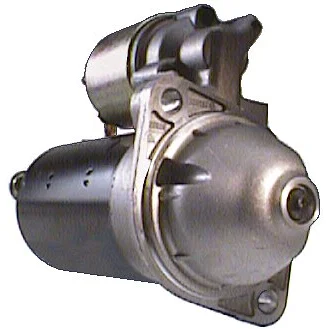

HC-Cargo Startmotor

Teknisk info:

Voltage: 12, kW: 2.0, No./teeth: 9, Rotation: CW

Beskrivning

HC-Cargo Startmotor 12V - 2.0 kW, 9k

Voltage: 12
kW: 2.0
Mount. flange: 82.50
Drive dist.: 21.00
Mount. hole 2 mm: 10.50
Mount. hole 1 mm: 10.40
Dist./back: 175.00
Dist./front: 54.00
No./teeth: 9
B+: M8
Thread length mm: 14.00
Position/50: 15
Terminal 50: M6
Gear type: GR
Dist. mm: 105.00
Rotation: CW
Total length mm: 242.00
Drive type: Steel
Prod. info: BN
Waterproof: No
Oil sealed: No
No./mount. holes: 2 (0)

Specifikation

B+ M8
No./teeth 9
Mount. flange 82.50
Oil sealed No
No./mount. holes 2 (0)
Position/50 15
Prod. info BN
Rotation CW
Dist./back 175.00
Dist./front 54.00
Drive dist. 21.00
Drive type Steel
Gear type GR
kW 2.0
Terminal 50 M6
Voltage 12
Total length 242.00 mm
Waterproof No
Dist. 105.00 mm
Thread length 14.00 mm
Mount. hole 2 10.50 mm
Mount. hole 1 10.40 mm
  • OEM

    C5530016A, CS1071, cs1071, F032111724, R1040038, 0001 109 033, 111724, 0001109033, 6202048, 9512765, 91154217, 93175883, 93175901
  • Konkurrentreferens

    CST10252, DRS3808, F042002081, F042S02081, lrs01417, QS2528, S0604, STR-2233, STR2233, 8ea737460-001, 25-2316, 328.041.092, 4537, 9546, 31344R, 101071, 220102, 220102A, 11019860, 0986019860, 0986019863
  • Bilmärken

    Opel
  • Normaliserat artikelnummer

    c5530016a, cs1071, cst10252, drs3808, f032111724, f042002081, f042s02081, lrs01417, qs2528, r1040038, s0604, str2233, 8ea737460001, 4537, 9546, 31344r, 101071, 111724, 220102, 220102a, 252316, 0001109033, 6202048, 9512765, 11019860, 91154217, 93175883, 93175901, 328041092, 0986019860, 0986019863
  • Passar modeller

    Opel Model: Frontera Model series: Frontera A Model type: Sport Type of engine: TDS Size of motor: 2.5 Brand of engine: 25TDS Type description: 5MWL4 Body: Convertible From date: 01-09-1996 To date: 01-10-1998 Fuel: Diesel Approved: Yes
    Opel Model: Frontera Model series: Frontera A Type of engine: TDS Size of motor: 2.5 Brand of engine: 25TDS Type description: 5MWL4 From date: 01-09-1996 To date: 01-10-1998 Fuel: Diesel Approved: Yes
    Opel Series: Frontera A Model: 2.5 TDS Engine volume: 2.5 Engine type: 25TD Year: 09.96-10.98
    Opel Series: Frontera A Sport Model: 2.5 TDS Engine volume: 2.5 Engine type: 25TD/25TDS (VM41B) Year: 09.96-10.98
    Vauxhall Model: Frontera Model series: Frontera A Model type: 4x4 Long Type of engine: TD Size of motor: 2.5 Brand of engine: 25TDS From date: 01-11-1991 To date: 01-06-1998 Fuel: Diesel Approved: Yes
    Vauxhall Model: Frontera Model series: Frontera A Model type: 4x4 Sport Type of engine: TD Size of motor: 2.5 Brand of engine: 25TDS Body: Convertible From date: 01-09-1996 To date: 01-10-1998 Fuel: Diesel Approved: Yes
