HC-Cargo Startmotor
HC-Cargo Startmotor
Artikelnr: F032111706

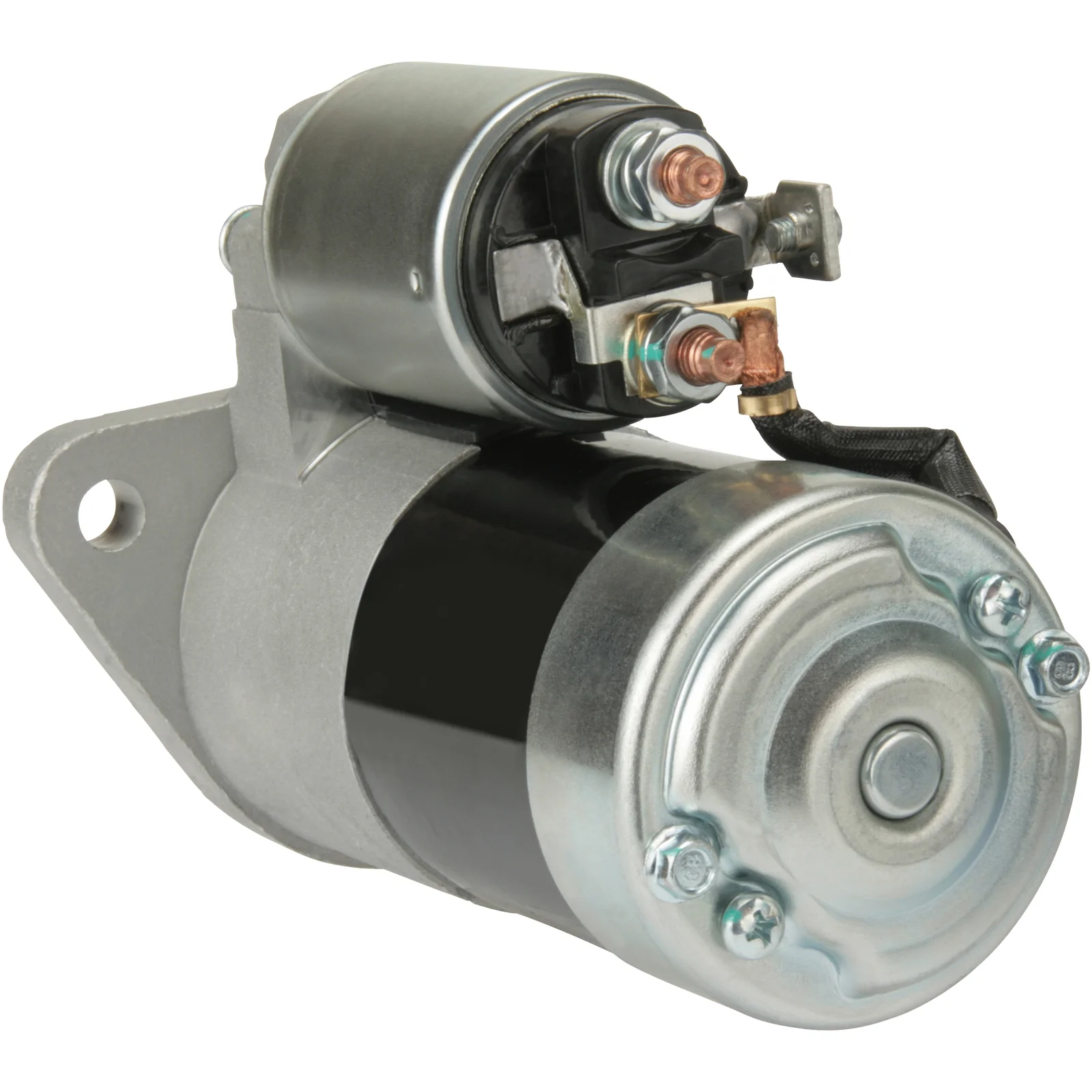

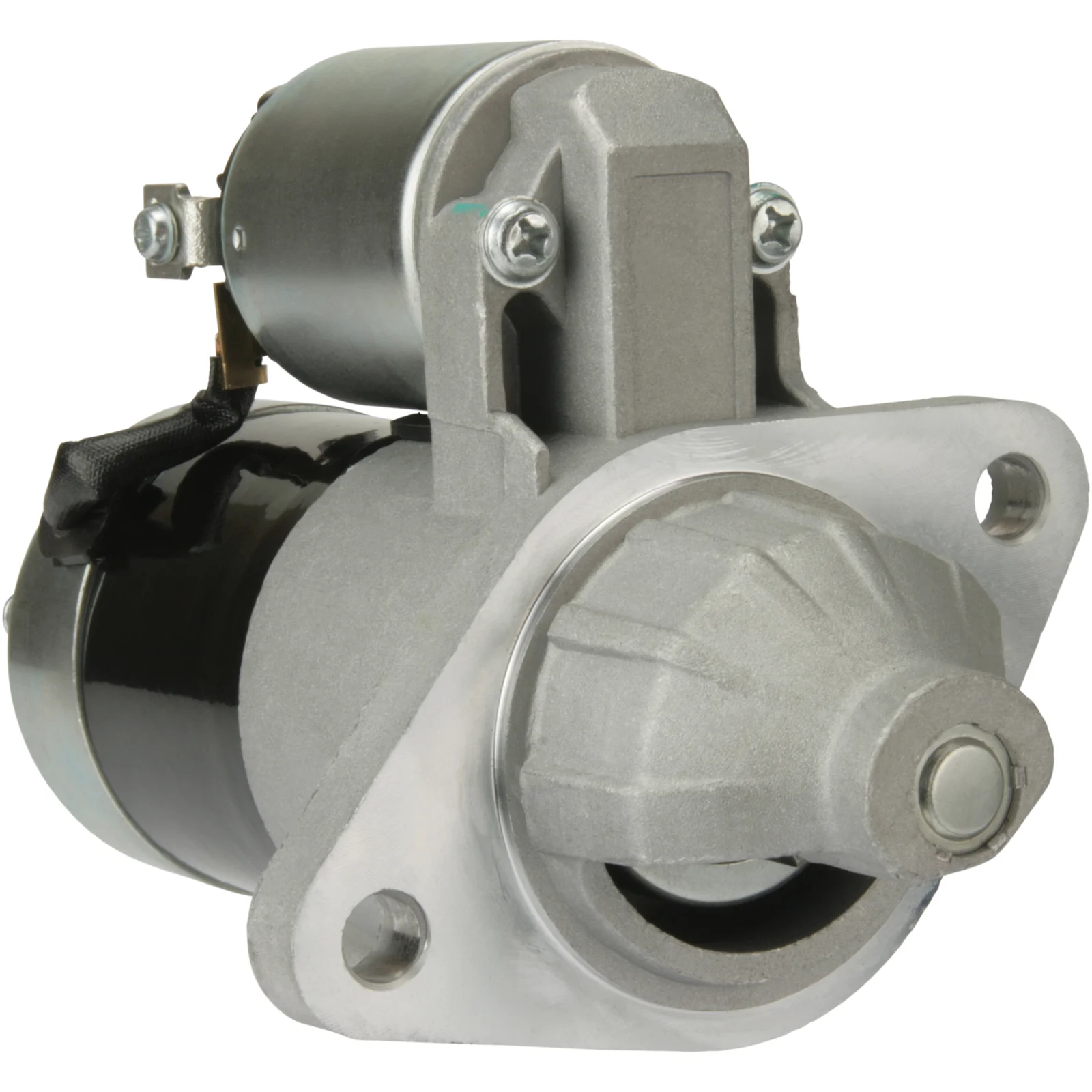

HC-Cargo Startmotor

Teknisk info:

Voltage: 12, kW: 1.0, No./teeth: 9, Rotation: CW

Beskrivning

Yanmar Startmotor 12V-1.0kW 12V - 1.0kW, 9k För Yourex produkt order 91-678-4303

Voltage: 12
kW: 1.0
Mount. flange: 70.00
Drive dist.: 17.50
Mount. hole 2 mm: 10.70
Mount. hole 1 mm: 10.70
Dist./back: 150.00
Dist./front: 52.00
No./teeth: 9
B+: M8
Position/50: 15
Terminal 50: M5
Gear type: DD/GR
Dist. mm: 109.50
Rotation: CW
Total length mm: 206.00
Drive type: Steel
Waterproof: No
Oil sealed: No
No./mount. holes: 2 (0)

Filer

Specifikation

B+ M8
No./teeth 9
Mount. flange 70.00
Oil sealed No
No./mount. holes 2 (0)
Position/50 15
Rotation CW
Dist./back 150.00
Dist./front 52.00
Drive dist. 17.50
Drive type Steel
Gear type DD/GR
kW 1.0
Terminal 50 M5
Voltage 12
Total length 206.00 mm
Waterproof No
Dist. 109.50 mm
Mount. hole 2 10.70 mm
Mount. hole 1 10.70 mm

  • OEM
    F032111706, js1145, S114-303, s114-303, S114-303A, s114-303a, 128170-77010, 128170-77010d

  • Konkurrentreferens
    CST20138, LRS01128, S2085S, STR23018, 2-1872-HI, 25-1081, 682.007.092, 18209, 18209N, 104458, 201145

  • Bilmärken
    Yanmar, Yanmar Marine

  • Normaliserat artikelnummer
    cst20138, f032111706, js1145, lrs01128, s114303, s114303a, s2085s, str23018, 18209, 18209n, 21872hi, 104458, 201145, 251081, 682007092, 12817077010, 12817077010d

  • Passar modeller
    Yanmar Model: 1GM Model series: 1GM From date: 01-01-1980 Approved: Yes
    Yanmar Model: 2GM Model series: 2GM Approved: Yes
    Yanmar Model: 3GM Model series: 3GM Approved: Yes
    Yanmar Series: Marin Model: 1GM / 1GM10 Year: 07.80-
    Yanmar Series: Marin Model: 1GM / 2GM / 3GM
    Yanmar Series: Marin Model: 2GM / 2GMF / 2GM20
    Yanmar Series: Marin Model: 3GM / 3GMD / 3GMF / 3GM30
    1 / 2
  • Beskrivning
    Yanmar Startmotor 12V-1.0kW 12V - 1.0kW, 9k För Yourex produkt order 91-678-4303

    Voltage: 12
    kW: 1.0
    Mount. flange: 70.00
    Drive dist.: 17.50
    Mount. hole 2 mm: 10.70
    Mount. hole 1 mm: 10.70
    Dist./back: 150.00
    Dist./front: 52.00
    No./teeth: 9
    B+: M8
    Position/50: 15
    Terminal 50: M5
    Gear type: DD/GR
    Dist. mm: 109.50
    Rotation: CW
    Total length mm: 206.00
    Drive type: Steel
    Waterproof: No
    Oil sealed: No
    No./mount. holes: 2 (0)

    Filer

  • Specifikation
    B+ M8
    No./teeth 9
    Mount. flange 70.00
    Oil sealed No
    No./mount. holes 2 (0)
    Position/50 15
    Rotation CW
    Dist./back 150.00
    Dist./front 52.00
    Drive dist. 17.50
    Drive type Steel
    Gear type DD/GR
    kW 1.0
    Terminal 50 M5
    Voltage 12
    Total length 206.00 mm
    Waterproof No
    Dist. 109.50 mm
    Mount. hole 2 10.70 mm
    Mount. hole 1 10.70 mm
  • Fordonsmatchning

    • OEM
      F032111706, js1145, S114-303, s114-303, S114-303A, s114-303a, 128170-77010, 128170-77010d

    • Konkurrentreferens
      CST20138, LRS01128, S2085S, STR23018, 2-1872-HI, 25-1081, 682.007.092, 18209, 18209N, 104458, 201145

    • Bilmärken
      Yanmar, Yanmar Marine

    • Normaliserat artikelnummer
      cst20138, f032111706, js1145, lrs01128, s114303, s114303a, s2085s, str23018, 18209, 18209n, 21872hi, 104458, 201145, 251081, 682007092, 12817077010, 12817077010d

    • Passar modeller
      Yanmar Model: 1GM Model series: 1GM From date: 01-01-1980 Approved: Yes
      Yanmar Model: 2GM Model series: 2GM Approved: Yes
      Yanmar Model: 3GM Model series: 3GM Approved: Yes
      Yanmar Series: Marin Model: 1GM / 1GM10 Year: 07.80-
      Yanmar Series: Marin Model: 1GM / 2GM / 3GM
      Yanmar Series: Marin Model: 2GM / 2GMF / 2GM20
      Yanmar Series: Marin Model: 3GM / 3GMD / 3GMF / 3GM30
