Artikelnr: F032111699

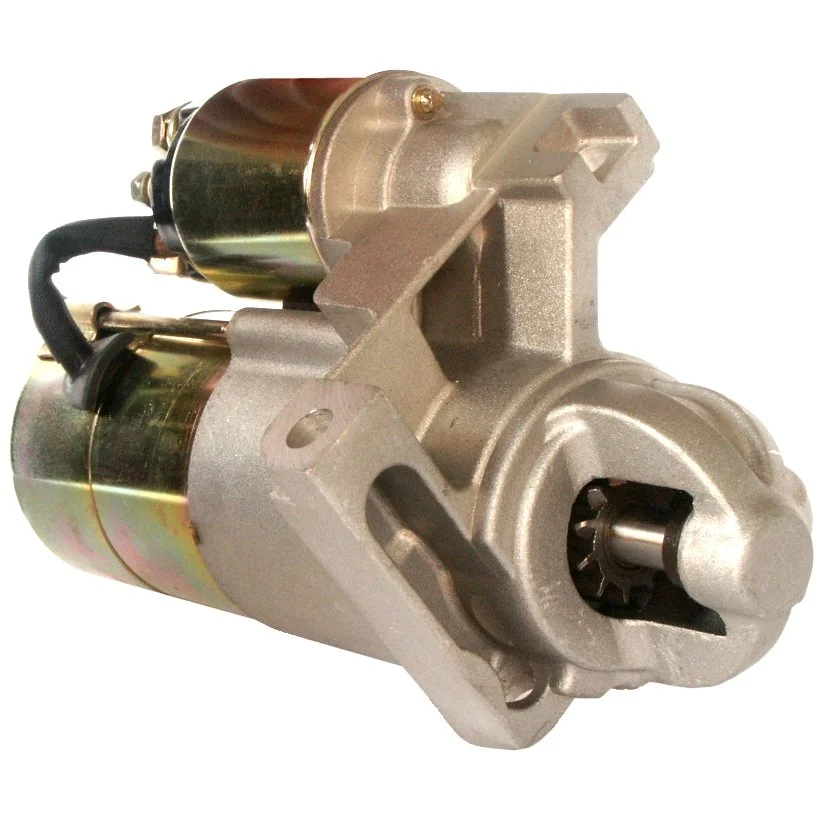

HC-Cargo Startmotor

Teknisk info:

Voltage: 12, kW: 1.6, No./teeth: 11, Rotation: CW

Beskrivning

Voltage: 12
kW: 1.6
Drive dist.: 19.00
Mount. hole 2 mm: 9.80
Mount. hole 1 mm: 9.80
Dist./back: 180.00
Dist./front: 56.50
No./teeth: 11
B+: M8
Position/50: 15
Terminal 50: M5
Gear type: GR
Dist. mm: 84.00
Rotation: CW
Total length mm: 245.00
Terminal 30h: M5
Position/30h: 45
Clutch type: Wet
Drive type: Steel
Prod. info: BN
Waterproof: No
Oil sealed: No
Remarks: Replacing: PG260L.
No./mount. holes: 2 (0)

Filer

Specifikation

B+ M8
No./teeth 11
Oil sealed No
No./mount. holes 2 (0)
Position/30h 45
Position/50 15
Clutch type Wet
Prod. info BN
Remarks Replacing: PG260L.
Rotation CW
Dist./back 180.00
Dist./front 56.50
Drive dist. 19.00
Drive type Steel
Gear type GR
kW 1.6
Terminal 50 M5
Voltage 12
Total length 245.00 mm
Waterproof No
Dist. 84.00 mm
Terminal 30H M5 mm
Mount. hole 2 9.80 mm
Mount. hole 1 9.80 mm

  • OEM
    cs1258, F032111699, 50-806963a2, 50-806963a4, 50-806964a3, 50-806965a2, 50-806965a4, 323-677, 30460, 1469603, 1650426, 2817056, 3854750, 3855882, 3856003, 3862308, 8000193, 9000763, 9000820, 9000822, 9000850, 9000895, 12301334

  • Konkurrentreferens
    BSO7090, BSO7145, F042003037, F042003038, F042S03038, LRS01576, lrs01646, lrs01789, s-1413, S1010, S1176S, S1247S, sdr0059, st96, STR-3034A, STR3034, ts-1294, 2-1759-dr, 2-1760-DR-2, 2-1760dr, 2-2322-DR, 2-2322-DR-2, 25-3180, 26-2391, 91-01-4387, 91-01-4389, 628.024.112, 638.149.112, 6300, 6563, 6563N, 6788N, 6789, 10096, 101258, 11090160, 35214965

  • Normaliserat artikelnummer
    bso7090, bso7145, cs1258, f032111699, f042003037, f042003038, f042s03038, lrs01576, lrs01646, lrs01789, s1010, s1176s, s1247s, s1413, sdr0059, st96, str3034, str3034a, ts1294, 6300, 6563, 6563n, 6788n, 6789, 10096, 21759dr, 21760dr, 21760dr2, 22322dr, 22322dr2, 30460, 101258, 253180, 262391, 323677, 1469603, 1650426, 2817056, 3854750, 3855882, 3856003, 3862308, 8000193, 9000763, 9000820, 9000822, 9000850, 9000895, 11090160, 12301334, 35214965, 50806963a2, 50806963a4, 50806964a3, 50806965a2, 50806965a4, 91014387, 91014389, 628024112, 638149112

  • Passar modeller
    Mercruiser Model: Engine Model series: Various Models Size of motor: 5.0 Approved: Yes
    Volvo Penta Model: Engine Model series: Various Models Approved: Yes
  • Beskrivning
    Voltage: 12
    kW: 1.6
    Drive dist.: 19.00
    Mount. hole 2 mm: 9.80
    Mount. hole 1 mm: 9.80
    Dist./back: 180.00
    Dist./front: 56.50
    No./teeth: 11
    B+: M8
    Position/50: 15
    Terminal 50: M5
    Gear type: GR
    Dist. mm: 84.00
    Rotation: CW
    Total length mm: 245.00
    Terminal 30h: M5
    Position/30h: 45
    Clutch type: Wet
    Drive type: Steel
    Prod. info: BN
    Waterproof: No
    Oil sealed: No
    Remarks: Replacing: PG260L.
    No./mount. holes: 2 (0)

    Filer

  • Specifikation
    B+ M8
    No./teeth 11
    Oil sealed No
    No./mount. holes 2 (0)
    Position/30h 45
    Position/50 15
    Clutch type Wet
    Prod. info BN
    Remarks Replacing: PG260L.
    Rotation CW
    Dist./back 180.00
    Dist./front 56.50
    Drive dist. 19.00
    Drive type Steel
    Gear type GR
    kW 1.6
    Terminal 50 M5
    Voltage 12
    Total length 245.00 mm
    Waterproof No
    Dist. 84.00 mm
    Terminal 30H M5 mm
    Mount. hole 2 9.80 mm
    Mount. hole 1 9.80 mm
  • Fordonsmatchning

    • OEM
      cs1258, F032111699, 50-806963a2, 50-806963a4, 50-806964a3, 50-806965a2, 50-806965a4, 323-677, 30460, 1469603, 1650426, 2817056, 3854750, 3855882, 3856003, 3862308, 8000193, 9000763, 9000820, 9000822, 9000850, 9000895, 12301334

    • Konkurrentreferens
      BSO7090, BSO7145, F042003037, F042003038, F042S03038, LRS01576, lrs01646, lrs01789, s-1413, S1010, S1176S, S1247S, sdr0059, st96, STR-3034A, STR3034, ts-1294, 2-1759-dr, 2-1760-DR-2, 2-1760dr, 2-2322-DR, 2-2322-DR-2, 25-3180, 26-2391, 91-01-4387, 91-01-4389, 628.024.112, 638.149.112, 6300, 6563, 6563N, 6788N, 6789, 10096, 101258, 11090160, 35214965

    • Normaliserat artikelnummer
      bso7090, bso7145, cs1258, f032111699, f042003037, f042003038, f042s03038, lrs01576, lrs01646, lrs01789, s1010, s1176s, s1247s, s1413, sdr0059, st96, str3034, str3034a, ts1294, 6300, 6563, 6563n, 6788n, 6789, 10096, 21759dr, 21760dr, 21760dr2, 22322dr, 22322dr2, 30460, 101258, 253180, 262391, 323677, 1469603, 1650426, 2817056, 3854750, 3855882, 3856003, 3862308, 8000193, 9000763, 9000820, 9000822, 9000850, 9000895, 11090160, 12301334, 35214965, 50806963a2, 50806963a4, 50806964a3, 50806965a2, 50806965a4, 91014387, 91014389, 628024112, 638149112

    • Passar modeller
      Mercruiser Model: Engine Model series: Various Models Size of motor: 5.0 Approved: Yes
      Volvo Penta Model: Engine Model series: Various Models Approved: Yes
