Artikelnr: F032111586

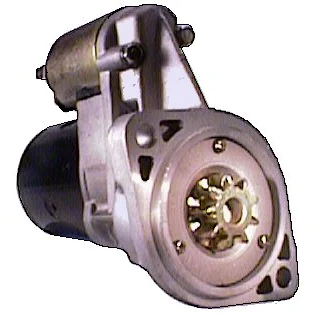

HC-Cargo Startmotor

Teknisk info:

Voltage: 12, kW: 1.4, No./teeth: 9, Rotation: CW

Beskrivning

Voltage: 12
kW: 1.4
Mount. flange: 82.50
Drive dist.: 11.00
Mount. hole 2 mm: 11.00
Mount. hole 1 mm: 11.00
Dist./back: 199.00
Dist./front: 9.50
No./teeth: 9
B+: M8
Position/50: 45
Terminal 50: 6.30
Gear type: GR
Dist. mm: 110.00
Rotation: CW
Total length mm: 207.50
Drive type: Steel
Prod. info: Reman
Waterproof: No
Oil sealed: No
No./mount. holes: 2 (0)

Filer

Specifikation

B+ M8
No./teeth 9
Mount. flange 82.50
Oil sealed No
No./mount. holes 2 (0)
Position/50 45
Prod. info Reman
Rotation CW
Dist./back 199.00
Dist./front 9.50
Drive dist. 11.00
Drive type Steel
Gear type GR
kW 1.4
Terminal 50 6.30
Voltage 12
Total length 207.50 mm
Waterproof No
Dist. 110.00 mm
Mount. hole 2 11.00 mm
Mount. hole 1 11.00 mm

  • OEM
    F032111586, s114-482, 23300-52h00

  • Konkurrentreferens
    DRS3845, 2-2012-HI, 25-3137, 327.075.092, 18054, 18054N, 18054R

  • Normaliserat artikelnummer
    drs3845, f032111586, s114482, 18054, 18054n, 18054r, 22012hi, 253137, 2330052h00, 327075092

  • Passar modeller
    GEO Model: Tracker Model series: Tracker Size of motor: 1.6 From date: 01-01-1989 To date: 01-01-1995 Fuel: Gasoline Approved: Yes
    Suzuki Model: Sidekick Model series: Sidekick Model type: JL Size of motor: 1.6 From date: 01-01-1991 To date: 01-01-1991 Fuel: Gasoline Approved: Yes
    Suzuki Model: Sidekick Model series: Sidekick Model type: JLX Size of motor: 1.6 From date: 01-01-1990 To date: 01-01-1993 Fuel: Gasoline Approved: Yes
    Suzuki Model: Sidekick Model series: Sidekick Model type: JS Size of motor: 1.6 From date: 01-01-1990 To date: 01-01-1993 Fuel: Gasoline Approved: Yes
    Suzuki Model: Sidekick Model series: Sidekick Model type: JX Size of motor: 1.6 From date: 01-01-1990 To date: 01-01-1993 Fuel: Gasoline Approved: Yes
    Suzuki Model: Sidekick Model series: Sidekick Size of motor: 1.6 From date: 01-01-1989 To date: 01-01-1993 Fuel: Gasoline Approved: Yes
    1 / 2
  • Beskrivning
    Voltage: 12
    kW: 1.4
    Mount. flange: 82.50
    Drive dist.: 11.00
    Mount. hole 2 mm: 11.00
    Mount. hole 1 mm: 11.00
    Dist./back: 199.00
    Dist./front: 9.50
    No./teeth: 9
    B+: M8
    Position/50: 45
    Terminal 50: 6.30
    Gear type: GR
    Dist. mm: 110.00
    Rotation: CW
    Total length mm: 207.50
    Drive type: Steel
    Prod. info: Reman
    Waterproof: No
    Oil sealed: No
    No./mount. holes: 2 (0)

    Filer

  • Specifikation
    B+ M8
    No./teeth 9
    Mount. flange 82.50
    Oil sealed No
    No./mount. holes 2 (0)
    Position/50 45
    Prod. info Reman
    Rotation CW
    Dist./back 199.00
    Dist./front 9.50
    Drive dist. 11.00
    Drive type Steel
    Gear type GR
    kW 1.4
    Terminal 50 6.30
    Voltage 12
    Total length 207.50 mm
    Waterproof No
    Dist. 110.00 mm
    Mount. hole 2 11.00 mm
    Mount. hole 1 11.00 mm
  • Fordonsmatchning

    • OEM
      F032111586, s114-482, 23300-52h00

    • Konkurrentreferens
      DRS3845, 2-2012-HI, 25-3137, 327.075.092, 18054, 18054N, 18054R

    • Normaliserat artikelnummer
      drs3845, f032111586, s114482, 18054, 18054n, 18054r, 22012hi, 253137, 2330052h00, 327075092

    • Passar modeller
      GEO Model: Tracker Model series: Tracker Size of motor: 1.6 From date: 01-01-1989 To date: 01-01-1995 Fuel: Gasoline Approved: Yes
      Suzuki Model: Sidekick Model series: Sidekick Model type: JL Size of motor: 1.6 From date: 01-01-1991 To date: 01-01-1991 Fuel: Gasoline Approved: Yes
      Suzuki Model: Sidekick Model series: Sidekick Model type: JLX Size of motor: 1.6 From date: 01-01-1990 To date: 01-01-1993 Fuel: Gasoline Approved: Yes
      Suzuki Model: Sidekick Model series: Sidekick Model type: JS Size of motor: 1.6 From date: 01-01-1990 To date: 01-01-1993 Fuel: Gasoline Approved: Yes
      Suzuki Model: Sidekick Model series: Sidekick Model type: JX Size of motor: 1.6 From date: 01-01-1990 To date: 01-01-1993 Fuel: Gasoline Approved: Yes
      Suzuki Model: Sidekick Model series: Sidekick Size of motor: 1.6 From date: 01-01-1989 To date: 01-01-1993 Fuel: Gasoline Approved: Yes
