HC-Cargo Startmotor
HC-Cargo Startmotor
Artikelnr: F032111404

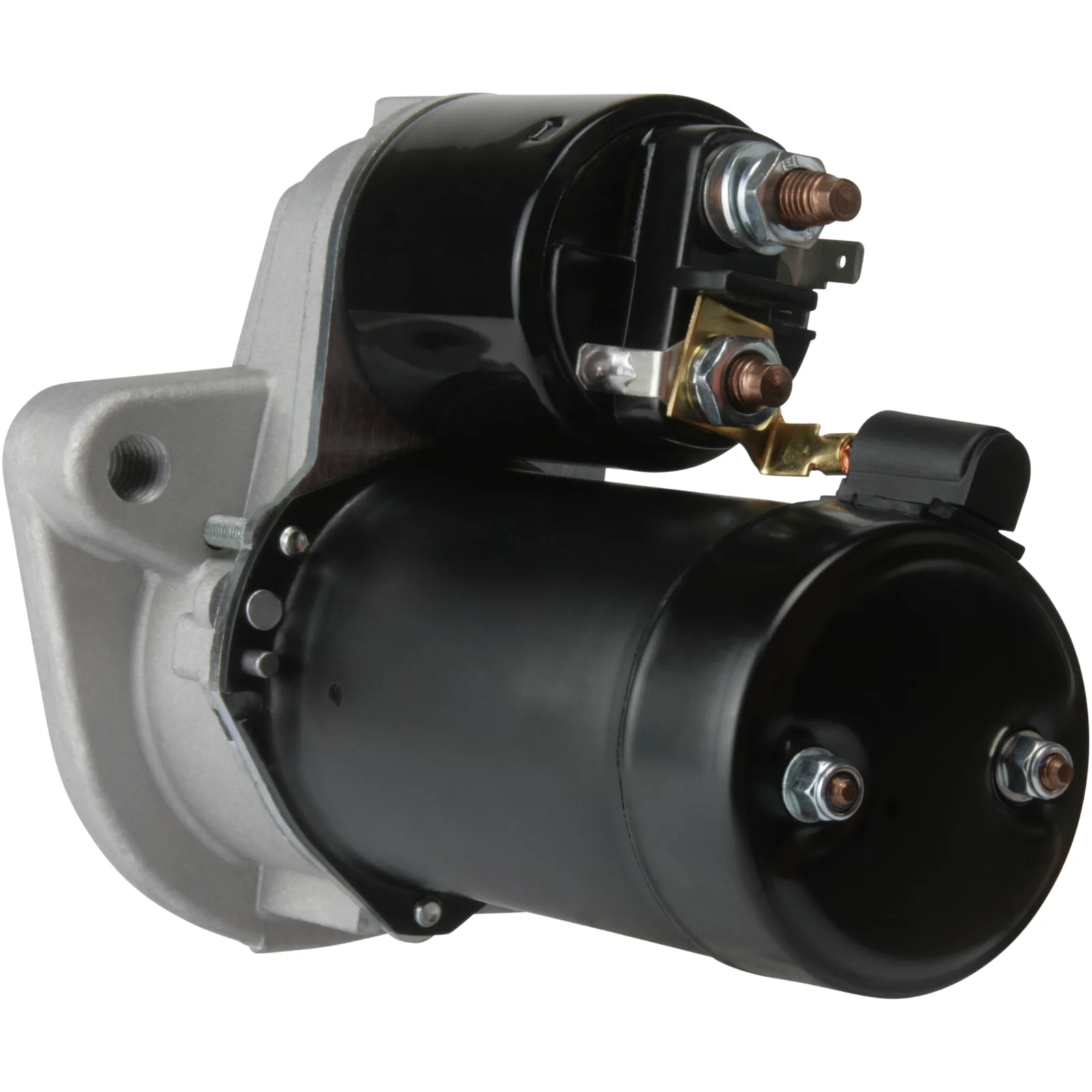

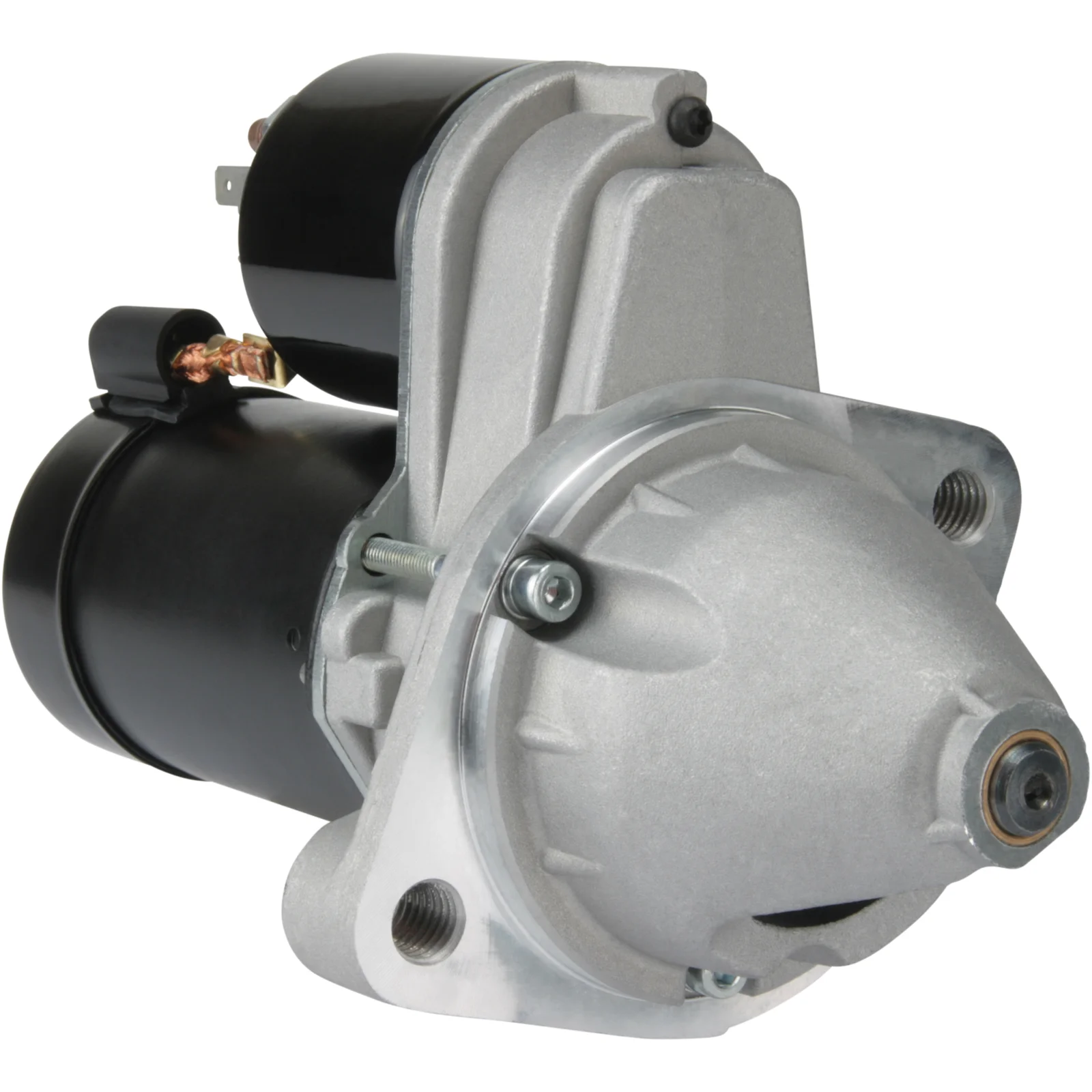

HC-Cargo Startmotor

Teknisk info:

Voltage: 12, kW: 1.1, No./teeth: 9, Rotation: CW

Beskrivning

Voltage: 12
kW: 1.1
Mount. flange: 82.50
Drive dist.: 35.00
Dist./back: 156.50
Dist./front: 67.50
No./teeth: 9
B+: M8
Position/50: 13
Terminal 50: 6.30
Gear type: GR
Dist. mm: 104.50
Rotation: CW
Total length mm: 224.00
Clutch type: Dry
Drive type: Steel
Prod. info: BN
Waterproof: No
Oil sealed: No
Info: Valeo D6RA11 is insulated which HC-CARGO 111404 is NOT !
No./mount. holes: 2 (2)

Filer

Specifikation

B+ M8
No./teeth 9
Mount. flange 82.50
Oil sealed No
No./mount. holes 2 (2)
Position/50 13
Clutch type Dry
Prod. info BN
Rotation CW
Dist./back 156.50
Dist./front 67.50
Drive dist. 35.00
Drive type Steel
Gear type GR
Info Valeo D6RA11 is insulated which HC-CARGO 111404 is NOT !
kW 1.1
Terminal 50 6.30
Voltage 12
Total length 224.00 mm
Waterproof No
Dist. 104.50 mm

  • OEM
    cs991, d6ra11, d6ra40, F032111404

  • Konkurrentreferens
    CST15180, LRS01180, LRS01223, nd150, S3050, SR5002N, STR54064, 8ea737240-001, 25-1190, 25-1338, 638.023.092, 638.024.092, 4443, 10991, 17315, 17315N, 33874, 203006, 594100, 11090310

  • Normaliserat artikelnummer
    cs991, cst15180, d6ra11, d6ra40, f032111404, lrs01180, lrs01223, nd150, s3050, sr5002n, str54064, 8ea737240001, 4443, 10991, 17315, 17315n, 33874, 203006, 251190, 251338, 594100, 11090310, 638023092, 638024092

  • Passar modeller
    Volvo Penta Model: Engine Model series: Engine Size of motor: 0.4 Brand of engine: 2001 From date: 01-01-1991 Fuel: Diesel Approved: Yes
    Volvo Penta Model: Engine Model series: Engine Size of motor: 0.9 Brand of engine: 2002 From date: 01-06-1983 To date: 01-01-1993 Fuel: Diesel Approved: Yes
    Volvo Penta Model: Engine Model series: Engine Size of motor: 1.3 Brand of engine: 2003 From date: 01-06-1983 To date: 01-01-1993 Fuel: Diesel Approved: Yes
    Volvo Penta Model: Engine Model series: Engine Size of motor: 2.3 Brand of engine: AQ131 From date: 01-01-1987 Fuel: Diesel Approved: Yes
  • Beskrivning
    Voltage: 12
    kW: 1.1
    Mount. flange: 82.50
    Drive dist.: 35.00
    Dist./back: 156.50
    Dist./front: 67.50
    No./teeth: 9
    B+: M8
    Position/50: 13
    Terminal 50: 6.30
    Gear type: GR
    Dist. mm: 104.50
    Rotation: CW
    Total length mm: 224.00
    Clutch type: Dry
    Drive type: Steel
    Prod. info: BN
    Waterproof: No
    Oil sealed: No
    Info: Valeo D6RA11 is insulated which HC-CARGO 111404 is NOT !
    No./mount. holes: 2 (2)

    Filer

  • Specifikation
    B+ M8
    No./teeth 9
    Mount. flange 82.50
    Oil sealed No
    No./mount. holes 2 (2)
    Position/50 13
    Clutch type Dry
    Prod. info BN
    Rotation CW
    Dist./back 156.50
    Dist./front 67.50
    Drive dist. 35.00
    Drive type Steel
    Gear type GR
    Info Valeo D6RA11 is insulated which HC-CARGO 111404 is NOT !
    kW 1.1
    Terminal 50 6.30
    Voltage 12
    Total length 224.00 mm
    Waterproof No
    Dist. 104.50 mm
  • Fordonsmatchning

    • OEM
      cs991, d6ra11, d6ra40, F032111404

    • Konkurrentreferens
      CST15180, LRS01180, LRS01223, nd150, S3050, SR5002N, STR54064, 8ea737240-001, 25-1190, 25-1338, 638.023.092, 638.024.092, 4443, 10991, 17315, 17315N, 33874, 203006, 594100, 11090310

    • Normaliserat artikelnummer
      cs991, cst15180, d6ra11, d6ra40, f032111404, lrs01180, lrs01223, nd150, s3050, sr5002n, str54064, 8ea737240001, 4443, 10991, 17315, 17315n, 33874, 203006, 251190, 251338, 594100, 11090310, 638023092, 638024092

    • Passar modeller
      Volvo Penta Model: Engine Model series: Engine Size of motor: 0.4 Brand of engine: 2001 From date: 01-01-1991 Fuel: Diesel Approved: Yes
      Volvo Penta Model: Engine Model series: Engine Size of motor: 0.9 Brand of engine: 2002 From date: 01-06-1983 To date: 01-01-1993 Fuel: Diesel Approved: Yes
      Volvo Penta Model: Engine Model series: Engine Size of motor: 1.3 Brand of engine: 2003 From date: 01-06-1983 To date: 01-01-1993 Fuel: Diesel Approved: Yes
      Volvo Penta Model: Engine Model series: Engine Size of motor: 2.3 Brand of engine: AQ131 From date: 01-01-1987 Fuel: Diesel Approved: Yes
