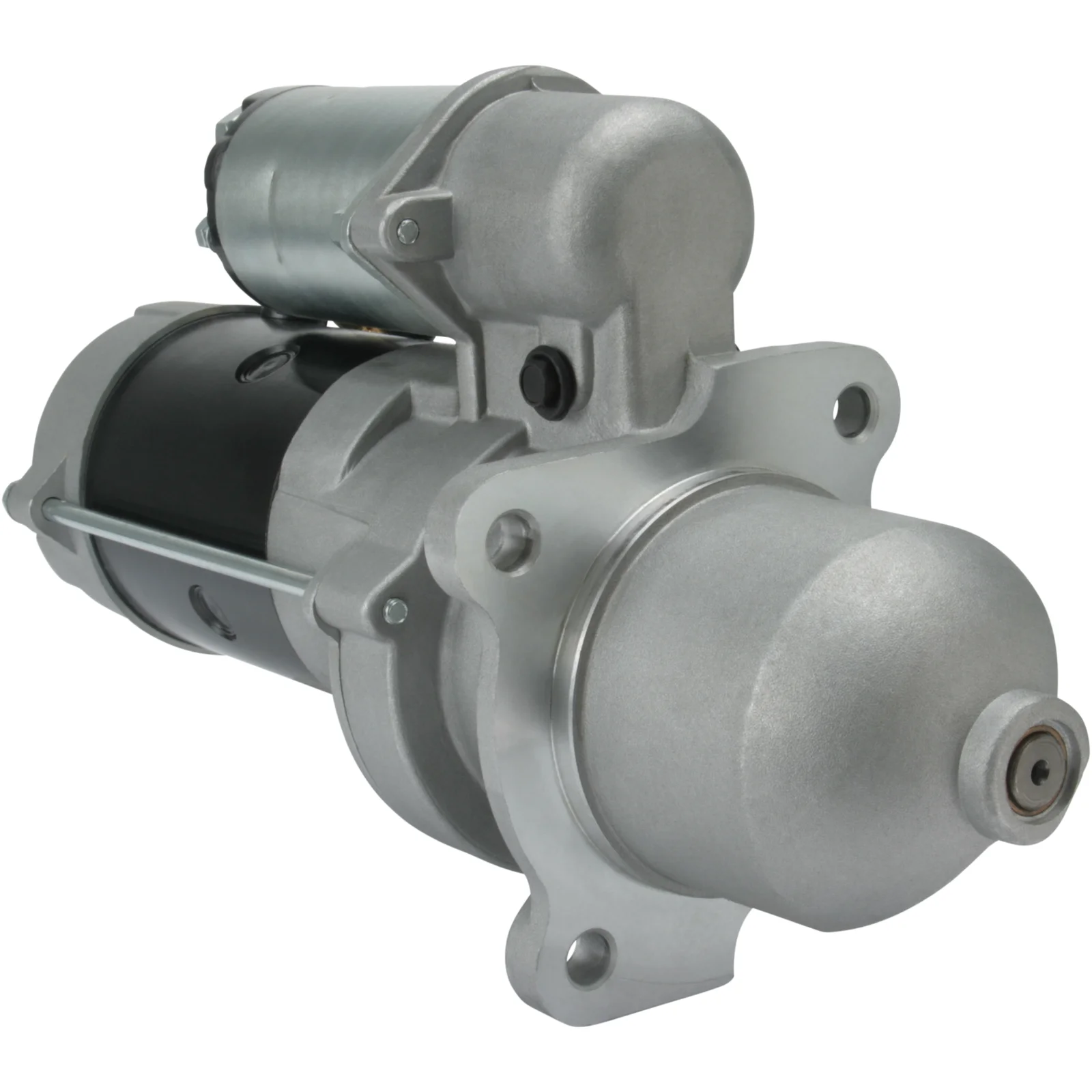

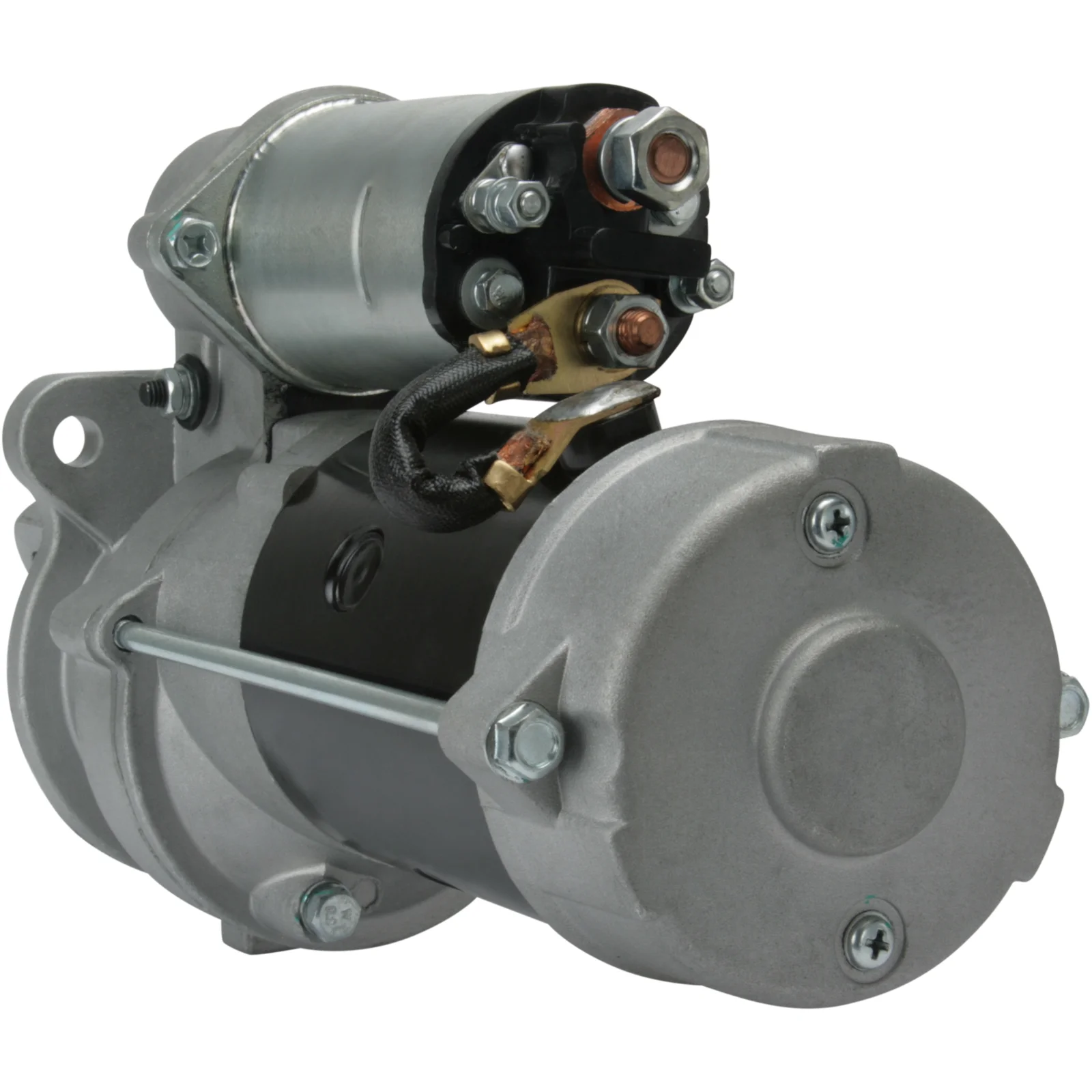

HC-Cargo Startmotor
HC-Cargo Startmotor
Artikelnr: F032111383

HC-Cargo Startmotor

Teknisk info:

Voltage: 12, kW: 2.8, No./teeth: 10, Rotation: CW

Beskrivning

Voltage: 12
kW: 2.8
Mount. flange: 89.00
Drive dist.: 46.00
Mount. hole 3 mm: 11.20
Mount. hole 2 mm: 11.20
Mount. hole 1 mm: 11.20
Dist./back: 250.00
Dist./front: 91.50
No./teeth: 10
B+: M10
Position/15a: 20
Terminal 15a: M5
Position/50: 47
Terminal 50: M5
Gear type: GR
Dist. 2: 90.00
Dist. 3: 90.00
Dist. mm: 127.00
Rotation: CW
Total length mm: 341.50
Clutch type: Wet
Drive type: Steel
Prod. info: BN
Waterproof: No
Oil sealed: Yes
Remarks: Replacing: 28MT.
No./mount. holes: 3 (0)

Filer

Specifikation

B+ M10
No./teeth 10
Mount. flange 89.00
Oil sealed Yes
No./mount. holes 3 (0)
Position/15a 20
Position/50 47
Clutch type Wet
Prod. info BN
Dist. 2 90.00
Remarks Replacing: 28MT.
Dist. 3 90.00
Rotation CW
Dist./back 250.00
Dist./front 91.50
Drive dist. 46.00
Drive type Steel
Gear type GR
kW 2.8
Terminal 50 M5
Voltage 12
Total length 341.50 mm
Waterproof No
Dist. 127.00 mm
Terminal 15A M5 mm
Mount. hole 3 11.20 mm
Mount. hole 2 11.20 mm
Mount. hole 1 11.20 mm

  • OEM
    F032111383, 1113285

  • Konkurrentreferens
    CST50113, F042003106, F042S03106, STR-7073, 6578, 60843

  • Normaliserat artikelnummer
    cst50113, f032111383, f042003106, f042s03106, str7073, 6578, 60843, 1113285

  • Passar modeller
    Bobcat Model: Various Models Model series: Various Models Approved: Yes
    Clark Model: Various Models Model series: Various Models From date: 01-01-1968 Approved: Yes
  • Beskrivning
    Voltage: 12
    kW: 2.8
    Mount. flange: 89.00
    Drive dist.: 46.00
    Mount. hole 3 mm: 11.20
    Mount. hole 2 mm: 11.20
    Mount. hole 1 mm: 11.20
    Dist./back: 250.00
    Dist./front: 91.50
    No./teeth: 10
    B+: M10
    Position/15a: 20
    Terminal 15a: M5
    Position/50: 47
    Terminal 50: M5
    Gear type: GR
    Dist. 2: 90.00
    Dist. 3: 90.00
    Dist. mm: 127.00
    Rotation: CW
    Total length mm: 341.50
    Clutch type: Wet
    Drive type: Steel
    Prod. info: BN
    Waterproof: No
    Oil sealed: Yes
    Remarks: Replacing: 28MT.
    No./mount. holes: 3 (0)

    Filer

  • Specifikation
    B+ M10
    No./teeth 10
    Mount. flange 89.00
    Oil sealed Yes
    No./mount. holes 3 (0)
    Position/15a 20
    Position/50 47
    Clutch type Wet
    Prod. info BN
    Dist. 2 90.00
    Remarks Replacing: 28MT.
    Dist. 3 90.00
    Rotation CW
    Dist./back 250.00
    Dist./front 91.50
    Drive dist. 46.00
    Drive type Steel
    Gear type GR
    kW 2.8
    Terminal 50 M5
    Voltage 12
    Total length 341.50 mm
    Waterproof No
    Dist. 127.00 mm
    Terminal 15A M5 mm
    Mount. hole 3 11.20 mm
    Mount. hole 2 11.20 mm
    Mount. hole 1 11.20 mm
  • Fordonsmatchning

    • OEM
      F032111383, 1113285

    • Konkurrentreferens
      CST50113, F042003106, F042S03106, STR-7073, 6578, 60843

    • Normaliserat artikelnummer
      cst50113, f032111383, f042003106, f042s03106, str7073, 6578, 60843, 1113285

    • Passar modeller
      Bobcat Model: Various Models Model series: Various Models Approved: Yes
      Clark Model: Various Models Model series: Various Models From date: 01-01-1968 Approved: Yes
