HC-Cargo Startmotor
HC-Cargo Startmotor
Artikelnr: F032111334

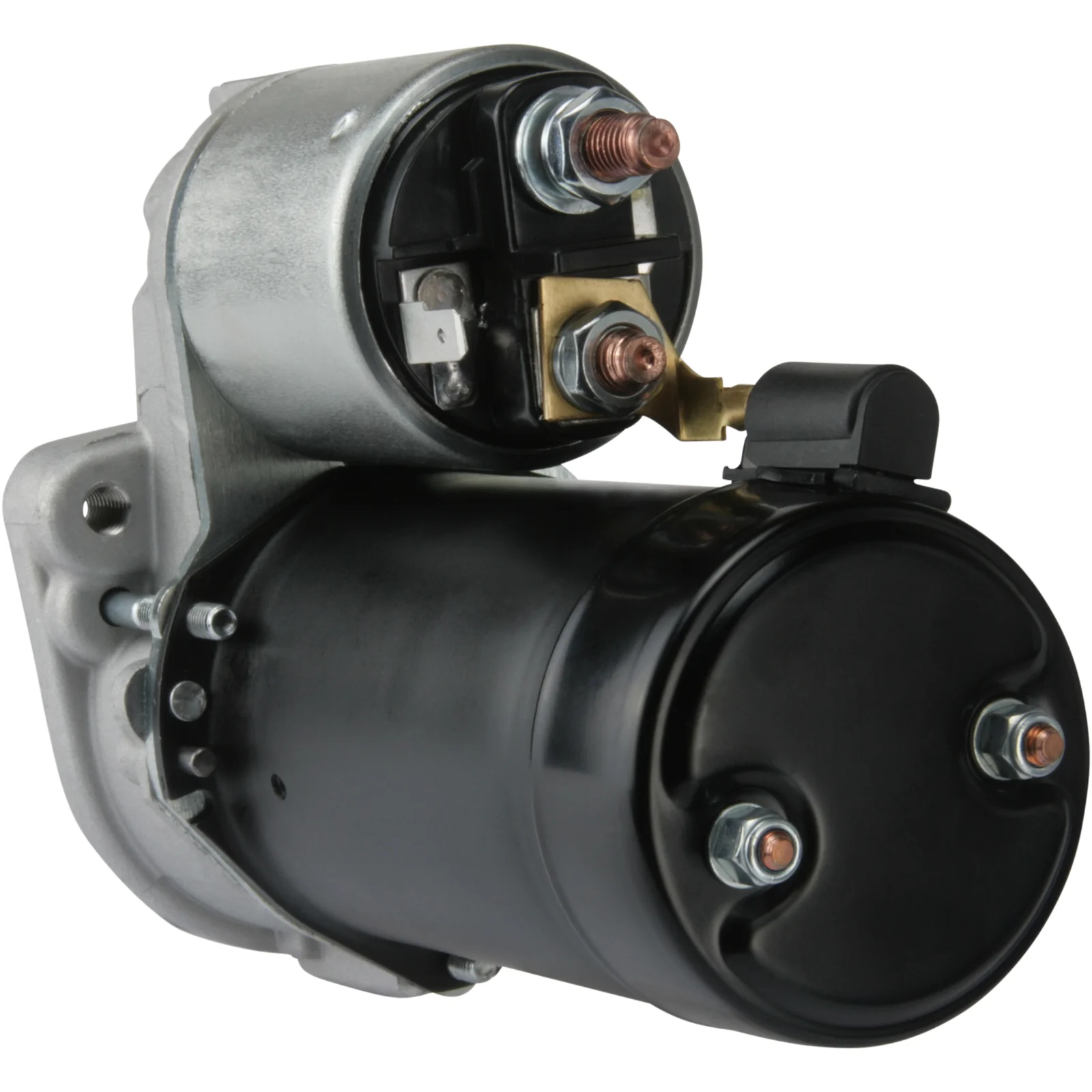

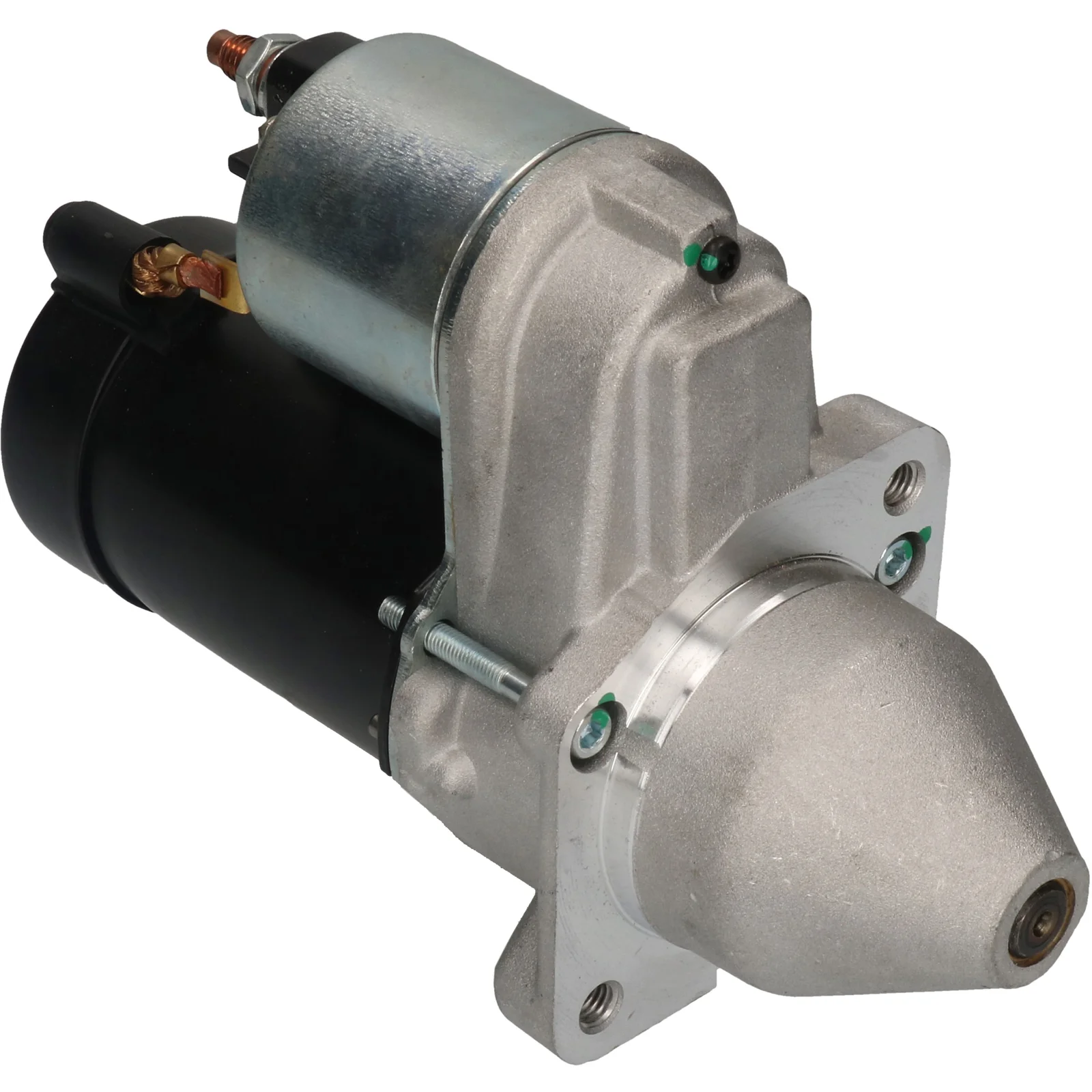

HC-Cargo Startmotor

Teknisk info:

Voltage: 12, kW: 1.2, No./teeth: 9, Rotation: CW

Beskrivning

Voltage: 12
kW: 1.2
Mount. flange: 62.00
Drive dist.: 28.00
Dist./back: 154.50
Dist./front: 58.50
No./teeth: 9
B+: M8
Position/50: 43
Terminal 50: 6.30
Gear type: GR
Dist. mm: 88.50
Rotation: CW
Total length mm: 213.50
Drive type: Steel
Prod. info: BN
Waterproof: No
Oil sealed: No
Info: Bosch 0001157023 has non threaded mounting holes
No./mount. holes: 2 (2)

Filer

Specifikation

B+ M8
No./teeth 9
Mount. flange 62.00
Oil sealed No
No./mount. holes 2 (2)
Position/50 43
Prod. info BN
Rotation CW
Dist./back 154.50
Dist./front 58.50
Drive dist. 28.00
Drive type Steel
Gear type GR
Info Bosch 0001157023 has non threaded mounting holes
kW 1.2
Terminal 50 6.30
Voltage 12
Total length 213.50 mm
Waterproof No
Dist. 88.50 mm

  • OEM
    cs1106, d6ra15, d6ra7, F032111334, 0001157023, 12411243181, 12411244553, 12411244670

  • Konkurrentreferens
    CST15175, LRS01510, nd113, S3006S, SR5050N, STR33002, 8ea737504-001, 25-2473, 615.004.092, 4556, 11574, 18915N, 101106, 432586, 455632, 8080063, 11090056

  • Normaliserat artikelnummer
    cs1106, cst15175, d6ra15, d6ra7, f032111334, lrs01510, nd113, s3006s, sr5050n, str33002, 8ea737504001, 4556, 11574, 18915n, 101106, 252473, 432586, 455632, 0001157023, 8080063, 11090056, 615004092, 12411243181, 12411244553, 12411244670

  • Passar modeller
    BMW Model: R Model series: R100 Size of motor: 1.0 From date: 01-06-1976 Fuel: Gasoline Approved: Yes
    BMW Model: R Model series: R45 Size of motor: 0.5 From date: 01-06-1978 To date: 01-07-1985 Fuel: Gasoline Approved: Yes
    BMW Model: R Model series: R50 Size of motor: 0.5 From date: 01-09-1969 To date: 01-07-1973 Fuel: Gasoline Approved: Yes
    BMW Model: R Model series: R60.5 Size of motor: 0.6 From date: 01-09-1969 To date: 01-06-1973 Fuel: Gasoline Approved: Yes
    BMW Model: R Model series: R60.6 Size of motor: 0.6 From date: 01-09-1974 To date: 01-06-1978 Fuel: Gasoline Approved: Yes
    BMW Model: R Model series: R60.7 Size of motor: 0.6 From date: 01-09-1976 To date: 01-06-1980 Fuel: Gasoline Approved: Yes
    BMW Model: R Model series: R65 Size of motor: 0.7 From date: 01-06-1978 To date: 01-12-1993 Fuel: Gasoline Approved: Yes
    BMW Model: R Model series: R75.5 Size of motor: 0.8 From date: 01-09-1969 To date: 01-09-1980 Fuel: Gasoline Approved: Yes
    BMW Model: R Model series: R75.6 Size of motor: 0.8 From date: 01-09-1973 To date: 01-08-1976 Fuel: Gasoline Approved: Yes
    BMW Model: R Model series: R75.7 Size of motor: 0.8 From date: 01-09-1976 To date: 01-08-1979 Fuel: Gasoline Approved: Yes
    BMW Model: R Model series: R80 Size of motor: 0.8 From date: 01-09-1977 Fuel: Gasoline Approved: Yes
    BMW Model: R Model series: R90 Size of motor: 0.9 From date: 01-08-1973 Fuel: Gasoline Approved: Yes
    1 / 3
  • Beskrivning
    Voltage: 12
    kW: 1.2
    Mount. flange: 62.00
    Drive dist.: 28.00
    Dist./back: 154.50
    Dist./front: 58.50
    No./teeth: 9
    B+: M8
    Position/50: 43
    Terminal 50: 6.30
    Gear type: GR
    Dist. mm: 88.50
    Rotation: CW
    Total length mm: 213.50
    Drive type: Steel
    Prod. info: BN
    Waterproof: No
    Oil sealed: No
    Info: Bosch 0001157023 has non threaded mounting holes
    No./mount. holes: 2 (2)

    Filer

  • Specifikation
    B+ M8
    No./teeth 9
    Mount. flange 62.00
    Oil sealed No
    No./mount. holes 2 (2)
    Position/50 43
    Prod. info BN
    Rotation CW
    Dist./back 154.50
    Dist./front 58.50
    Drive dist. 28.00
    Drive type Steel
    Gear type GR
    Info Bosch 0001157023 has non threaded mounting holes
    kW 1.2
    Terminal 50 6.30
    Voltage 12
    Total length 213.50 mm
    Waterproof No
    Dist. 88.50 mm
  • Fordonsmatchning

    • OEM
      cs1106, d6ra15, d6ra7, F032111334, 0001157023, 12411243181, 12411244553, 12411244670

    • Konkurrentreferens
      CST15175, LRS01510, nd113, S3006S, SR5050N, STR33002, 8ea737504-001, 25-2473, 615.004.092, 4556, 11574, 18915N, 101106, 432586, 455632, 8080063, 11090056

    • Normaliserat artikelnummer
      cs1106, cst15175, d6ra15, d6ra7, f032111334, lrs01510, nd113, s3006s, sr5050n, str33002, 8ea737504001, 4556, 11574, 18915n, 101106, 252473, 432586, 455632, 0001157023, 8080063, 11090056, 615004092, 12411243181, 12411244553, 12411244670

    • Passar modeller
      BMW Model: R Model series: R100 Size of motor: 1.0 From date: 01-06-1976 Fuel: Gasoline Approved: Yes
      BMW Model: R Model series: R45 Size of motor: 0.5 From date: 01-06-1978 To date: 01-07-1985 Fuel: Gasoline Approved: Yes
      BMW Model: R Model series: R50 Size of motor: 0.5 From date: 01-09-1969 To date: 01-07-1973 Fuel: Gasoline Approved: Yes
      BMW Model: R Model series: R60.5 Size of motor: 0.6 From date: 01-09-1969 To date: 01-06-1973 Fuel: Gasoline Approved: Yes
      BMW Model: R Model series: R60.6 Size of motor: 0.6 From date: 01-09-1974 To date: 01-06-1978 Fuel: Gasoline Approved: Yes
      BMW Model: R Model series: R60.7 Size of motor: 0.6 From date: 01-09-1976 To date: 01-06-1980 Fuel: Gasoline Approved: Yes
      BMW Model: R Model series: R65 Size of motor: 0.7 From date: 01-06-1978 To date: 01-12-1993 Fuel: Gasoline Approved: Yes
      BMW Model: R Model series: R75.5 Size of motor: 0.8 From date: 01-09-1969 To date: 01-09-1980 Fuel: Gasoline Approved: Yes
      BMW Model: R Model series: R75.6 Size of motor: 0.8 From date: 01-09-1973 To date: 01-08-1976 Fuel: Gasoline Approved: Yes
      BMW Model: R Model series: R75.7 Size of motor: 0.8 From date: 01-09-1976 To date: 01-08-1979 Fuel: Gasoline Approved: Yes
      BMW Model: R Model series: R80 Size of motor: 0.8 From date: 01-09-1977 Fuel: Gasoline Approved: Yes
      BMW Model: R Model series: R90 Size of motor: 0.9 From date: 01-08-1973 Fuel: Gasoline Approved: Yes
