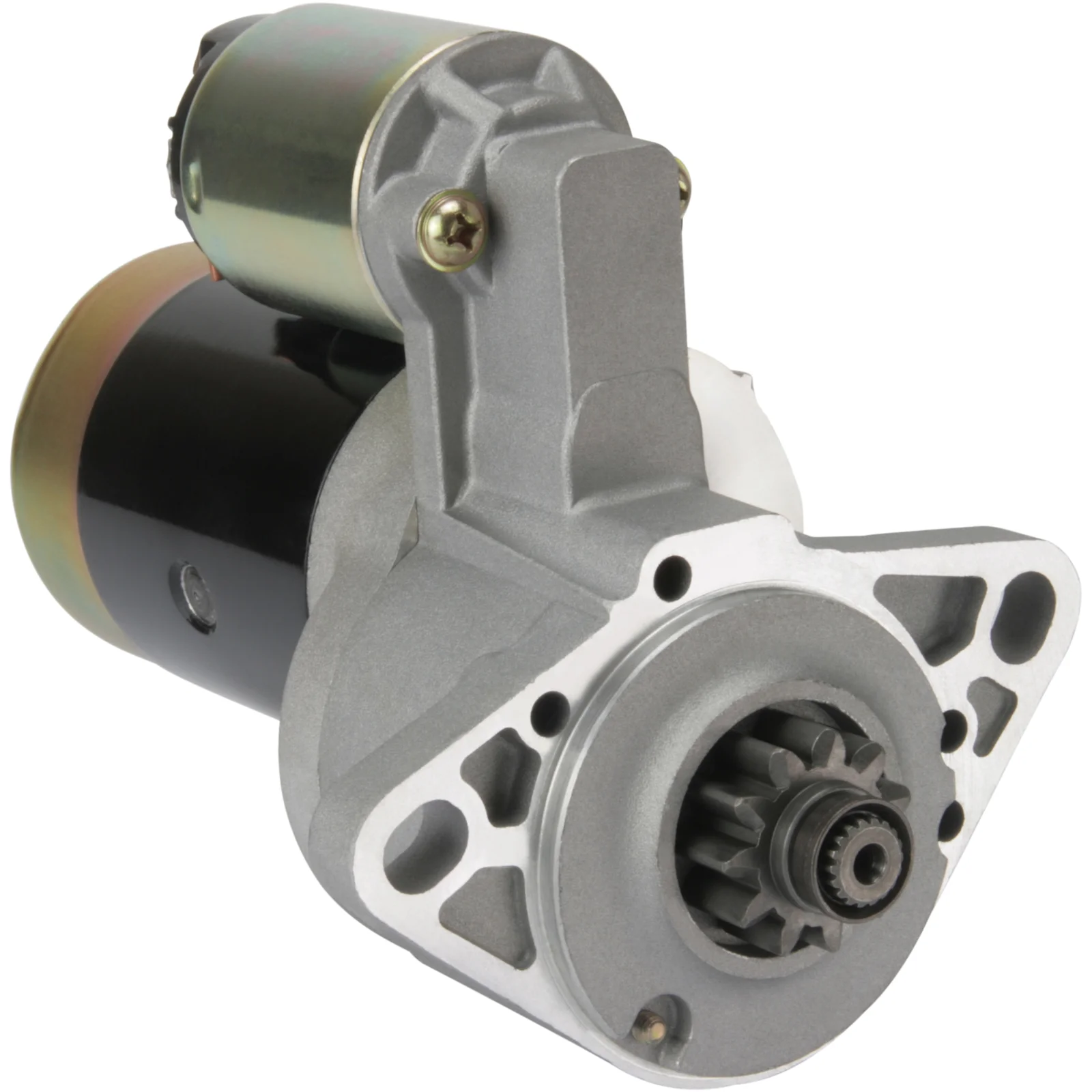

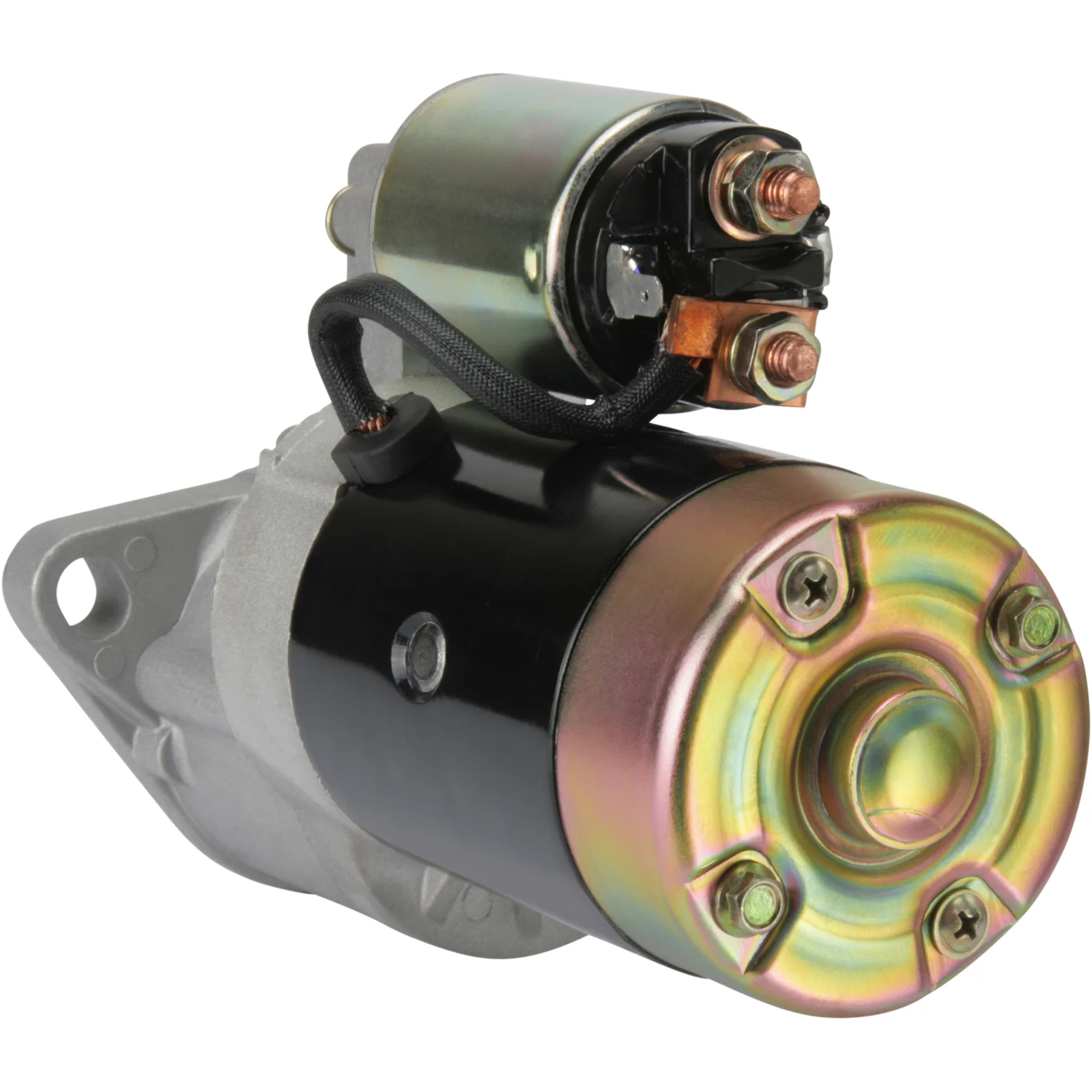

HC-Cargo Startmotor
HC-Cargo Startmotor
Artikelnr: F032111300

HC-Cargo Startmotor

Teknisk info:

Voltage: 12, kW: 1.4, No./teeth: 9, Rotation: CW

Beskrivning

Voltage: 12
kW: 1.4
Mount. flange: 74.00
Drive dist.: 21.00
Mount. hole 2 mm: 11.00
Mount. hole 1 mm: 11.00
Dist./back: 189.50
Dist./front: 31.00
No./teeth: 9
B+: M8
Position/50: 45
Terminal 50: 6.30
Gear type: GR
Dist. mm: 110.00
Rotation: CW
Total length mm: 228.00
Drive type: Steel
Prod. info: BN
Waterproof: No
Oil sealed: No
No./mount. holes: 2 (0)

Filer

Specifikation

B+ M8
No./teeth 9
Mount. flange 74.00
Oil sealed No
No./mount. holes 2 (0)
Position/50 45
Prod. info BN
Rotation CW
Dist./back 189.50
Dist./front 31.00
Drive dist. 21.00
Drive type Steel
Gear type GR
kW 1.4
Terminal 50 6.30
Voltage 12
Total length 228.00 mm
Waterproof No
Dist. 110.00 mm
Mount. hole 2 11.00 mm
Mount. hole 1 11.00 mm

  • OEM
    F032111300, js1102, M002T54083, M002T54085, M002T54091, M002T58981, m2t54083, m2t54085, m2t54091, m2t58981, SBA185086410, sba185086500, 714-33300, 185086291, 185086410, 185086500, 185086510, 185086560, 185086620

  • Konkurrentreferens
    CST35111, DRS0326, DRS3688, LRS01294, PBNS3016, s-80089, s-8326, s18238, S5090, sm-00231r, smt0126, STR28000, STR28001, 2-1780-MI, 2-2086-mi, 8ea737486-001, 25-2025, 91-27-3146, 668.005.112, 4550, 18238, 18238N, 31709, 201102, 220439, 220439A, 220507, 220507A, 11040453, 20513016, 0986024280

  • Normaliserat artikelnummer
    cst35111, drs0326, drs3688, f032111300, js1102, lrs01294, m002t54083, m002t54085, m002t54091, m002t58981, m2t54083, m2t54085, m2t54091, m2t58981, pbns3016, s18238, s5090, s80089, s8326, sba185086410, sba185086500, sm00231r, smt0126, str28000, str28001, 8ea737486001, 4550, 18238, 18238n, 21780mi, 22086mi, 31709, 201102, 220439, 220439a, 220507, 220507a, 252025, 11040453, 20513016, 71433300, 91273146, 185086291, 185086410, 185086500, 185086510, 185086560, 185086620, 668005112, 0986024280

  • Passar modeller
    Bobcat Model: Various Models Model series: Various Models Approved: Yes
    Ford Model: Various Models Model series: Various Models Approved: Yes
    Volvo Penta Model: Engine Model series: Engine Brand of engine: MD2040 From date: 01-01-1993 Fuel: Diesel Approved: Yes
  • Beskrivning
    Voltage: 12
    kW: 1.4
    Mount. flange: 74.00
    Drive dist.: 21.00
    Mount. hole 2 mm: 11.00
    Mount. hole 1 mm: 11.00
    Dist./back: 189.50
    Dist./front: 31.00
    No./teeth: 9
    B+: M8
    Position/50: 45
    Terminal 50: 6.30
    Gear type: GR
    Dist. mm: 110.00
    Rotation: CW
    Total length mm: 228.00
    Drive type: Steel
    Prod. info: BN
    Waterproof: No
    Oil sealed: No
    No./mount. holes: 2 (0)

    Filer

  • Specifikation
    B+ M8
    No./teeth 9
    Mount. flange 74.00
    Oil sealed No
    No./mount. holes 2 (0)
    Position/50 45
    Prod. info BN
    Rotation CW
    Dist./back 189.50
    Dist./front 31.00
    Drive dist. 21.00
    Drive type Steel
    Gear type GR
    kW 1.4
    Terminal 50 6.30
    Voltage 12
    Total length 228.00 mm
    Waterproof No
    Dist. 110.00 mm
    Mount. hole 2 11.00 mm
    Mount. hole 1 11.00 mm
  • Fordonsmatchning

    • OEM
      F032111300, js1102, M002T54083, M002T54085, M002T54091, M002T58981, m2t54083, m2t54085, m2t54091, m2t58981, SBA185086410, sba185086500, 714-33300, 185086291, 185086410, 185086500, 185086510, 185086560, 185086620

    • Konkurrentreferens
      CST35111, DRS0326, DRS3688, LRS01294, PBNS3016, s-80089, s-8326, s18238, S5090, sm-00231r, smt0126, STR28000, STR28001, 2-1780-MI, 2-2086-mi, 8ea737486-001, 25-2025, 91-27-3146, 668.005.112, 4550, 18238, 18238N, 31709, 201102, 220439, 220439A, 220507, 220507A, 11040453, 20513016, 0986024280

    • Normaliserat artikelnummer
      cst35111, drs0326, drs3688, f032111300, js1102, lrs01294, m002t54083, m002t54085, m002t54091, m002t58981, m2t54083, m2t54085, m2t54091, m2t58981, pbns3016, s18238, s5090, s80089, s8326, sba185086410, sba185086500, sm00231r, smt0126, str28000, str28001, 8ea737486001, 4550, 18238, 18238n, 21780mi, 22086mi, 31709, 201102, 220439, 220439a, 220507, 220507a, 252025, 11040453, 20513016, 71433300, 91273146, 185086291, 185086410, 185086500, 185086510, 185086560, 185086620, 668005112, 0986024280

    • Passar modeller
      Bobcat Model: Various Models Model series: Various Models Approved: Yes
      Ford Model: Various Models Model series: Various Models Approved: Yes
      Volvo Penta Model: Engine Model series: Engine Brand of engine: MD2040 From date: 01-01-1993 Fuel: Diesel Approved: Yes
