HC-Cargo Startmotor
HC-Cargo Startmotor
Artikelnr: F032111098

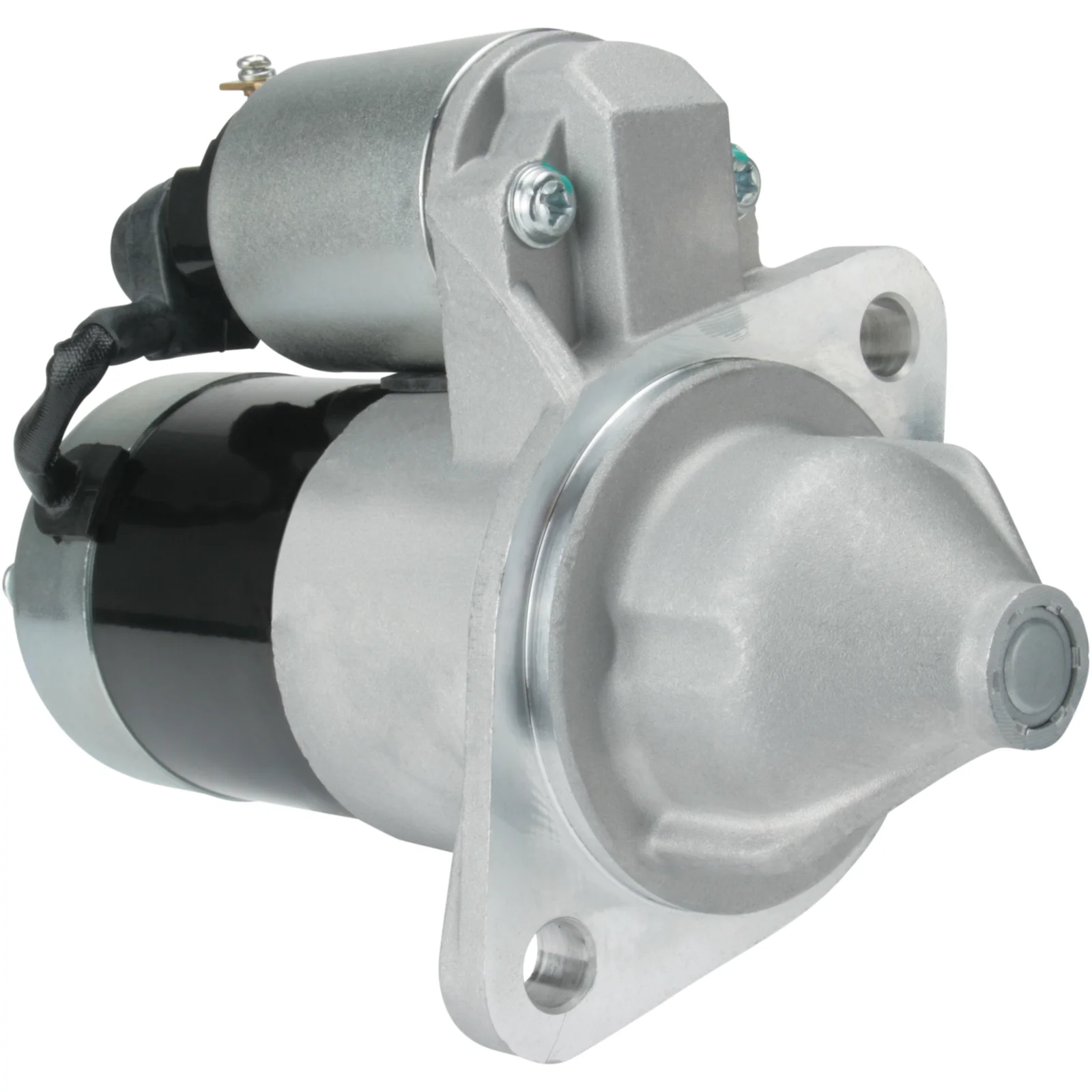

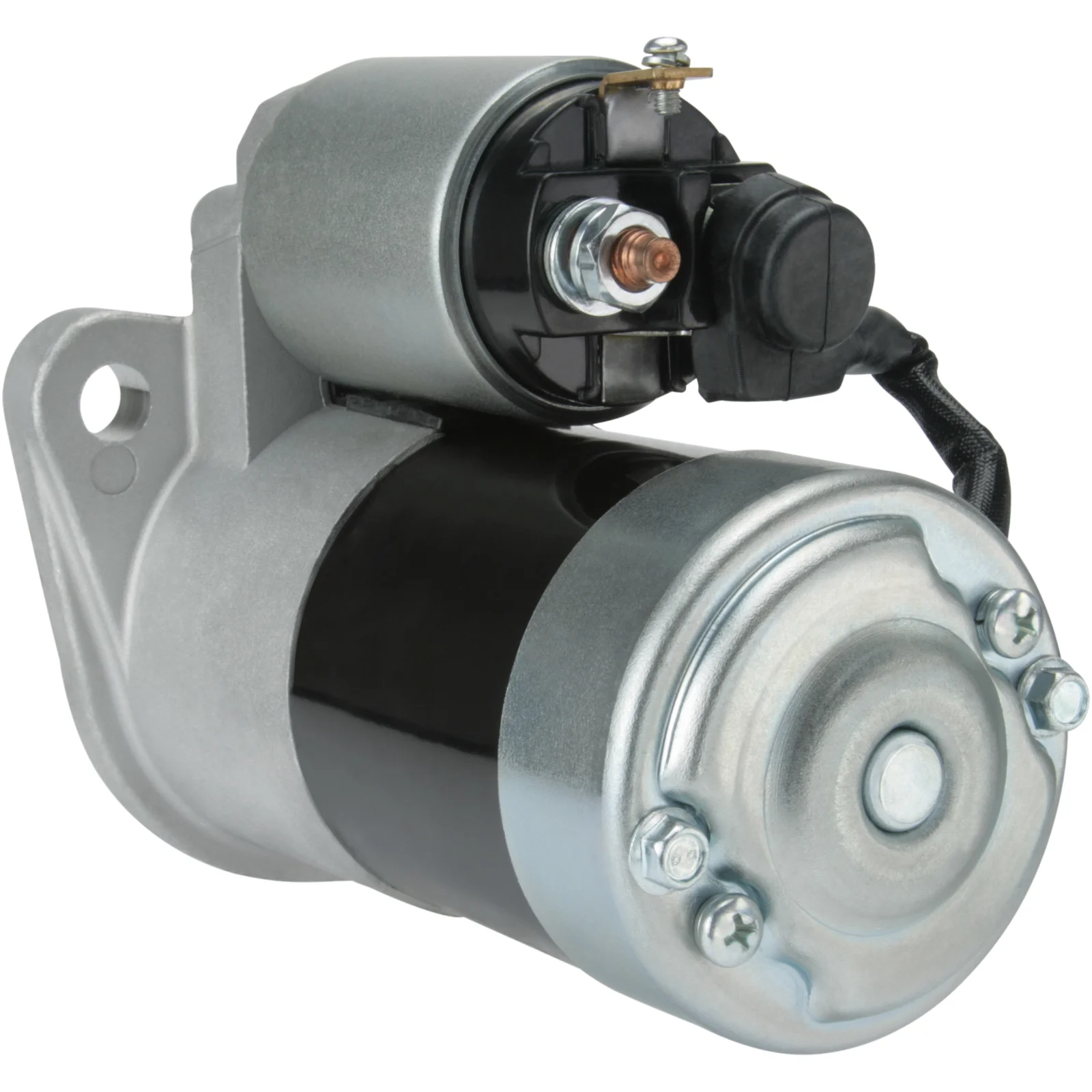

HC-Cargo Startmotor

Teknisk info:

Voltage: 12, kW: 1.0, No./teeth: 9, Rotation: CW

Beskrivning

Voltage: 12
kW: 1.0
Mount. flange: 80.00
Drive dist.: 21.50
Mount. hole 2 mm: 12.00
Mount. hole 1 mm: 12.00
Dist./back: 146.50
Dist./front: 55.50
No./teeth: 9
B+: M8
Position/50: 60
Terminal 50: M4
Gear type: GR
Dist. mm: 109.00
Rotation: CW
Total length mm: 206.50
Drive type: Steel
Prod. info: BN
Waterproof: No
Oil sealed: No
No./mount. holes: 2 (0)

Filer

Specifikation

B+ M8
No./teeth 9
Mount. flange 80.00
Oil sealed No
No./mount. holes 2 (0)
Position/50 60
Prod. info BN
Rotation CW
Dist./back 146.50
Dist./front 55.50
Drive dist. 21.50
Drive type Steel
Gear type GR
kW 1.0
Terminal 50 M4
Voltage 12
Total length 206.50 mm
Waterproof No
Dist. 109.00 mm
Mount. hole 2 12.00 mm
Mount. hole 1 12.00 mm

  • OEM
    F032111098, js778, s114-385, 5811001920, 5811001921

  • Konkurrentreferens
    CST20170, drs3327, LRS01153, S2080S, STR23021, 2-1855-HI, 8ea732663-001, 25-1131, 91-25-1065, 643.001.092, 4298, 18056, 20778, 103876, 11040769

  • Normaliserat artikelnummer
    cst20170, drs3327, f032111098, js778, lrs01153, s114385, s2080s, str23021, 8ea732663001, 4298, 18056, 20778, 21855hi, 103876, 251131, 11040769, 91251065, 643001092, 5811001920, 5811001921

  • Passar modeller
    Iseki Model: SL Model series: SL 3410, 3610, 3615, 3645 Brand of engine: 3KC1, 3KR1 From date: 01-01-1985 To date: 01-01-1992 Approved: Yes
  • Beskrivning
    Voltage: 12
    kW: 1.0
    Mount. flange: 80.00
    Drive dist.: 21.50
    Mount. hole 2 mm: 12.00
    Mount. hole 1 mm: 12.00
    Dist./back: 146.50
    Dist./front: 55.50
    No./teeth: 9
    B+: M8
    Position/50: 60
    Terminal 50: M4
    Gear type: GR
    Dist. mm: 109.00
    Rotation: CW
    Total length mm: 206.50
    Drive type: Steel
    Prod. info: BN
    Waterproof: No
    Oil sealed: No
    No./mount. holes: 2 (0)

    Filer

  • Specifikation
    B+ M8
    No./teeth 9
    Mount. flange 80.00
    Oil sealed No
    No./mount. holes 2 (0)
    Position/50 60
    Prod. info BN
    Rotation CW
    Dist./back 146.50
    Dist./front 55.50
    Drive dist. 21.50
    Drive type Steel
    Gear type GR
    kW 1.0
    Terminal 50 M4
    Voltage 12
    Total length 206.50 mm
    Waterproof No
    Dist. 109.00 mm
    Mount. hole 2 12.00 mm
    Mount. hole 1 12.00 mm
  • Fordonsmatchning

    • OEM
      F032111098, js778, s114-385, 5811001920, 5811001921

    • Konkurrentreferens
      CST20170, drs3327, LRS01153, S2080S, STR23021, 2-1855-HI, 8ea732663-001, 25-1131, 91-25-1065, 643.001.092, 4298, 18056, 20778, 103876, 11040769

    • Normaliserat artikelnummer
      cst20170, drs3327, f032111098, js778, lrs01153, s114385, s2080s, str23021, 8ea732663001, 4298, 18056, 20778, 21855hi, 103876, 251131, 11040769, 91251065, 643001092, 5811001920, 5811001921

    • Passar modeller
      Iseki Model: SL Model series: SL 3410, 3610, 3615, 3645 Brand of engine: 3KC1, 3KR1 From date: 01-01-1985 To date: 01-01-1992 Approved: Yes
