Artikelnr: F032111004

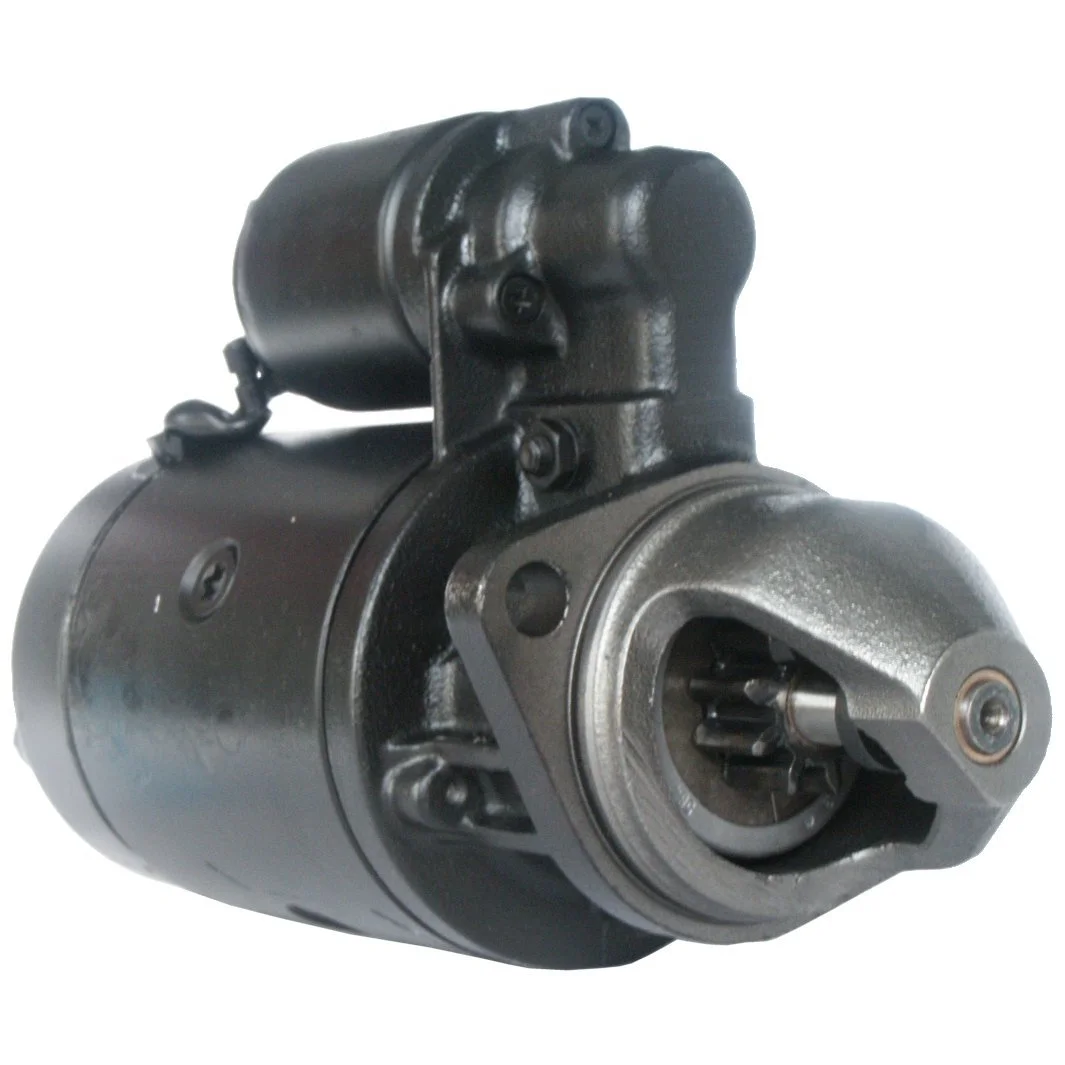

HC-Cargo Startmotor

Teknisk info:

Voltage: 12, kW: 2.4, No./teeth: 9, Rotation: CW

Beskrivning

Voltage: 12
kW: 2.4
Mount. flange: 82.50
Drive dist.: 19.50
Dist./back: 229.50
Dist./front: 65.00
No./teeth: 9
B+: M10
Position/50: 52
Terminal 50: M5
Gear type: DD
Dist. mm: 103.00
Rotation: CW
Total length mm: 294.50
Drive type: Steel
Prod. info: BN
Waterproof: No
Oil sealed: No
No./mount. holes: 2 (0)

Filer

Specifikation

B+ M10
No./teeth 9
Mount. flange 82.50
Oil sealed No
No./mount. holes 2 (0)
Position/50 52
Prod. info BN
Rotation CW
Dist./back 229.50
Dist./front 65.00
Drive dist. 19.50
Drive type Steel
Gear type DD
kW 2.4
Terminal 50 M5
Voltage 12
Total length 294.50 mm
Waterproof No
Dist. 103.00 mm

  • OEM
    B20R12X3H7622, cs804, F032111004, 12960, 936280, 01161890, 1161890, 01171481, 1171481, 0001358047, 0001362046

  • Konkurrentreferens
    CST10231, drs1040, LRS00569, S0758S, STR22002, STR50000, 8ea732891-001, 25-1051, 50-9107, 88-11.040, 688.003.092, 688.004.092, 4138, 10804, 11293, 17112, 17112N, 33370, 220240, 220240A, 11011040, 0986011040, 0986019537

  • Normaliserat artikelnummer
    b20r12x3h7622, cs804, cst10231, drs1040, f032111004, lrs00569, s0758s, str22002, str50000, 8ea732891001, 4138, 10804, 11293, 12960, 17112, 17112n, 33370, 220240, 220240a, 251051, 509107, 936280, 01161890, 1161890, 01171481, 1171481, 0001358047, 0001362046, 8811040, 11011040, 688003092, 688004092, 0986011040, 0986019537

  • Passar modeller
    Atlas Copco Model: Various Models Model series: Various Models Approved: Yes
    KHD Model: Engine Model series: Engine Size of motor: 0.6 Brand of engine: F1L410 From date: 01-01-1967 To date: 01-06-1973 Fuel: Diesel Approved: Yes
    KHD Model: Engine Model series: Engine Size of motor: 1.3 Brand of engine: F2L410 From date: 01-01-1967 To date: 01-06-1973 Fuel: Diesel Approved: Yes
    KHD Model: Engine Model series: Engine Size of motor: 1.4 Brand of engine: F2L411 From date: 01-07-1973 To date: 01-12-1975 Fuel: Diesel Approved: Yes
  • Beskrivning
    Voltage: 12
    kW: 2.4
    Mount. flange: 82.50
    Drive dist.: 19.50
    Dist./back: 229.50
    Dist./front: 65.00
    No./teeth: 9
    B+: M10
    Position/50: 52
    Terminal 50: M5
    Gear type: DD
    Dist. mm: 103.00
    Rotation: CW
    Total length mm: 294.50
    Drive type: Steel
    Prod. info: BN
    Waterproof: No
    Oil sealed: No
    No./mount. holes: 2 (0)

    Filer

  • Specifikation
    B+ M10
    No./teeth 9
    Mount. flange 82.50
    Oil sealed No
    No./mount. holes 2 (0)
    Position/50 52
    Prod. info BN
    Rotation CW
    Dist./back 229.50
    Dist./front 65.00
    Drive dist. 19.50
    Drive type Steel
    Gear type DD
    kW 2.4
    Terminal 50 M5
    Voltage 12
    Total length 294.50 mm
    Waterproof No
    Dist. 103.00 mm
  • Fordonsmatchning

    • OEM
      B20R12X3H7622, cs804, F032111004, 12960, 936280, 01161890, 1161890, 01171481, 1171481, 0001358047, 0001362046

    • Konkurrentreferens
      CST10231, drs1040, LRS00569, S0758S, STR22002, STR50000, 8ea732891-001, 25-1051, 50-9107, 88-11.040, 688.003.092, 688.004.092, 4138, 10804, 11293, 17112, 17112N, 33370, 220240, 220240A, 11011040, 0986011040, 0986019537

    • Normaliserat artikelnummer
      b20r12x3h7622, cs804, cst10231, drs1040, f032111004, lrs00569, s0758s, str22002, str50000, 8ea732891001, 4138, 10804, 11293, 12960, 17112, 17112n, 33370, 220240, 220240a, 251051, 509107, 936280, 01161890, 1161890, 01171481, 1171481, 0001358047, 0001362046, 8811040, 11011040, 688003092, 688004092, 0986011040, 0986019537

    • Passar modeller
      Atlas Copco Model: Various Models Model series: Various Models Approved: Yes
      KHD Model: Engine Model series: Engine Size of motor: 0.6 Brand of engine: F1L410 From date: 01-01-1967 To date: 01-06-1973 Fuel: Diesel Approved: Yes
      KHD Model: Engine Model series: Engine Size of motor: 1.3 Brand of engine: F2L410 From date: 01-01-1967 To date: 01-06-1973 Fuel: Diesel Approved: Yes
      KHD Model: Engine Model series: Engine Size of motor: 1.4 Brand of engine: F2L411 From date: 01-07-1973 To date: 01-12-1975 Fuel: Diesel Approved: Yes
