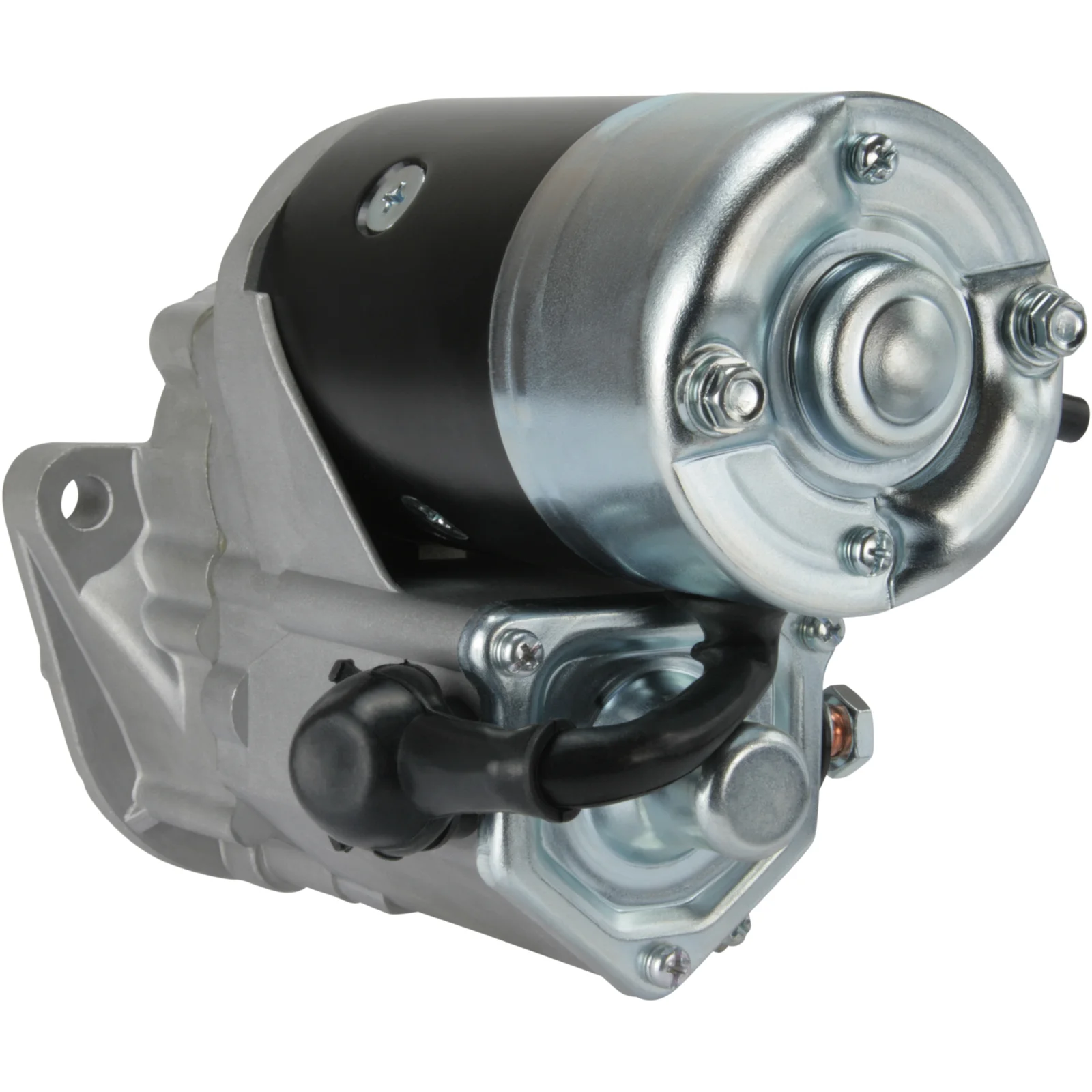

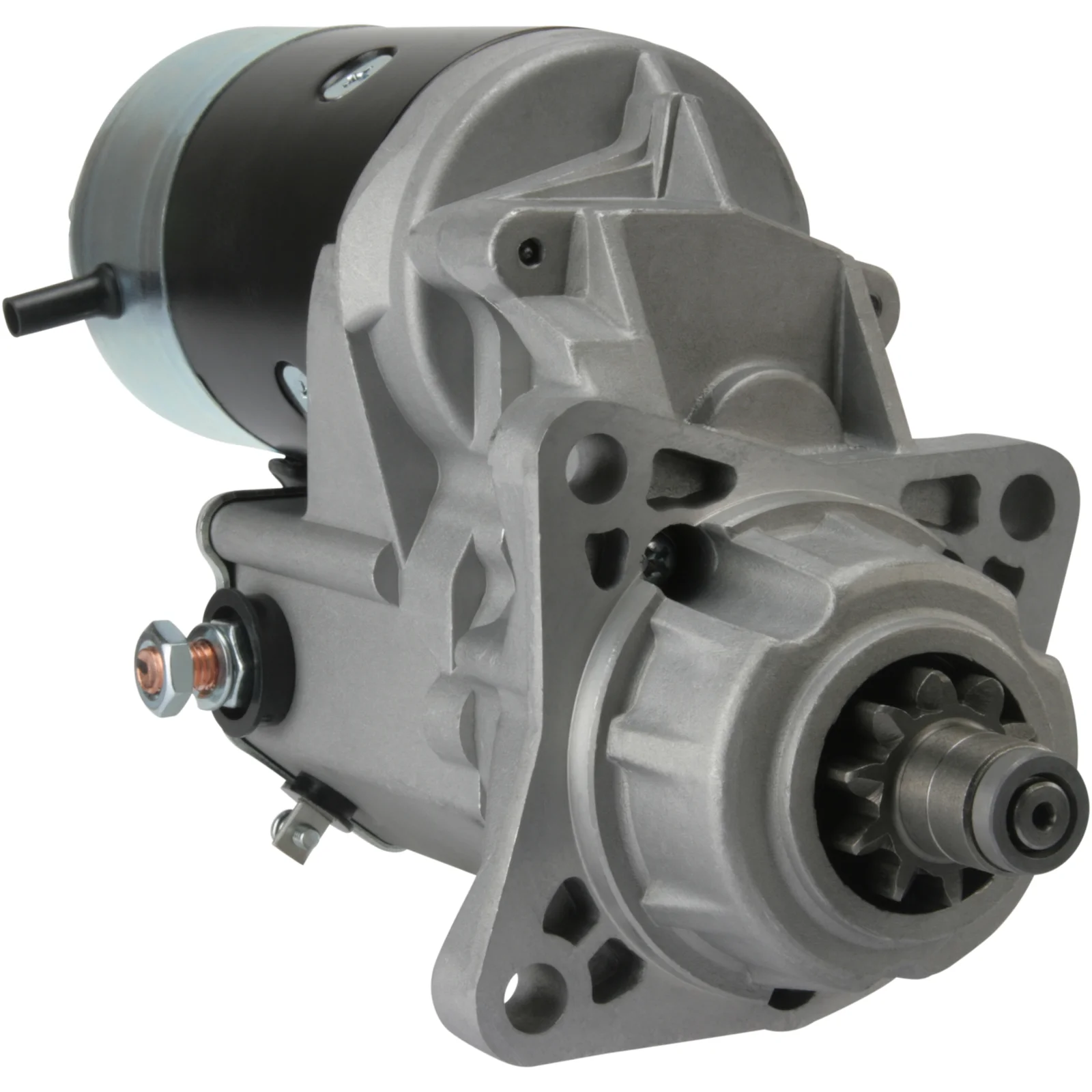

HC-Cargo Startmotor
HC-Cargo Startmotor
Artikelnr: F032110961

HC-Cargo Startmotor

Teknisk info:

Voltage: 12, kW: 2.5, No./teeth: 10, Rotation: CW

Beskrivning

Voltage: 12
kW: 2.5
Mount. flange: 89.00
Drive dist.: 48.00
Mount. hole 3 mm: 11.20
Mount. hole 2 mm: 11.20
Mount. hole 1 mm: 11.20
Dist./back: 160.00
Dist./front: 73.00
No./teeth: 10
B+: M10
Position/50: 25
Terminal 50: M5
Gear type: GR
Dist. 2: 88.00
Dist. 3: 88.00
Dist. mm: 127.00
Rotation: CW
Total length mm: 292.00
Drive type: Steel
Prod. info: BN
Waterproof: No
Oil sealed: No
No./mount. holes: 3 (0)

Filer

Specifikation

B+ M10
No./teeth 10
Mount. flange 89.00
Oil sealed No
No./mount. holes 3 (0)
Position/50 25
Prod. info BN
Dist. 2 88.00
Dist. 3 88.00
Rotation CW
Dist./back 160.00
Dist./front 73.00
Drive dist. 48.00
Drive type Steel
Gear type GR
kW 2.5
Terminal 50 M5
Voltage 12
Total length 292.00 mm
Waterproof No
Dist. 127.00 mm
Mount. hole 3 11.20 mm
Mount. hole 2 11.20 mm
Mount. hole 1 11.20 mm

  • OEM
    D160591, F032110961, 3e0079, 7c2264, 8t4618, 8t8619, 128000-4080, 128000-4081, 128000-4082, 128000-4083, 128000-4720, 128000-9610, 1430536, 6665654

  • Konkurrentreferens
    CST40134, drs3295, DSN2114, F042000085, F042S00085, LRS01512, S6330S, STR-6093, STR30053, 2-2335-ND, 8ea732849-001, 25-2470, 672.011.102, 682.011.102, 4318, 17198N, 17399, 17399N, 17458N, 17589, 17892N, 20906, 103922

  • Normaliserat artikelnummer
    cst40134, d160591, drs3295, dsn2114, f032110961, f042000085, f042s00085, lrs01512, s6330s, str30053, str6093, 3e0079, 7c2264, 8ea732849001, 8t4618, 8t8619, 4318, 17198n, 17399, 17399n, 17458n, 17589, 17892n, 20906, 22335nd, 103922, 252470, 1430536, 6665654, 672011102, 682011102, 1280004080, 1280004081, 1280004082, 1280004083, 1280004720, 1280009610

  • Passar modeller
    Caterpillar Model: Forklift Model series: Various Models Approved: Yes
  • Beskrivning
    Voltage: 12
    kW: 2.5
    Mount. flange: 89.00
    Drive dist.: 48.00
    Mount. hole 3 mm: 11.20
    Mount. hole 2 mm: 11.20
    Mount. hole 1 mm: 11.20
    Dist./back: 160.00
    Dist./front: 73.00
    No./teeth: 10
    B+: M10
    Position/50: 25
    Terminal 50: M5
    Gear type: GR
    Dist. 2: 88.00
    Dist. 3: 88.00
    Dist. mm: 127.00
    Rotation: CW
    Total length mm: 292.00
    Drive type: Steel
    Prod. info: BN
    Waterproof: No
    Oil sealed: No
    No./mount. holes: 3 (0)

    Filer

  • Specifikation
    B+ M10
    No./teeth 10
    Mount. flange 89.00
    Oil sealed No
    No./mount. holes 3 (0)
    Position/50 25
    Prod. info BN
    Dist. 2 88.00
    Dist. 3 88.00
    Rotation CW
    Dist./back 160.00
    Dist./front 73.00
    Drive dist. 48.00
    Drive type Steel
    Gear type GR
    kW 2.5
    Terminal 50 M5
    Voltage 12
    Total length 292.00 mm
    Waterproof No
    Dist. 127.00 mm
    Mount. hole 3 11.20 mm
    Mount. hole 2 11.20 mm
    Mount. hole 1 11.20 mm
  • Fordonsmatchning

    • OEM
      D160591, F032110961, 3e0079, 7c2264, 8t4618, 8t8619, 128000-4080, 128000-4081, 128000-4082, 128000-4083, 128000-4720, 128000-9610, 1430536, 6665654

    • Konkurrentreferens
      CST40134, drs3295, DSN2114, F042000085, F042S00085, LRS01512, S6330S, STR-6093, STR30053, 2-2335-ND, 8ea732849-001, 25-2470, 672.011.102, 682.011.102, 4318, 17198N, 17399, 17399N, 17458N, 17589, 17892N, 20906, 103922

    • Normaliserat artikelnummer
      cst40134, d160591, drs3295, dsn2114, f032110961, f042000085, f042s00085, lrs01512, s6330s, str30053, str6093, 3e0079, 7c2264, 8ea732849001, 8t4618, 8t8619, 4318, 17198n, 17399, 17399n, 17458n, 17589, 17892n, 20906, 22335nd, 103922, 252470, 1430536, 6665654, 672011102, 682011102, 1280004080, 1280004081, 1280004082, 1280004083, 1280004720, 1280009610

    • Passar modeller
      Caterpillar Model: Forklift Model series: Various Models Approved: Yes
