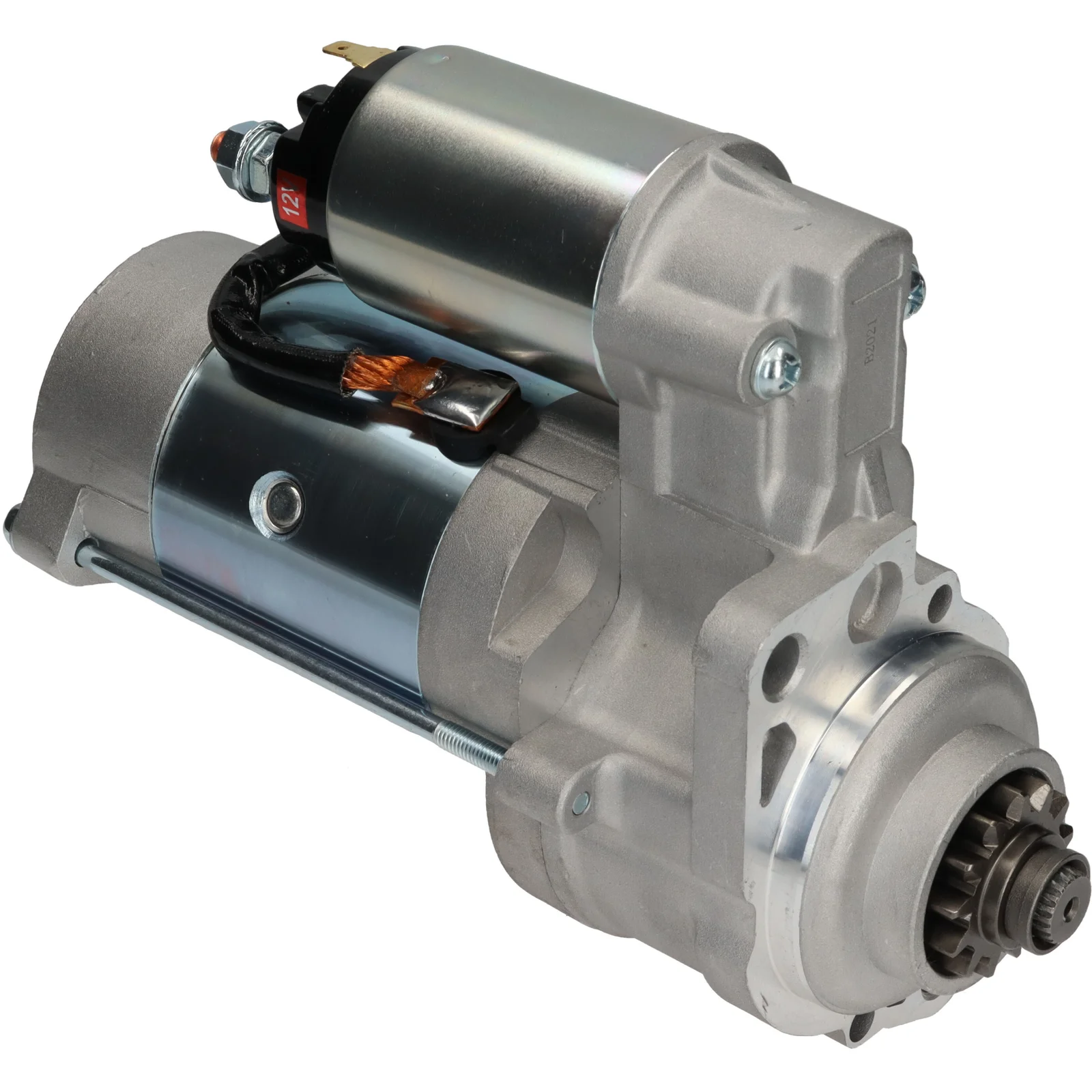

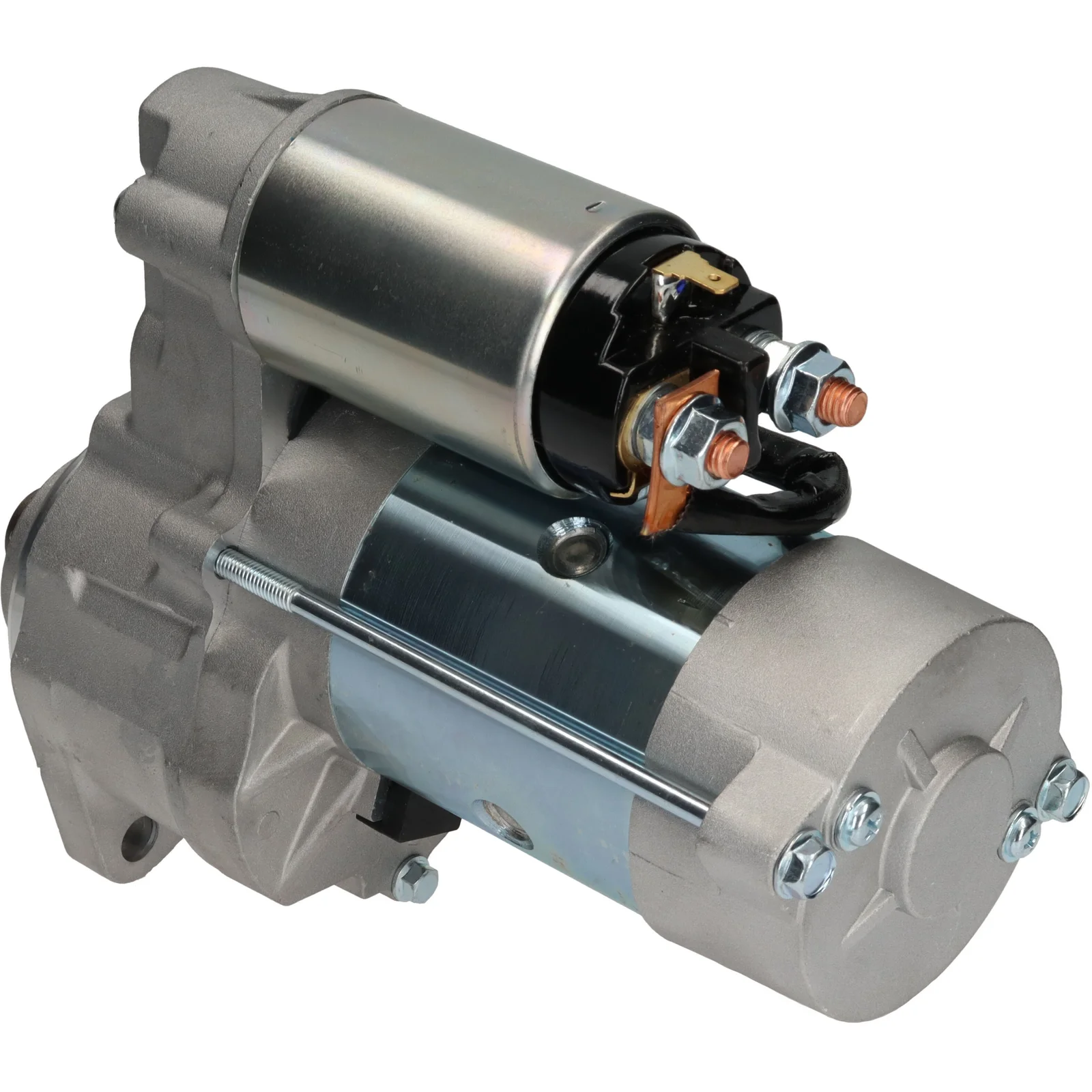

HC-Cargo Startmotor
HC-Cargo Startmotor
Artikelnr: F032110947

HC-Cargo Startmotor

Teknisk info:

Voltage: 12, kW: 2.0, No./teeth: 13, Rotation: CW

Beskrivning

Voltage: 12
kW: 2.0
Mount. flange: 77.00
Drive dist.: 30.00
Mount. hole 2 mm: 11.00
Mount. hole 1 mm: 11.00
Dist./back: 199.50
Dist./front: 43.50
No./teeth: 13
B+: M8
Position/B+: 15
Position/50: 60
Terminal 50: 6.30
Gear type: GR
Dist. mm: 117.00
Rotation: CW
Total length mm: 243.00
Drive type: Steel
Prod. info: BN
Waterproof: No
Oil sealed: No
Servicing: Weidemann
No./mount. holes: 2 (0)

Filer

Specifikation

B+ M8
No./teeth 13
Mount. flange 77.00
Oil sealed No
No./mount. holes 2 (0)
Position/50 60
Position/B+ 15
Prod. info BN
Rotation CW
Dist./back 199.50
Dist./front 43.50
Servicing Weidemann
Drive dist. 30.00
Drive type Steel
Gear type GR
kW 2.0
Terminal 50 6.30
Voltage 12
Total length 243.00 mm
Waterproof No
Dist. 117.00 mm
Mount. hole 2 11.00 mm
Mount. hole 1 11.00 mm

  • OEM
    F032110947, js1014, M002T56271, M002T56272, M003T61171, m2t56271, m2t56272, m3t61171, 409411, 409413, 807950, 911410

  • Konkurrentreferens
    CST35164, drs3598, LRS01189, s-8560, S5153, S5171, sm-00225r, smt0009, STR28007, 2-1781-mi, 8ea737268-001, 25-1224, 91-27-3096, 626.005.152, 626.006.132, 626.050.132, 4474, 17096, 33806, 103949, 106328, 201014, 220764, 220764A, 11040334, 20513021, 88213094

  • Normaliserat artikelnummer
    cst35164, drs3598, f032110947, js1014, lrs01189, m002t56271, m002t56272, m003t61171, m2t56271, m2t56272, m3t61171, s5153, s5171, s8560, sm00225r, smt0009, str28007, 8ea737268001, 4474, 17096, 21781mi, 33806, 103949, 106328, 201014, 220764, 220764a, 251224, 409411, 409413, 807950, 911410, 11040334, 20513021, 88213094, 91273096, 626005152, 626006132, 626050132

  • Passar modeller
    Mitsubishi Model: Marine Model series: Various Models Approved: Yes
    Mitsubishi Model: Mini Loader Model series: Mini Loader Approved: Yes
  • Beskrivning
    Voltage: 12
    kW: 2.0
    Mount. flange: 77.00
    Drive dist.: 30.00
    Mount. hole 2 mm: 11.00
    Mount. hole 1 mm: 11.00
    Dist./back: 199.50
    Dist./front: 43.50
    No./teeth: 13
    B+: M8
    Position/B+: 15
    Position/50: 60
    Terminal 50: 6.30
    Gear type: GR
    Dist. mm: 117.00
    Rotation: CW
    Total length mm: 243.00
    Drive type: Steel
    Prod. info: BN
    Waterproof: No
    Oil sealed: No
    Servicing: Weidemann
    No./mount. holes: 2 (0)

    Filer

  • Specifikation
    B+ M8
    No./teeth 13
    Mount. flange 77.00
    Oil sealed No
    No./mount. holes 2 (0)
    Position/50 60
    Position/B+ 15
    Prod. info BN
    Rotation CW
    Dist./back 199.50
    Dist./front 43.50
    Servicing Weidemann
    Drive dist. 30.00
    Drive type Steel
    Gear type GR
    kW 2.0
    Terminal 50 6.30
    Voltage 12
    Total length 243.00 mm
    Waterproof No
    Dist. 117.00 mm
    Mount. hole 2 11.00 mm
    Mount. hole 1 11.00 mm
  • Fordonsmatchning

    • OEM
      F032110947, js1014, M002T56271, M002T56272, M003T61171, m2t56271, m2t56272, m3t61171, 409411, 409413, 807950, 911410

    • Konkurrentreferens
      CST35164, drs3598, LRS01189, s-8560, S5153, S5171, sm-00225r, smt0009, STR28007, 2-1781-mi, 8ea737268-001, 25-1224, 91-27-3096, 626.005.152, 626.006.132, 626.050.132, 4474, 17096, 33806, 103949, 106328, 201014, 220764, 220764A, 11040334, 20513021, 88213094

    • Normaliserat artikelnummer
      cst35164, drs3598, f032110947, js1014, lrs01189, m002t56271, m002t56272, m003t61171, m2t56271, m2t56272, m3t61171, s5153, s5171, s8560, sm00225r, smt0009, str28007, 8ea737268001, 4474, 17096, 21781mi, 33806, 103949, 106328, 201014, 220764, 220764a, 251224, 409411, 409413, 807950, 911410, 11040334, 20513021, 88213094, 91273096, 626005152, 626006132, 626050132

    • Passar modeller
      Mitsubishi Model: Marine Model series: Various Models Approved: Yes
      Mitsubishi Model: Mini Loader Model series: Mini Loader Approved: Yes
