Artikelnr: F032110942

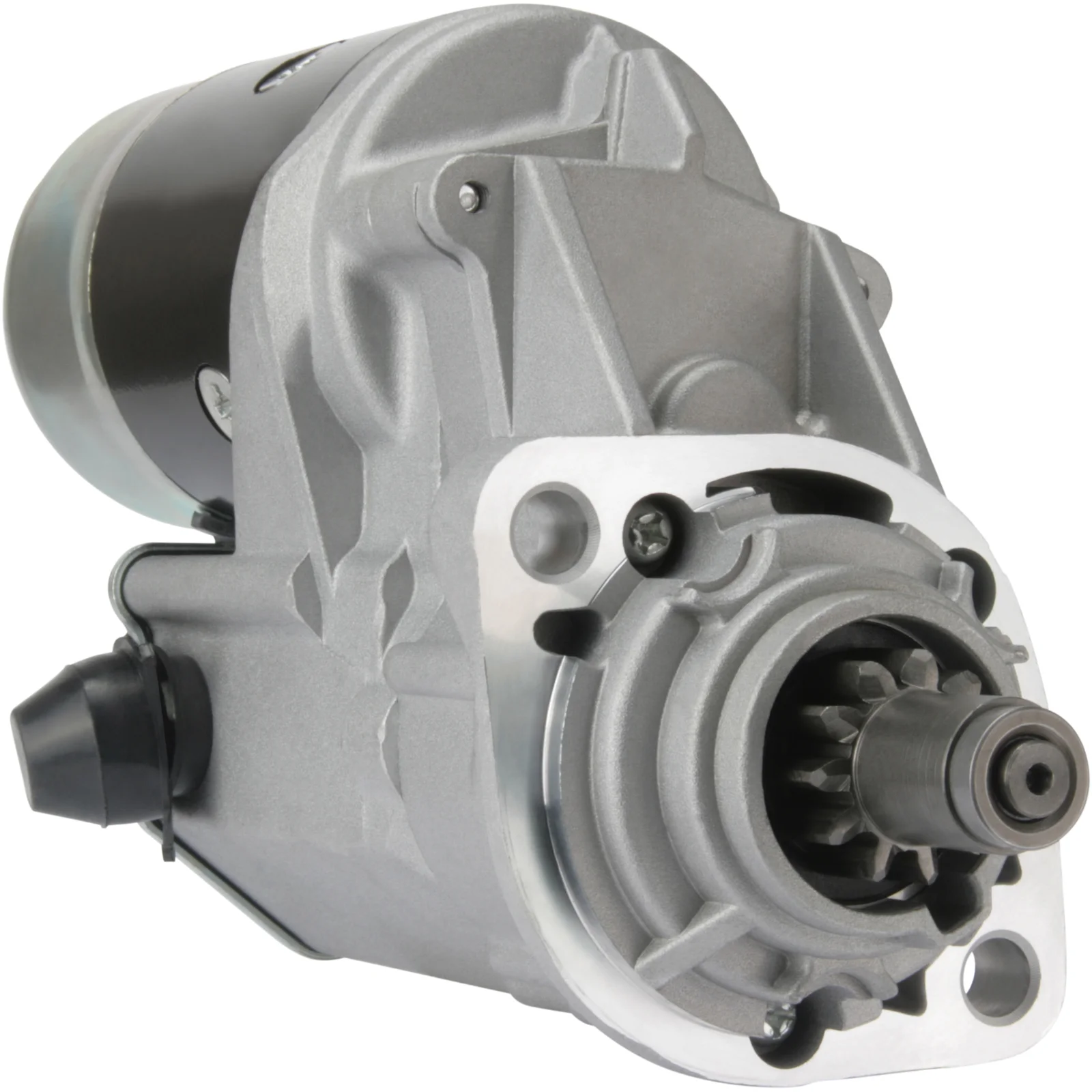

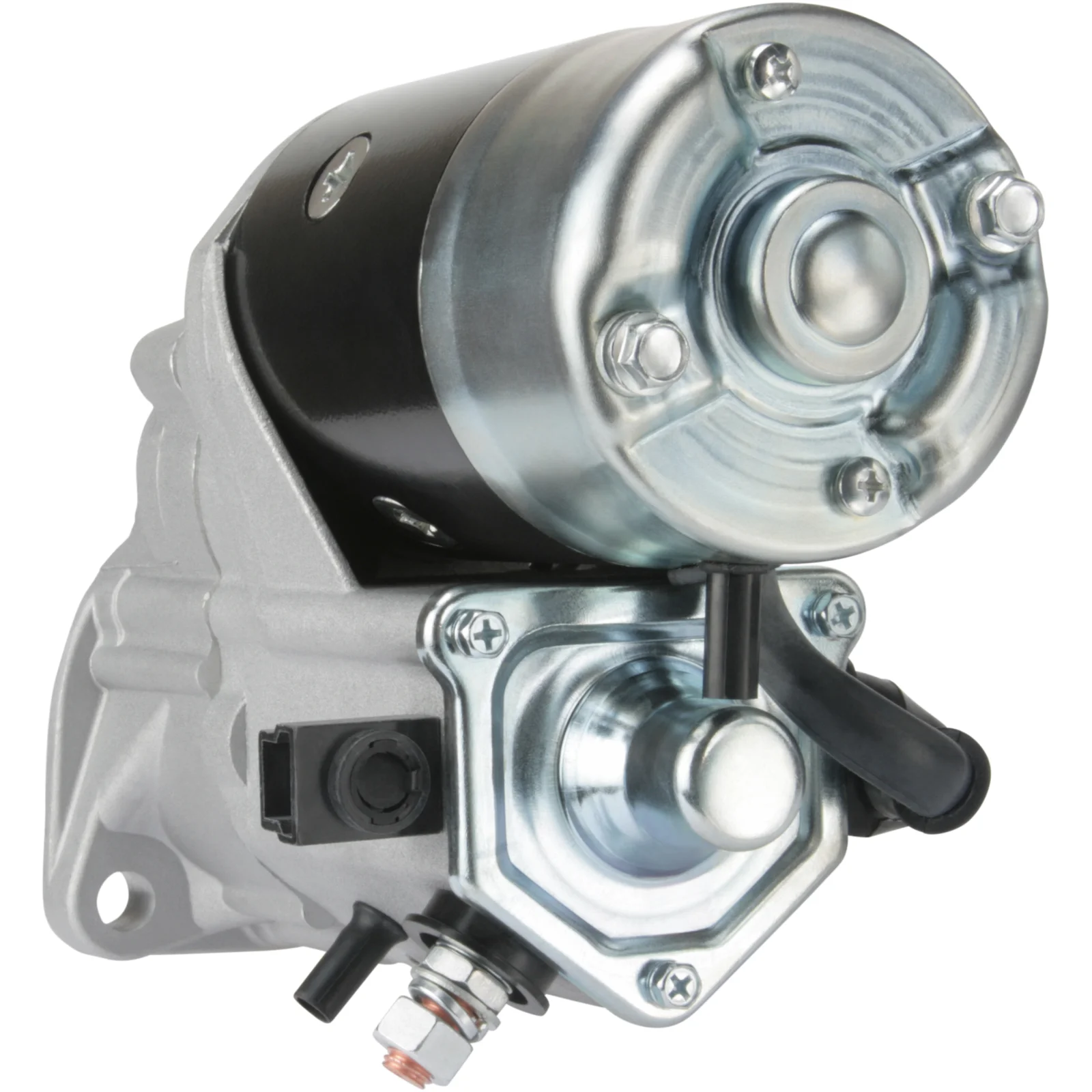

HC-Cargo Startmotor

Teknisk info:

Voltage: 12, kW: 2.5, No./teeth: 11, Rotation: CW

Beskrivning

Voltage: 12
kW: 2.5
Mount. flange: 82.50
Drive dist.: 35.50
Dist./back: 236.00
Dist./front: 61.00
No./teeth: 11
B+: M10
Position/50: 35
Terminal 50: M4
Gear type: GR
Dist. mm: 104.00
Rotation: CW
Total length mm: 295.00
Clutch type: Wet
Drive type: Steel
Prod. info: BN
Waterproof: No
Oil sealed: Yes
No./mount. holes: 2 (0)

Specifikation

B+ M10
No./teeth 11
Mount. flange 82.50
Oil sealed Yes
No./mount. holes 2 (0)
Position/50 35
Clutch type Wet
Prod. info BN
Rotation CW
Dist./back 236.00
Dist./front 61.00
Drive dist. 35.50
Drive type Steel
Gear type GR
kW 2.5
Terminal 50 M4
Voltage 12
Total length 295.00 mm
Waterproof No
Dist. 104.00 mm
  • OEM

    AJ59342, F032110942, RE19196, re19275, re41799, RE49033, re51447, re51694, RE529594, RE54092, RE551445, re68470, ty24438, TY25971, ty6688, ty6719, 028000-8400, 028000-8401, 028000-8402, 028000-8403, 028000-8404, 228000-6470, 228000-6471, 501852, 934029, 2355695, 6632415, 91534010
  • Konkurrentreferens

    CST21219, CST40172, DRS0162, DSN2052, F042000084, F042S00084, LRS01387, MS293, s-8278, S6066, s9930, sn-00166r, sn-0037r, SR9975X, STR-6092, STR70007, STR70059, 2-1750-ND, 2-2333-ND, 8EA015642-291, 8ea737130-001, 25-2268, 91-29-5106, 91-29-5372, 246-25111, 686.004.112, 4341, 6577N, 6577R, 17362, 20929, 31704
  • Normaliserat artikelnummer

    aj59342, cst21219, cst40172, drs0162, dsn2052, f032110942, f042000084, f042s00084, lrs01387, ms293, re19196, re19275, re41799, re49033, re51447, re51694, re529594, re54092, re551445, re68470, s6066, s8278, s9930, sn00166r, sn0037r, sr9975x, str6092, str70007, str70059, ty24438, ty25971, ty6688, ty6719, 8ea015642291, 8ea737130001, 4341, 6577n, 6577r, 17362, 20929, 21750nd, 22333nd, 31704, 252268, 501852, 934029, 2355695, 6632415, 24625111, 91295106, 91295372, 91534010, 0280008400, 0280008401, 0280008402, 0280008403, 0280008404, 686004112, 2280006470, 2280006471
  • Passar modeller

    Bobcat Model: Various Models Model series: Various Models Approved: Yes
  • Beskrivning
    Voltage: 12
    kW: 2.5
    Mount. flange: 82.50
    Drive dist.: 35.50
    Dist./back: 236.00
    Dist./front: 61.00
    No./teeth: 11
    B+: M10
    Position/50: 35
    Terminal 50: M4
    Gear type: GR
    Dist. mm: 104.00
    Rotation: CW
    Total length mm: 295.00
    Clutch type: Wet
    Drive type: Steel
    Prod. info: BN
    Waterproof: No
    Oil sealed: Yes
    No./mount. holes: 2 (0)
  • Specifikation
    B+ M10
    No./teeth 11
    Mount. flange 82.50
    Oil sealed Yes
    No./mount. holes 2 (0)
    Position/50 35
    Clutch type Wet
    Prod. info BN
    Rotation CW
    Dist./back 236.00
    Dist./front 61.00
    Drive dist. 35.50
    Drive type Steel
    Gear type GR
    kW 2.5
    Terminal 50 M4
    Voltage 12
    Total length 295.00 mm
    Waterproof No
    Dist. 104.00 mm
  • Fordonsmatchning
    • OEM

      AJ59342, F032110942, RE19196, re19275, re41799, RE49033, re51447, re51694, RE529594, RE54092, RE551445, re68470, ty24438, TY25971, ty6688, ty6719, 028000-8400, 028000-8401, 028000-8402, 028000-8403, 028000-8404, 228000-6470, 228000-6471, 501852, 934029, 2355695, 6632415, 91534010
    • Konkurrentreferens

      CST21219, CST40172, DRS0162, DSN2052, F042000084, F042S00084, LRS01387, MS293, s-8278, S6066, s9930, sn-00166r, sn-0037r, SR9975X, STR-6092, STR70007, STR70059, 2-1750-ND, 2-2333-ND, 8EA015642-291, 8ea737130-001, 25-2268, 91-29-5106, 91-29-5372, 246-25111, 686.004.112, 4341, 6577N, 6577R, 17362, 20929, 31704
    • Normaliserat artikelnummer

      aj59342, cst21219, cst40172, drs0162, dsn2052, f032110942, f042000084, f042s00084, lrs01387, ms293, re19196, re19275, re41799, re49033, re51447, re51694, re529594, re54092, re551445, re68470, s6066, s8278, s9930, sn00166r, sn0037r, sr9975x, str6092, str70007, str70059, ty24438, ty25971, ty6688, ty6719, 8ea015642291, 8ea737130001, 4341, 6577n, 6577r, 17362, 20929, 21750nd, 22333nd, 31704, 252268, 501852, 934029, 2355695, 6632415, 24625111, 91295106, 91295372, 91534010, 0280008400, 0280008401, 0280008402, 0280008403, 0280008404, 686004112, 2280006470, 2280006471
    • Passar modeller

      Bobcat Model: Various Models Model series: Various Models Approved: Yes
