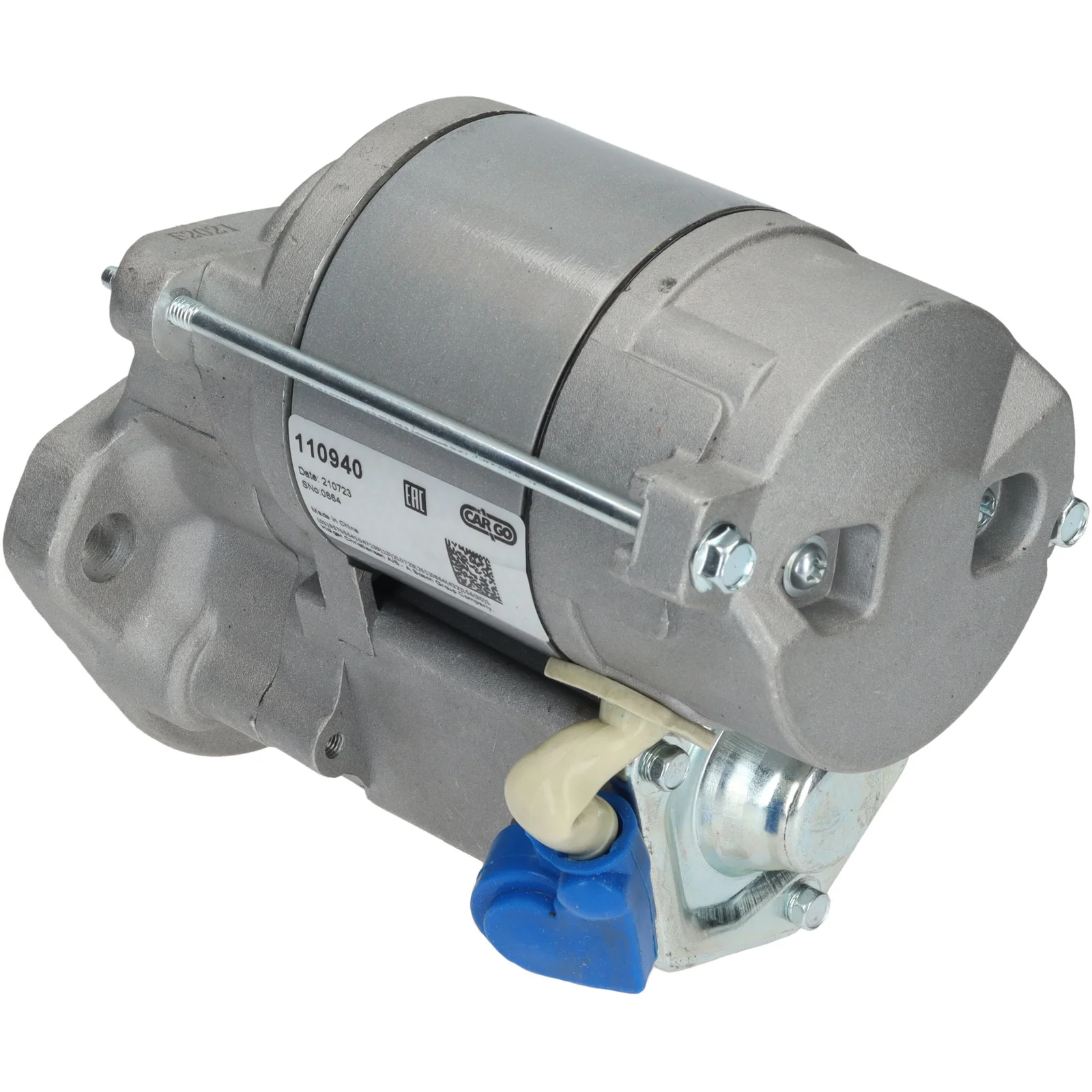

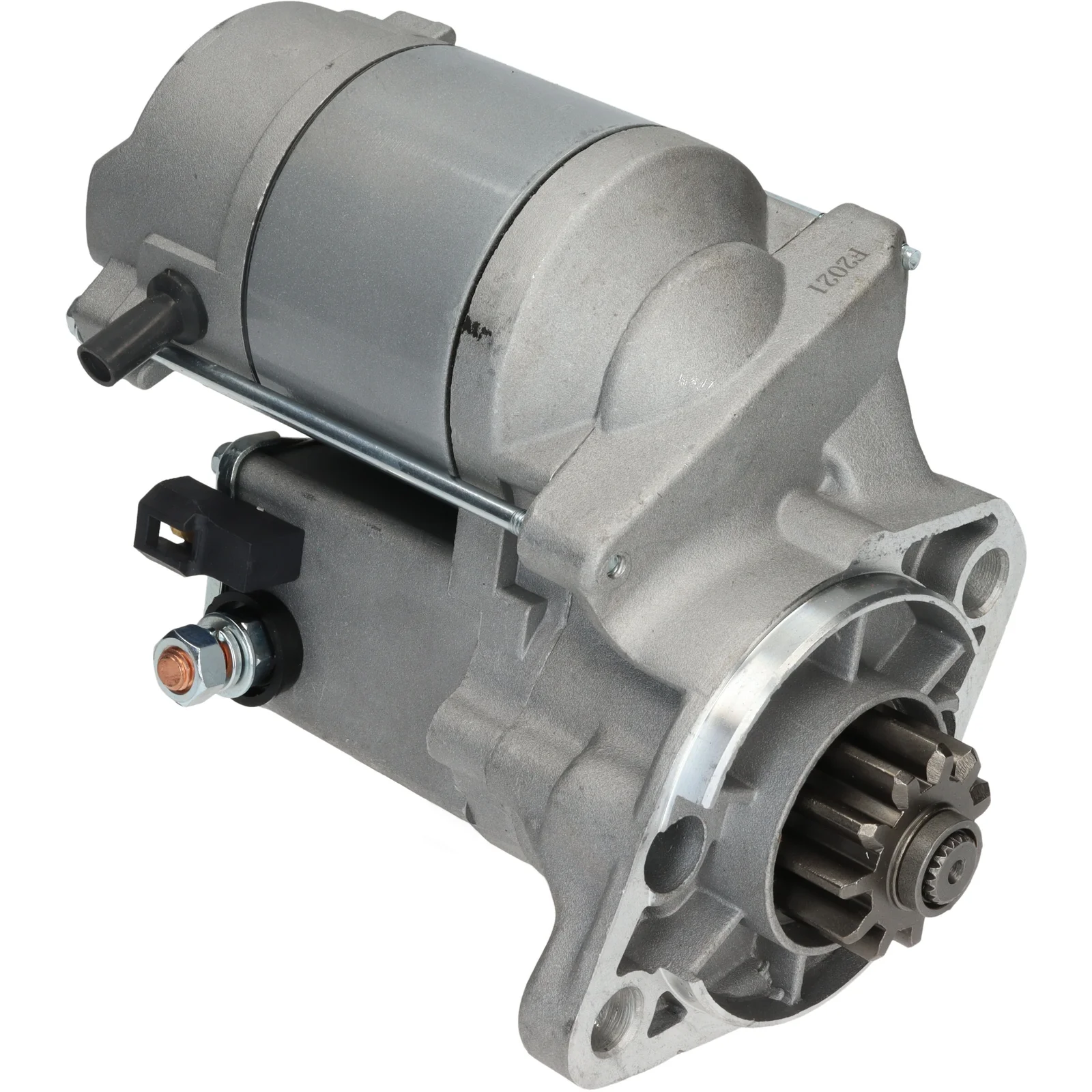

HC-Cargo Startmotor
HC-Cargo Startmotor
Artikelnr: F032110940

HC-Cargo Startmotor

Teknisk info:

Voltage: 12, kW: 1.4, No./teeth: 11, Rotation: CW

Beskrivning

Voltage: 12
kW: 1.4
Mount. flange: 82.00
Drive dist.: 25.00
Mount. hole 2 mm: 11.40
Mount. hole 1 mm: 11.40
Dist./back: 123.00
Dist./front: 31.50
No./teeth: 11
B+: M8
Position/50: 10
Terminal 50: 6.30
Gear type: GR
Dist. mm: 105.00
Rotation: CW
Total length mm: 188.00
Drive type: Steel
Prod. info: BN
Waterproof: No
Oil sealed: No
No./mount. holes: 2 (0)

Filer

Specifikation

B+ M8
No./teeth 11
Mount. flange 82.00
Oil sealed No
No./mount. holes 2 (0)
Position/50 10
Prod. info BN
Rotation CW
Dist./back 123.00
Dist./front 31.50
Drive dist. 25.00
Drive type Steel
Gear type GR
kW 1.4
Terminal 50 6.30
Voltage 12
Total length 188.00 mm
Waterproof No
Dist. 105.00 mm
Mount. hole 2 11.40 mm
Mount. hole 1 11.40 mm

  • OEM
    F032110940, js897, 15425-63016, 15601-63010, 15601-63011, 15601-63012, 15621-63010, 15621-63011, 15621-63012, 15621-63013, 15621-63014, 15621-63015, 17381-63014, 17381-63015, 19013-63011, 19013-63012, 028000-4730, 028000-6250, 70000-73490, 128000-0070, 128000-0071, 128000-1160, 128000-1161, 128000-1470, 128000-6280, 228000-1000, 228000-1001, 228000-1002, 228000-1040, 228000-1041, 228000-1070, 228000-1071, 228000-6250

  • Konkurrentreferens
    CST40181, CST40295, drs3133, drs3228, DSN2085, F042000196, F042S00196, LRS01318, LRS01547, S6329(DENSO), S6439S, SND0312, STR-8111, STR30007, 2-1960-ND, 8ea732673-001, 25-2089, 25-3036, 683.007.112, 683.013.112, 683.029.112, 690.544.112, 690.552.112, 4309, 16647, 17115, 17619, 18141N, 18142, 18142N, 18175, 18175N, 20897, 33870, 11040511

  • Normaliserat artikelnummer
    cst40181, cst40295, drs3133, drs3228, dsn2085, f032110940, f042000196, f042s00196, js897, lrs01318, lrs01547, s6329denso, s6439s, snd0312, str30007, str8111, 8ea732673001, 4309, 16647, 17115, 17619, 18141n, 18142, 18142n, 18175, 18175n, 20897, 21960nd, 33870, 252089, 253036, 11040511, 0280004730, 0280006250, 683007112, 683013112, 683029112, 690544112, 690552112, 1280000070, 1280000071, 1280001160, 1280001161, 1280001470, 1280006280, 1542563016, 1560163010, 1560163011, 1560163012, 1562163010, 1562163011, 1562163012, 1562163013, 1562163014, 1562163015, 1738163014, 1738163015, 1901363011, 1901363012, 2280001000, 2280001001, 2280001002, 2280001040, 2280001041, 2280001070, 2280001071, 2280006250, 7000073490

  • Passar modeller
    Carrier Transicold Model: T-Bird Model series: 500 Brand of engine: CT4-114 Approved: Yes
    Kubota Model: Engine Model series: Various Models Brand of engine: CT4-114 Approved: Yes
    Various Agriculture Vehicles Model: Various Agriculture Vehicles Approved: Yes
  • Beskrivning
    Voltage: 12
    kW: 1.4
    Mount. flange: 82.00
    Drive dist.: 25.00
    Mount. hole 2 mm: 11.40
    Mount. hole 1 mm: 11.40
    Dist./back: 123.00
    Dist./front: 31.50
    No./teeth: 11
    B+: M8
    Position/50: 10
    Terminal 50: 6.30
    Gear type: GR
    Dist. mm: 105.00
    Rotation: CW
    Total length mm: 188.00
    Drive type: Steel
    Prod. info: BN
    Waterproof: No
    Oil sealed: No
    No./mount. holes: 2 (0)

    Filer

  • Specifikation
    B+ M8
    No./teeth 11
    Mount. flange 82.00
    Oil sealed No
    No./mount. holes 2 (0)
    Position/50 10
    Prod. info BN
    Rotation CW
    Dist./back 123.00
    Dist./front 31.50
    Drive dist. 25.00
    Drive type Steel
    Gear type GR
    kW 1.4
    Terminal 50 6.30
    Voltage 12
    Total length 188.00 mm
    Waterproof No
    Dist. 105.00 mm
    Mount. hole 2 11.40 mm
    Mount. hole 1 11.40 mm
  • Fordonsmatchning

    • OEM
      F032110940, js897, 15425-63016, 15601-63010, 15601-63011, 15601-63012, 15621-63010, 15621-63011, 15621-63012, 15621-63013, 15621-63014, 15621-63015, 17381-63014, 17381-63015, 19013-63011, 19013-63012, 028000-4730, 028000-6250, 70000-73490, 128000-0070, 128000-0071, 128000-1160, 128000-1161, 128000-1470, 128000-6280, 228000-1000, 228000-1001, 228000-1002, 228000-1040, 228000-1041, 228000-1070, 228000-1071, 228000-6250

    • Konkurrentreferens
      CST40181, CST40295, drs3133, drs3228, DSN2085, F042000196, F042S00196, LRS01318, LRS01547, S6329(DENSO), S6439S, SND0312, STR-8111, STR30007, 2-1960-ND, 8ea732673-001, 25-2089, 25-3036, 683.007.112, 683.013.112, 683.029.112, 690.544.112, 690.552.112, 4309, 16647, 17115, 17619, 18141N, 18142, 18142N, 18175, 18175N, 20897, 33870, 11040511

    • Normaliserat artikelnummer
      cst40181, cst40295, drs3133, drs3228, dsn2085, f032110940, f042000196, f042s00196, js897, lrs01318, lrs01547, s6329denso, s6439s, snd0312, str30007, str8111, 8ea732673001, 4309, 16647, 17115, 17619, 18141n, 18142, 18142n, 18175, 18175n, 20897, 21960nd, 33870, 252089, 253036, 11040511, 0280004730, 0280006250, 683007112, 683013112, 683029112, 690544112, 690552112, 1280000070, 1280000071, 1280001160, 1280001161, 1280001470, 1280006280, 1542563016, 1560163010, 1560163011, 1560163012, 1562163010, 1562163011, 1562163012, 1562163013, 1562163014, 1562163015, 1738163014, 1738163015, 1901363011, 1901363012, 2280001000, 2280001001, 2280001002, 2280001040, 2280001041, 2280001070, 2280001071, 2280006250, 7000073490

    • Passar modeller
      Carrier Transicold Model: T-Bird Model series: 500 Brand of engine: CT4-114 Approved: Yes
      Kubota Model: Engine Model series: Various Models Brand of engine: CT4-114 Approved: Yes
      Various Agriculture Vehicles Model: Various Agriculture Vehicles Approved: Yes
