HC-Cargo Startmotor
HC-Cargo Startmotor
Artikelnr: F032110938

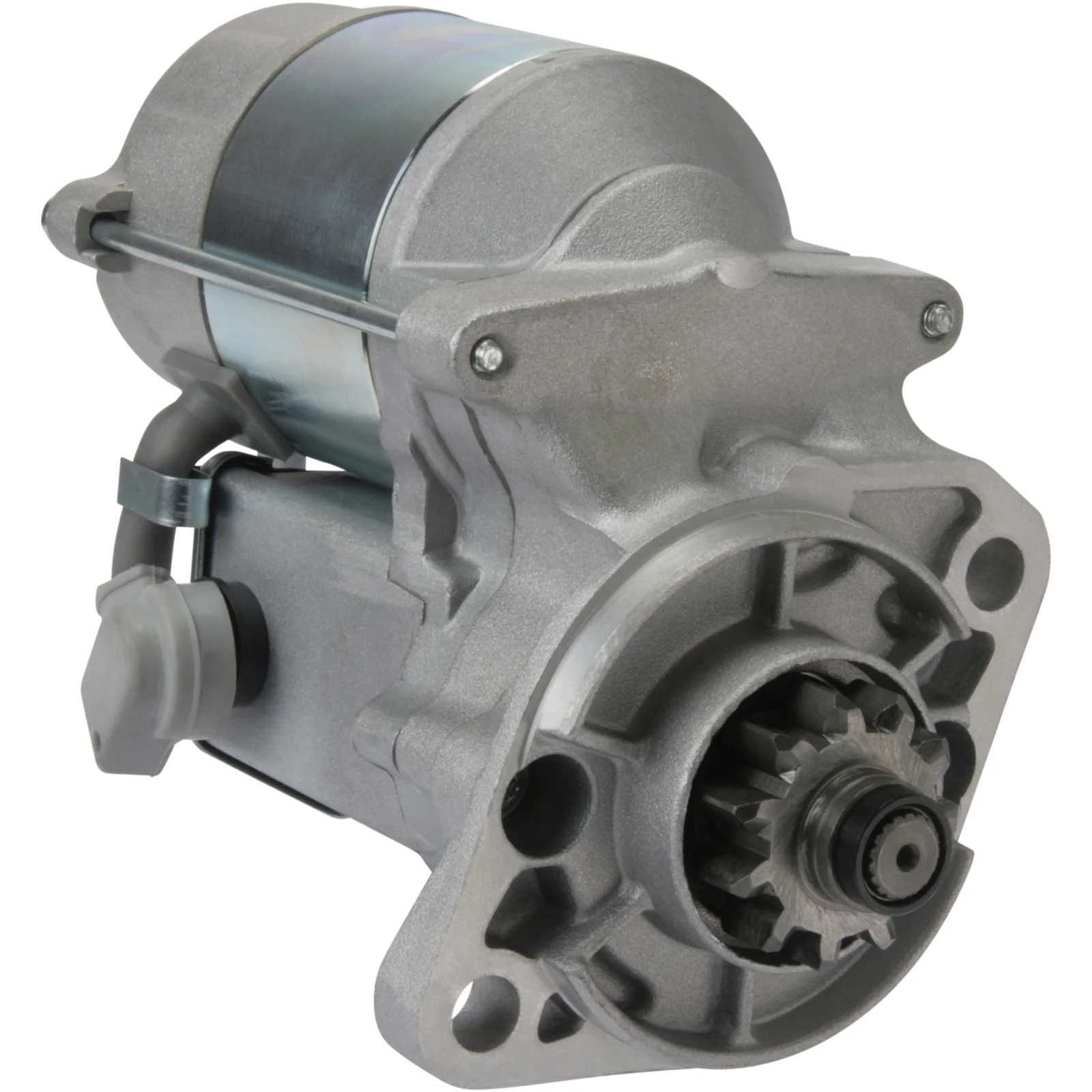

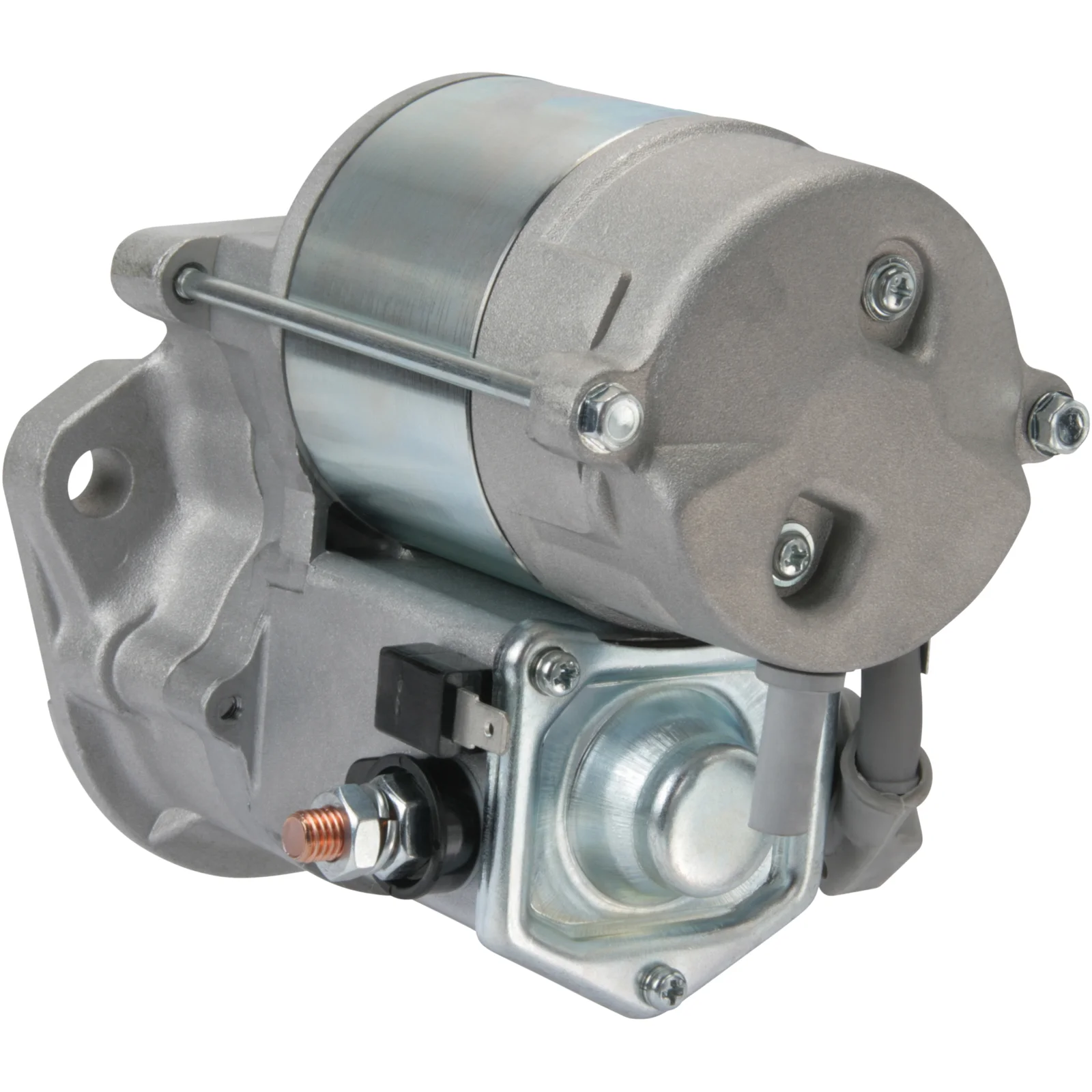

HC-Cargo Startmotor

Teknisk info:

Voltage: 12, kW: 1.4, No./teeth: 11, Rotation: CW

Beskrivning

Voltage: 12
kW: 1.4
Mount. flange: 82.50
Drive dist.: 26.00
Mount. hole 2 mm: 11.00
Mount. hole 1 mm: 11.00
Dist./back: 118.00
Dist./front: 38.00
No./teeth: 11
B+: M8
Position/B+: 45
Position/50: 50
Terminal 50: 6.30
Gear type: GR
Dist. mm: 104.50
Rotation: CW
Total length mm: 188.50
Drive type: Steel
Prod. info: BN
Waterproof: No
Oil sealed: No
No./mount. holes: 2 (0)

Filer

Specifikation

B+ M8
No./teeth 11
Mount. flange 82.50
Oil sealed No
No./mount. holes 2 (0)
Position/50 50
Position/B+ 45
Prod. info BN
Rotation CW
Dist./back 118.00
Dist./front 38.00
Drive dist. 26.00
Drive type Steel
Gear type GR
kW 1.4
Terminal 50 6.30
Voltage 12
Total length 188.50 mm
Waterproof No
Dist. 104.50 mm
Mount. hole 2 11.00 mm
Mount. hole 1 11.00 mm

  • OEM
    F032110938, js896, 19202-63011, 19821-63011, 028000-7830, 128000-0140, 128000-0141

  • Konkurrentreferens
    CST40179, CST40264, DRS3128, F042000176, F042S00176, S6345S, S6439S, SR9949X, STR-8057, 2-1960-ND, 8ea732672-001, 683.007.112, 4308, 17116, 17331N, 17367, 18175N, 20896, 33869, 8052807

  • Normaliserat artikelnummer
    cst40179, cst40264, drs3128, f032110938, f042000176, f042s00176, js896, s6345s, s6439s, sr9949x, str8057, 8ea732672001, 4308, 17116, 17331n, 17367, 18175n, 20896, 21960nd, 33869, 8052807, 0280007830, 683007112, 1280000140, 1280000141, 1920263011, 1982163011

  • Passar modeller
    Carrier Transicold Model: Eagle Model series: PLUS Brand of engine: CT4-114 Approved: Yes
    Carrier Transicold Model: T-Bird Model series: 500 Approved: Yes
  • Beskrivning
    Voltage: 12
    kW: 1.4
    Mount. flange: 82.50
    Drive dist.: 26.00
    Mount. hole 2 mm: 11.00
    Mount. hole 1 mm: 11.00
    Dist./back: 118.00
    Dist./front: 38.00
    No./teeth: 11
    B+: M8
    Position/B+: 45
    Position/50: 50
    Terminal 50: 6.30
    Gear type: GR
    Dist. mm: 104.50
    Rotation: CW
    Total length mm: 188.50
    Drive type: Steel
    Prod. info: BN
    Waterproof: No
    Oil sealed: No
    No./mount. holes: 2 (0)

    Filer

  • Specifikation
    B+ M8
    No./teeth 11
    Mount. flange 82.50
    Oil sealed No
    No./mount. holes 2 (0)
    Position/50 50
    Position/B+ 45
    Prod. info BN
    Rotation CW
    Dist./back 118.00
    Dist./front 38.00
    Drive dist. 26.00
    Drive type Steel
    Gear type GR
    kW 1.4
    Terminal 50 6.30
    Voltage 12
    Total length 188.50 mm
    Waterproof No
    Dist. 104.50 mm
    Mount. hole 2 11.00 mm
    Mount. hole 1 11.00 mm
  • Fordonsmatchning

    • OEM
      F032110938, js896, 19202-63011, 19821-63011, 028000-7830, 128000-0140, 128000-0141

    • Konkurrentreferens
      CST40179, CST40264, DRS3128, F042000176, F042S00176, S6345S, S6439S, SR9949X, STR-8057, 2-1960-ND, 8ea732672-001, 683.007.112, 4308, 17116, 17331N, 17367, 18175N, 20896, 33869, 8052807

    • Normaliserat artikelnummer
      cst40179, cst40264, drs3128, f032110938, f042000176, f042s00176, js896, s6345s, s6439s, sr9949x, str8057, 8ea732672001, 4308, 17116, 17331n, 17367, 18175n, 20896, 21960nd, 33869, 8052807, 0280007830, 683007112, 1280000140, 1280000141, 1920263011, 1982163011

    • Passar modeller
      Carrier Transicold Model: Eagle Model series: PLUS Brand of engine: CT4-114 Approved: Yes
      Carrier Transicold Model: T-Bird Model series: 500 Approved: Yes
