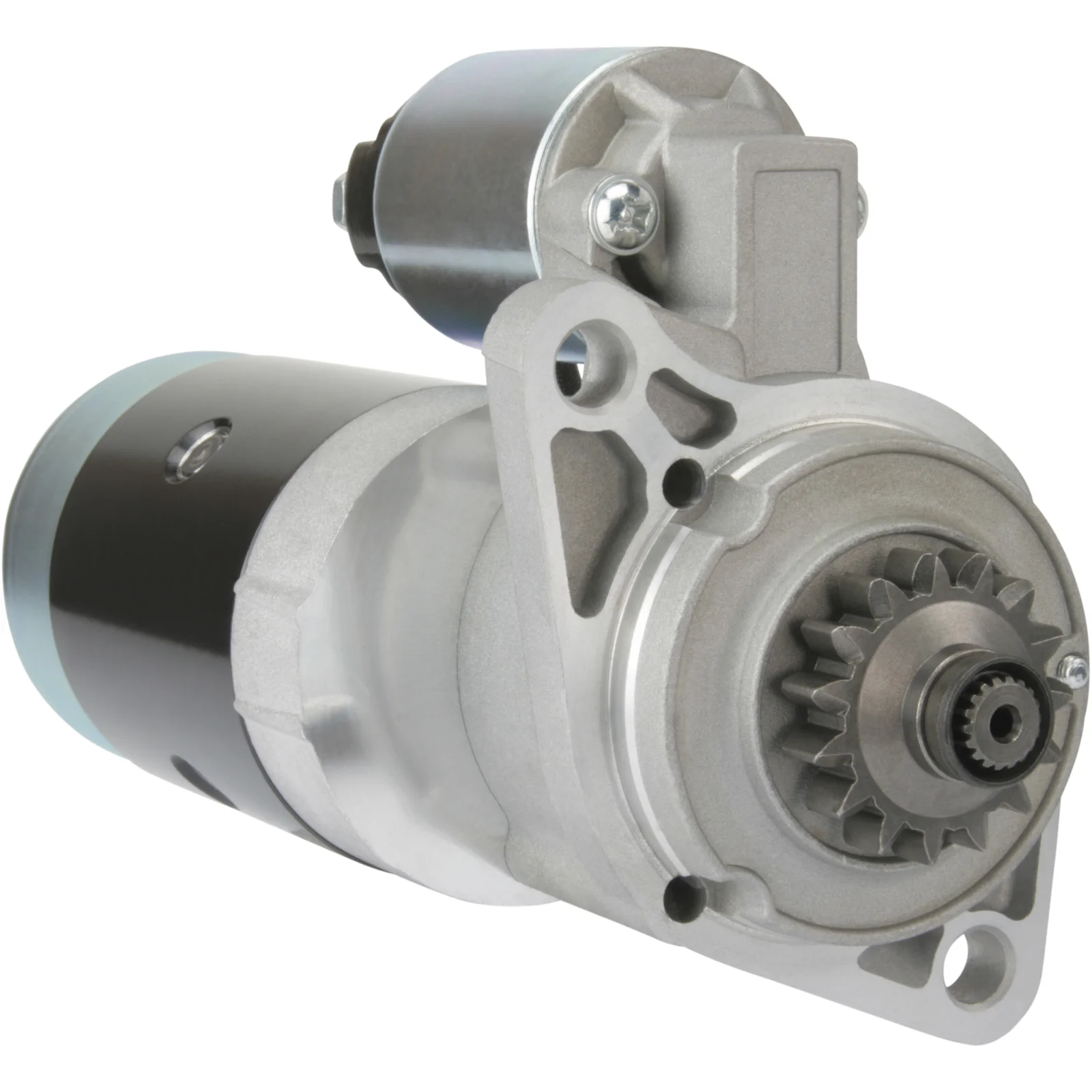

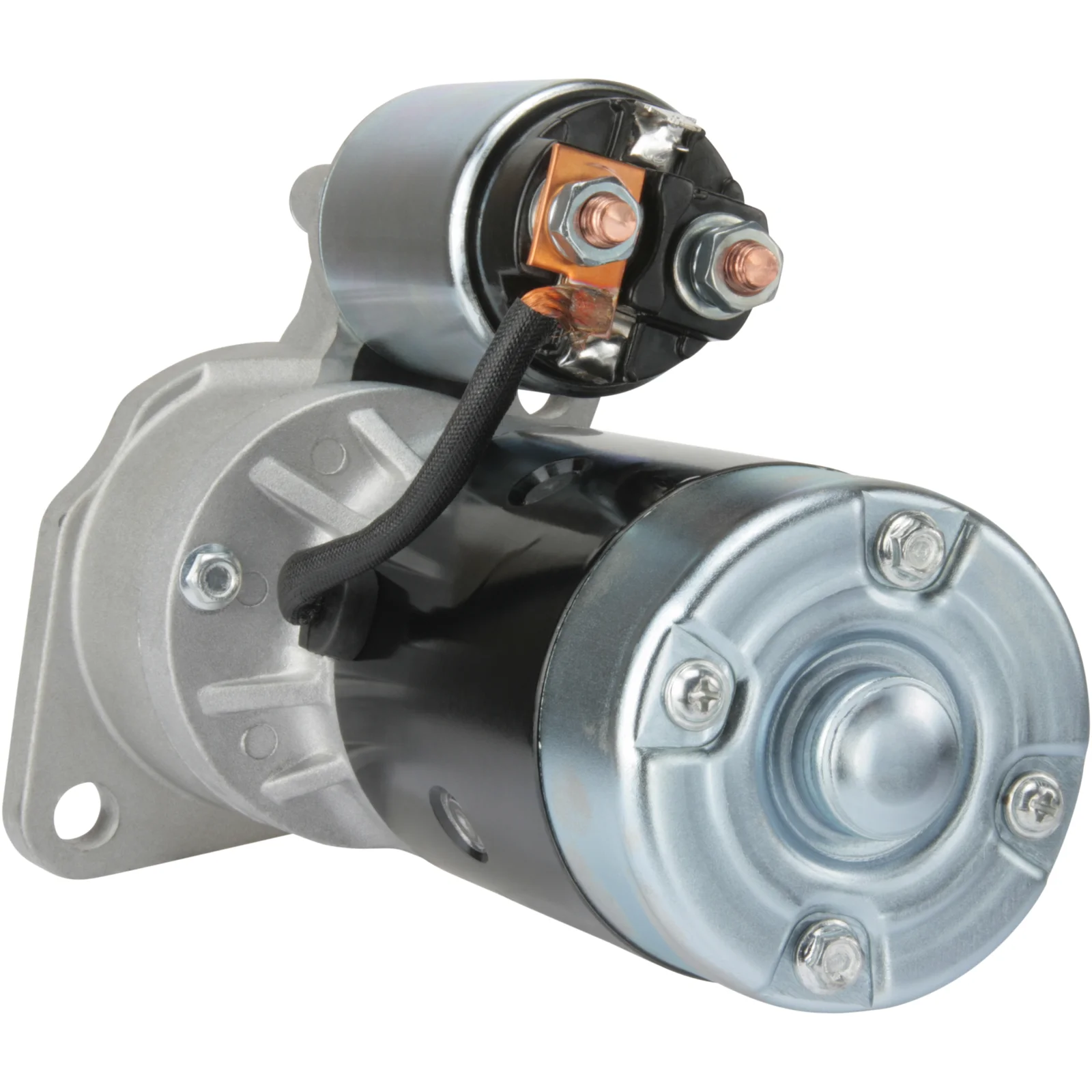

HC-Cargo Startmotor
HC-Cargo Startmotor
Artikelnr: F032110933

HC-Cargo Startmotor

Teknisk info:

Voltage: 12, kW: 1.4, No./teeth: 15, Rotation: CW

Beskrivning

Voltage: 12
kW: 1.4
Mount. flange: 77.00
Drive dist.: 29.00
Mount. hole 2 mm: 11.50
Mount. hole 1 mm: 11.50
Dist./back: 171.50
Dist./front: 43.00
No./teeth: 15
B+: M8
Position/50: 52
Terminal 50: 6.30
Gear type: GR
Dist. mm: 118.00
Rotation: CW
Total length mm: 228.00
Drive type: Steel
Prod. info: BN
Waterproof: No
Oil sealed: No
No./mount. holes: 2 (0)

Filer

Specifikation

B+ M8
No./teeth 15
Mount. flange 77.00
Oil sealed No
No./mount. holes 2 (0)
Position/50 52
Prod. info BN
Rotation CW
Dist./back 171.50
Dist./front 43.00
Drive dist. 29.00
Drive type Steel
Gear type GR
kW 1.4
Terminal 50 6.30
Voltage 12
Total length 228.00 mm
Waterproof No
Dist. 118.00 mm
Mount. hole 2 11.50 mm
Mount. hole 1 11.50 mm

  • OEM
    F032110933, js895, M002T50371, M002T50381, M002T50391, m2t50371, m2t50381, m2t50391, 409410, 409414, 1273112C91

  • Konkurrentreferens
    CST35173, DRS3713, LES0300, LRS01131, LRS01283, S5096, STR71002, 2-1550-MI, 8ea732671-001, 25-1085, 25-1496, 626.005.152, 4307, 17141, 17141N, 20895, 33837, 103948, 11040333

  • Normaliserat artikelnummer
    cst35173, drs3713, f032110933, js895, les0300, lrs01131, lrs01283, m002t50371, m002t50381, m002t50391, m2t50371, m2t50381, m2t50391, s5096, str71002, 8ea732671001, 4307, 17141, 17141n, 20895, 21550mi, 33837, 103948, 251085, 251496, 409410, 409414, 1273112c91, 11040333, 626005152

  • Passar modeller
    Caterpillar Model: 302.5C Model series: 302.5C Model type: Excavators Brand of engine: S3L2 Approved: Yes
    Hyundai Model: R27Z-9 Model series: R27Z-9 Model type: Excavators Brand of engine: S3L2 Approved: Yes
    Ingersoll-Rand Model: G11ME Model series: G11ME Model type: Generator Sets Brand of engine: S3L2 Approved: Yes
    Iseki Model: 2100 Model series: 2140 Approved: Yes
    Iseki Model: Various Models Model series: Various Models Approved: Yes
    Mahindra Model: 2516 4WD HST/SHUTTLE Model series: 2516 4WD HST/SHUTTLE Model type: Ag Tractors Brand of engine: S3L2 Approved: Yes
    Mahindra Model: 3016 4WD HST/SHUTTLE Model series: 3016 4WD HST/SHUTTLE Model type: Ag Tractors Brand of engine: S3L2 Approved: Yes
    Mahindra Model: MAX 25 4WD HST Model series: MAX 25 4WD HST Model type: Ag Tractors Brand of engine: S3L2 Approved: Yes
    Mahindra Model: MAX 28XL 4WD HST/SHUTTLE Model series: MAX 28XL 4WD HST/SHUTTLE Model type: Ag Tractors Brand of engine: S3L2 Approved: Yes
    Mitsubishi Model: GS231 Model series: GS231 Model type: Ag Tractors Brand of engine: S3L2 Approved: Yes
    Mitsubishi Model: GS251 Model series: GS251 Model type: Ag Tractors Brand of engine: S3L2 Approved: Yes
    Mitsubishi Model: MM25T Model series: MM25T Model type: Excavators Brand of engine: S3L2 Approved: Yes
    Mitsubishi Model: MM30T Model series: MM30T Model type: Excavators Brand of engine: S3L2 Approved: Yes
    Mitsubishi Model: MT2600 Model series: MT2600 Model type: Ag Tractors Brand of engine: S3L2 Approved: Yes
    Mitsubishi Model: MT28 & MT28H Model series: MT28 & MT28H Model type: Ag Tractors Brand of engine: S3L2 Approved: Yes
    Mitsubishi Model: V325 Model series: V325 Model type: Combines Brand of engine: S3L2 Approved: Yes
    Mitsubishi Model: VS329 Model series: VS329 Model type: Combines Brand of engine: S3L2 Approved: Yes
    Mitsubishi Model: VS334 Model series: VS334 Model type: Combines Brand of engine: S3L2 Approved: Yes
    Mitsubishi Model: VY434 Model series: VY434 Model type: Combines Brand of engine: S3L2 Approved: Yes
    Terex Model: TC25 Model series: TC25 Model type: Excavators Brand of engine: S3L2 Approved: Yes
    Volvo Model: EB 300 SRS Model series: EB 300 SRS Model type: Excavators Brand of engine: S3L2 Approved: Yes
    Volvo Model: EC25 Model series: EC25 Model type: Excavators Brand of engine: S3L2 Approved: Yes
    Volvo Model: VOLVO EC30 Model series: VOLVO EC30 Model type: Excavators Brand of engine: S3L2 Approved: Yes
