- Startmotor
-

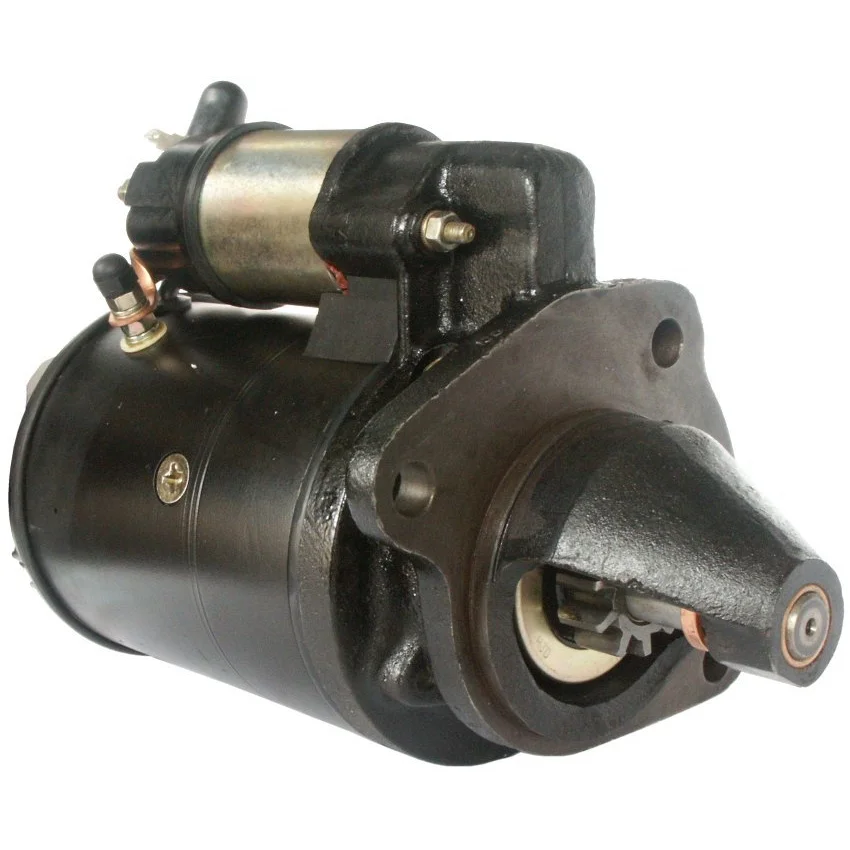

HC-Cargo Startmotor
- Startmotor
-
HC-Cargo Startmotor
Artikelnr: F032110819
HC-Cargo Startmotor
Voltage: 12, kW: 2.8, No./teeth: 10, Rotation: CW
Beskrivning
Massey-F Startmotor 12V-2.8kW 12V - 2.8kW, 10k, Lucas typ. A - 92mm, B - 25.5mm Alternativ: 91-355-0301 Bosch modell-ersättning. För Yourex produkt order LU LRS 301.
Voltage: 12
kW: 2.8
Mount. flange: 92.00
Drive dist.: 23.00
Mount. hole 3 mm: 13.50
Mount. hole 2 mm: 13.50
Mount. hole 1 mm: 13.50
Dist./back: 238.50
Dist./front: 74.00
No./teeth: 10
B+: M8
Thread length mm: 20.00
Position/50: 60
Terminal 50: 6.30
Gear type: DD
Dist. 2: 103.00
Dist. 3: 103.00
Dist. mm: 146.00
Rotation: CW
Total length mm: 311.00
Drive type: Steel
Prod. info: BN
Waterproof: No
Oil sealed: No
No./mount. holes: 3 (0)
Voltage: 12
kW: 2.8
Mount. flange: 92.00
Drive dist.: 23.00
Mount. hole 3 mm: 13.50
Mount. hole 2 mm: 13.50
Mount. hole 1 mm: 13.50
Dist./back: 238.50
Dist./front: 74.00
No./teeth: 10
B+: M8
Thread length mm: 20.00
Position/50: 60
Terminal 50: 6.30
Gear type: DD
Dist. 2: 103.00
Dist. 3: 103.00
Dist. mm: 146.00
Rotation: CW
Total length mm: 311.00
Drive type: Steel
Prod. info: BN
Waterproof: No
Oil sealed: No
No./mount. holes: 3 (0)
Filer
Specifikation
| B+ | M8 |
|---|---|
| No./teeth | 10 |
| Mount. flange | 92.00 |
| Oil sealed | No |
| No./mount. holes | 3 (0) |
| Position/50 | 60 |
| Prod. info | BN |
| Dist. 2 | 103.00 |
| Dist. 3 | 103.00 |
| Rotation | CW |
| Dist./back | 238.50 |
| Dist./front | 74.00 |
| Drive dist. | 23.00 |
| Drive type | Steel |
| Gear type | DD |
| kW | 2.8 |
| Terminal 50 | 6.30 |
| Voltage | 12 |
| Total length | 311.00 mm |
| Waterproof | No |
| Dist. | 146.00 mm |
| Thread length | 20.00 mm |
| Mount. hole 3 | 13.50 mm |
| Mount. hole 2 | 13.50 mm |
| Mount. hole 1 | 13.50 mm |
-
OEM
azj3148, azj3206, azj3389, C000900060080, cs1032, CT6005700082, F032110819, LRS 299, LRS232, LRS301, NSB 530, nsb530, s4515, 11.130.520, 11.130.632, 11.131.162, 1873a052, 2873 B052, 2873 D004, 2873b052, 2873b061, 2873d004, 6127A, 26273, 26344, 26365, 26411, 26411a, 26411b, 27522, 27522a, 27522d, 27540, 27540a, 27540h, 27546, 27546a, 27546b, 27571, 27571a, 27571b, 27580, 27582, 27584, 27593, 27593a, 110819, 551508, 968296 M1, 968856 M1, 0001362049, 1691805 M1, 1691805 R2, 1691805R1, 1808449 R2, 1808449R2, 1868283 R5, 1868283M5, 1868283R5, 1871433 M1, 1871433 M2, 1893705 T, 2873008, 3542184M91, 3542184M92, 3546390M91, 3597371 R2, 3597371m2, 3597371R2, 3763363M92, 3821819M91, 3930507 R1, 3930507R1, 7006119M1, 9643382M1, 19024821, 63227470, 63227480, 63227488, 72030330, 6005007548, 6005700082, 7701028780, 7701030289 -
Konkurrentreferens
CST25118, drs3427, is0519, is0520, is0632, LES0021, lrs00301, LRS01246, MS149, MS204, MS206, MS243, MS267, MS618OF, MSN175, MSN540, S4001, S9447(LETRIKA), STR25010, 2-2292-LU, 8ea737249-001, 25-1003, 25-1416, 344.004.102, 344.008.102, 650.503.103, 4457, 8720, 17653, 17653N-OE, 33475, 101032, 104031, 179653N, 432567, 432570, 432571, 8018161, 11018160, 063227593, 0986018161 -
Bilmärken
I.H (International Harvester) (EU), Massey Ferguson -
Normaliserat artikelnummer
azj3148, azj3206, azj3389, c000900060080, cs1032, cst25118, ct6005700082, drs3427, f032110819, is0519, is0520, is0632, les0021, lrs00301, lrs01246, lrs232, lrs299, lrs301, ms149, ms204, ms206, ms243, ms267, ms618of, msn175, msn540, nsb530, s4001, s4515, s9447letrika, str25010, 8ea737249001, 1873a052, 2873b052, 2873b061, 2873d004, 4457, 6127a, 8720, 17653, 17653noe, 22292lu, 26273, 26344, 26365, 26411, 26411a, 26411b, 27522, 27522a, 27522d, 27540, 27540a, 27540h, 27546, 27546a, 27546b, 27571, 27571a, 27571b, 27580, 27582, 27584, 27593, 27593a, 33475, 101032, 104031, 110819, 179653n, 251003, 251416, 432567, 432570, 432571, 551508, 968296m1, 968856m1, 0001362049, 1691805m1, 1691805r1, 1691805r2, 1808449r2, 1868283m5, 1868283r5, 1871433m1, 1871433m2, 1893705t, 2873008, 3542184m91, 3542184m92, 3546390m91, 3597371m2, 3597371r2, 3763363m92, 3821819m91, 3930507r1, 7006119m1, 8018161, 9643382m1, 11018160, 11130520, 11130632, 11131162, 19024821, 63227470, 63227480, 63227488, 063227593, 72030330, 344004102, 344008102, 650503103, 0986018161, 6005007548, 6005700082, 7701028780, 7701030289 -
Passar modeller
Eicher Model: Various Models Model series: Various Models Approved: Yes Massey Ferguson Model: MF 200 Model series: 240 Size of motor: 2.5 From date: 01-01-1979 To date: 01-12-1988 Fuel: Diesel Approved: Yes Massey Ferguson Model: MF 200 Model series: 245 Size of motor: 2.5 From date: 01-01-1977 To date: 01-12-1988 Fuel: Diesel Approved: Yes Massey Ferguson Model: MF 200 Model series: 255 Size of motor: 2.5 From date: 01-01-1977 To date: 01-12-1988 Fuel: Diesel Approved: Yes Massey Ferguson Model: MF 300 Model series: 350 From date: 01-01-1986 To date: 01-01-1992 Fuel: Diesel Approved: Yes Massey Ferguson Model: MF 300 Model series: 355 From date: 01-01-1986 To date: 01-01-1992 Fuel: Diesel Approved: Yes Massey Ferguson Model: MF 300 Model series: 360 From date: 01-01-1987 To date: 01-01-1990 Fuel: Diesel Approved: Yes Massey Ferguson Model: MF 500 Model series: 550 Fuel: Diesel Approved: Yes Massey Ferguson Model: Various Models Model series: Various Models From date: 01-01-1951 Approved: Yes Massey Ferguson Series: Grävlastare Model: MF 50 B Engine type: Perkins A 4.203 Massey Ferguson Series: MF Model: 140 Vineyard Year: 01.69- Massey Ferguson Series: MF Model: 145 V Year: 01.83-01.84 Massey Ferguson Series: MF Model: 145, S, V Year: 01.69- Massey Ferguson Series: MF Model: 152 V Year: 01.87-01.89 Massey Ferguson Series: MF Model: 155 Engine type: Perkins AD 4.203 Year: 01.69- Massey Ferguson Series: MF Model: 158 Engine type: Perkins AD 4.203 Year: 01.69- Massey Ferguson Series: Skördetröska Model: MF 535 Engine type: Perkins A 6.354.4 Year: 01.77- Massey Ferguson Series: Skördetröska Model: MF 560 Engine type: Perkins AT 6.354.4 Year: 01.80-01.82 Massey Ferguson Series: Traktor Model: MF 133 Year: 01.69- Massey Ferguson Series: Traktor Model: MF 135 Engine type: Perkins AD 3.152 Year: 01.69- Massey Ferguson Series: Traktor Model: MF 135, V Engine type: Perkins AD 3.152 Year: 01.69- Massey Ferguson Series: Traktor Model: MF 152 S Year: 01.83-01.86 Massey Ferguson Series: Traktor Model: MF 152 Year: 01.80-01.83 Massey Ferguson Series: Traktor Model: MF 165 Engine type: Perkins AD 4.203 Year: 01.69-01.76 Massey Ferguson Series: Traktor Model: MF 230 Engine type: Perkins AD 3.152 Year: 01.83- Massey Ferguson Series: Traktor Model: MF 235 Year: 01.77- Massey Ferguson Series: Traktor Model: MF 240 Engine type: Perkins AD 3.152 Year: 01.79- Massey Ferguson Series: Traktor Model: MF 245 Year: 01.77- Massey Ferguson Series: Traktor Model: MF 250 Engine type: Perkins AD 3.152 Year: 01.83-01.86 Massey Ferguson Series: Traktor Model: MF 255 Engine type: Perkins AD 3.152 Year: 01.77- Massey Ferguson Series: Traktor Model: MF 260 Year: 01.75- Massey Ferguson Series: Traktor Model: MF 35 Engine type: Perkins 3A.152 Massey Ferguson Series: Traktor Model: MF 350, 355, 360 Engine type: Perkins AD/AT 3.152 Year: 01.87- Massey Ferguson Series: Traktor Model: MF 50 Engine type: Perkins A 4.203 Massey Ferguson Series: Traktor Model: MF 550 Engine type: Perkins AD 3.152 Year: 01.76-01.82 Massey Ferguson Series: Traktor Model: MF 65 Engine type: Perkins A 4.192 Massey Ferguson Series: Traktor Model: MF 65 Engine type: Perkins AD 4.203 Perkins Model: Various Models Model series: Various Models Fuel: Diesel Approved: Yes 1 / 8
-
Beskrivning
Massey-F Startmotor 12V-2.8kW 12V - 2.8kW, 10k, Lucas typ. A - 92mm, B - 25.5mm Alternativ: 91-355-0301 Bosch modell-ersättning. För Yourex produkt order LU LRS 301.
Voltage: 12
kW: 2.8
Mount. flange: 92.00
Drive dist.: 23.00
Mount. hole 3 mm: 13.50
Mount. hole 2 mm: 13.50
Mount. hole 1 mm: 13.50
Dist./back: 238.50
Dist./front: 74.00
No./teeth: 10
B+: M8
Thread length mm: 20.00
Position/50: 60
Terminal 50: 6.30
Gear type: DD
Dist. 2: 103.00
Dist. 3: 103.00
Dist. mm: 146.00
Rotation: CW
Total length mm: 311.00
Drive type: Steel
Prod. info: BN
Waterproof: No
Oil sealed: No
No./mount. holes: 3 (0)Filer
-
Specifikation
B+ M8 No./teeth 10 Mount. flange 92.00 Oil sealed No No./mount. holes 3 (0) Position/50 60 Prod. info BN Dist. 2 103.00 Dist. 3 103.00 Rotation CW Dist./back 238.50 Dist./front 74.00 Drive dist. 23.00 Drive type Steel Gear type DD kW 2.8 Terminal 50 6.30 Voltage 12 Total length 311.00 mm Waterproof No Dist. 146.00 mm Thread length 20.00 mm Mount. hole 3 13.50 mm Mount. hole 2 13.50 mm Mount. hole 1 13.50 mm -
Fordonsmatchning
-
OEM
azj3148, azj3206, azj3389, C000900060080, cs1032, CT6005700082, F032110819, LRS 299, LRS232, LRS301, NSB 530, nsb530, s4515, 11.130.520, 11.130.632, 11.131.162, 1873a052, 2873 B052, 2873 D004, 2873b052, 2873b061, 2873d004, 6127A, 26273, 26344, 26365, 26411, 26411a, 26411b, 27522, 27522a, 27522d, 27540, 27540a, 27540h, 27546, 27546a, 27546b, 27571, 27571a, 27571b, 27580, 27582, 27584, 27593, 27593a, 110819, 551508, 968296 M1, 968856 M1, 0001362049, 1691805 M1, 1691805 R2, 1691805R1, 1808449 R2, 1808449R2, 1868283 R5, 1868283M5, 1868283R5, 1871433 M1, 1871433 M2, 1893705 T, 2873008, 3542184M91, 3542184M92, 3546390M91, 3597371 R2, 3597371m2, 3597371R2, 3763363M92, 3821819M91, 3930507 R1, 3930507R1, 7006119M1, 9643382M1, 19024821, 63227470, 63227480, 63227488, 72030330, 6005007548, 6005700082, 7701028780, 7701030289 -
Konkurrentreferens
CST25118, drs3427, is0519, is0520, is0632, LES0021, lrs00301, LRS01246, MS149, MS204, MS206, MS243, MS267, MS618OF, MSN175, MSN540, S4001, S9447(LETRIKA), STR25010, 2-2292-LU, 8ea737249-001, 25-1003, 25-1416, 344.004.102, 344.008.102, 650.503.103, 4457, 8720, 17653, 17653N-OE, 33475, 101032, 104031, 179653N, 432567, 432570, 432571, 8018161, 11018160, 063227593, 0986018161 -
Bilmärken
I.H (International Harvester) (EU), Massey Ferguson -
Normaliserat artikelnummer
azj3148, azj3206, azj3389, c000900060080, cs1032, cst25118, ct6005700082, drs3427, f032110819, is0519, is0520, is0632, les0021, lrs00301, lrs01246, lrs232, lrs299, lrs301, ms149, ms204, ms206, ms243, ms267, ms618of, msn175, msn540, nsb530, s4001, s4515, s9447letrika, str25010, 8ea737249001, 1873a052, 2873b052, 2873b061, 2873d004, 4457, 6127a, 8720, 17653, 17653noe, 22292lu, 26273, 26344, 26365, 26411, 26411a, 26411b, 27522, 27522a, 27522d, 27540, 27540a, 27540h, 27546, 27546a, 27546b, 27571, 27571a, 27571b, 27580, 27582, 27584, 27593, 27593a, 33475, 101032, 104031, 110819, 179653n, 251003, 251416, 432567, 432570, 432571, 551508, 968296m1, 968856m1, 0001362049, 1691805m1, 1691805r1, 1691805r2, 1808449r2, 1868283m5, 1868283r5, 1871433m1, 1871433m2, 1893705t, 2873008, 3542184m91, 3542184m92, 3546390m91, 3597371m2, 3597371r2, 3763363m92, 3821819m91, 3930507r1, 7006119m1, 8018161, 9643382m1, 11018160, 11130520, 11130632, 11131162, 19024821, 63227470, 63227480, 63227488, 063227593, 72030330, 344004102, 344008102, 650503103, 0986018161, 6005007548, 6005700082, 7701028780, 7701030289 -
Passar modeller
Eicher Model: Various Models Model series: Various Models Approved: Yes Massey Ferguson Model: MF 200 Model series: 240 Size of motor: 2.5 From date: 01-01-1979 To date: 01-12-1988 Fuel: Diesel Approved: Yes Massey Ferguson Model: MF 200 Model series: 245 Size of motor: 2.5 From date: 01-01-1977 To date: 01-12-1988 Fuel: Diesel Approved: Yes Massey Ferguson Model: MF 200 Model series: 255 Size of motor: 2.5 From date: 01-01-1977 To date: 01-12-1988 Fuel: Diesel Approved: Yes Massey Ferguson Model: MF 300 Model series: 350 From date: 01-01-1986 To date: 01-01-1992 Fuel: Diesel Approved: Yes Massey Ferguson Model: MF 300 Model series: 355 From date: 01-01-1986 To date: 01-01-1992 Fuel: Diesel Approved: Yes Massey Ferguson Model: MF 300 Model series: 360 From date: 01-01-1987 To date: 01-01-1990 Fuel: Diesel Approved: Yes Massey Ferguson Model: MF 500 Model series: 550 Fuel: Diesel Approved: Yes Massey Ferguson Model: Various Models Model series: Various Models From date: 01-01-1951 Approved: Yes Massey Ferguson Series: Grävlastare Model: MF 50 B Engine type: Perkins A 4.203 Massey Ferguson Series: MF Model: 140 Vineyard Year: 01.69- Massey Ferguson Series: MF Model: 145 V Year: 01.83-01.84 Massey Ferguson Series: MF Model: 145, S, V Year: 01.69- Massey Ferguson Series: MF Model: 152 V Year: 01.87-01.89 Massey Ferguson Series: MF Model: 155 Engine type: Perkins AD 4.203 Year: 01.69- Massey Ferguson Series: MF Model: 158 Engine type: Perkins AD 4.203 Year: 01.69- Massey Ferguson Series: Skördetröska Model: MF 535 Engine type: Perkins A 6.354.4 Year: 01.77- Massey Ferguson Series: Skördetröska Model: MF 560 Engine type: Perkins AT 6.354.4 Year: 01.80-01.82 Massey Ferguson Series: Traktor Model: MF 133 Year: 01.69- Massey Ferguson Series: Traktor Model: MF 135 Engine type: Perkins AD 3.152 Year: 01.69- Massey Ferguson Series: Traktor Model: MF 135, V Engine type: Perkins AD 3.152 Year: 01.69- Massey Ferguson Series: Traktor Model: MF 152 S Year: 01.83-01.86 Massey Ferguson Series: Traktor Model: MF 152 Year: 01.80-01.83 Massey Ferguson Series: Traktor Model: MF 165 Engine type: Perkins AD 4.203 Year: 01.69-01.76 Massey Ferguson Series: Traktor Model: MF 230 Engine type: Perkins AD 3.152 Year: 01.83- Massey Ferguson Series: Traktor Model: MF 235 Year: 01.77- Massey Ferguson Series: Traktor Model: MF 240 Engine type: Perkins AD 3.152 Year: 01.79- Massey Ferguson Series: Traktor Model: MF 245 Year: 01.77- Massey Ferguson Series: Traktor Model: MF 250 Engine type: Perkins AD 3.152 Year: 01.83-01.86 Massey Ferguson Series: Traktor Model: MF 255 Engine type: Perkins AD 3.152 Year: 01.77- Massey Ferguson Series: Traktor Model: MF 260 Year: 01.75- Massey Ferguson Series: Traktor Model: MF 35 Engine type: Perkins 3A.152 Massey Ferguson Series: Traktor Model: MF 350, 355, 360 Engine type: Perkins AD/AT 3.152 Year: 01.87- Massey Ferguson Series: Traktor Model: MF 50 Engine type: Perkins A 4.203 Massey Ferguson Series: Traktor Model: MF 550 Engine type: Perkins AD 3.152 Year: 01.76-01.82 Massey Ferguson Series: Traktor Model: MF 65 Engine type: Perkins A 4.192 Massey Ferguson Series: Traktor Model: MF 65 Engine type: Perkins AD 4.203 Perkins Model: Various Models Model series: Various Models Fuel: Diesel Approved: Yes 1 / 8
-
