HC-Cargo Startmotor
HC-Cargo Startmotor
Artikelnr: F032110573

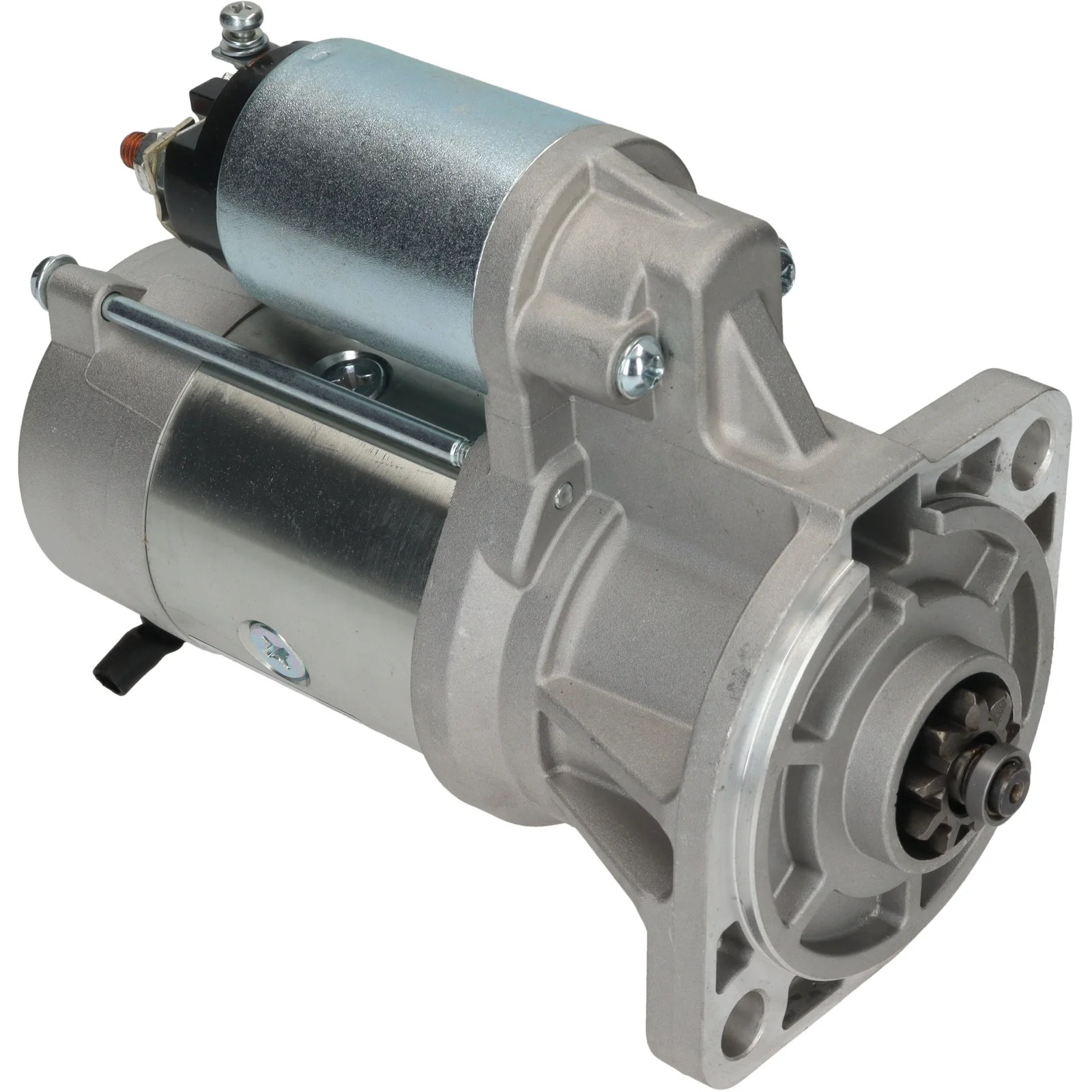

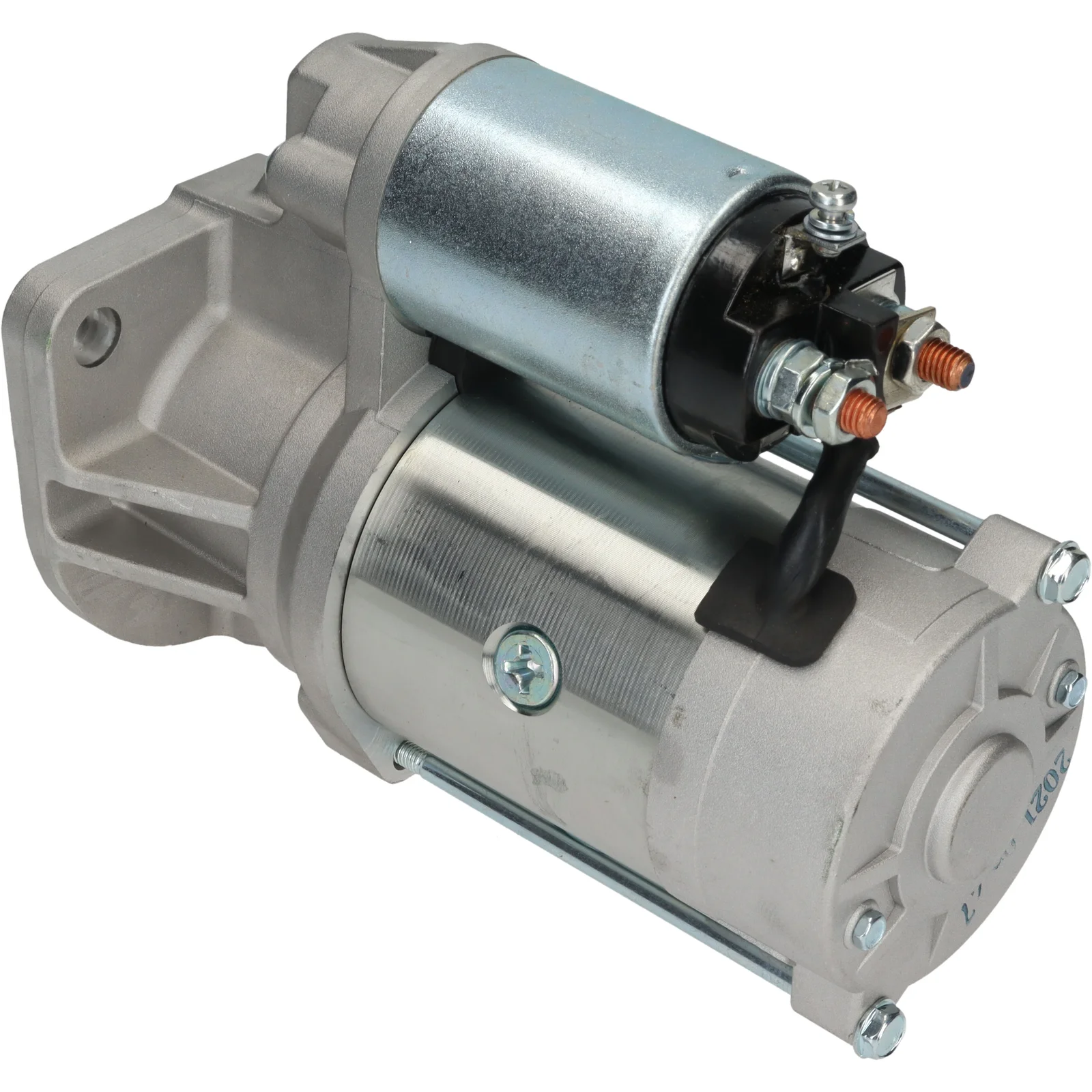

HC-Cargo Startmotor

Teknisk info:

Voltage: 12, kW: 2.0, No./teeth: 9, Rotation: CW

Beskrivning

Voltage: 12
kW: 2.0
Mount. flange: 95.00
Drive dist.: 22.00
Mount. hole 2 mm: 13.00
Mount. hole 1 mm: 13.00
Dist./back: 202.00
Dist./front: 27.00
No./teeth: 9
B+: M8
Thread length mm: 21.00
Position/50: 11
Terminal 50: M5
Gear type: GR
Dist. mm: 119.00
Rotation: CW
Total length mm: 234.00
Drive type: Steel
Prod. info: BN
Waterproof: No
Oil sealed: No
No./mount. holes: 2 (0)

Filer

Specifikation

B+ M8
No./teeth 9
Mount. flange 95.00
Oil sealed No
No./mount. holes 2 (0)
Position/50 11
Prod. info BN
Rotation CW
Dist./back 202.00
Dist./front 27.00
Drive dist. 22.00
Drive type Steel
Gear type GR
kW 2.0
Terminal 50 M5
Voltage 12
Total length 234.00 mm
Waterproof No
Dist. 119.00 mm
Thread length 21.00 mm
Mount. hole 2 13.00 mm
Mount. hole 1 13.00 mm

  • OEM
    F032110573, s12-48, s12-58, s13-120a, s13-120b, s13-75, s13-82, s13-82a, s13-82b, 5-81100-099-1, 600-813-1750, 028000-6440, 028000-6441, 128000-2880, 128000-3100, 128000-3101, 228000-9690, 3675152RX, 5811000571, 5811000990, 5811001550, 5811002140, 5811210140, 8941364000, 8941364001, 8944532120, 8970489650, 62811000072

  • Konkurrentreferens
    aus-103, BSO7120, CST20180, drs3038, drs4071, F042004015, F042S04015, les0322, LRS01078, LRS01115, s-1193-hi, s-8152-1, shi0068, sj-00254r, sj-0044r, STR-6000, STR23003, STR6000, 2-1193-HI, 25-0388, 25-1010, 91-25-1078, 130.412.092, 130.598.092, 343.001.092, 343.002.092, 643.016.092, 643.024.092, 11593, 16739N, 16739R, 18050, 18050N, 18293, 18298, 20679, 254997

  • Normaliserat artikelnummer
    aus103, bso7120, cst20180, drs3038, drs4071, f032110573, f042004015, f042s04015, les0322, lrs01078, lrs01115, s1193hi, s1248, s1258, s13120a, s13120b, s1375, s1382, s1382a, s1382b, s81521, shi0068, sj00254r, sj0044r, str23003, str6000, 11593, 16739n, 16739r, 18050, 18050n, 18293, 18298, 20679, 21193hi, 250388, 251010, 254997, 3675152rx, 91251078, 130412092, 130598092, 0280006440, 0280006441, 343001092, 343002092, 643016092, 643024092, 1280002880, 1280003100, 1280003101, 2280009690, 5811000571, 5811000990, 5811000991, 5811001550, 5811002140, 5811210140, 6008131750, 8941364000, 8941364001, 8944532120, 8970489650, 62811000072

  • Passar modeller
    Daewoo Model: Various Models Model series: Various Models Approved: Yes
    Hyster Model: P Model series: 40, 60 Brand of engine: 4.154 From date: 01-01-1972 To date: 01-12-1978 Fuel: Diesel Approved: Yes
    Hyster Model: Various Models Model series: Various Models Fuel: Diesel Approved: Yes
    Isuzu Model: Aska Model series: Aska Type of engine: Diesel Size of motor: 2.0 Brand of engine: 4FC1 From date: 01-04-1983 To date: 01-06-1989 Fuel: Diesel Approved: Yes
    Isuzu Model: KBD Model series: 41 Type of engine: Diesel Size of motor: 2.0 From date: 01-01-1981 To date: 01-01-1985 Fuel: Diesel Approved: Yes
  • Beskrivning
    Voltage: 12
    kW: 2.0
    Mount. flange: 95.00
    Drive dist.: 22.00
    Mount. hole 2 mm: 13.00
    Mount. hole 1 mm: 13.00
    Dist./back: 202.00
    Dist./front: 27.00
    No./teeth: 9
    B+: M8
    Thread length mm: 21.00
    Position/50: 11
    Terminal 50: M5
    Gear type: GR
    Dist. mm: 119.00
    Rotation: CW
    Total length mm: 234.00
    Drive type: Steel
    Prod. info: BN
    Waterproof: No
    Oil sealed: No
    No./mount. holes: 2 (0)

    Filer

  • Specifikation
    B+ M8
    No./teeth 9
    Mount. flange 95.00
    Oil sealed No
    No./mount. holes 2 (0)
    Position/50 11
    Prod. info BN
    Rotation CW
    Dist./back 202.00
    Dist./front 27.00
    Drive dist. 22.00
    Drive type Steel
    Gear type GR
    kW 2.0
    Terminal 50 M5
    Voltage 12
    Total length 234.00 mm
    Waterproof No
    Dist. 119.00 mm
    Thread length 21.00 mm
    Mount. hole 2 13.00 mm
    Mount. hole 1 13.00 mm
  • Fordonsmatchning

    • OEM
      F032110573, s12-48, s12-58, s13-120a, s13-120b, s13-75, s13-82, s13-82a, s13-82b, 5-81100-099-1, 600-813-1750, 028000-6440, 028000-6441, 128000-2880, 128000-3100, 128000-3101, 228000-9690, 3675152RX, 5811000571, 5811000990, 5811001550, 5811002140, 5811210140, 8941364000, 8941364001, 8944532120, 8970489650, 62811000072

    • Konkurrentreferens
      aus-103, BSO7120, CST20180, drs3038, drs4071, F042004015, F042S04015, les0322, LRS01078, LRS01115, s-1193-hi, s-8152-1, shi0068, sj-00254r, sj-0044r, STR-6000, STR23003, STR6000, 2-1193-HI, 25-0388, 25-1010, 91-25-1078, 130.412.092, 130.598.092, 343.001.092, 343.002.092, 643.016.092, 643.024.092, 11593, 16739N, 16739R, 18050, 18050N, 18293, 18298, 20679, 254997

    • Normaliserat artikelnummer
      aus103, bso7120, cst20180, drs3038, drs4071, f032110573, f042004015, f042s04015, les0322, lrs01078, lrs01115, s1193hi, s1248, s1258, s13120a, s13120b, s1375, s1382, s1382a, s1382b, s81521, shi0068, sj00254r, sj0044r, str23003, str6000, 11593, 16739n, 16739r, 18050, 18050n, 18293, 18298, 20679, 21193hi, 250388, 251010, 254997, 3675152rx, 91251078, 130412092, 130598092, 0280006440, 0280006441, 343001092, 343002092, 643016092, 643024092, 1280002880, 1280003100, 1280003101, 2280009690, 5811000571, 5811000990, 5811000991, 5811001550, 5811002140, 5811210140, 6008131750, 8941364000, 8941364001, 8944532120, 8970489650, 62811000072

    • Passar modeller
      Daewoo Model: Various Models Model series: Various Models Approved: Yes
      Hyster Model: P Model series: 40, 60 Brand of engine: 4.154 From date: 01-01-1972 To date: 01-12-1978 Fuel: Diesel Approved: Yes
      Hyster Model: Various Models Model series: Various Models Fuel: Diesel Approved: Yes
      Isuzu Model: Aska Model series: Aska Type of engine: Diesel Size of motor: 2.0 Brand of engine: 4FC1 From date: 01-04-1983 To date: 01-06-1989 Fuel: Diesel Approved: Yes
      Isuzu Model: KBD Model series: 41 Type of engine: Diesel Size of motor: 2.0 From date: 01-01-1981 To date: 01-01-1985 Fuel: Diesel Approved: Yes
