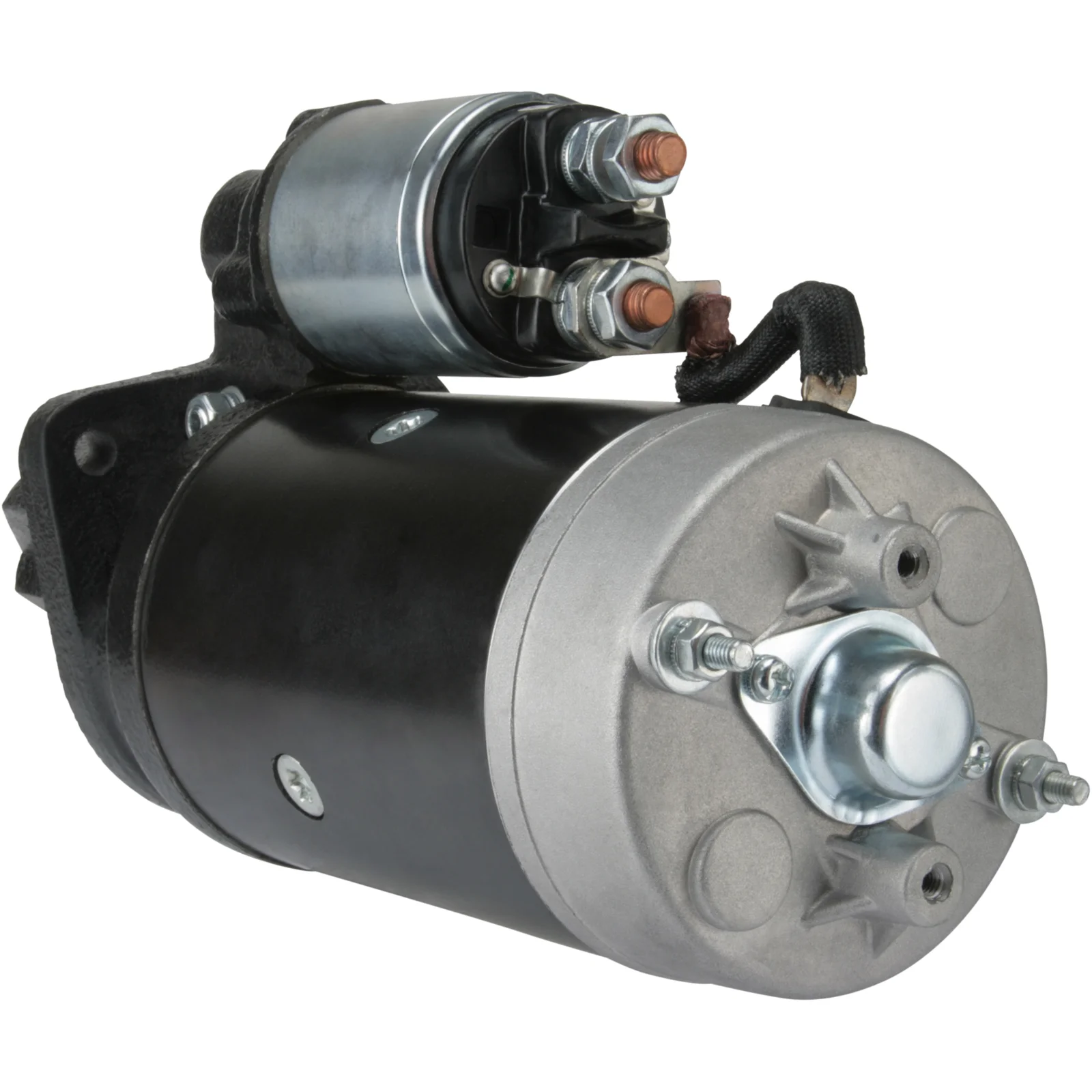

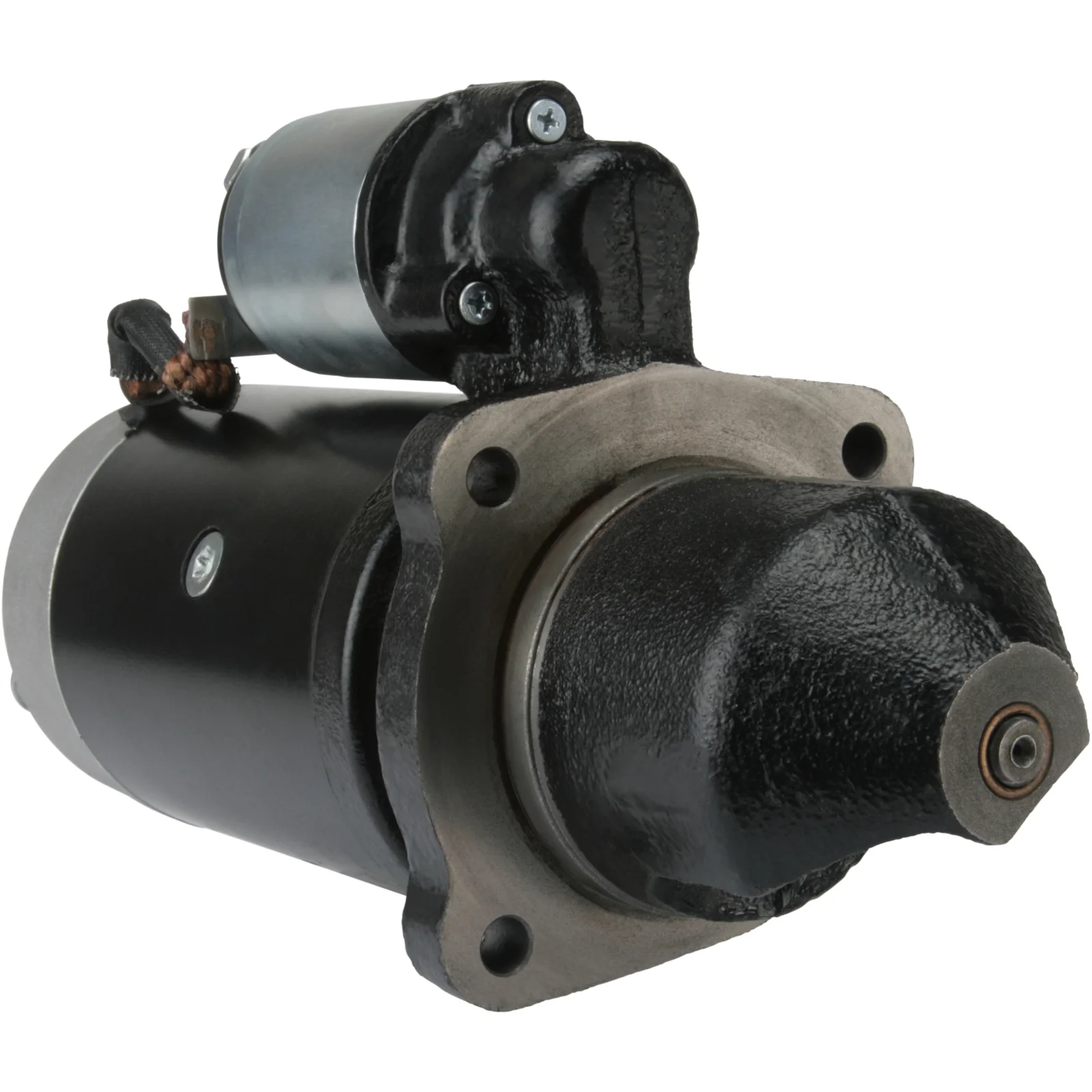

HC-Cargo Startmotor
HC-Cargo Startmotor
Artikelnr: F032110551

HC-Cargo Startmotor

Teknisk info:

Voltage: 12, kW: 3.0, No./teeth: 11, Rotation: CW

Beskrivning

Voltage: 12
kW: 3.0
Mount. flange: 89.00
Drive dist.: 47.00
Mount. hole 3 mm: 10.50
Mount. hole 2 mm: 10.50
Mount. hole 1 mm: 10.50
Dist./back: 229.00
Dist./front: 93.50
No./teeth: 11
B+: M10
Position/50: 45
Terminal 50: M4-6.30
Gear type: DD
Dist. 2: 89.50
Dist. 3: 89.50
Dist. mm: 126.00
Rotation: CW
Total length mm: 326.50
Drive type: Steel
Prod. info: BN
Waterproof: No
Oil sealed: No
No./mount. holes: 3 (0)

Filer

Specifikation

B+ M10
No./teeth 11
Mount. flange 89.00
Oil sealed No
No./mount. holes 3 (0)
Position/50 45
Prod. info BN
Dist. 2 89.50
Dist. 3 89.50
Rotation CW
Dist./back 229.00
Dist./front 93.50
Drive dist. 47.00
Drive type Steel
Gear type DD
kW 3.0
Terminal 50 M4-6.30
Voltage 12
Total length 326.50 mm
Waterproof No
Dist. 126.00 mm
Mount. hole 3 10.50 mm
Mount. hole 2 10.50 mm
Mount. hole 1 10.50 mm

  • OEM
    AZJ3285, F032110551, r11.02, r11b, 11.130.821, 0001359001, 0001359048, 0001359053, 0001359056, 0001359099, 0001367009, 4090901, 9144742, 19024815, 80350911, 80357918, 296191100, 409090001, 7701013039, 41000090002, 41000090003, 443115144540, 443115144640, 443115144742

  • Konkurrentreferens
    CST10356, CST48108, IS0821, LRS01035, LRS01134, LRS01174, MS309, S0796S, STR50161, 8ea732654-001, 25-0210, 25-1088, 25-1176, 50-9104, 600.014.112, 686.011.112, 4133, 10799, 33875, 220245, 220245A

  • Normaliserat artikelnummer
    azj3285, cst10356, cst48108, f032110551, is0821, lrs01035, lrs01134, lrs01174, ms309, r1102, r11b, s0796s, str50161, 8ea732654001, 4133, 10799, 33875, 220245, 220245a, 250210, 251088, 251176, 509104, 0001359001, 0001359048, 0001359053, 0001359056, 0001359099, 0001367009, 4090901, 9144742, 11130821, 19024815, 80350911, 80357918, 296191100, 409090001, 600014112, 686011112, 7701013039, 41000090002, 41000090003, 443115144540, 443115144640, 443115144742

  • Passar modeller
    Lamborghini Model: C Model series: C603 Size of motor: 3.1 Brand of engine: FL1104 From date: 01-06-1973 Fuel: Diesel Approved: Yes
    Lamborghini Model: R Model series: 804 Size of motor: 4.6 Brand of engine: FL1104 From date: 01-06-1973 Fuel: Diesel Approved: Yes
    Lamborghini Model: R Model series: 904 Size of motor: 5.0 Brand of engine: FL1154 From date: 01-03-1973 Fuel: Diesel Approved: Yes
    Lamborghini Model: R Model series: R704 Size of motor: 4.6 Brand of engine: FL1104 From date: 01-06-1973 Fuel: Diesel Approved: Yes
    Same Model: Buffalo Model series: Buffalo 120 Size of motor: 6.2 Brand of engine: DA1056 From date: 01-07-1974 Fuel: Diesel Approved: Yes
    Same Model: Drago Model series: Drago Size of motor: 5.4 From date: 01-11-1971 Fuel: Diesel Approved: Yes
    Same Model: Panter Model series: Panter Size of motor: 4.5 Brand of engine: DA985 From date: 01-07-1974 Fuel: Diesel Approved: Yes
    Same Model: Various Models Model series: Various Models Approved: Yes
    Ursus Model: 1000 Model series: 1014 Approved: Yes
    Ursus Model: 1000 Model series: 1033 Approved: Yes
    Ursus Model: 1000 Model series: 1035 Approved: Yes
    Ursus Model: 1000 Model series: 1614 Approved: Yes
    Ursus Model: 1100 Model series: 1133 Approved: Yes
    Ursus Model: 900 Model series: 912 Approved: Yes
    Ursus Model: 900 Model series: 914 Approved: Yes
    Ursus Model: 900 Model series: 933 Approved: Yes
    Ursus Model: 900 Model series: 935 Approved: Yes
    Ursus Model: C Model series: C385 Approved: Yes
    Zetor Model: 10000 Series Model series: 10011 Approved: Yes
    Zetor Model: 10000 Series Model series: 10045 Approved: Yes
    Zetor Model: 10000 Series Model series: 10111 Approved: Yes
    Zetor Model: 10000 Series Model series: 10145 Size of motor: 4.6 Fuel: Diesel Approved: Yes
    Zetor Model: 10000 Series Model series: 10211 Approved: Yes
    Zetor Model: 10000 Series Model series: 10245 Approved: Yes
    Zetor Model: 8000 Series Model series: 8111 Approved: Yes
    Zetor Model: 8000 Series Model series: 8145 Approved: Yes
    Zetor Model: 8000 Series Model series: 8245 Approved: Yes
    Zetor Model: 9000 Series Model series: 9211 Size of motor: 4.2 Approved: Yes
    Zetor Model: 9000 Series Model series: 9245 Size of motor: 4.2 Approved: Yes
    1 / 6
  • Beskrivning
    Voltage: 12
    kW: 3.0
    Mount. flange: 89.00
    Drive dist.: 47.00
    Mount. hole 3 mm: 10.50
    Mount. hole 2 mm: 10.50
    Mount. hole 1 mm: 10.50
    Dist./back: 229.00
    Dist./front: 93.50
    No./teeth: 11
    B+: M10
    Position/50: 45
    Terminal 50: M4-6.30
    Gear type: DD
    Dist. 2: 89.50
    Dist. 3: 89.50
    Dist. mm: 126.00
    Rotation: CW
    Total length mm: 326.50
    Drive type: Steel
    Prod. info: BN
    Waterproof: No
    Oil sealed: No
    No./mount. holes: 3 (0)

    Filer

  • Specifikation
    B+ M10
    No./teeth 11
    Mount. flange 89.00
    Oil sealed No
    No./mount. holes 3 (0)
    Position/50 45
    Prod. info BN
    Dist. 2 89.50
    Dist. 3 89.50
    Rotation CW
    Dist./back 229.00
    Dist./front 93.50
    Drive dist. 47.00
    Drive type Steel
    Gear type DD
    kW 3.0
    Terminal 50 M4-6.30
    Voltage 12
    Total length 326.50 mm
    Waterproof No
    Dist. 126.00 mm
    Mount. hole 3 10.50 mm
    Mount. hole 2 10.50 mm
    Mount. hole 1 10.50 mm
  • Fordonsmatchning

    • OEM
      AZJ3285, F032110551, r11.02, r11b, 11.130.821, 0001359001, 0001359048, 0001359053, 0001359056, 0001359099, 0001367009, 4090901, 9144742, 19024815, 80350911, 80357918, 296191100, 409090001, 7701013039, 41000090002, 41000090003, 443115144540, 443115144640, 443115144742

    • Konkurrentreferens
      CST10356, CST48108, IS0821, LRS01035, LRS01134, LRS01174, MS309, S0796S, STR50161, 8ea732654-001, 25-0210, 25-1088, 25-1176, 50-9104, 600.014.112, 686.011.112, 4133, 10799, 33875, 220245, 220245A

    • Normaliserat artikelnummer
      azj3285, cst10356, cst48108, f032110551, is0821, lrs01035, lrs01134, lrs01174, ms309, r1102, r11b, s0796s, str50161, 8ea732654001, 4133, 10799, 33875, 220245, 220245a, 250210, 251088, 251176, 509104, 0001359001, 0001359048, 0001359053, 0001359056, 0001359099, 0001367009, 4090901, 9144742, 11130821, 19024815, 80350911, 80357918, 296191100, 409090001, 600014112, 686011112, 7701013039, 41000090002, 41000090003, 443115144540, 443115144640, 443115144742

    • Passar modeller
      Lamborghini Model: C Model series: C603 Size of motor: 3.1 Brand of engine: FL1104 From date: 01-06-1973 Fuel: Diesel Approved: Yes
      Lamborghini Model: R Model series: 804 Size of motor: 4.6 Brand of engine: FL1104 From date: 01-06-1973 Fuel: Diesel Approved: Yes
      Lamborghini Model: R Model series: 904 Size of motor: 5.0 Brand of engine: FL1154 From date: 01-03-1973 Fuel: Diesel Approved: Yes
      Lamborghini Model: R Model series: R704 Size of motor: 4.6 Brand of engine: FL1104 From date: 01-06-1973 Fuel: Diesel Approved: Yes
      Same Model: Buffalo Model series: Buffalo 120 Size of motor: 6.2 Brand of engine: DA1056 From date: 01-07-1974 Fuel: Diesel Approved: Yes
      Same Model: Drago Model series: Drago Size of motor: 5.4 From date: 01-11-1971 Fuel: Diesel Approved: Yes
      Same Model: Panter Model series: Panter Size of motor: 4.5 Brand of engine: DA985 From date: 01-07-1974 Fuel: Diesel Approved: Yes
      Same Model: Various Models Model series: Various Models Approved: Yes
      Ursus Model: 1000 Model series: 1014 Approved: Yes
      Ursus Model: 1000 Model series: 1033 Approved: Yes
      Ursus Model: 1000 Model series: 1035 Approved: Yes
      Ursus Model: 1000 Model series: 1614 Approved: Yes
      Ursus Model: 1100 Model series: 1133 Approved: Yes
      Ursus Model: 900 Model series: 912 Approved: Yes
      Ursus Model: 900 Model series: 914 Approved: Yes
      Ursus Model: 900 Model series: 933 Approved: Yes
      Ursus Model: 900 Model series: 935 Approved: Yes
      Ursus Model: C Model series: C385 Approved: Yes
      Zetor Model: 10000 Series Model series: 10011 Approved: Yes
      Zetor Model: 10000 Series Model series: 10045 Approved: Yes
      Zetor Model: 10000 Series Model series: 10111 Approved: Yes
      Zetor Model: 10000 Series Model series: 10145 Size of motor: 4.6 Fuel: Diesel Approved: Yes
      Zetor Model: 10000 Series Model series: 10211 Approved: Yes
      Zetor Model: 10000 Series Model series: 10245 Approved: Yes
      Zetor Model: 8000 Series Model series: 8111 Approved: Yes
      Zetor Model: 8000 Series Model series: 8145 Approved: Yes
      Zetor Model: 8000 Series Model series: 8245 Approved: Yes
      Zetor Model: 9000 Series Model series: 9211 Size of motor: 4.2 Approved: Yes
      Zetor Model: 9000 Series Model series: 9245 Size of motor: 4.2 Approved: Yes
