Artikelnr: F032110538

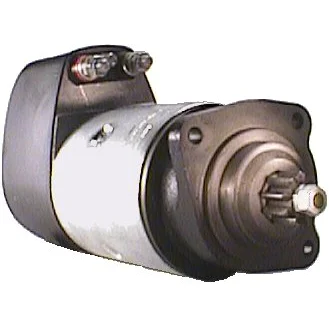

HC-Cargo Startmotor

Teknisk info:

Voltage: 12, kW: 3.6, No./teeth: 9, Rotation: CW

Beskrivning

Start 12V-3.6kW passar Penta 12V - 3.6kW, 9k, Insulated 24V-variant är 91-605-6028 För Yourex produkt order 91-605-8009

Voltage: 12
kW: 3.6
Insulated return: Yes
Mount. flange: 89.00
Drive dist.: 47.00
Mount. hole 3 mm: 11.00
Mount. hole 2 mm: 11.00
Mount. hole 1 mm: 11.00
Dist./back: 318.50
Dist./front: 62.00
No./teeth: 9
B+: M10
Position/B+: 60
Position/50: 60
Terminal 50: M6
Gear type: DD
Dist. 2: 127.00
Dist. 3: 90.00
Dist. mm: 90.00
Rotation: CW
Position/b-: 60
B-: M10
Total length mm: 384.00
Drive type: Steel
Prod. info: BN
Waterproof: No
Oil sealed: No
No./mount. holes: 3 (0)

Filer

Specifikation

B+ M10
B- M10
No./teeth 9
Mount. flange 89.00
Oil sealed No
No./mount. holes 3 (0)
Position/50 60
Position/b- 60
Position/B+ 60
Prod. info BN
Dist. 2 127.00
Dist. 3 90.00
Rotation CW
Dist./back 318.50
Dist./front 62.00
Drive dist. 47.00
Drive type Steel
Gear type DD
Insulated return Yes
kW 3.6
Terminal 50 M6
Voltage 12
Total length 384.00 mm
Waterproof No
Dist. 90.00 mm
Mount. hole 3 11.00 mm
Mount. hole 2 11.00 mm
Mount. hole 1 11.00 mm

  • OEM
    bng4/12cr238, F032110538, 0001 401 023, 0001 401 060, 0001 413 004, 0001 418 009, 409, 22804, 233991, 240501, 837924, 842775, 843511, 847306, 860542, 881681, 0001401023, 0001401060, 0001413004, 0001418009, 19024005

  • Konkurrentreferens
    CST10175, LRS01204, MS570, MS704, S0837S, S0856S, 8ea737247-001, 25-1270, 638.021.092, 810.101.093, 4455, 18221, 33655, 33737, 101030, 220244, 220244A, 254022

  • Bilmärken
    Volvo Penta

  • Normaliserat artikelnummer
    bng412cr238, cst10175, f032110538, lrs01204, ms570, ms704, s0837s, s0856s, 8ea737247001, 409, 4455, 18221, 22804, 33655, 33737, 101030, 220244, 220244a, 233991, 240501, 251270, 254022, 837924, 842775, 843511, 847306, 860542, 881681, 0001401023, 0001401060, 0001413004, 0001418009, 19024005, 638021092, 810101093

  • Passar modeller
    Volvo Penta Model: Engine Model series: Engine Size of motor: 5.5 Brand of engine: TAMD60 From date: 01-10-1976 Fuel: Diesel Approved: Yes
    Volvo Penta Model: Engine Model series: Engine Size of motor: 6.7 Brand of engine: AQD70 From date: 01-03-1971 Fuel: Diesel Approved: Yes
    Volvo Penta Model: Engine Model series: Engine Size of motor: 6.7 Brand of engine: TMD70 From date: 01-12-1972 Fuel: Diesel Approved: Yes
    Volvo Penta Series: Industri Model: D 42 A, A-PP (12V)
    Volvo Penta Series: Industri Model: TAD 730 G / P / VE (12V)
    Volvo Penta Series: Industri Model: TD 60 B (12V-3.6kW)
    Volvo Penta Series: Industri Model: TD 73 ES Engine type: 12V
    Volvo Penta Series: Marin Model: AQD 70 B Engine volume: 6.7 Year: 03.71-12-74
    Volvo Penta Series: Marin Model: AQD 70 BL Engine volume: 6.7 Year: 01.73-12.74
    Volvo Penta Series: Marin Model: AQD 70 C, CL Engine volume: 6.7 Year: 01.75-06.79
    Volvo Penta Series: Marin Model: MD 42 A Engine volume: 4.2 Year: 08.70-06.79
    Volvo Penta Series: Marin Model: MD 70 B Engine volume: 6.7 Year: 12.70-07.79
    Volvo Penta Series: Marin Model: TAMD 60 B Engine volume: 5.5 Year: 10.78-04.83
    Volvo Penta Series: Marin Model: TAMD 61 A (12V)
    Volvo Penta Series: Marin Model: TAMD 63 L-A, P-A (12V)
    Volvo Penta Series: Marin Model: TAMD 70 B, C, D Engine volume: 6.7 Year: 03.71-12.79
    Volvo Penta Series: Marin Model: TAMD 71 B Engine type: 12V - 3.6kW
    Volvo Penta Series: Marin Model: TAMD 73 P-A, WJ-A Engine type: 12V - 3.6kW
    Volvo Penta Series: Marin Model: TAMD 74..., 75... 12V
    Volvo Penta Series: Marin Model: THAMD 70 B Engine volume: 6.7 Year: 01.73-12.74
    Volvo Penta Series: Marin Model: TM 70 B Engine volume: 6.7 Year: 12.70-12.78
    Volvo Penta Series: Marin Model: TMD 70 B Engine volume: 6.7 Year: 12.72-07.79
    1 / 5
  • Beskrivning
    Start 12V-3.6kW passar Penta 12V - 3.6kW, 9k, Insulated 24V-variant är 91-605-6028 För Yourex produkt order 91-605-8009

    Voltage: 12
    kW: 3.6
    Insulated return: Yes
    Mount. flange: 89.00
    Drive dist.: 47.00
    Mount. hole 3 mm: 11.00
    Mount. hole 2 mm: 11.00
    Mount. hole 1 mm: 11.00
    Dist./back: 318.50
    Dist./front: 62.00
    No./teeth: 9
    B+: M10
    Position/B+: 60
    Position/50: 60
    Terminal 50: M6
    Gear type: DD
    Dist. 2: 127.00
    Dist. 3: 90.00
    Dist. mm: 90.00
    Rotation: CW
    Position/b-: 60
    B-: M10
    Total length mm: 384.00
    Drive type: Steel
    Prod. info: BN
    Waterproof: No
    Oil sealed: No
    No./mount. holes: 3 (0)

    Filer

  • Specifikation
    B+ M10
    B- M10
    No./teeth 9
    Mount. flange 89.00
    Oil sealed No
    No./mount. holes 3 (0)
    Position/50 60
    Position/b- 60
    Position/B+ 60
    Prod. info BN
    Dist. 2 127.00
    Dist. 3 90.00
    Rotation CW
    Dist./back 318.50
    Dist./front 62.00
    Drive dist. 47.00
    Drive type Steel
    Gear type DD
    Insulated return Yes
    kW 3.6
    Terminal 50 M6
    Voltage 12
    Total length 384.00 mm
    Waterproof No
    Dist. 90.00 mm
    Mount. hole 3 11.00 mm
    Mount. hole 2 11.00 mm
    Mount. hole 1 11.00 mm
  • Fordonsmatchning

    • OEM
      bng4/12cr238, F032110538, 0001 401 023, 0001 401 060, 0001 413 004, 0001 418 009, 409, 22804, 233991, 240501, 837924, 842775, 843511, 847306, 860542, 881681, 0001401023, 0001401060, 0001413004, 0001418009, 19024005

    • Konkurrentreferens
      CST10175, LRS01204, MS570, MS704, S0837S, S0856S, 8ea737247-001, 25-1270, 638.021.092, 810.101.093, 4455, 18221, 33655, 33737, 101030, 220244, 220244A, 254022

    • Bilmärken
      Volvo Penta

    • Normaliserat artikelnummer
      bng412cr238, cst10175, f032110538, lrs01204, ms570, ms704, s0837s, s0856s, 8ea737247001, 409, 4455, 18221, 22804, 33655, 33737, 101030, 220244, 220244a, 233991, 240501, 251270, 254022, 837924, 842775, 843511, 847306, 860542, 881681, 0001401023, 0001401060, 0001413004, 0001418009, 19024005, 638021092, 810101093

    • Passar modeller
      Volvo Penta Model: Engine Model series: Engine Size of motor: 5.5 Brand of engine: TAMD60 From date: 01-10-1976 Fuel: Diesel Approved: Yes
      Volvo Penta Model: Engine Model series: Engine Size of motor: 6.7 Brand of engine: AQD70 From date: 01-03-1971 Fuel: Diesel Approved: Yes
      Volvo Penta Model: Engine Model series: Engine Size of motor: 6.7 Brand of engine: TMD70 From date: 01-12-1972 Fuel: Diesel Approved: Yes
      Volvo Penta Series: Industri Model: D 42 A, A-PP (12V)
      Volvo Penta Series: Industri Model: TAD 730 G / P / VE (12V)
      Volvo Penta Series: Industri Model: TD 60 B (12V-3.6kW)
      Volvo Penta Series: Industri Model: TD 73 ES Engine type: 12V
      Volvo Penta Series: Marin Model: AQD 70 B Engine volume: 6.7 Year: 03.71-12-74
      Volvo Penta Series: Marin Model: AQD 70 BL Engine volume: 6.7 Year: 01.73-12.74
      Volvo Penta Series: Marin Model: AQD 70 C, CL Engine volume: 6.7 Year: 01.75-06.79
      Volvo Penta Series: Marin Model: MD 42 A Engine volume: 4.2 Year: 08.70-06.79
      Volvo Penta Series: Marin Model: MD 70 B Engine volume: 6.7 Year: 12.70-07.79
      Volvo Penta Series: Marin Model: TAMD 60 B Engine volume: 5.5 Year: 10.78-04.83
      Volvo Penta Series: Marin Model: TAMD 61 A (12V)
      Volvo Penta Series: Marin Model: TAMD 63 L-A, P-A (12V)
      Volvo Penta Series: Marin Model: TAMD 70 B, C, D Engine volume: 6.7 Year: 03.71-12.79
      Volvo Penta Series: Marin Model: TAMD 71 B Engine type: 12V - 3.6kW
      Volvo Penta Series: Marin Model: TAMD 73 P-A, WJ-A Engine type: 12V - 3.6kW
      Volvo Penta Series: Marin Model: TAMD 74..., 75... 12V
      Volvo Penta Series: Marin Model: THAMD 70 B Engine volume: 6.7 Year: 01.73-12.74
      Volvo Penta Series: Marin Model: TM 70 B Engine volume: 6.7 Year: 12.70-12.78
      Volvo Penta Series: Marin Model: TMD 70 B Engine volume: 6.7 Year: 12.72-07.79
