HC-Cargo Startmotor
HC-Cargo Startmotor
Artikelnr: F032110472

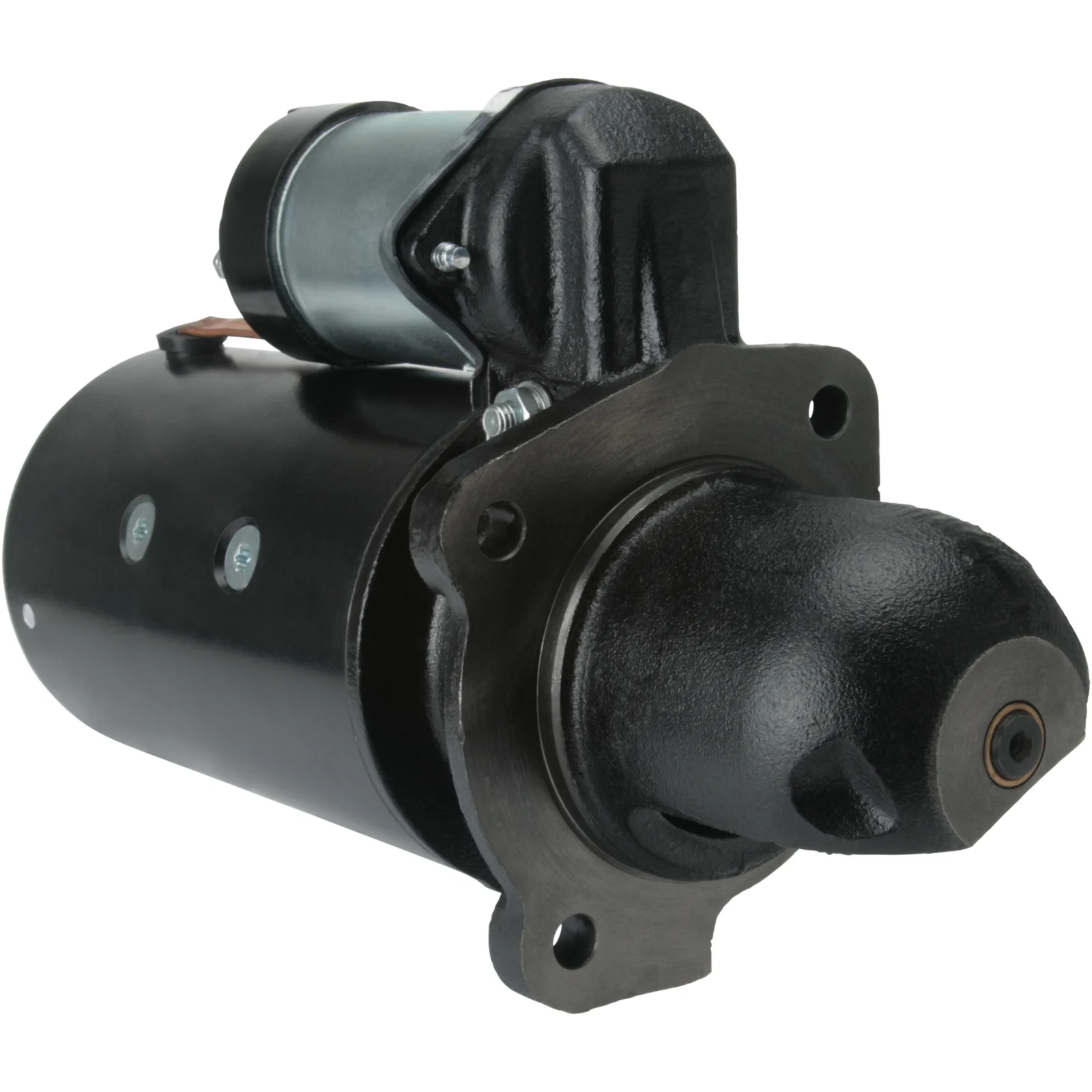

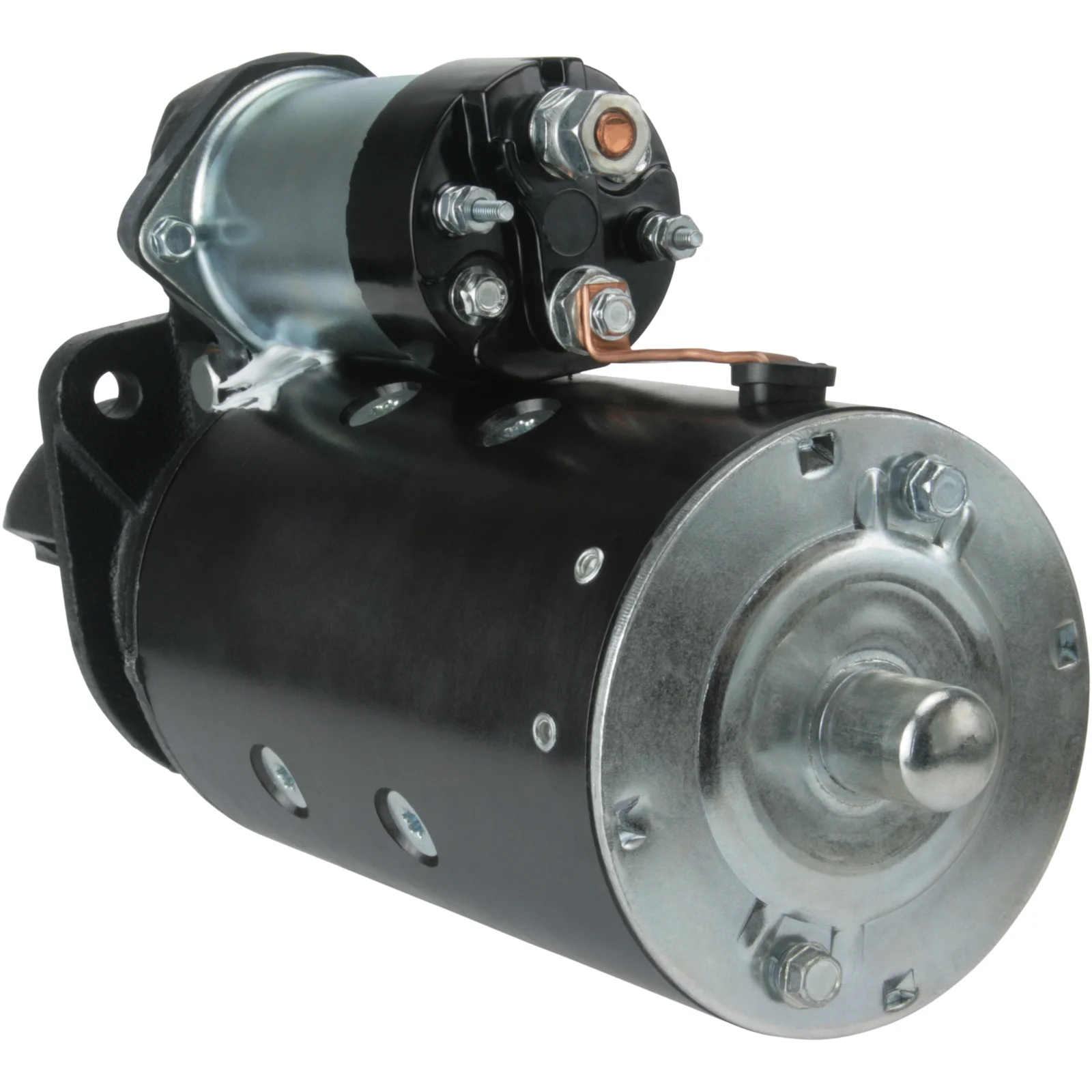

HC-Cargo Startmotor

Teknisk info:

Voltage: 12, kW: 2.5, No./teeth: 10, Rotation: CW

Beskrivning

Voltage: 12
kW: 2.5
Mount. flange: 89.00
Drive dist.: 47.50
Mount. hole 3 mm: 10.50
Mount. hole 2 mm: 10.50
Mount. hole 1 mm: 10.50
Dist./back: 235.00
Dist./front: 88.50
No./teeth: 10
B+: 3/8" UNC
Position/15a: 50
Terminal 15a: M4
Position/50: 20
Terminal 50: M4
Gear type: DD
Dist. 2: 91.00
Dist. 3: 91.00
Dist. mm: 127.50
Rotation: CW
Total length mm: 346.00
Clutch type: Wet
Drive type: Steel
Prod. info: BN
Waterproof: No
Oil sealed: Yes
Remarks: Replacing: 20MT.
No./mount. holes: 3 (0)

Filer

Specifikation

B+ 3/8" UNC
No./teeth 10
Mount. flange 89.00
Oil sealed Yes
No./mount. holes 3 (0)
Position/15a 50
Position/50 20
Clutch type Wet
Prod. info BN
Dist. 2 91.00
Remarks Replacing: 20MT.
Dist. 3 91.00
Rotation CW
Dist./back 235.00
Dist./front 88.50
Drive dist. 47.50
Drive type Steel
Gear type DD
kW 2.5
Terminal 50 M4
Voltage 12
Total length 346.00 mm
Waterproof No
Dist. 127.50 mm
Terminal 15A M4 mm
Mount. hole 3 10.50 mm
Mount. hole 2 10.50 mm
Mount. hole 1 10.50 mm

  • OEM
    F032110472, us835, 1107557, 1107582, 1998337

  • Konkurrentreferens
    BSO7308, BSX1440013, CST60147, drz5125, LRS01188, STR20009, 8ea730313-001, 25-1223, 692.018.102, 4376, 4398, 8536R, 33626, 60835

  • Normaliserat artikelnummer
    bso7308, bsx1440013, cst60147, drz5125, f032110472, lrs01188, str20009, us835, 8ea730313001, 4376, 4398, 8536r, 33626, 60835, 251223, 1107557, 1107582, 1998337, 692018102

  • Passar modeller
    Hyster Model: H Model series: 30, 40, 50 Brand of engine: 4.203 From date: 01-01-1971 To date: 01-12-1978 Fuel: Diesel Approved: Yes
    Hyster Model: H Model series: 60, 70, 80, 90 Brand of engine: 4.203 From date: 01-01-1969 To date: 01-12-1978 Fuel: Diesel Approved: Yes
    Hyster Model: S Model series: 60, 70, 80, 100 Brand of engine: 4.203 From date: 01-01-1969 To date: 01-12-1976 Fuel: Diesel Approved: Yes
  • Beskrivning
    Voltage: 12
    kW: 2.5
    Mount. flange: 89.00
    Drive dist.: 47.50
    Mount. hole 3 mm: 10.50
    Mount. hole 2 mm: 10.50
    Mount. hole 1 mm: 10.50
    Dist./back: 235.00
    Dist./front: 88.50
    No./teeth: 10
    B+: 3/8" UNC
    Position/15a: 50
    Terminal 15a: M4
    Position/50: 20
    Terminal 50: M4
    Gear type: DD
    Dist. 2: 91.00
    Dist. 3: 91.00
    Dist. mm: 127.50
    Rotation: CW
    Total length mm: 346.00
    Clutch type: Wet
    Drive type: Steel
    Prod. info: BN
    Waterproof: No
    Oil sealed: Yes
    Remarks: Replacing: 20MT.
    No./mount. holes: 3 (0)

    Filer

  • Specifikation
    B+ 3/8" UNC
    No./teeth 10
    Mount. flange 89.00
    Oil sealed Yes
    No./mount. holes 3 (0)
    Position/15a 50
    Position/50 20
    Clutch type Wet
    Prod. info BN
    Dist. 2 91.00
    Remarks Replacing: 20MT.
    Dist. 3 91.00
    Rotation CW
    Dist./back 235.00
    Dist./front 88.50
    Drive dist. 47.50
    Drive type Steel
    Gear type DD
    kW 2.5
    Terminal 50 M4
    Voltage 12
    Total length 346.00 mm
    Waterproof No
    Dist. 127.50 mm
    Terminal 15A M4 mm
    Mount. hole 3 10.50 mm
    Mount. hole 2 10.50 mm
    Mount. hole 1 10.50 mm
  • Fordonsmatchning

    • OEM
      F032110472, us835, 1107557, 1107582, 1998337

    • Konkurrentreferens
      BSO7308, BSX1440013, CST60147, drz5125, LRS01188, STR20009, 8ea730313-001, 25-1223, 692.018.102, 4376, 4398, 8536R, 33626, 60835

    • Normaliserat artikelnummer
      bso7308, bsx1440013, cst60147, drz5125, f032110472, lrs01188, str20009, us835, 8ea730313001, 4376, 4398, 8536r, 33626, 60835, 251223, 1107557, 1107582, 1998337, 692018102

    • Passar modeller
      Hyster Model: H Model series: 30, 40, 50 Brand of engine: 4.203 From date: 01-01-1971 To date: 01-12-1978 Fuel: Diesel Approved: Yes
      Hyster Model: H Model series: 60, 70, 80, 90 Brand of engine: 4.203 From date: 01-01-1969 To date: 01-12-1978 Fuel: Diesel Approved: Yes
      Hyster Model: S Model series: 60, 70, 80, 100 Brand of engine: 4.203 From date: 01-01-1969 To date: 01-12-1976 Fuel: Diesel Approved: Yes
