Artikelnr: F032110468

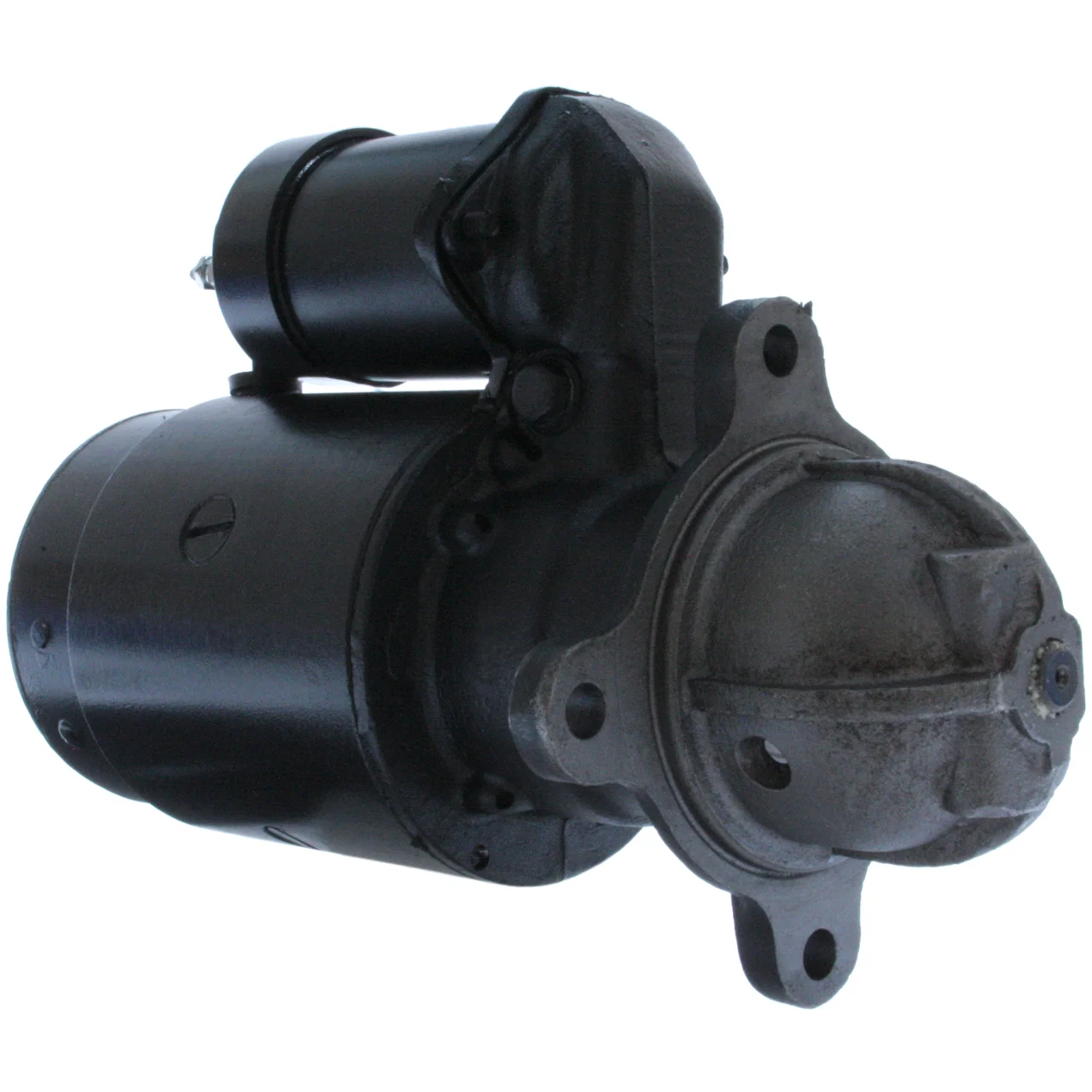

HC-Cargo Startmotor

Teknisk info:

Voltage: 12, No./teeth: 9, Rotation: CW, Mount. flange: 89.00

Beskrivning

Voltage: 12
Mount. flange: 89.00
Drive dist.: 20.50
Mount. hole 3 mm: 11.00
Mount. hole 2 mm: 11.00
Mount. hole 1 mm: 11.00
Dist./back: 226.00
Dist./front: 62.00
No./teeth: 9
B+: 3/8" UNC
Position/15a: 50
Terminal 15a: 8-32 UNC
Thread length mm: 18.50
Position/50: 20
Terminal 50: 8-32 UNC
Gear type: DD
Dist. 2: 90.00
Dist. 3: 127.00
Dist. mm: 90.00
Rotation: CW
Position/b-: 5
B-: 1/4" UNC
Total length mm: 307.00
Clutch type: Wet
Drive type: Steel
Prod. info: Reman
Waterproof: No
Oil sealed: Yes
Remarks: Replacing: 10MT.
No./mount. holes: 3 (0)

Filer

Specifikation

B+ 3/8" UNC
B- 1/4" UNC
No./teeth 9
Mount. flange 89.00
Oil sealed Yes
No./mount. holes 3 (0)
Position/15a 50
Position/50 20
Clutch type Wet
Position/b- 5
Prod. info Reman
Dist. 2 90.00
Remarks Replacing: 10MT.
Dist. 3 127.00
Rotation CW
Dist./back 226.00
Dist./front 62.00
Drive dist. 20.50
Drive type Steel
Gear type DD
Terminal 50 8-32 UNC
Voltage 12
Total length 307.00 mm
Waterproof No
Dist. 90.00 mm
Thread length 18.50 mm
Terminal 15A 8-32 UNC mm
Mount. hole 3 11.00 mm
Mount. hole 2 11.00 mm
Mount. hole 1 11.00 mm

  • OEM
    F032110468, 1107377, 1107378, 1108197, 1109090, 1109091, 1636179, 1998266, 1998267

  • Konkurrentreferens
    BSX1440040, CST60120, drz5122, LRS01286, lrs01797, S1211S, STR20023, 8ea730310-001, 25-2001, 91-01-4188, 600.052.092, 692.017.092, 692.104.092, 4234, 4234N, 4246, 4246R, 4302N, 4373, 33612, 60832

  • Normaliserat artikelnummer
    bsx1440040, cst60120, drz5122, f032110468, lrs01286, lrs01797, s1211s, str20023, 8ea730310001, 4234, 4234n, 4246, 4246r, 4302n, 4373, 33612, 60832, 252001, 1107377, 1107378, 1108197, 1109090, 1109091, 1636179, 1998266, 1998267, 91014188, 600052092, 692017092, 692104092

  • Passar modeller
    Bobcat Model: 900 Model series: 970 Approved: Yes
    Clark Model: Various Models Model series: Various Models From date: 01-01-1968 Approved: Yes
    Hyster Model: S Model series: 30, 40, 50 Brand of engine: 3.152 From date: 01-01-1971 To date: 01-12-1977 Fuel: Diesel Approved: Yes
    Various Agriculture Vehicles Model: Various Agriculture Vehicles Approved: Yes
  • Beskrivning
    Voltage: 12
    Mount. flange: 89.00
    Drive dist.: 20.50
    Mount. hole 3 mm: 11.00
    Mount. hole 2 mm: 11.00
    Mount. hole 1 mm: 11.00
    Dist./back: 226.00
    Dist./front: 62.00
    No./teeth: 9
    B+: 3/8" UNC
    Position/15a: 50
    Terminal 15a: 8-32 UNC
    Thread length mm: 18.50
    Position/50: 20
    Terminal 50: 8-32 UNC
    Gear type: DD
    Dist. 2: 90.00
    Dist. 3: 127.00
    Dist. mm: 90.00
    Rotation: CW
    Position/b-: 5
    B-: 1/4" UNC
    Total length mm: 307.00
    Clutch type: Wet
    Drive type: Steel
    Prod. info: Reman
    Waterproof: No
    Oil sealed: Yes
    Remarks: Replacing: 10MT.
    No./mount. holes: 3 (0)

    Filer

  • Specifikation
    B+ 3/8" UNC
    B- 1/4" UNC
    No./teeth 9
    Mount. flange 89.00
    Oil sealed Yes
    No./mount. holes 3 (0)
    Position/15a 50
    Position/50 20
    Clutch type Wet
    Position/b- 5
    Prod. info Reman
    Dist. 2 90.00
    Remarks Replacing: 10MT.
    Dist. 3 127.00
    Rotation CW
    Dist./back 226.00
    Dist./front 62.00
    Drive dist. 20.50
    Drive type Steel
    Gear type DD
    Terminal 50 8-32 UNC
    Voltage 12
    Total length 307.00 mm
    Waterproof No
    Dist. 90.00 mm
    Thread length 18.50 mm
    Terminal 15A 8-32 UNC mm
    Mount. hole 3 11.00 mm
    Mount. hole 2 11.00 mm
    Mount. hole 1 11.00 mm
  • Fordonsmatchning

    • OEM
      F032110468, 1107377, 1107378, 1108197, 1109090, 1109091, 1636179, 1998266, 1998267

    • Konkurrentreferens
      BSX1440040, CST60120, drz5122, LRS01286, lrs01797, S1211S, STR20023, 8ea730310-001, 25-2001, 91-01-4188, 600.052.092, 692.017.092, 692.104.092, 4234, 4234N, 4246, 4246R, 4302N, 4373, 33612, 60832

    • Normaliserat artikelnummer
      bsx1440040, cst60120, drz5122, f032110468, lrs01286, lrs01797, s1211s, str20023, 8ea730310001, 4234, 4234n, 4246, 4246r, 4302n, 4373, 33612, 60832, 252001, 1107377, 1107378, 1108197, 1109090, 1109091, 1636179, 1998266, 1998267, 91014188, 600052092, 692017092, 692104092

    • Passar modeller
      Bobcat Model: 900 Model series: 970 Approved: Yes
      Clark Model: Various Models Model series: Various Models From date: 01-01-1968 Approved: Yes
      Hyster Model: S Model series: 30, 40, 50 Brand of engine: 3.152 From date: 01-01-1971 To date: 01-12-1977 Fuel: Diesel Approved: Yes
      Various Agriculture Vehicles Model: Various Agriculture Vehicles Approved: Yes
