HC-Cargo Startmotor
HC-Cargo Startmotor
Artikelnr: F032110464

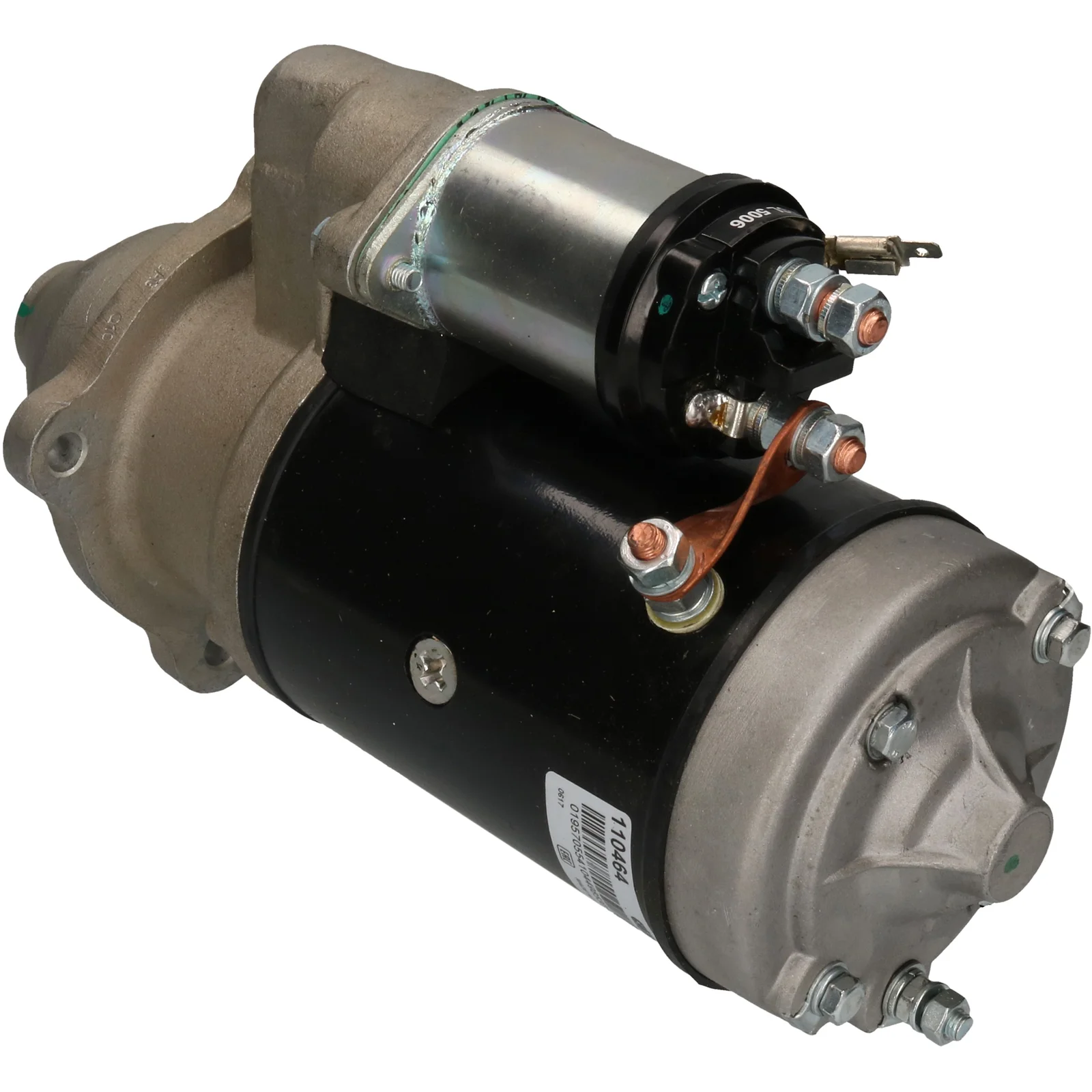

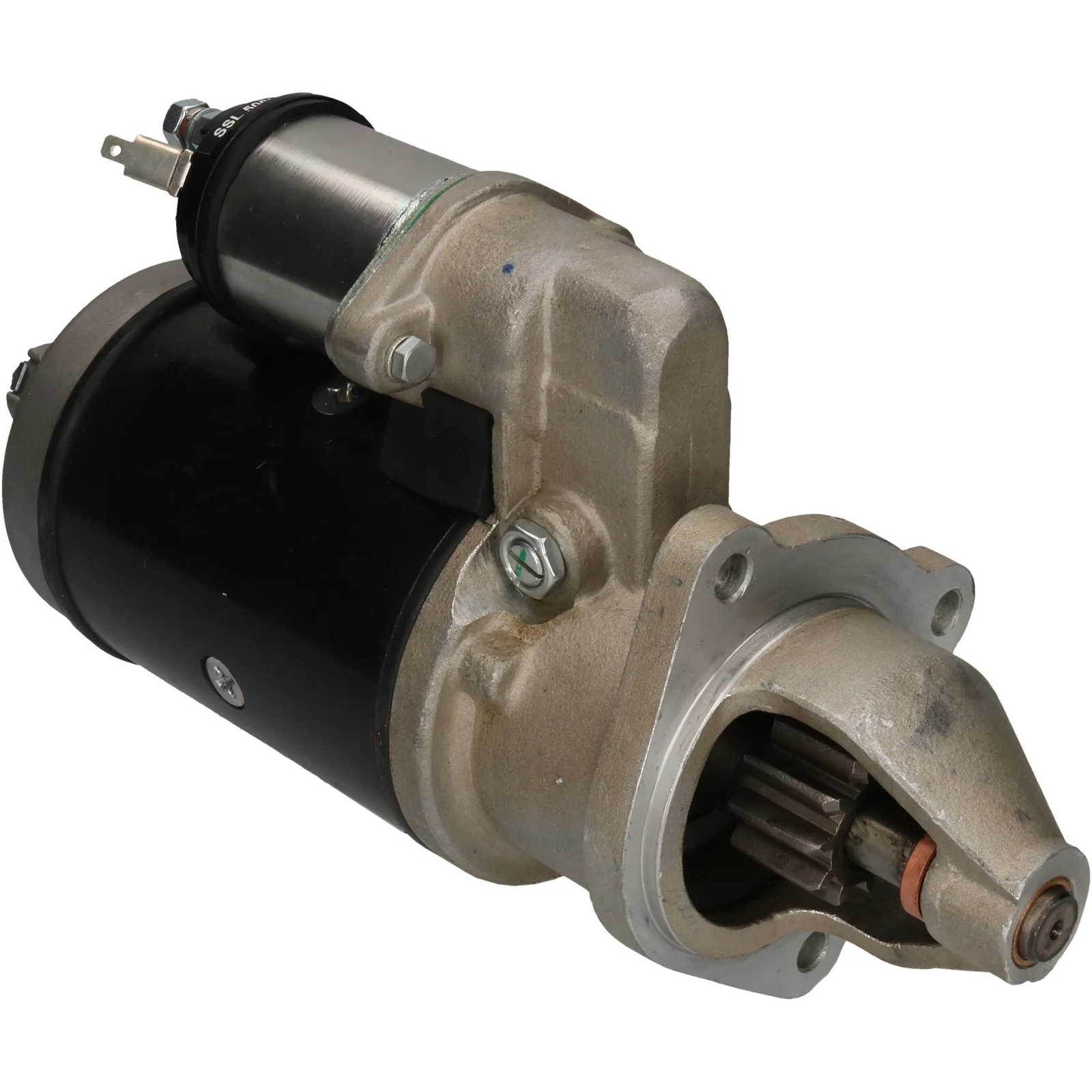

HC-Cargo Startmotor

Teknisk info:

Voltage: 12, kW: 2.1, No./teeth: 10, Rotation: CW

Beskrivning

Voltage: 12
kW: 2.1
Mount. flange: 89.00
Drive dist.: 29.50
Mount. hole 3 mm: 10.50
Mount. hole 2 mm: 10.50
Mount. hole 1 mm: 10.50
Dist./back: 243.00
Dist./front: 76.00
No./teeth: 10
B+: M8
Position/50: 10
Terminal 50: 6.30
Gear type: DD
Dist. 2: 126.50
Dist. 3: 89.50
Dist. mm: 89.50
Rotation: CW
Total length mm: 336.50
Drive type: Steel
Prod. info: BN
Waterproof: No
Oil sealed: No
No./mount. holes: 3 (0)

Filer

Specifikation

B+ M8
No./teeth 10
Mount. flange 89.00
Oil sealed No
No./mount. holes 3 (0)
Position/50 10
Prod. info BN
Dist. 2 126.50
Dist. 3 89.50
Rotation CW
Dist./back 243.00
Dist./front 76.00
Drive dist. 29.50
Drive type Steel
Gear type DD
kW 2.1
Terminal 50 6.30
Voltage 12
Total length 336.50 mm
Waterproof No
Dist. 89.50 mm
Mount. hole 3 10.50 mm
Mount. hole 2 10.50 mm
Mount. hole 1 10.50 mm

  • OEM
    AZJ3324, cs949, F032110464, lrs138, nsb515, 11.130.795, 202-34960, 272-905, 2873a016, 2873a105, 26153, 26153a, 26153h, 26153j, 26153n, 26166, 26166a, 26166d, 26166e, 26166l, 26286, 26286a, 26286e, 26286f, 26286H, 26286j, 27419, 27419a, 27419d, 27465, 27476, 27489, 2873126, 2873153, 20231963, 20234463, 20234596, 20234963, 63227489, 91428729

  • Konkurrentreferens
    BSO7005, CST25116, CST25120, drs3425, LES0007, lrs00155, MS333, STR25017, 2-2295-LU, 8ea737094-001, 25-2313, 600.036.102, 4159, 10949, 18261, 18261N, 20500155, 063227489

  • Normaliserat artikelnummer
    azj3324, bso7005, cs949, cst25116, cst25120, drs3425, f032110464, les0007, lrs00155, lrs138, ms333, nsb515, str25017, 8ea737094001, 2873a016, 2873a105, 4159, 10949, 18261, 18261n, 22295lu, 26153, 26153a, 26153h, 26153j, 26153n, 26166, 26166a, 26166d, 26166e, 26166l, 26286, 26286a, 26286e, 26286f, 26286h, 26286j, 27419, 27419a, 27419d, 27465, 27476, 27489, 252313, 272905, 2873126, 2873153, 11130795, 20231963, 20234463, 20234596, 20234960, 20234963, 20500155, 063227489, 63227489, 91428729, 600036102

  • Passar modeller
    Carbodies Model: F Model series: Fl 2 Type of engine: Diesel Size of motor: 2.5 Brand of engine: 25V From date: 01-01-1985 To date: 01-12-1989 Fuel: Diesel Approved: Yes
    Carbodies Model: FX Model series: FX4 Type of engine: Diesel Size of motor: 2.5 Brand of engine: 25V From date: 01-09-1985 To date: 01-12-1989 Fuel: Diesel Approved: Yes
    Lancer Boss Model: Various Models Model series: Various Models From date: 01-01-1992 Approved: Yes
    Various Agriculture Vehicles Model: Various Agriculture Vehicles Approved: Yes
  • Beskrivning
    Voltage: 12
    kW: 2.1
    Mount. flange: 89.00
    Drive dist.: 29.50
    Mount. hole 3 mm: 10.50
    Mount. hole 2 mm: 10.50
    Mount. hole 1 mm: 10.50
    Dist./back: 243.00
    Dist./front: 76.00
    No./teeth: 10
    B+: M8
    Position/50: 10
    Terminal 50: 6.30
    Gear type: DD
    Dist. 2: 126.50
    Dist. 3: 89.50
    Dist. mm: 89.50
    Rotation: CW
    Total length mm: 336.50
    Drive type: Steel
    Prod. info: BN
    Waterproof: No
    Oil sealed: No
    No./mount. holes: 3 (0)

    Filer

  • Specifikation
    B+ M8
    No./teeth 10
    Mount. flange 89.00
    Oil sealed No
    No./mount. holes 3 (0)
    Position/50 10
    Prod. info BN
    Dist. 2 126.50
    Dist. 3 89.50
    Rotation CW
    Dist./back 243.00
    Dist./front 76.00
    Drive dist. 29.50
    Drive type Steel
    Gear type DD
    kW 2.1
    Terminal 50 6.30
    Voltage 12
    Total length 336.50 mm
    Waterproof No
    Dist. 89.50 mm
    Mount. hole 3 10.50 mm
    Mount. hole 2 10.50 mm
    Mount. hole 1 10.50 mm
  • Fordonsmatchning

    • OEM
      AZJ3324, cs949, F032110464, lrs138, nsb515, 11.130.795, 202-34960, 272-905, 2873a016, 2873a105, 26153, 26153a, 26153h, 26153j, 26153n, 26166, 26166a, 26166d, 26166e, 26166l, 26286, 26286a, 26286e, 26286f, 26286H, 26286j, 27419, 27419a, 27419d, 27465, 27476, 27489, 2873126, 2873153, 20231963, 20234463, 20234596, 20234963, 63227489, 91428729

    • Konkurrentreferens
      BSO7005, CST25116, CST25120, drs3425, LES0007, lrs00155, MS333, STR25017, 2-2295-LU, 8ea737094-001, 25-2313, 600.036.102, 4159, 10949, 18261, 18261N, 20500155, 063227489

    • Normaliserat artikelnummer
      azj3324, bso7005, cs949, cst25116, cst25120, drs3425, f032110464, les0007, lrs00155, lrs138, ms333, nsb515, str25017, 8ea737094001, 2873a016, 2873a105, 4159, 10949, 18261, 18261n, 22295lu, 26153, 26153a, 26153h, 26153j, 26153n, 26166, 26166a, 26166d, 26166e, 26166l, 26286, 26286a, 26286e, 26286f, 26286h, 26286j, 27419, 27419a, 27419d, 27465, 27476, 27489, 252313, 272905, 2873126, 2873153, 11130795, 20231963, 20234463, 20234596, 20234960, 20234963, 20500155, 063227489, 63227489, 91428729, 600036102

    • Passar modeller
      Carbodies Model: F Model series: Fl 2 Type of engine: Diesel Size of motor: 2.5 Brand of engine: 25V From date: 01-01-1985 To date: 01-12-1989 Fuel: Diesel Approved: Yes
      Carbodies Model: FX Model series: FX4 Type of engine: Diesel Size of motor: 2.5 Brand of engine: 25V From date: 01-09-1985 To date: 01-12-1989 Fuel: Diesel Approved: Yes
      Lancer Boss Model: Various Models Model series: Various Models From date: 01-01-1992 Approved: Yes
      Various Agriculture Vehicles Model: Various Agriculture Vehicles Approved: Yes
