Artikelnr: F032110444

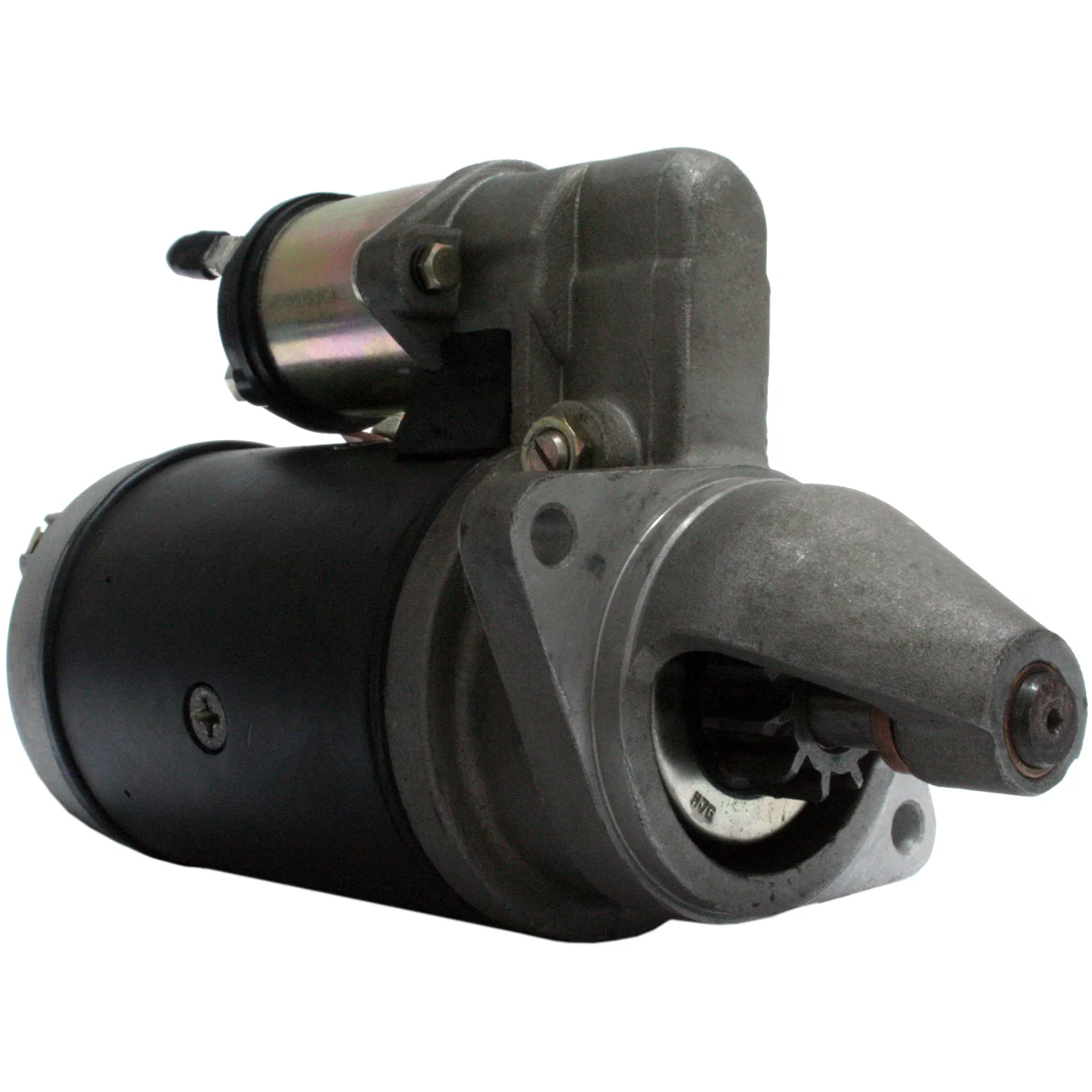

HC-Cargo Startmotor

Teknisk info:

Voltage: 12, kW: 2.1, No./teeth: 10, Rotation: CW

Beskrivning

Voltage: 12
kW: 2.1
Mount. flange: 89.00
Drive dist.: 23.50
Mount. hole 2 mm: 10.70
Mount. hole 1 mm: 10.70
Dist./back: 223.00
Dist./front: 73.00
No./teeth: 10
B+: M8
Position/50: 10
Terminal 50: 9.50
Gear type: DD
Dist. mm: 127.00
Rotation: CW
Total length mm: 309.00
Drive type: Steel
Prod. info: BN
Waterproof: No
Oil sealed: No
No./mount. holes: 2 (0)

Filer

Specifikation

B+ M8
No./teeth 10
Mount. flange 89.00
Oil sealed No
No./mount. holes 2 (0)
Position/50 10
Prod. info BN
Rotation CW
Dist./back 223.00
Dist./front 73.00
Drive dist. 23.50
Drive type Steel
Gear type DD
kW 2.1
Terminal 50 9.50
Voltage 12
Total length 309.00 mm
Waterproof No
Dist. 127.00 mm
Mount. hole 2 10.70 mm
Mount. hole 1 10.70 mm

  • OEM
    F032110444, 26371, 26371a, 26371d, 26371e, 26371f, 26400, 26400a, 26400b, 26400d, 27431, 27431a, 27431b, 028000-2260, 028000-2264, 028000-2265, 028000-9861

  • Konkurrentreferens
    ats-176-1, BSO7180, drs3423, drs3561, LES0020, lrs00261, QS0362, STR25034, vs178, 2-2296-LU, 8ea737092-001, 25-0083, 314.002.102, 335.108.092, 4157, 10947, 18063, 18263, 18263N, 33621

  • Normaliserat artikelnummer
    ats1761, bso7180, drs3423, drs3561, f032110444, les0020, lrs00261, qs0362, str25034, vs178, 8ea737092001, 4157, 10947, 18063, 18263, 18263n, 22296lu, 26371, 26371a, 26371d, 26371e, 26371f, 26400, 26400a, 26400b, 26400d, 27431, 27431a, 27431b, 33621, 250083, 0280002260, 0280002264, 0280002265, 0280009861, 314002102, 335108092

  • Passar modeller
    LDV Model: Sherpa Model series: Sherpa Type of engine: Diesel Size of motor: 1.8 Brand of engine: KD18 Body: Bus From date: 01-03-1974 To date: 01-12-1982 Fuel: Diesel Approved: Yes
  • Beskrivning
    Voltage: 12
    kW: 2.1
    Mount. flange: 89.00
    Drive dist.: 23.50
    Mount. hole 2 mm: 10.70
    Mount. hole 1 mm: 10.70
    Dist./back: 223.00
    Dist./front: 73.00
    No./teeth: 10
    B+: M8
    Position/50: 10
    Terminal 50: 9.50
    Gear type: DD
    Dist. mm: 127.00
    Rotation: CW
    Total length mm: 309.00
    Drive type: Steel
    Prod. info: BN
    Waterproof: No
    Oil sealed: No
    No./mount. holes: 2 (0)

    Filer

  • Specifikation
    B+ M8
    No./teeth 10
    Mount. flange 89.00
    Oil sealed No
    No./mount. holes 2 (0)
    Position/50 10
    Prod. info BN
    Rotation CW
    Dist./back 223.00
    Dist./front 73.00
    Drive dist. 23.50
    Drive type Steel
    Gear type DD
    kW 2.1
    Terminal 50 9.50
    Voltage 12
    Total length 309.00 mm
    Waterproof No
    Dist. 127.00 mm
    Mount. hole 2 10.70 mm
    Mount. hole 1 10.70 mm
  • Fordonsmatchning

    • OEM
      F032110444, 26371, 26371a, 26371d, 26371e, 26371f, 26400, 26400a, 26400b, 26400d, 27431, 27431a, 27431b, 028000-2260, 028000-2264, 028000-2265, 028000-9861

    • Konkurrentreferens
      ats-176-1, BSO7180, drs3423, drs3561, LES0020, lrs00261, QS0362, STR25034, vs178, 2-2296-LU, 8ea737092-001, 25-0083, 314.002.102, 335.108.092, 4157, 10947, 18063, 18263, 18263N, 33621

    • Normaliserat artikelnummer
      ats1761, bso7180, drs3423, drs3561, f032110444, les0020, lrs00261, qs0362, str25034, vs178, 8ea737092001, 4157, 10947, 18063, 18263, 18263n, 22296lu, 26371, 26371a, 26371d, 26371e, 26371f, 26400, 26400a, 26400b, 26400d, 27431, 27431a, 27431b, 33621, 250083, 0280002260, 0280002264, 0280002265, 0280009861, 314002102, 335108092

    • Passar modeller
      LDV Model: Sherpa Model series: Sherpa Type of engine: Diesel Size of motor: 1.8 Brand of engine: KD18 Body: Bus From date: 01-03-1974 To date: 01-12-1982 Fuel: Diesel Approved: Yes
