Artikelnr: F032110438

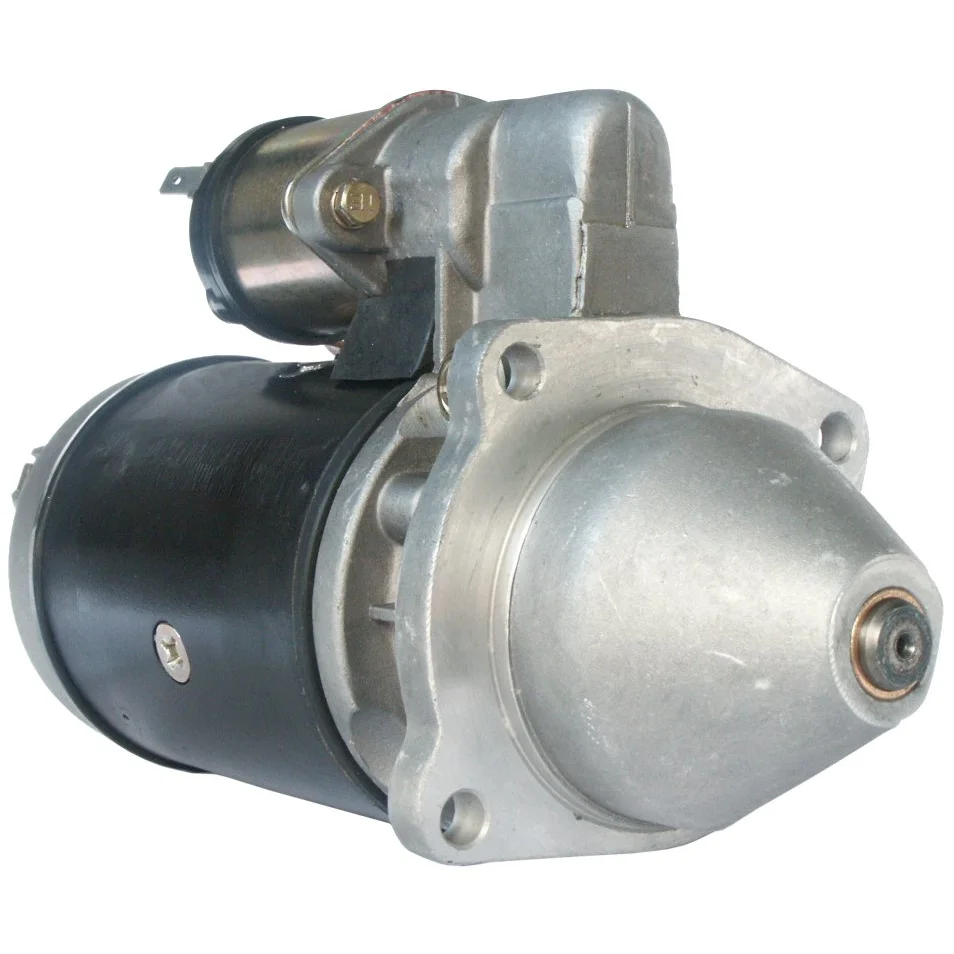

HC-Cargo Startmotor

Teknisk info:

Voltage: 12, kW: 2.1, No./teeth: 10, Rotation: CW

Beskrivning

Voltage: 12
kW: 2.1
Mount. flange: 89.00
Drive dist.: 19.50
Mount. hole 3 mm: 10.50
Mount. hole 2 mm: 10.50
Mount. hole 1 mm: 10.50
Dist./back: 225.50
Dist./front: 66.00
No./teeth: 10
B+: M8
Position/50: 10
Terminal 50: 9.50
Gear type: DD
Dist. 2: 90.50
Dist. 3: 90.50
Dist. mm: 126.50
Rotation: CW
Total length mm: 309.00
Drive type: Steel
Prod. info: BN
Waterproof: No
Oil sealed: No
No./mount. holes: 3 (0)

Filer

Specifikation

B+ M8
No./teeth 10
Mount. flange 89.00
Oil sealed No
No./mount. holes 3 (0)
Position/50 10
Prod. info BN
Dist. 2 90.50
Dist. 3 90.50
Rotation CW
Dist./back 225.50
Dist./front 66.00
Drive dist. 19.50
Drive type Steel
Gear type DD
kW 2.1
Terminal 50 9.50
Voltage 12
Total length 309.00 mm
Waterproof No
Dist. 126.50 mm
Mount. hole 3 10.50 mm
Mount. hole 2 10.50 mm
Mount. hole 1 10.50 mm

  • OEM
    F032110438, 26193, 26193a, 26193d, 26288, 26288a, 26288e, 26288f, 27420, 27420a, 27420b, 26925188A, 26925188d

  • Konkurrentreferens
    BSO7033, CST25104, drs3396, lrs00172, LRS01008, STR25011, 2-2038-LU, 25-0076, 25-1119, 685.002.102, 685.030.102, 16660, 16660N, 17660, 33393, 8213601

  • Normaliserat artikelnummer
    bso7033, cst25104, drs3396, f032110438, lrs00172, lrs01008, str25011, 16660, 16660n, 17660, 22038lu, 26193, 26193a, 26193d, 26288, 26288a, 26288e, 26288f, 27420, 27420a, 27420b, 33393, 250076, 251119, 8213601, 26925188a, 26925188d, 685002102, 685030102

  • Passar modeller
    Case Model: 200 Series Model series: 250 From date: 01-01-1957 Approved: Yes
    Case Model: 200 Series Model series: 275 From date: 01-01-1959 Approved: Yes
    Case Model: 200 Series Model series: 276 From date: 01-01-1969 Approved: Yes
    Case Model: 400 Series Model series: 414 From date: 01-01-1961 Approved: Yes
    Case Model: 400 Series Model series: 434 From date: 01-01-1969 Approved: Yes
    Case Model: 400 Series Model series: 444 From date: 01-01-1972 Approved: Yes
    Case Model: Various Models Model series: Various Models Approved: Yes
    Payloader Model: Various Models Model series: Various Models From date: 01-01-1969 Approved: Yes
    1 / 2
  • Beskrivning
    Voltage: 12
    kW: 2.1
    Mount. flange: 89.00
    Drive dist.: 19.50
    Mount. hole 3 mm: 10.50
    Mount. hole 2 mm: 10.50
    Mount. hole 1 mm: 10.50
    Dist./back: 225.50
    Dist./front: 66.00
    No./teeth: 10
    B+: M8
    Position/50: 10
    Terminal 50: 9.50
    Gear type: DD
    Dist. 2: 90.50
    Dist. 3: 90.50
    Dist. mm: 126.50
    Rotation: CW
    Total length mm: 309.00
    Drive type: Steel
    Prod. info: BN
    Waterproof: No
    Oil sealed: No
    No./mount. holes: 3 (0)

    Filer

  • Specifikation
    B+ M8
    No./teeth 10
    Mount. flange 89.00
    Oil sealed No
    No./mount. holes 3 (0)
    Position/50 10
    Prod. info BN
    Dist. 2 90.50
    Dist. 3 90.50
    Rotation CW
    Dist./back 225.50
    Dist./front 66.00
    Drive dist. 19.50
    Drive type Steel
    Gear type DD
    kW 2.1
    Terminal 50 9.50
    Voltage 12
    Total length 309.00 mm
    Waterproof No
    Dist. 126.50 mm
    Mount. hole 3 10.50 mm
    Mount. hole 2 10.50 mm
    Mount. hole 1 10.50 mm
  • Fordonsmatchning

    • OEM
      F032110438, 26193, 26193a, 26193d, 26288, 26288a, 26288e, 26288f, 27420, 27420a, 27420b, 26925188A, 26925188d

    • Konkurrentreferens
      BSO7033, CST25104, drs3396, lrs00172, LRS01008, STR25011, 2-2038-LU, 25-0076, 25-1119, 685.002.102, 685.030.102, 16660, 16660N, 17660, 33393, 8213601

    • Normaliserat artikelnummer
      bso7033, cst25104, drs3396, f032110438, lrs00172, lrs01008, str25011, 16660, 16660n, 17660, 22038lu, 26193, 26193a, 26193d, 26288, 26288a, 26288e, 26288f, 27420, 27420a, 27420b, 33393, 250076, 251119, 8213601, 26925188a, 26925188d, 685002102, 685030102

    • Passar modeller
      Case Model: 200 Series Model series: 250 From date: 01-01-1957 Approved: Yes
      Case Model: 200 Series Model series: 275 From date: 01-01-1959 Approved: Yes
      Case Model: 200 Series Model series: 276 From date: 01-01-1969 Approved: Yes
      Case Model: 400 Series Model series: 414 From date: 01-01-1961 Approved: Yes
      Case Model: 400 Series Model series: 434 From date: 01-01-1969 Approved: Yes
      Case Model: 400 Series Model series: 444 From date: 01-01-1972 Approved: Yes
      Case Model: Various Models Model series: Various Models Approved: Yes
      Payloader Model: Various Models Model series: Various Models From date: 01-01-1969 Approved: Yes
