Artikelnr: F032110402

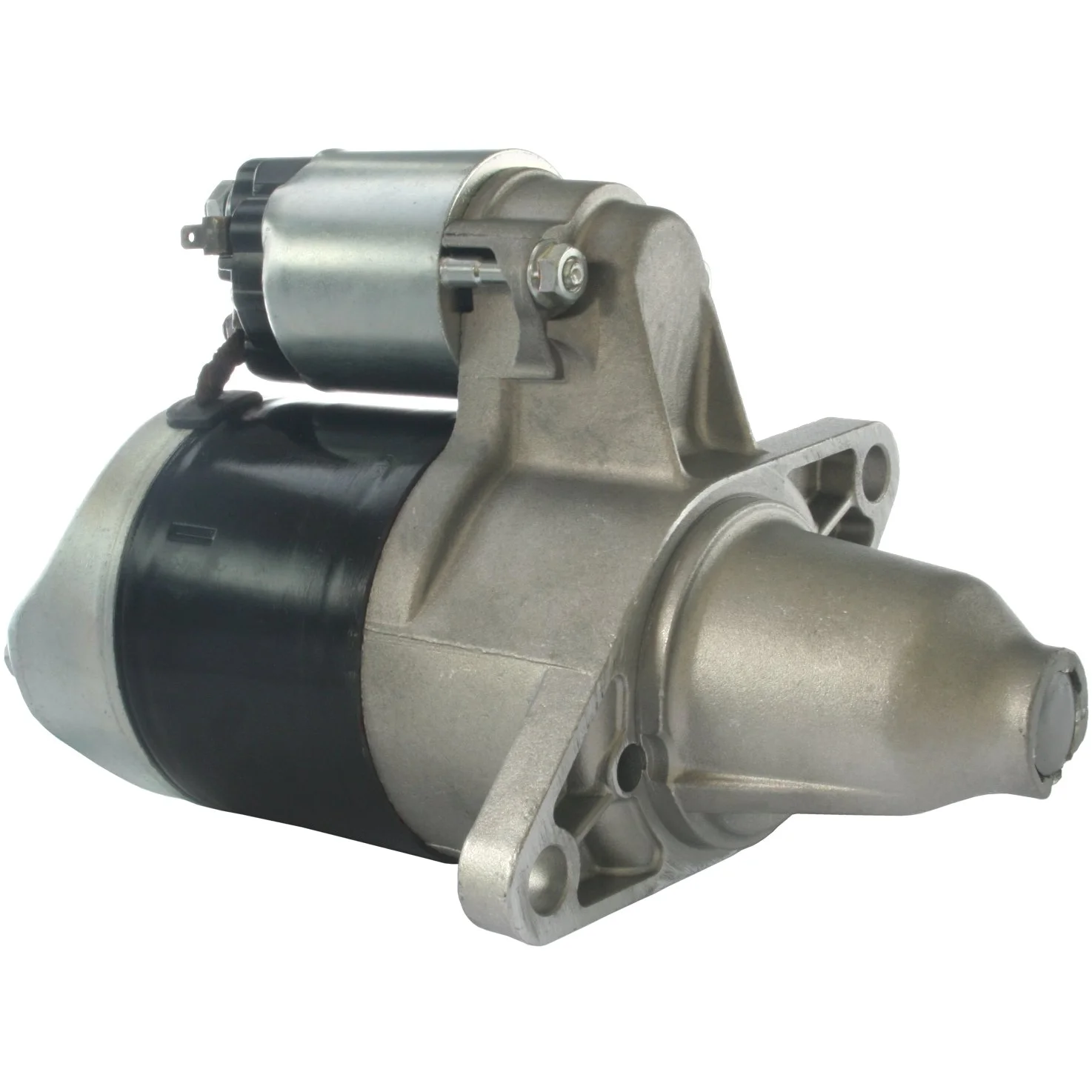

HC-Cargo Startmotor

Teknisk info:

Voltage: 12, kW: 0.6, No./teeth: 8, Rotation: CCW

Beskrivning

Voltage: 12
kW: 0.6
Mount. flange: 65.00
Drive dist.: 26.00
Mount. hole 2 mm: 10.50
Mount. hole 1 mm: 10.50
Dist./back: 159.00
Dist./front: 63.50
No./teeth: 8
B+: M8
Position/15a: 15
Terminal 15a: M5
Position/50: 45
Terminal 50: 6.30
Gear type: DD
Dist. mm: 126.00
Rotation: CCW
Total length mm: 231.00
Drive type: Steel
Prod. info: BN
Waterproof: No
Oil sealed: No
No./mount. holes: 2 (0)

Filer

Specifikation

B+ M8
No./teeth 8
Mount. flange 65.00
Oil sealed No
No./mount. holes 2 (0)
Position/15a 15
Position/50 45
Prod. info BN
Rotation CCW
Dist./back 159.00
Dist./front 63.50
Drive dist. 26.00
Drive type Steel
Gear type DD
kW 0.6
Terminal 50 6.30
Voltage 12
Total length 231.00 mm
Waterproof No
Dist. 126.00 mm
Terminal 15A M5 mm
Mount. hole 2 10.50 mm
Mount. hole 1 10.50 mm

  • OEM
    F032110402, js387, 028000-3730, 028000-6510, 028000-6511, 028000-8730, 028000-9090, 028000-9091, 31100-78611, 31100-79610, 31100-79611, 31100-79630, 31100-79631, 31100-79650, 31100-79660, 31100-79661, 31100-79680, 31100-85291, 128000-1860, 128000-1861, 128000-1862, 128000-1863, 128000-3640, 128000-3641, 128000-4200, 128000-4201

  • Konkurrentreferens
    azs-216, azs-217, CST40102, drs3098, F042S0H004, FRS562, j5218002, lrs00514, QS0615, S5170, STR-H004, STR70008, vs225, 8ea726475-001, 26-1125, 37-52.802, 37-52.809, 80-52.802, 345.104.082, 4198, 8052.802, 11721, 20387, 30514R, 103598, 103759, 8052802, 11015190, 11040305, 20500514

  • Normaliserat artikelnummer
    azs216, azs217, cst40102, drs3098, f032110402, f042s0h004, frs562, j5218002, js387, lrs00514, qs0615, s5170, str70008, strh004, vs225, 8ea726475001, 4198, 11721, 20387, 30514r, 103598, 103759, 261125, 3752802, 3752809, 8052802, 11015190, 11040305, 20500514, 0280003730, 0280006510, 0280006511, 0280008730, 0280009090, 0280009091, 345104082, 1280001860, 1280001861, 1280001862, 1280001863, 1280003640, 1280003641, 1280004200, 1280004201, 3110078611, 3110079610, 3110079611, 3110079630, 3110079631, 3110079650, 3110079660, 3110079661, 3110079680, 3110085291

  • Passar modeller
    Suzuki Model: Carry Model series: Carry Size of motor: 0.8 Brand of engine: F8A Type description: ST90V Body: Van From date: 01-11-1980 To date: 01-10-1985 Fuel: Gasoline Approved: Yes
    Suzuki Model: Carry Model series: Carry Size of motor: 1.0 Brand of engine: F10A Body: Van From date: 01-11-1996 To date: 01-03-1999 Fuel: Gasoline Approved: Yes
    Suzuki Model: Carry Model series: Carry Size of motor: 1.0 Brand of engine: F10A Type description: ED Body: Bus From date: 01-09-1994 To date: 01-03-1999 Fuel: Gasoline Approved: Yes
    Suzuki Model: Carry Model series: Carry Size of motor: 1.0 Brand of engine: F10A Type description: ED Body: Bus From date: 01-10-1985 To date: 01-03-1999 Fuel: Gasoline Approved: Yes
    Suzuki Model: Carry Model series: Carry Size of motor: 1.0 Brand of engine: F10A Type description: ED Body: Bus From date: 01-10-1992 To date: 01-03-1999 Fuel: Gasoline Approved: Yes
    Suzuki Model: Carry Model series: Carry Size of motor: 1.0 Brand of engine: F10A Type description: SK410 Body: Van From date: 01-07-1985 To date: 01-12-1990 Fuel: Gasoline Approved: Yes
    Suzuki Model: Carry Model series: Carry Van Size of motor: 1.0 Brand of engine: F10A Body: Van From date: 01-10-1995 To date: 01-03-1999 Fuel: Petrol Approved: Yes
    Suzuki Model: Super Carry Model series: Super Carry Box Size of motor: 1.0 Brand of engine: F10A Type description: ED SK410 Body: Van From date: 01-04-1985 To date: 01-07-1992 Fuel: Gasoline Approved: Yes
    1 / 2
  • Beskrivning
    Voltage: 12
    kW: 0.6
    Mount. flange: 65.00
    Drive dist.: 26.00
    Mount. hole 2 mm: 10.50
    Mount. hole 1 mm: 10.50
    Dist./back: 159.00
    Dist./front: 63.50
    No./teeth: 8
    B+: M8
    Position/15a: 15
    Terminal 15a: M5
    Position/50: 45
    Terminal 50: 6.30
    Gear type: DD
    Dist. mm: 126.00
    Rotation: CCW
    Total length mm: 231.00
    Drive type: Steel
    Prod. info: BN
    Waterproof: No
    Oil sealed: No
    No./mount. holes: 2 (0)

    Filer

  • Specifikation
    B+ M8
    No./teeth 8
    Mount. flange 65.00
    Oil sealed No
    No./mount. holes 2 (0)
    Position/15a 15
    Position/50 45
    Prod. info BN
    Rotation CCW
    Dist./back 159.00
    Dist./front 63.50
    Drive dist. 26.00
    Drive type Steel
    Gear type DD
    kW 0.6
    Terminal 50 6.30
    Voltage 12
    Total length 231.00 mm
    Waterproof No
    Dist. 126.00 mm
    Terminal 15A M5 mm
    Mount. hole 2 10.50 mm
    Mount. hole 1 10.50 mm
  • Fordonsmatchning

    • OEM
      F032110402, js387, 028000-3730, 028000-6510, 028000-6511, 028000-8730, 028000-9090, 028000-9091, 31100-78611, 31100-79610, 31100-79611, 31100-79630, 31100-79631, 31100-79650, 31100-79660, 31100-79661, 31100-79680, 31100-85291, 128000-1860, 128000-1861, 128000-1862, 128000-1863, 128000-3640, 128000-3641, 128000-4200, 128000-4201

    • Konkurrentreferens
      azs-216, azs-217, CST40102, drs3098, F042S0H004, FRS562, j5218002, lrs00514, QS0615, S5170, STR-H004, STR70008, vs225, 8ea726475-001, 26-1125, 37-52.802, 37-52.809, 80-52.802, 345.104.082, 4198, 8052.802, 11721, 20387, 30514R, 103598, 103759, 8052802, 11015190, 11040305, 20500514

    • Normaliserat artikelnummer
      azs216, azs217, cst40102, drs3098, f032110402, f042s0h004, frs562, j5218002, js387, lrs00514, qs0615, s5170, str70008, strh004, vs225, 8ea726475001, 4198, 11721, 20387, 30514r, 103598, 103759, 261125, 3752802, 3752809, 8052802, 11015190, 11040305, 20500514, 0280003730, 0280006510, 0280006511, 0280008730, 0280009090, 0280009091, 345104082, 1280001860, 1280001861, 1280001862, 1280001863, 1280003640, 1280003641, 1280004200, 1280004201, 3110078611, 3110079610, 3110079611, 3110079630, 3110079631, 3110079650, 3110079660, 3110079661, 3110079680, 3110085291

    • Passar modeller
      Suzuki Model: Carry Model series: Carry Size of motor: 0.8 Brand of engine: F8A Type description: ST90V Body: Van From date: 01-11-1980 To date: 01-10-1985 Fuel: Gasoline Approved: Yes
      Suzuki Model: Carry Model series: Carry Size of motor: 1.0 Brand of engine: F10A Body: Van From date: 01-11-1996 To date: 01-03-1999 Fuel: Gasoline Approved: Yes
      Suzuki Model: Carry Model series: Carry Size of motor: 1.0 Brand of engine: F10A Type description: ED Body: Bus From date: 01-09-1994 To date: 01-03-1999 Fuel: Gasoline Approved: Yes
      Suzuki Model: Carry Model series: Carry Size of motor: 1.0 Brand of engine: F10A Type description: ED Body: Bus From date: 01-10-1985 To date: 01-03-1999 Fuel: Gasoline Approved: Yes
      Suzuki Model: Carry Model series: Carry Size of motor: 1.0 Brand of engine: F10A Type description: ED Body: Bus From date: 01-10-1992 To date: 01-03-1999 Fuel: Gasoline Approved: Yes
      Suzuki Model: Carry Model series: Carry Size of motor: 1.0 Brand of engine: F10A Type description: SK410 Body: Van From date: 01-07-1985 To date: 01-12-1990 Fuel: Gasoline Approved: Yes
      Suzuki Model: Carry Model series: Carry Van Size of motor: 1.0 Brand of engine: F10A Body: Van From date: 01-10-1995 To date: 01-03-1999 Fuel: Petrol Approved: Yes
      Suzuki Model: Super Carry Model series: Super Carry Box Size of motor: 1.0 Brand of engine: F10A Type description: ED SK410 Body: Van From date: 01-04-1985 To date: 01-07-1992 Fuel: Gasoline Approved: Yes
      1 / 2
