Artikelnr: F032110356

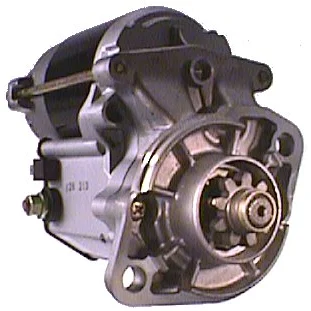

HC-Cargo Startmotor

Teknisk info:

Voltage: 12, kW: 1.4, No./teeth: 9, Rotation: CW

Beskrivning

Voltage: 12
kW: 1.4
Mount. flange: 82.50
Drive dist.: 25.00
Mount. hole 2 mm: 11.00
Mount. hole 1 mm: 11.00
Dist./back: 118.50
Dist./front: 38.00
No./teeth: 9
B+: M8
Position/50: 10
Terminal 50: 6.30
Gear type: GR
Dist. mm: 105.00
Rotation: CW
Total length mm: 190.00
Drive type: Steel
Prod. info: BN
Waterproof: No
Oil sealed: No
No./mount. holes: 2 (0)

Filer

Specifikation

B+ M8
No./teeth 9
Mount. flange 82.50
Oil sealed No
No./mount. holes 2 (0)
Position/50 10
Prod. info BN
Rotation CW
Dist./back 118.50
Dist./front 38.00
Drive dist. 25.00
Drive type Steel
Gear type GR
kW 1.4
Terminal 50 6.30
Voltage 12
Total length 190.00 mm
Waterproof No
Dist. 105.00 mm
Mount. hole 2 11.00 mm
Mount. hole 1 11.00 mm

  • OEM
    F032110356, 25-39868-00, 16661-63011, 16661-63013, 16661-63015, 19616-63011, 19616-63012, 128000-2130, 128000-2131, 228000-1050, 228000-1052

  • Konkurrentreferens
    CST40175, drs3233, LRS01137, STR30015, STR8019, 8ea730266-001, 25-1097, 25-2126, 683.006.092, 4249, 18146, 18146N, 18147, 18277, 18277N, 104143

  • Normaliserat artikelnummer
    cst40175, drs3233, f032110356, lrs01137, str30015, str8019, 8ea730266001, 4249, 18146, 18146n, 18147, 18277, 18277n, 104143, 251097, 252126, 253986800, 683006092, 1280002130, 1280002131, 1666163011, 1666163013, 1666163015, 1961663011, 1961663012, 2280001050, 2280001052

  • Passar modeller
    Hitachi Model: ZC35C Model series: ZC35C Model type: Rollers Brand of engine: D1703-M-DI Approved: Yes
    Hitachi Model: ZC35C-5 Model series: ZC35C-5 Model type: Rollers Brand of engine: D1703-M-DI Approved: Yes
    Hitachi Model: ZC35T Model series: ZC35T Model type: Rollers Brand of engine: D1703-M-DI Approved: Yes
    Hitachi Model: ZC35T-5 Model series: ZC35T-5 Model type: Rollers Brand of engine: D1703-M-DI Approved: Yes
    Hitachi Model: ZC50C Model series: ZC50C Model type: Rollers Brand of engine: D1703-M-DI Approved: Yes
    Hitachi Model: ZC50C-5 Model series: ZC50C-5 Model type: Rollers Brand of engine: D1703-M-DI Approved: Yes
    Hitachi Model: ZC50T Model series: ZC50T Model type: Rollers Brand of engine: D1703-M-DI Approved: Yes
    Hitachi Model: ZC50T-5 Model series: ZC50T-5 Model type: Rollers Brand of engine: D1703-M-DI Approved: Yes
    Kubota Model: Engine Model series: Engine Size of motor: 1.9 Brand of engine: V1902 Fuel: Diesel Approved: Yes
    Kubota Model: L3408 Model series: L3408 Model type: Ag Tractors Brand of engine: D1703-M-DI Approved: Yes
    Kubota Model: L4708 Model series: L4708 Model type: Ag Tractors Brand of engine: D1703-M-DI Approved: Yes
    Various Agriculture Vehicles Model: Various Agriculture Vehicles Approved: Yes
    1 / 3
  • Beskrivning
    Voltage: 12
    kW: 1.4
    Mount. flange: 82.50
    Drive dist.: 25.00
    Mount. hole 2 mm: 11.00
    Mount. hole 1 mm: 11.00
    Dist./back: 118.50
    Dist./front: 38.00
    No./teeth: 9
    B+: M8
    Position/50: 10
    Terminal 50: 6.30
    Gear type: GR
    Dist. mm: 105.00
    Rotation: CW
    Total length mm: 190.00
    Drive type: Steel
    Prod. info: BN
    Waterproof: No
    Oil sealed: No
    No./mount. holes: 2 (0)

    Filer

  • Specifikation
    B+ M8
    No./teeth 9
    Mount. flange 82.50
    Oil sealed No
    No./mount. holes 2 (0)
    Position/50 10
    Prod. info BN
    Rotation CW
    Dist./back 118.50
    Dist./front 38.00
    Drive dist. 25.00
    Drive type Steel
    Gear type GR
    kW 1.4
    Terminal 50 6.30
    Voltage 12
    Total length 190.00 mm
    Waterproof No
    Dist. 105.00 mm
    Mount. hole 2 11.00 mm
    Mount. hole 1 11.00 mm
  • Fordonsmatchning

    • OEM
      F032110356, 25-39868-00, 16661-63011, 16661-63013, 16661-63015, 19616-63011, 19616-63012, 128000-2130, 128000-2131, 228000-1050, 228000-1052

    • Konkurrentreferens
      CST40175, drs3233, LRS01137, STR30015, STR8019, 8ea730266-001, 25-1097, 25-2126, 683.006.092, 4249, 18146, 18146N, 18147, 18277, 18277N, 104143

    • Normaliserat artikelnummer
      cst40175, drs3233, f032110356, lrs01137, str30015, str8019, 8ea730266001, 4249, 18146, 18146n, 18147, 18277, 18277n, 104143, 251097, 252126, 253986800, 683006092, 1280002130, 1280002131, 1666163011, 1666163013, 1666163015, 1961663011, 1961663012, 2280001050, 2280001052

    • Passar modeller
      Hitachi Model: ZC35C Model series: ZC35C Model type: Rollers Brand of engine: D1703-M-DI Approved: Yes
      Hitachi Model: ZC35C-5 Model series: ZC35C-5 Model type: Rollers Brand of engine: D1703-M-DI Approved: Yes
      Hitachi Model: ZC35T Model series: ZC35T Model type: Rollers Brand of engine: D1703-M-DI Approved: Yes
      Hitachi Model: ZC35T-5 Model series: ZC35T-5 Model type: Rollers Brand of engine: D1703-M-DI Approved: Yes
      Hitachi Model: ZC50C Model series: ZC50C Model type: Rollers Brand of engine: D1703-M-DI Approved: Yes
      Hitachi Model: ZC50C-5 Model series: ZC50C-5 Model type: Rollers Brand of engine: D1703-M-DI Approved: Yes
      Hitachi Model: ZC50T Model series: ZC50T Model type: Rollers Brand of engine: D1703-M-DI Approved: Yes
      Hitachi Model: ZC50T-5 Model series: ZC50T-5 Model type: Rollers Brand of engine: D1703-M-DI Approved: Yes
      Kubota Model: Engine Model series: Engine Size of motor: 1.9 Brand of engine: V1902 Fuel: Diesel Approved: Yes
      Kubota Model: L3408 Model series: L3408 Model type: Ag Tractors Brand of engine: D1703-M-DI Approved: Yes
      Kubota Model: L4708 Model series: L4708 Model type: Ag Tractors Brand of engine: D1703-M-DI Approved: Yes
      Various Agriculture Vehicles Model: Various Agriculture Vehicles Approved: Yes
