Artikelnr: F032110280

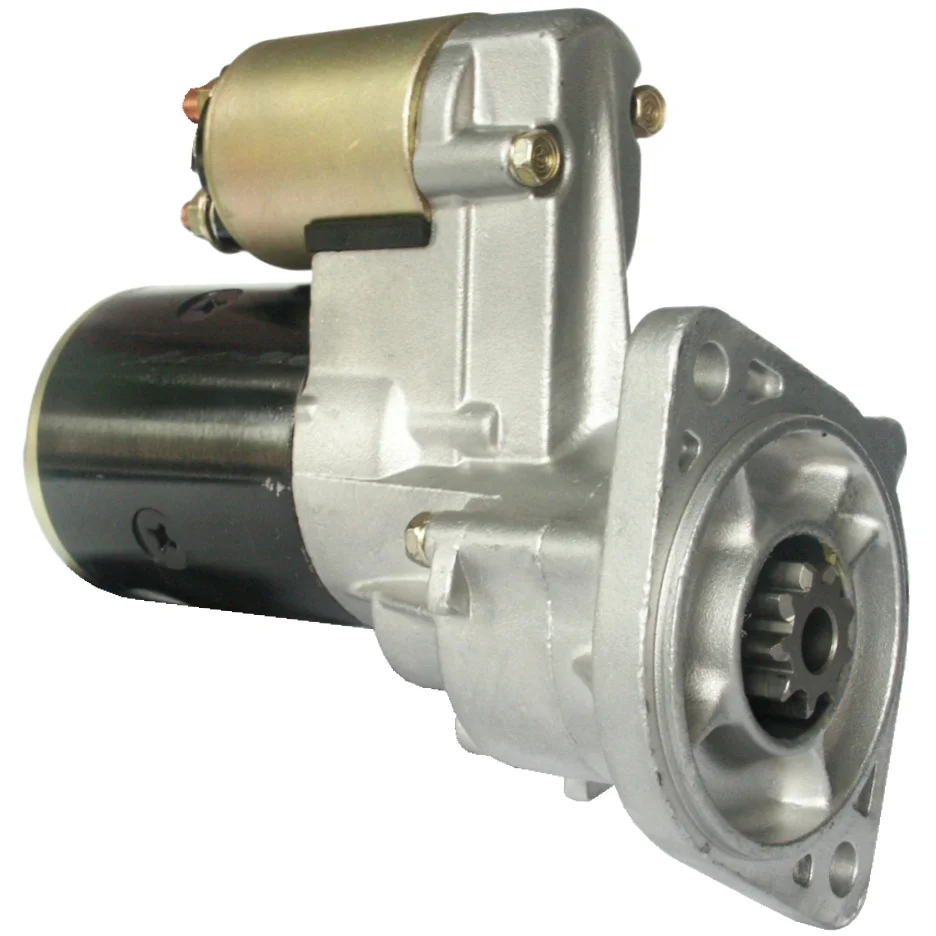

HC-Cargo Startmotor

Teknisk info:

Voltage: 12, kW: 1.2, No./teeth: 9, Rotation: CW

Beskrivning

Voltage: 12
kW: 1.2
Mount. flange: 82.50
Drive dist.: 7.00
Mount. hole 2 mm: 10.50
Mount. hole 1 mm: 10.50
Dist./back: 203.50
Dist./front: 7.00
No./teeth: 9
B+: M8
Position/50: 50
Terminal 50: 6.30
Gear type: GR
Dist. mm: 109.50
Rotation: CW
Total length mm: 214.50
Drive type: Steel
Prod. info: BN
Waterproof: No
Oil sealed: No
No./mount. holes: 2 (0)

Filer

Specifikation

B+ M8
No./teeth 9
Mount. flange 82.50
Oil sealed No
No./mount. holes 2 (0)
Position/50 50
Prod. info BN
Rotation CW
Dist./back 203.50
Dist./front 7.00
Drive dist. 7.00
Drive type Steel
Gear type GR
kW 1.2
Terminal 50 6.30
Voltage 12
Total length 214.50 mm
Waterproof No
Dist. 109.50 mm
Mount. hole 2 10.50 mm
Mount. hole 1 10.50 mm

  • OEM
    B330MN5903EX, F032110280, M002T50171, M002T50181, M002T52071, M002T52081, M002T52082, m2t50171, m2t50181, m2t52071, m2t52081, m2t52082, s114-254, s114-254a, s114-254b, s114-254c, s114-254d, s114-254f, s114-258, s114-258a, s114-258c, s114-268, s114-268a, s114-344, 23300-07500, 23300-47500, 23300-47501, 23300-47502, 23300-47510, 23300-47511, 23300-h9112, 23300-n5900, 23300-n5901, 23300-n5902, 23300-n5903, 23300-n5910, 23300-n5911, 23300-r2000, 23300-r2002, 23300-r2010, 23300-u7500, 23300-u7501, 23300-u7502, 23300-u7510, 23300-u7511, 23300-w7001, 3435016M91

  • Konkurrentreferens
    ads-138, ads-148, drs3511, drs3551, lrs00395, QS2261, SR140X, SR145X, STR23019, 2-1082-HI, 2-1082-MI, 2-1084-HI, 8ea726403-001, 25-0450, 25-1177, 28-52.108, 28-52.116, 28-52.122, 28-52.123, 28-52.141, 50-8103-9, 327.004.092, 327.021.092, 1305, 9538, 11297, 16584, 16584N, 20306, 103208, 201127, 455569, 455570, 8052108, 11040119, 11040135, 0986013551, 0986016051, 943241073010

  • Normaliserat artikelnummer
    ads138, ads148, b330mn5903ex, drs3511, drs3551, f032110280, lrs00395, m002t50171, m002t50181, m002t52071, m002t52081, m002t52082, m2t50171, m2t50181, m2t52071, m2t52081, m2t52082, qs2261, s114254, s114254a, s114254b, s114254c, s114254d, s114254f, s114258, s114258a, s114258c, s114268, s114268a, s114344, sr140x, sr145x, str23019, 8ea726403001, 1305, 9538, 11297, 16584, 16584n, 20306, 21082hi, 21082mi, 21084hi, 23300h9112, 23300n5900, 23300n5901, 23300n5902, 23300n5903, 23300n5910, 23300n5911, 23300r2000, 23300r2002, 23300r2010, 23300u7500, 23300u7501, 23300u7502, 23300u7510, 23300u7511, 23300w7001, 103208, 201127, 250450, 251177, 455569, 455570, 2852108, 2852116, 2852122, 2852123, 2852141, 3435016m91, 5081039, 8052108, 11040119, 11040135, 327004092, 327021092, 0986013551, 0986016051, 2330007500, 2330047500, 2330047501, 2330047502, 2330047510, 2330047511, 943241073010

  • Passar modeller
    Nissan Model: 200 Model series: 200SX Size of motor: 2.0 Brand of engine: L20B From date: 01-01-1977 To date: 01-01-1979 Fuel: Gasoline Approved: Yes
    Nissan Model: 280 Model series: 280Z Size of motor: 2.8 Brand of engine: L28E From date: 01-01-1978 To date: 01-01-1978 Fuel: Gasoline Approved: Yes
    Nissan Model: 280 Model series: 280ZX Model type: GL Size of motor: 2.8 Brand of engine: L28E From date: 01-01-1981 To date: 01-01-1981 Fuel: Gasoline Approved: Yes
    Nissan Model: 280 Model series: 280ZX Size of motor: 2.8 Brand of engine: L28E From date: 01-01-1979 Fuel: Gasoline Approved: Yes
    Nissan Model: 280 Model series: 280ZX Size of motor: 2.8 Brand of engine: L28E From date: 01-01-1979 To date: 01-01-1983 Fuel: Gasoline Approved: Yes
    Nissan Model: 280 Model series: 280ZX Size of motor: 2.8 Brand of engine: L28E From date: 01-01-1980 Fuel: Gasoline Approved: Yes
    Nissan Model: 280 Model series: 280ZX Size of motor: 2.8 Brand of engine: L28E From date: 01-01-1982 To date: 01-01-1983 Fuel: Gasoline Approved: Yes
    Nissan Model: 280 Model series: 280ZX Type of engine: Turbo Size of motor: 2.8 Brand of engine: L28ET From date: 01-01-1982 To date: 01-01-1983 Fuel: Gasoline Approved: Yes
    Nissan Model: 720 Model series: 720 Size of motor: 2.0 Brand of engine: L20B Body: Pick Up From date: 01-01-1980 To date: 01-01-1980 Fuel: Gasoline Approved: Yes
    Nissan Model: 810 Model series: 810 Size of motor: 2.4 Brand of engine: L24E From date: 01-01-1978 To date: 01-01-1981 Fuel: Gasoline Approved: Yes
    Nissan Model: Laurel Model series: Laurel Size of motor: 2.4 Brand of engine: L24E Type description: C32 From date: 01-01-1985 To date: 01-12-1987 Fuel: Gasoline Approved: Yes
    Nissan Model: Laurel Model series: Laurel Size of motor: 2.4 Brand of engine: L24S Type description: C32 From date: 01-01-1985 To date: 01-12-1987 Fuel: Gasoline Approved: Yes
    Nissan Model: Maxima Model series: Maxima Size of motor: 2.4 Brand of engine: L24E From date: 01-01-1982 To date: 01-01-1984 Fuel: Gasoline Approved: Yes
    Nissan Model: Patrol Model series: Patrol Size of motor: 2.8 Brand of engine: L28 Type description: 160 From date: 01-07-1980 To date: 01-08-1988 Fuel: Gasoline Approved: Yes
    Nissan Model: Patrol Model series: Patrol Size of motor: 2.8 Brand of engine: L28 Type description: 260 From date: 01-05-1986 To date: 01-06-1990 Fuel: Gasoline Approved: Yes
    Nissan Model: Patrol Model series: Patrol Type of engine: TD Size of motor: 2.8 Brand of engine: RD28T Type description: 260 From date: 01-06-1989 To date: 01-11-1995 Fuel: Diesel Approved: Yes
    Nissan Model: Silvia Model series: Silvia Size of motor: 2.0 Brand of engine: FJ20E Type description: S12 Body: Coupe From date: 01-04-1984 To date: 01-09-1988 Fuel: Gasoline Approved: Yes
    1 / 4
  • Beskrivning
    Voltage: 12
    kW: 1.2
    Mount. flange: 82.50
    Drive dist.: 7.00
    Mount. hole 2 mm: 10.50
    Mount. hole 1 mm: 10.50
    Dist./back: 203.50
    Dist./front: 7.00
    No./teeth: 9
    B+: M8
    Position/50: 50
    Terminal 50: 6.30
    Gear type: GR
    Dist. mm: 109.50
    Rotation: CW
    Total length mm: 214.50
    Drive type: Steel
    Prod. info: BN
    Waterproof: No
    Oil sealed: No
    No./mount. holes: 2 (0)

    Filer

  • Specifikation
    B+ M8
    No./teeth 9
    Mount. flange 82.50
    Oil sealed No
    No./mount. holes 2 (0)
    Position/50 50
    Prod. info BN
    Rotation CW
    Dist./back 203.50
    Dist./front 7.00
    Drive dist. 7.00
    Drive type Steel
    Gear type GR
    kW 1.2
    Terminal 50 6.30
    Voltage 12
    Total length 214.50 mm
    Waterproof No
    Dist. 109.50 mm
    Mount. hole 2 10.50 mm
    Mount. hole 1 10.50 mm
  • Fordonsmatchning

    • OEM
      B330MN5903EX, F032110280, M002T50171, M002T50181, M002T52071, M002T52081, M002T52082, m2t50171, m2t50181, m2t52071, m2t52081, m2t52082, s114-254, s114-254a, s114-254b, s114-254c, s114-254d, s114-254f, s114-258, s114-258a, s114-258c, s114-268, s114-268a, s114-344, 23300-07500, 23300-47500, 23300-47501, 23300-47502, 23300-47510, 23300-47511, 23300-h9112, 23300-n5900, 23300-n5901, 23300-n5902, 23300-n5903, 23300-n5910, 23300-n5911, 23300-r2000, 23300-r2002, 23300-r2010, 23300-u7500, 23300-u7501, 23300-u7502, 23300-u7510, 23300-u7511, 23300-w7001, 3435016M91

    • Konkurrentreferens
      ads-138, ads-148, drs3511, drs3551, lrs00395, QS2261, SR140X, SR145X, STR23019, 2-1082-HI, 2-1082-MI, 2-1084-HI, 8ea726403-001, 25-0450, 25-1177, 28-52.108, 28-52.116, 28-52.122, 28-52.123, 28-52.141, 50-8103-9, 327.004.092, 327.021.092, 1305, 9538, 11297, 16584, 16584N, 20306, 103208, 201127, 455569, 455570, 8052108, 11040119, 11040135, 0986013551, 0986016051, 943241073010

    • Normaliserat artikelnummer
      ads138, ads148, b330mn5903ex, drs3511, drs3551, f032110280, lrs00395, m002t50171, m002t50181, m002t52071, m002t52081, m002t52082, m2t50171, m2t50181, m2t52071, m2t52081, m2t52082, qs2261, s114254, s114254a, s114254b, s114254c, s114254d, s114254f, s114258, s114258a, s114258c, s114268, s114268a, s114344, sr140x, sr145x, str23019, 8ea726403001, 1305, 9538, 11297, 16584, 16584n, 20306, 21082hi, 21082mi, 21084hi, 23300h9112, 23300n5900, 23300n5901, 23300n5902, 23300n5903, 23300n5910, 23300n5911, 23300r2000, 23300r2002, 23300r2010, 23300u7500, 23300u7501, 23300u7502, 23300u7510, 23300u7511, 23300w7001, 103208, 201127, 250450, 251177, 455569, 455570, 2852108, 2852116, 2852122, 2852123, 2852141, 3435016m91, 5081039, 8052108, 11040119, 11040135, 327004092, 327021092, 0986013551, 0986016051, 2330007500, 2330047500, 2330047501, 2330047502, 2330047510, 2330047511, 943241073010

    • Passar modeller
      Nissan Model: 200 Model series: 200SX Size of motor: 2.0 Brand of engine: L20B From date: 01-01-1977 To date: 01-01-1979 Fuel: Gasoline Approved: Yes
      Nissan Model: 280 Model series: 280Z Size of motor: 2.8 Brand of engine: L28E From date: 01-01-1978 To date: 01-01-1978 Fuel: Gasoline Approved: Yes
      Nissan Model: 280 Model series: 280ZX Model type: GL Size of motor: 2.8 Brand of engine: L28E From date: 01-01-1981 To date: 01-01-1981 Fuel: Gasoline Approved: Yes
      Nissan Model: 280 Model series: 280ZX Size of motor: 2.8 Brand of engine: L28E From date: 01-01-1979 Fuel: Gasoline Approved: Yes
      Nissan Model: 280 Model series: 280ZX Size of motor: 2.8 Brand of engine: L28E From date: 01-01-1979 To date: 01-01-1983 Fuel: Gasoline Approved: Yes
      Nissan Model: 280 Model series: 280ZX Size of motor: 2.8 Brand of engine: L28E From date: 01-01-1980 Fuel: Gasoline Approved: Yes
      Nissan Model: 280 Model series: 280ZX Size of motor: 2.8 Brand of engine: L28E From date: 01-01-1982 To date: 01-01-1983 Fuel: Gasoline Approved: Yes
      Nissan Model: 280 Model series: 280ZX Type of engine: Turbo Size of motor: 2.8 Brand of engine: L28ET From date: 01-01-1982 To date: 01-01-1983 Fuel: Gasoline Approved: Yes
      Nissan Model: 720 Model series: 720 Size of motor: 2.0 Brand of engine: L20B Body: Pick Up From date: 01-01-1980 To date: 01-01-1980 Fuel: Gasoline Approved: Yes
      Nissan Model: 810 Model series: 810 Size of motor: 2.4 Brand of engine: L24E From date: 01-01-1978 To date: 01-01-1981 Fuel: Gasoline Approved: Yes
      Nissan Model: Laurel Model series: Laurel Size of motor: 2.4 Brand of engine: L24E Type description: C32 From date: 01-01-1985 To date: 01-12-1987 Fuel: Gasoline Approved: Yes
      Nissan Model: Laurel Model series: Laurel Size of motor: 2.4 Brand of engine: L24S Type description: C32 From date: 01-01-1985 To date: 01-12-1987 Fuel: Gasoline Approved: Yes
      Nissan Model: Maxima Model series: Maxima Size of motor: 2.4 Brand of engine: L24E From date: 01-01-1982 To date: 01-01-1984 Fuel: Gasoline Approved: Yes
      Nissan Model: Patrol Model series: Patrol Size of motor: 2.8 Brand of engine: L28 Type description: 160 From date: 01-07-1980 To date: 01-08-1988 Fuel: Gasoline Approved: Yes
      Nissan Model: Patrol Model series: Patrol Size of motor: 2.8 Brand of engine: L28 Type description: 260 From date: 01-05-1986 To date: 01-06-1990 Fuel: Gasoline Approved: Yes
      Nissan Model: Patrol Model series: Patrol Type of engine: TD Size of motor: 2.8 Brand of engine: RD28T Type description: 260 From date: 01-06-1989 To date: 01-11-1995 Fuel: Diesel Approved: Yes
      Nissan Model: Silvia Model series: Silvia Size of motor: 2.0 Brand of engine: FJ20E Type description: S12 Body: Coupe From date: 01-04-1984 To date: 01-09-1988 Fuel: Gasoline Approved: Yes
