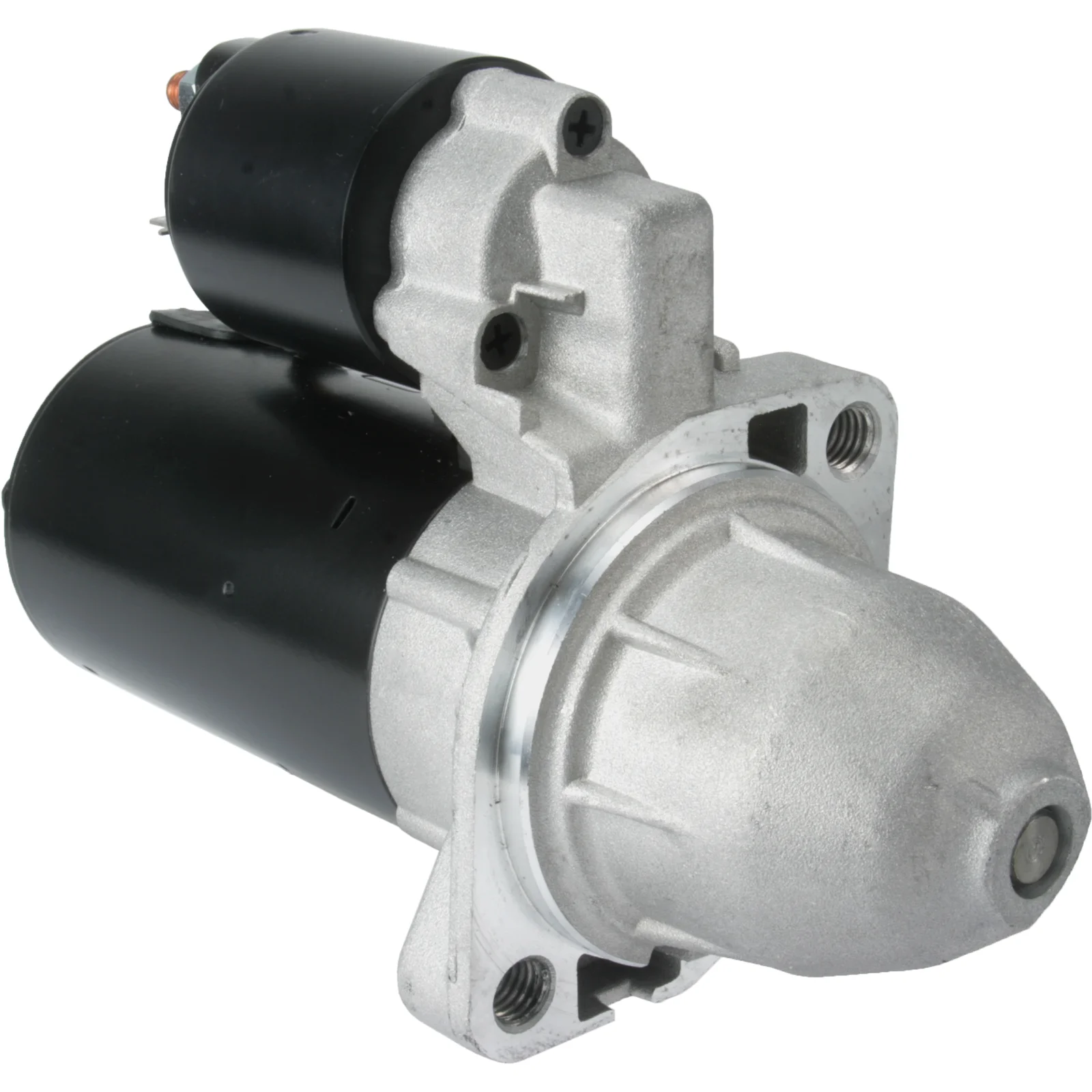

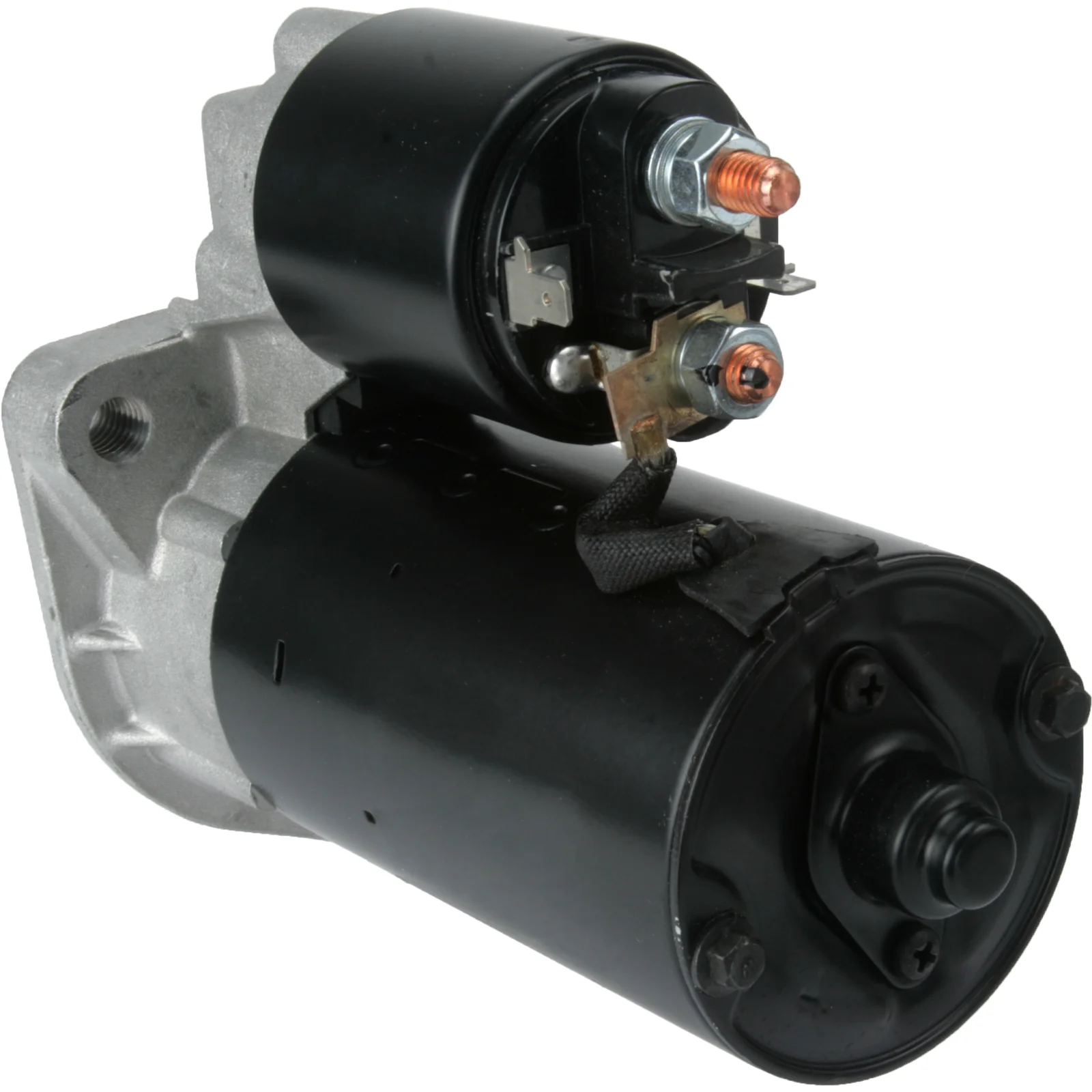

HC-Cargo Startmotor
HC-Cargo Startmotor
Artikelnr: F032110160

HC-Cargo Startmotor

Teknisk info:

Voltage: 12, kW: 1.2, No./teeth: 9, Rotation: CW

Beskrivning

HC-Cargo Startmotor

Voltage: 12
kW: 1.2
Mount. flange: 82.50
Drive dist.: 35.00
Dist./back: 158.00
Dist./front: 71.00
No./teeth: 9
B+: M8
Position/15a: 45
Terminal 15a: 6.30
Position/50: 15
Terminal 50: 6.30
Gear type: DD/GR
Dist. mm: 103.00
Rotation: CW
Total length mm: 240.50
Drive type: Steel
Prod. info: BN
Waterproof: No
Oil sealed: No
No./mount. holes: 2 (2)

Filer

Specifikation

B+ M8
No./teeth 9
Mount. flange 82.50
Oil sealed No
No./mount. holes 2 (2)
Position/15a 45
Position/50 15
Prod. info BN
Rotation CW
Dist./back 158.00
Dist./front 71.00
Drive dist. 35.00
Drive type Steel
Gear type DD/GR
kW 1.2
Terminal 50 6.30
Voltage 12
Total length 240.50 mm
Waterproof No
Dist. 103.00 mm
Terminal 15A 6.30 mm

  • OEM
    AZE2545, F032110160, js370, s114-232, s114-232a, s114-237, 11.130.777, 0001311001, 5001599, 5001613, 5001614, 5003617, 5240360, 8408080

  • Konkurrentreferens
    drs0650, F042S0H000, lrs00229, MS266, QS1353, SR37X, STR-H000, STR72006, vs204, 2-1288-HI, 2-1735-HI, 8ea726458-001, 26-0464, 40-15.011, 50-8101, 50-8101-1, 50-8101-8, 338.111.092, 4193, 11517, 220061, 220061A, 11010650, 943251223, 0986010650, 0986010658, 0986012490, 0986012560, 944280106500

  • Normaliserat artikelnummer
    aze2545, drs0650, f032110160, f042s0h000, js370, lrs00229, ms266, qs1353, s114232, s114232a, s114237, sr37x, str72006, strh000, vs204, 8ea726458001, 4193, 11517, 21288hi, 21735hi, 220061, 220061a, 260464, 508101, 0001311001, 4015011, 5001599, 5001613, 5001614, 5003617, 5081011, 5081018, 5240360, 8408080, 11010650, 11130777, 338111092, 943251223, 0986010650, 0986010658, 0986012490, 0986012560, 944280106500

  • Passar modeller
    Volvo Model: 340 Model series: 340 Size of motor: 2.0 Brand of engine: B200K Type description: 343,345 Body: Hatchback From date: 01-08-1980 To date: 01-07-1983 Fuel: Gasoline Approved: Yes
    Volvo Model: 360 Model series: 360 Size of motor: 2.0 Brand of engine: B19A Type description: 344 From date: 01-08-1982 To date: 01-07-1984 Fuel: Gasoline Approved: Yes
    Volvo Model: 360 Model series: 360 Size of motor: 2.0 Brand of engine: B19E Type description: 343,345 Body: Hatchback From date: 01-08-1982 To date: 01-07-1984 Fuel: Gasoline Approved: Yes
    Volvo Model: 360 Model series: 360 Size of motor: 2.0 Brand of engine: B200F Type description: 343,345 Body: Hatchback From date: 01-08-1988 To date: 01-07-1989 Fuel: Gasoline Approved: Yes
    Volvo Model: 360 Model series: 360 Size of motor: 2.0 Brand of engine: B200F Type description: 344 From date: 01-08-1988 To date: 01-07-1989 Fuel: Gasoline Approved: Yes
    Volvo Model: 740 Model series: 740 Size of motor: 2.3 Brand of engine: B230E Type description: 744 From date: 01-08-1984 To date: 01-12-1992 Fuel: Gasoline Approved: Yes
    Volvo Model: 740 Model series: 740 Size of motor: 2.3 Brand of engine: B230E Type description: 745 Body: Estate From date: 01-08-1985 To date: 01-07-1988 Fuel: Gasoline Approved: Yes
    Volvo Model: 740 Model series: 740 Size of motor: 2.3 Brand of engine: B230F Type description: 744 From date: 01-08-1987 To date: 01-07-1992 Fuel: Gasoline Approved: Yes
    Volvo Model: 740 Model series: 740 Size of motor: 2.3 Brand of engine: B234F Type description: 744 From date: 01-08-1987 To date: 01-07-1989 Fuel: Gasoline Approved: Yes
    Volvo Model: 740 Model series: 740 Size of motor: 2.3 Brand of engine: B234F Type description: 745 Body: Estate From date: 01-08-1987 To date: 01-07-1989 Fuel: Gasoline Approved: Yes
    Volvo Model: 740 Model series: 740 Type of engine: 16V Size of motor: 2.3 Brand of engine: B234F Type description: 744 From date: 01-08-1988 To date: 01-07-1991 Fuel: Gasoline Approved: Yes
    Volvo Model: 740 Model series: 740 Type of engine: 16V Size of motor: 2.3 Brand of engine: B234F Type description: 745 Body: Estate From date: 01-08-1988 To date: 01-07-1990 Fuel: Gasoline Approved: Yes
    Volvo Model: 940 Model series: 940 Size of motor: 2.3 Brand of engine: B230FB Type description: 944 From date: 01-08-1990 To date: 01-12-1994 Fuel: Gasoline Approved: Yes
    Volvo Model: 940 Model series: 940 Size of motor: 2.3 Brand of engine: B230FB Type description: 945 Body: Estate From date: 01-08-1990 To date: 01-12-1994 Fuel: Gasoline Approved: Yes
    Volvo Model: 940 Model series: 940 Size of motor: 2.3 Brand of engine: B230FD Type description: 944 From date: 01-08-1992 To date: 01-07-1994 Fuel: Gasoline Approved: Yes
    Volvo Model: 940 Model series: 940 Size of motor: 2.3 Brand of engine: B230FD Type description: 944 From date: 01-08-1994 To date: 01-07-1995 Fuel: Gasoline Approved: Yes
    Volvo Model: 940 Model series: 940 Size of motor: 2.3 Brand of engine: B230FD Type description: 945 Body: Estate From date: 01-08-1992 To date: 01-07-1994 Fuel: Gasoline Approved: Yes
    Volvo Model: 940 Model series: 940 Size of motor: 2.3 Brand of engine: B230FD Type description: 945 Body: Estate From date: 01-08-1994 To date: 01-07-1995 Fuel: Gasoline Approved: Yes
    Volvo Model: 940 Model series: 940 Size of motor: 2.3 Brand of engine: B234F Type description: 944 From date: 01-08-1990 To date: 01-07-1991 Fuel: Gasoline Approved: Yes
    Volvo Model: 940 Model series: 940 Size of motor: 2.3 Brand of engine: B234F Type description: 945 Body: Estate From date: 01-08-1990 To date: 01-07-1991 Fuel: Gasoline Approved: Yes
    Volvo Model: 940 Model series: 940 Type of engine: Turbo Size of motor: 2.3 Brand of engine: B230FK Type description: 944 From date: 01-01-1995 To date: 01-10-1998 Fuel: Gasoline Approved: Yes
    Volvo Model: 940 Model series: 940 Type of engine: Turbo Size of motor: 2.3 Brand of engine: B230FK Type description: 945 Body: Estate From date: 01-01-1995 To date: 01-10-1998 Fuel: Gasoline Approved: Yes
    Volvo Model: 940 Model series: 940 Type of engine: Turbo Size of motor: 2.3 Brand of engine: B230FT Type description: 944 From date: 01-08-1990 To date: 01-07-1994 Fuel: Gasoline Approved: Yes
    Volvo Model: 940 Model series: 940 Type of engine: Turbo Size of motor: 2.3 Brand of engine: B230FT Type description: 944 From date: 01-08-1991 To date: 01-07-1993 Fuel: Gasoline Approved: Yes
    Volvo Model: 940 Model series: 940 Type of engine: Turbo Size of motor: 2.3 Brand of engine: B230FT Type description: 944 From date: 01-08-1994 To date: 01-10-1998 Fuel: Gasoline Approved: Yes
    Volvo Model: 940 Model series: 940 Type of engine: Turbo Size of motor: 2.3 Brand of engine: B230FT Type description: 945 Body: Estate From date: 01-08-1990 To date: 01-07-1994 Fuel: Gasoline Approved: Yes
    Volvo Model: 940 Model series: 940 Type of engine: Turbo Size of motor: 2.3 Brand of engine: B230FT Type description: 945 Body: Estate From date: 01-08-1991 To date: 01-07-1993 Fuel: Gasoline Approved: Yes
    Volvo Model: 940 Model series: 940 Type of engine: Turbo Size of motor: 2.3 Brand of engine: B230FT Type description: 945 Body: Estate From date: 01-08-1994 To date: 01-10-1998 Fuel: Gasoline Approved: Yes
    Volvo Model: 940 Model series: 940 Type of engine: Turbo Size of motor: 2.3 Brand of engine: B230FT Type description: 945 Body: Estate From date: 01-08-1995 To date: 01-10-1998 Fuel: Gasoline Approved: Yes
    1 / 6
  • Beskrivning
    HC-Cargo Startmotor

    Voltage: 12
    kW: 1.2
    Mount. flange: 82.50
    Drive dist.: 35.00
    Dist./back: 158.00
    Dist./front: 71.00
    No./teeth: 9
    B+: M8
    Position/15a: 45
    Terminal 15a: 6.30
    Position/50: 15
    Terminal 50: 6.30
    Gear type: DD/GR
    Dist. mm: 103.00
    Rotation: CW
    Total length mm: 240.50
    Drive type: Steel
    Prod. info: BN
    Waterproof: No
    Oil sealed: No
    No./mount. holes: 2 (2)

    Filer

  • Specifikation
    B+ M8
    No./teeth 9
    Mount. flange 82.50
    Oil sealed No
    No./mount. holes 2 (2)
    Position/15a 45
    Position/50 15
    Prod. info BN
    Rotation CW
    Dist./back 158.00
    Dist./front 71.00
    Drive dist. 35.00
    Drive type Steel
    Gear type DD/GR
    kW 1.2
    Terminal 50 6.30
    Voltage 12
    Total length 240.50 mm
    Waterproof No
    Dist. 103.00 mm
    Terminal 15A 6.30 mm
  • Fordonsmatchning

    • OEM
      AZE2545, F032110160, js370, s114-232, s114-232a, s114-237, 11.130.777, 0001311001, 5001599, 5001613, 5001614, 5003617, 5240360, 8408080

    • Konkurrentreferens
      drs0650, F042S0H000, lrs00229, MS266, QS1353, SR37X, STR-H000, STR72006, vs204, 2-1288-HI, 2-1735-HI, 8ea726458-001, 26-0464, 40-15.011, 50-8101, 50-8101-1, 50-8101-8, 338.111.092, 4193, 11517, 220061, 220061A, 11010650, 943251223, 0986010650, 0986010658, 0986012490, 0986012560, 944280106500

    • Normaliserat artikelnummer
      aze2545, drs0650, f032110160, f042s0h000, js370, lrs00229, ms266, qs1353, s114232, s114232a, s114237, sr37x, str72006, strh000, vs204, 8ea726458001, 4193, 11517, 21288hi, 21735hi, 220061, 220061a, 260464, 508101, 0001311001, 4015011, 5001599, 5001613, 5001614, 5003617, 5081011, 5081018, 5240360, 8408080, 11010650, 11130777, 338111092, 943251223, 0986010650, 0986010658, 0986012490, 0986012560, 944280106500

    • Passar modeller
      Volvo Model: 340 Model series: 340 Size of motor: 2.0 Brand of engine: B200K Type description: 343,345 Body: Hatchback From date: 01-08-1980 To date: 01-07-1983 Fuel: Gasoline Approved: Yes
      Volvo Model: 360 Model series: 360 Size of motor: 2.0 Brand of engine: B19A Type description: 344 From date: 01-08-1982 To date: 01-07-1984 Fuel: Gasoline Approved: Yes
      Volvo Model: 360 Model series: 360 Size of motor: 2.0 Brand of engine: B19E Type description: 343,345 Body: Hatchback From date: 01-08-1982 To date: 01-07-1984 Fuel: Gasoline Approved: Yes
      Volvo Model: 360 Model series: 360 Size of motor: 2.0 Brand of engine: B200F Type description: 343,345 Body: Hatchback From date: 01-08-1988 To date: 01-07-1989 Fuel: Gasoline Approved: Yes
      Volvo Model: 360 Model series: 360 Size of motor: 2.0 Brand of engine: B200F Type description: 344 From date: 01-08-1988 To date: 01-07-1989 Fuel: Gasoline Approved: Yes
      Volvo Model: 740 Model series: 740 Size of motor: 2.3 Brand of engine: B230E Type description: 744 From date: 01-08-1984 To date: 01-12-1992 Fuel: Gasoline Approved: Yes
      Volvo Model: 740 Model series: 740 Size of motor: 2.3 Brand of engine: B230E Type description: 745 Body: Estate From date: 01-08-1985 To date: 01-07-1988 Fuel: Gasoline Approved: Yes
      Volvo Model: 740 Model series: 740 Size of motor: 2.3 Brand of engine: B230F Type description: 744 From date: 01-08-1987 To date: 01-07-1992 Fuel: Gasoline Approved: Yes
      Volvo Model: 740 Model series: 740 Size of motor: 2.3 Brand of engine: B234F Type description: 744 From date: 01-08-1987 To date: 01-07-1989 Fuel: Gasoline Approved: Yes
      Volvo Model: 740 Model series: 740 Size of motor: 2.3 Brand of engine: B234F Type description: 745 Body: Estate From date: 01-08-1987 To date: 01-07-1989 Fuel: Gasoline Approved: Yes
      Volvo Model: 740 Model series: 740 Type of engine: 16V Size of motor: 2.3 Brand of engine: B234F Type description: 744 From date: 01-08-1988 To date: 01-07-1991 Fuel: Gasoline Approved: Yes
      Volvo Model: 740 Model series: 740 Type of engine: 16V Size of motor: 2.3 Brand of engine: B234F Type description: 745 Body: Estate From date: 01-08-1988 To date: 01-07-1990 Fuel: Gasoline Approved: Yes
      Volvo Model: 940 Model series: 940 Size of motor: 2.3 Brand of engine: B230FB Type description: 944 From date: 01-08-1990 To date: 01-12-1994 Fuel: Gasoline Approved: Yes
      Volvo Model: 940 Model series: 940 Size of motor: 2.3 Brand of engine: B230FB Type description: 945 Body: Estate From date: 01-08-1990 To date: 01-12-1994 Fuel: Gasoline Approved: Yes
      Volvo Model: 940 Model series: 940 Size of motor: 2.3 Brand of engine: B230FD Type description: 944 From date: 01-08-1992 To date: 01-07-1994 Fuel: Gasoline Approved: Yes
      Volvo Model: 940 Model series: 940 Size of motor: 2.3 Brand of engine: B230FD Type description: 944 From date: 01-08-1994 To date: 01-07-1995 Fuel: Gasoline Approved: Yes
      Volvo Model: 940 Model series: 940 Size of motor: 2.3 Brand of engine: B230FD Type description: 945 Body: Estate From date: 01-08-1992 To date: 01-07-1994 Fuel: Gasoline Approved: Yes
      Volvo Model: 940 Model series: 940 Size of motor: 2.3 Brand of engine: B230FD Type description: 945 Body: Estate From date: 01-08-1994 To date: 01-07-1995 Fuel: Gasoline Approved: Yes
      Volvo Model: 940 Model series: 940 Size of motor: 2.3 Brand of engine: B234F Type description: 944 From date: 01-08-1990 To date: 01-07-1991 Fuel: Gasoline Approved: Yes
      Volvo Model: 940 Model series: 940 Size of motor: 2.3 Brand of engine: B234F Type description: 945 Body: Estate From date: 01-08-1990 To date: 01-07-1991 Fuel: Gasoline Approved: Yes
      Volvo Model: 940 Model series: 940 Type of engine: Turbo Size of motor: 2.3 Brand of engine: B230FK Type description: 944 From date: 01-01-1995 To date: 01-10-1998 Fuel: Gasoline Approved: Yes
      Volvo Model: 940 Model series: 940 Type of engine: Turbo Size of motor: 2.3 Brand of engine: B230FK Type description: 945 Body: Estate From date: 01-01-1995 To date: 01-10-1998 Fuel: Gasoline Approved: Yes
      Volvo Model: 940 Model series: 940 Type of engine: Turbo Size of motor: 2.3 Brand of engine: B230FT Type description: 944 From date: 01-08-1990 To date: 01-07-1994 Fuel: Gasoline Approved: Yes
      Volvo Model: 940 Model series: 940 Type of engine: Turbo Size of motor: 2.3 Brand of engine: B230FT Type description: 944 From date: 01-08-1991 To date: 01-07-1993 Fuel: Gasoline Approved: Yes
      Volvo Model: 940 Model series: 940 Type of engine: Turbo Size of motor: 2.3 Brand of engine: B230FT Type description: 944 From date: 01-08-1994 To date: 01-10-1998 Fuel: Gasoline Approved: Yes
      Volvo Model: 940 Model series: 940 Type of engine: Turbo Size of motor: 2.3 Brand of engine: B230FT Type description: 945 Body: Estate From date: 01-08-1990 To date: 01-07-1994 Fuel: Gasoline Approved: Yes
      Volvo Model: 940 Model series: 940 Type of engine: Turbo Size of motor: 2.3 Brand of engine: B230FT Type description: 945 Body: Estate From date: 01-08-1991 To date: 01-07-1993 Fuel: Gasoline Approved: Yes
      Volvo Model: 940 Model series: 940 Type of engine: Turbo Size of motor: 2.3 Brand of engine: B230FT Type description: 945 Body: Estate From date: 01-08-1994 To date: 01-10-1998 Fuel: Gasoline Approved: Yes
      Volvo Model: 940 Model series: 940 Type of engine: Turbo Size of motor: 2.3 Brand of engine: B230FT Type description: 945 Body: Estate From date: 01-08-1995 To date: 01-10-1998 Fuel: Gasoline Approved: Yes
