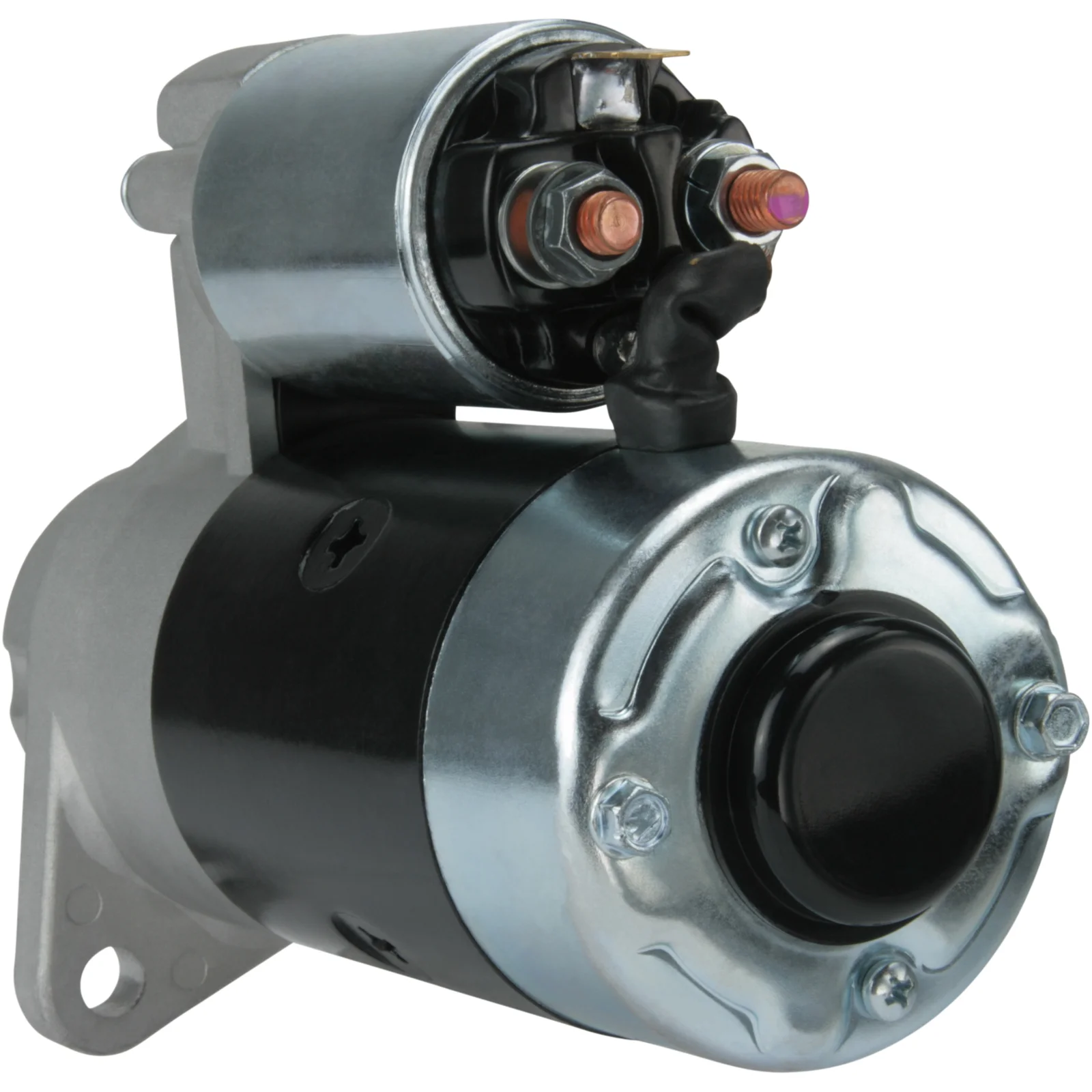

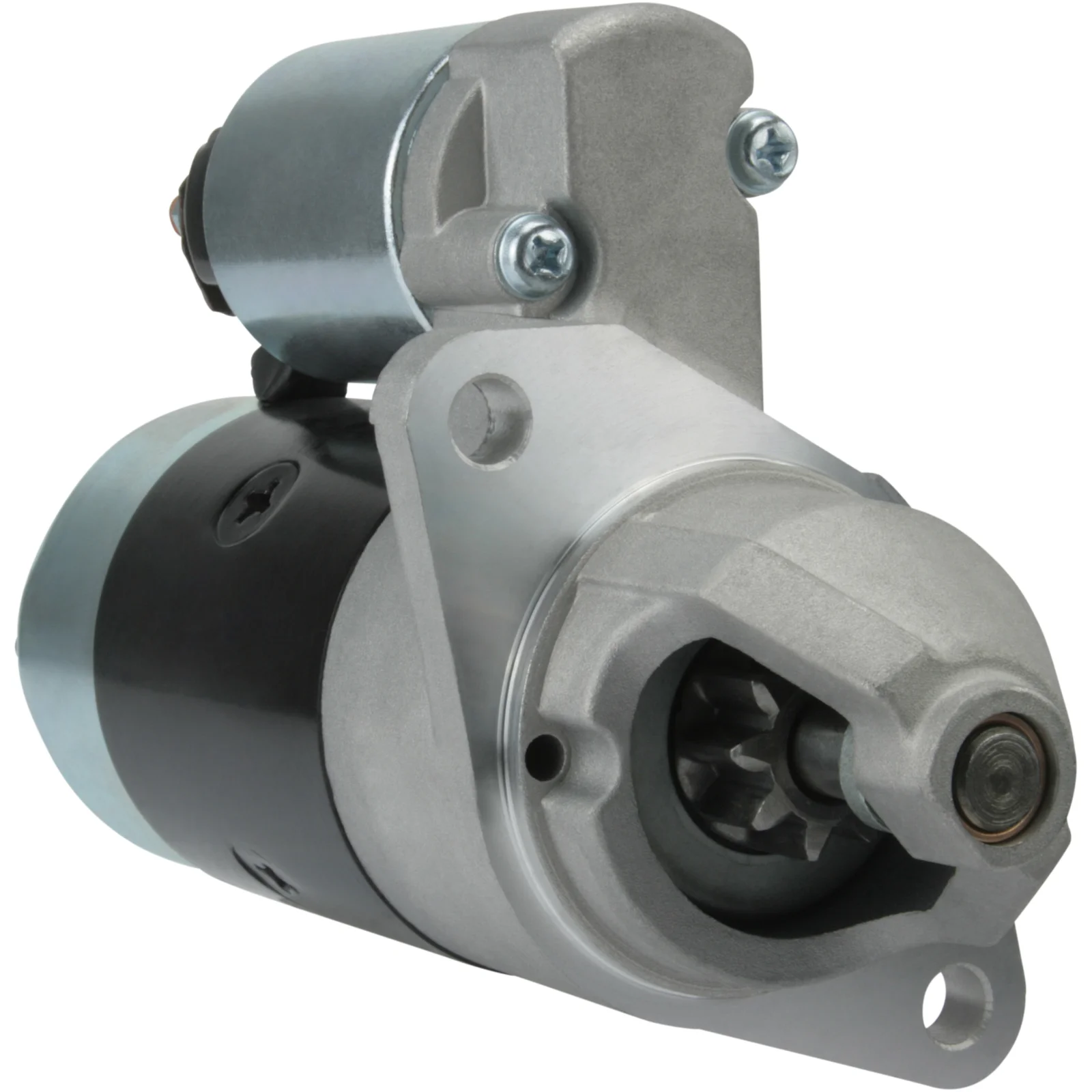

HC-Cargo Startmotor
HC-Cargo Startmotor
Artikelnr: F032110156

HC-Cargo Startmotor

Teknisk info:

Voltage: 12, kW: 0.8, No./teeth: 9, Rotation: CW

Beskrivning

HC-Cargo Startmotor För mer info se hitta i HC-Cargo hemsida.

Voltage: 12
kW: 0.8
Mount. flange: 70.00
Drive dist.: 21.00
Mount. hole 2 mm: 10.50
Mount. hole 1 mm: 10.50
Dist./back: 156.00
Dist./front: 56.00
No./teeth: 9
B+: M8
Position/B+: 60
Position/50: 15
Terminal 50: 6.30
Gear type: DD/GR
Dist. mm: 110.00
Rotation: CW
Total length mm: 218.00
Drive type: Steel
Prod. info: BN
Waterproof: No
Oil sealed: No
No./mount. holes: 2 (0)

Filer

Specifikation

B+ M8
No./teeth 9
Mount. flange 70.00
Oil sealed No
No./mount. holes 2 (0)
Position/50 15
Position/B+ 60
Prod. info BN
Rotation CW
Dist./back 156.00
Dist./front 56.00
Drive dist. 21.00
Drive type Steel
Gear type DD/GR
kW 0.8
Terminal 50 6.30
Voltage 12
Total length 218.00 mm
Waterproof No
Dist. 110.00 mm
Mount. hole 2 10.50 mm
Mount. hole 1 10.50 mm

  • OEM
    F032110156, js340, s114-150, s114-150l, s114-151, s114-151l, s114-164, s114-164a, 44-0340, 91-400-4164, 23300-09600, 23300-09601, 23300-47601, 23300-48301, 23300-b0700, 110156

  • Konkurrentreferens
    ads-155, CST20216, drs2933, J5215010, LRS02190, s-8255, sd-0018r, sd-0021r, STR23011, 2-1274-HI-1, 2-1724-HI, 2-1724-HI-1, 2-1924-HI, 8ea726433-001, 25-0483, 27-52.510, 28-52.106, 91-25-1082, 627.001.092, 4183, 11247, 16197, 16207, 16207N, 16271, 20340, 103845, 8052510, 11040357

  • Normaliserat artikelnummer
    ads155, cst20216, drs2933, f032110156, j5215010, js340, lrs02190, s114150, s114150l, s114151, s114151l, s114164, s114164a, s8255, sd0018r, sd0021r, str23011, 8ea726433001, 4183, 11247, 16197, 16207, 16207n, 16271, 20340, 21274hi1, 21724hi, 21724hi1, 21924hi, 23300b0700, 103845, 110156, 250483, 440340, 2752510, 2852106, 8052510, 11040357, 91251082, 627001092, 914004164, 2330009600, 2330009601, 2330047601, 2330048301

  • Passar modeller
    Komatsu Model: FG Model series: FG10-10 Brand of engine: D11PU Approved: Yes
  • Beskrivning
    HC-Cargo Startmotor För mer info se hitta i HC-Cargo hemsida.

    Voltage: 12
    kW: 0.8
    Mount. flange: 70.00
    Drive dist.: 21.00
    Mount. hole 2 mm: 10.50
    Mount. hole 1 mm: 10.50
    Dist./back: 156.00
    Dist./front: 56.00
    No./teeth: 9
    B+: M8
    Position/B+: 60
    Position/50: 15
    Terminal 50: 6.30
    Gear type: DD/GR
    Dist. mm: 110.00
    Rotation: CW
    Total length mm: 218.00
    Drive type: Steel
    Prod. info: BN
    Waterproof: No
    Oil sealed: No
    No./mount. holes: 2 (0)

    Filer

  • Specifikation
    B+ M8
    No./teeth 9
    Mount. flange 70.00
    Oil sealed No
    No./mount. holes 2 (0)
    Position/50 15
    Position/B+ 60
    Prod. info BN
    Rotation CW
    Dist./back 156.00
    Dist./front 56.00
    Drive dist. 21.00
    Drive type Steel
    Gear type DD/GR
    kW 0.8
    Terminal 50 6.30
    Voltage 12
    Total length 218.00 mm
    Waterproof No
    Dist. 110.00 mm
    Mount. hole 2 10.50 mm
    Mount. hole 1 10.50 mm
  • Fordonsmatchning

    • OEM
      F032110156, js340, s114-150, s114-150l, s114-151, s114-151l, s114-164, s114-164a, 44-0340, 91-400-4164, 23300-09600, 23300-09601, 23300-47601, 23300-48301, 23300-b0700, 110156

    • Konkurrentreferens
      ads-155, CST20216, drs2933, J5215010, LRS02190, s-8255, sd-0018r, sd-0021r, STR23011, 2-1274-HI-1, 2-1724-HI, 2-1724-HI-1, 2-1924-HI, 8ea726433-001, 25-0483, 27-52.510, 28-52.106, 91-25-1082, 627.001.092, 4183, 11247, 16197, 16207, 16207N, 16271, 20340, 103845, 8052510, 11040357

    • Normaliserat artikelnummer
      ads155, cst20216, drs2933, f032110156, j5215010, js340, lrs02190, s114150, s114150l, s114151, s114151l, s114164, s114164a, s8255, sd0018r, sd0021r, str23011, 8ea726433001, 4183, 11247, 16197, 16207, 16207n, 16271, 20340, 21274hi1, 21724hi, 21724hi1, 21924hi, 23300b0700, 103845, 110156, 250483, 440340, 2752510, 2852106, 8052510, 11040357, 91251082, 627001092, 914004164, 2330009600, 2330009601, 2330047601, 2330048301

    • Passar modeller
      Komatsu Model: FG Model series: FG10-10 Brand of engine: D11PU Approved: Yes
