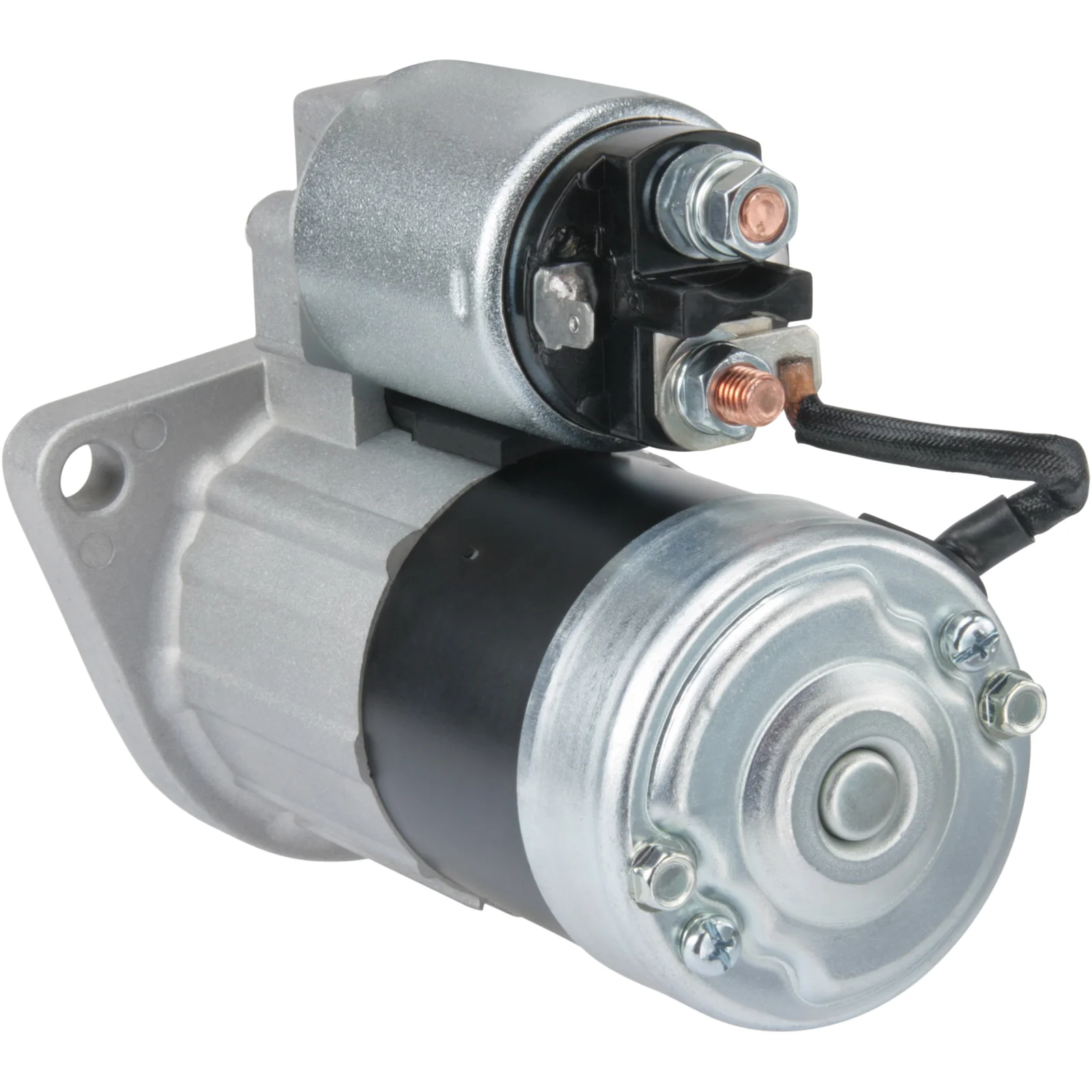

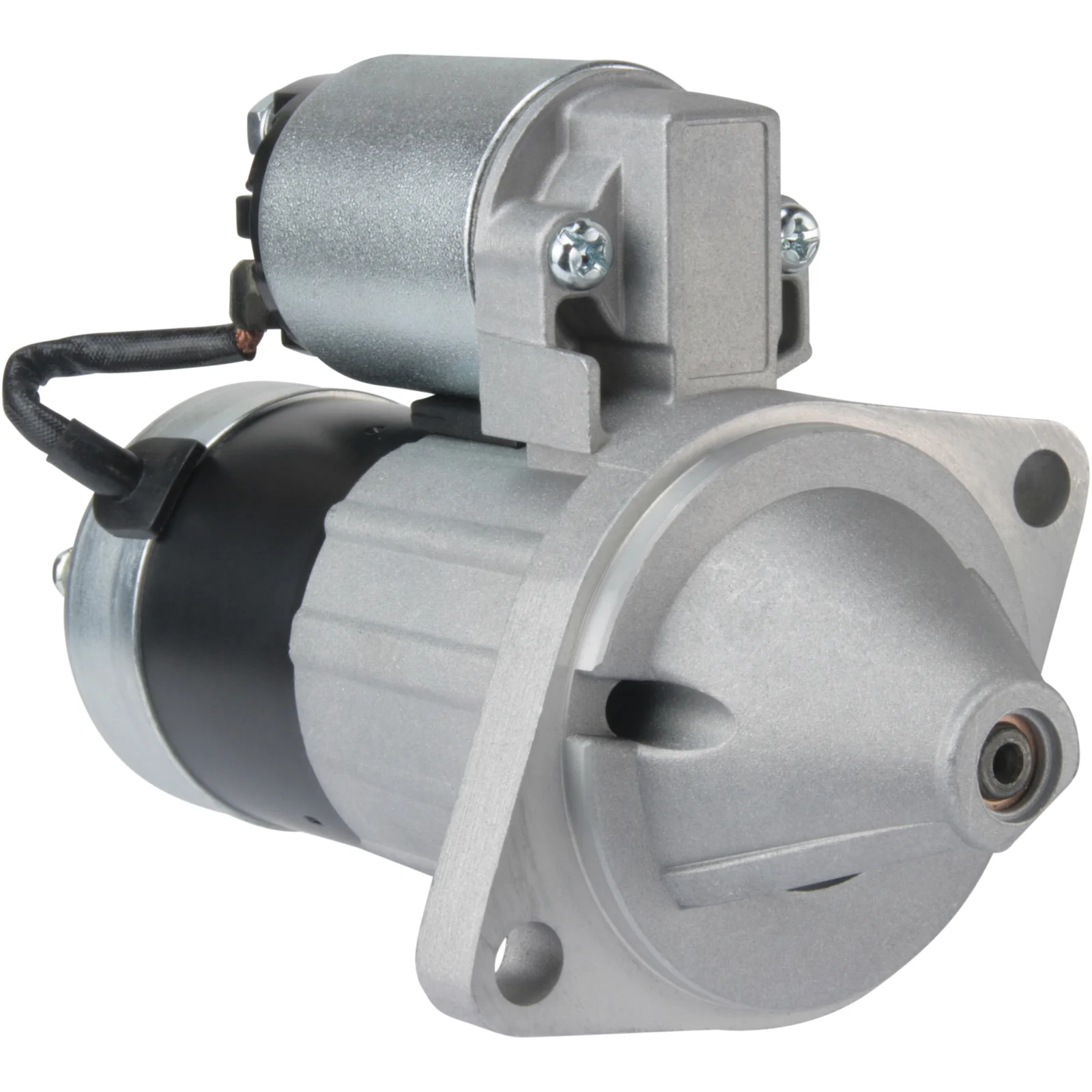

HC-Cargo Startmotor
HC-Cargo Startmotor
Artikelnr: F032110155

HC-Cargo Startmotor

Teknisk info:

Voltage: 12, kW: 0.85, No./teeth: 8, Rotation: CW

Beskrivning

HC-Cargo Startmotor

Voltage: 12
kW: 0.85
Mount. flange: 83.00
Drive dist.: 7.50
Mount. hole 2 mm: 11.00
Mount. hole 1 mm: 11.00
Dist./back: 145.50
Dist./front: 46.00
No./teeth: 8
B+: M8
Position/B+: 60
Position/50: 45
Terminal 50: 6.30
Gear type: DD/GR
Dist. mm: 110.00
Rotation: CW
Total length mm: 191.00
Drive type: Steel
Prod. info: BN
Waterproof: No
Oil sealed: No
No./mount. holes: 2 (0)

Filer

Specifikation

B+ M8
No./teeth 8
Mount. flange 83.00
Oil sealed No
No./mount. holes 2 (0)
Position/50 45
Position/B+ 60
Prod. info BN
Rotation CW
Dist./back 145.50
Dist./front 46.00
Drive dist. 7.50
Drive type Steel
Gear type DD/GR
kW 0.85
Terminal 50 6.30
Voltage 12
Total length 191.00 mm
Waterproof No
Dist. 110.00 mm
Mount. hole 2 11.00 mm
Mount. hole 1 11.00 mm

  • OEM
    F032110155, js343, M003T11272, m3t11272, me-y1r, mea13-1, mea13-2, med02-1, med02-2, mey1r, mey3r, s114-91, s114-91k, 23300-15800, 23300-15805, 23300-15810, 23300-15815, 23300-a3200, 23300-p5110, 23300-p5111

  • Konkurrentreferens
    ads-127, ads-139, BSO7029, CST20140, drs2931, F042001125, F042S01125, lrs00320, SR138X, STR-3567, STR3567, 2-1741-1, 2-1741-HI, 2-1741-MI, 8ea726435-001, 25-0007, 25-0480, 28-52.105, 327.016.092, 4185, 16201, 20343, 33487, 220071, 220071A, 455908, 455910, 11040131, 66925216, 66925309

  • Normaliserat artikelnummer
    ads127, ads139, bso7029, cst20140, drs2931, f032110155, f042001125, f042s01125, js343, lrs00320, m003t11272, m3t11272, mea131, mea132, med021, med022, mey1r, mey3r, s11491, s11491k, sr138x, str3567, 8ea726435001, 4185, 16201, 20343, 21741hi, 21741mi, 23300a3200, 23300p5110, 23300p5111, 33487, 217411, 220071, 220071a, 250007, 250480, 455908, 455910, 2852105, 11040131, 66925216, 66925309, 327016092, 2330015800, 2330015805, 2330015810, 2330015815

  • Passar modeller
    Komatsu Model: 605 Model series: 605 Brand of engine: H20 Approved: Yes
    Komatsu Model: FG Model series: FG20-6 Brand of engine: Nissan H20PU Approved: Yes
    Komatsu Model: FG Model series: FG20-7 Brand of engine: Nissan H20PU Approved: Yes
    Komatsu Model: FG Model series: FG20-8 Brand of engine: Nissan H20PU Approved: Yes
    Nissan Model: FD Model series: FD104 Approved: Yes
    TCM Model: FG Model series: FG 15 Brand of engine: A15 Approved: Yes
    TCM Model: FG Model series: FG 20 Approved: Yes
    1 / 2
  • Beskrivning
    HC-Cargo Startmotor

    Voltage: 12
    kW: 0.85
    Mount. flange: 83.00
    Drive dist.: 7.50
    Mount. hole 2 mm: 11.00
    Mount. hole 1 mm: 11.00
    Dist./back: 145.50
    Dist./front: 46.00
    No./teeth: 8
    B+: M8
    Position/B+: 60
    Position/50: 45
    Terminal 50: 6.30
    Gear type: DD/GR
    Dist. mm: 110.00
    Rotation: CW
    Total length mm: 191.00
    Drive type: Steel
    Prod. info: BN
    Waterproof: No
    Oil sealed: No
    No./mount. holes: 2 (0)

    Filer

  • Specifikation
    B+ M8
    No./teeth 8
    Mount. flange 83.00
    Oil sealed No
    No./mount. holes 2 (0)
    Position/50 45
    Position/B+ 60
    Prod. info BN
    Rotation CW
    Dist./back 145.50
    Dist./front 46.00
    Drive dist. 7.50
    Drive type Steel
    Gear type DD/GR
    kW 0.85
    Terminal 50 6.30
    Voltage 12
    Total length 191.00 mm
    Waterproof No
    Dist. 110.00 mm
    Mount. hole 2 11.00 mm
    Mount. hole 1 11.00 mm
  • Fordonsmatchning

    • OEM
      F032110155, js343, M003T11272, m3t11272, me-y1r, mea13-1, mea13-2, med02-1, med02-2, mey1r, mey3r, s114-91, s114-91k, 23300-15800, 23300-15805, 23300-15810, 23300-15815, 23300-a3200, 23300-p5110, 23300-p5111

    • Konkurrentreferens
      ads-127, ads-139, BSO7029, CST20140, drs2931, F042001125, F042S01125, lrs00320, SR138X, STR-3567, STR3567, 2-1741-1, 2-1741-HI, 2-1741-MI, 8ea726435-001, 25-0007, 25-0480, 28-52.105, 327.016.092, 4185, 16201, 20343, 33487, 220071, 220071A, 455908, 455910, 11040131, 66925216, 66925309

    • Normaliserat artikelnummer
      ads127, ads139, bso7029, cst20140, drs2931, f032110155, f042001125, f042s01125, js343, lrs00320, m003t11272, m3t11272, mea131, mea132, med021, med022, mey1r, mey3r, s11491, s11491k, sr138x, str3567, 8ea726435001, 4185, 16201, 20343, 21741hi, 21741mi, 23300a3200, 23300p5110, 23300p5111, 33487, 217411, 220071, 220071a, 250007, 250480, 455908, 455910, 2852105, 11040131, 66925216, 66925309, 327016092, 2330015800, 2330015805, 2330015810, 2330015815

    • Passar modeller
      Komatsu Model: 605 Model series: 605 Brand of engine: H20 Approved: Yes
      Komatsu Model: FG Model series: FG20-6 Brand of engine: Nissan H20PU Approved: Yes
      Komatsu Model: FG Model series: FG20-7 Brand of engine: Nissan H20PU Approved: Yes
      Komatsu Model: FG Model series: FG20-8 Brand of engine: Nissan H20PU Approved: Yes
      Nissan Model: FD Model series: FD104 Approved: Yes
      TCM Model: FG Model series: FG 15 Brand of engine: A15 Approved: Yes
      TCM Model: FG Model series: FG 20 Approved: Yes
      1 / 2
