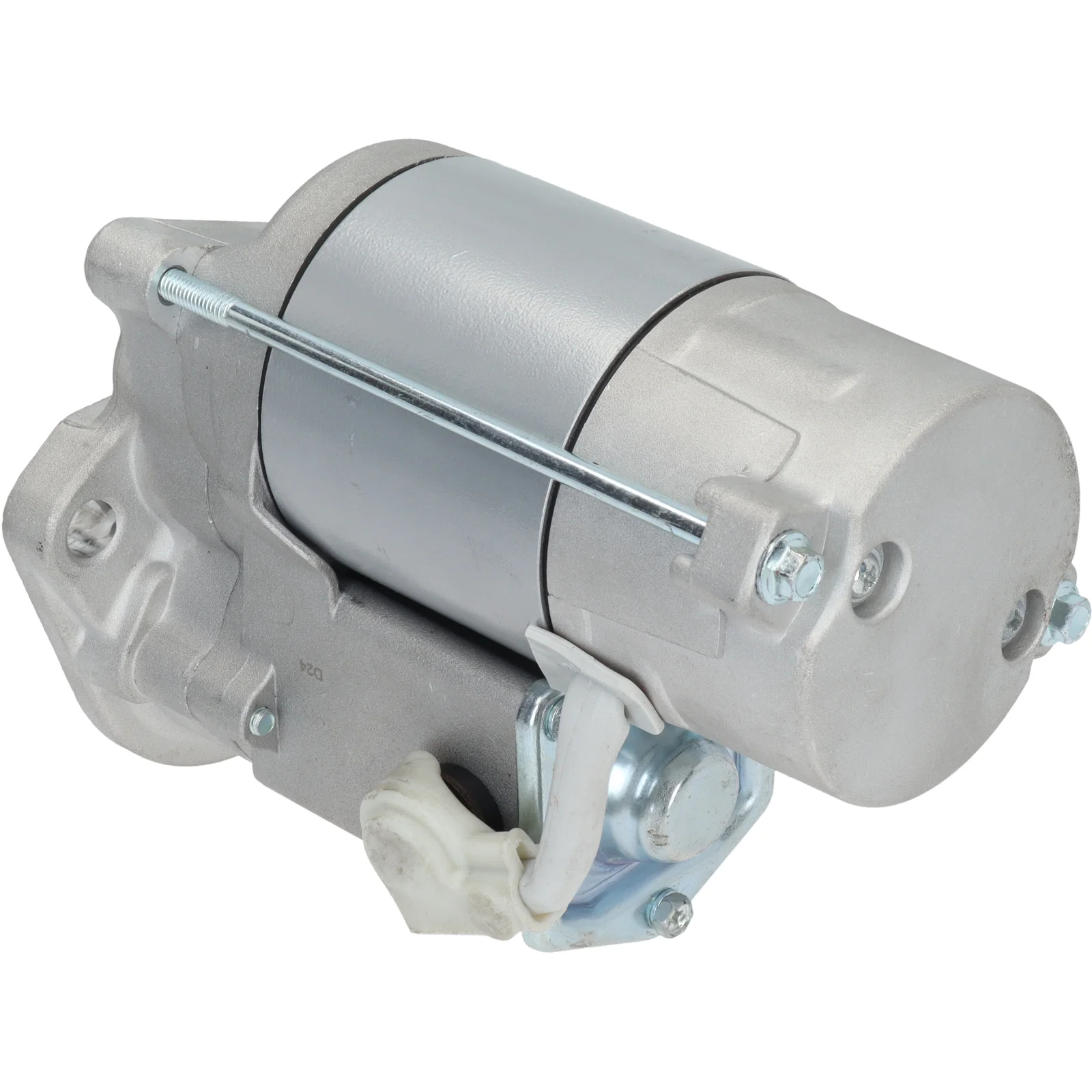

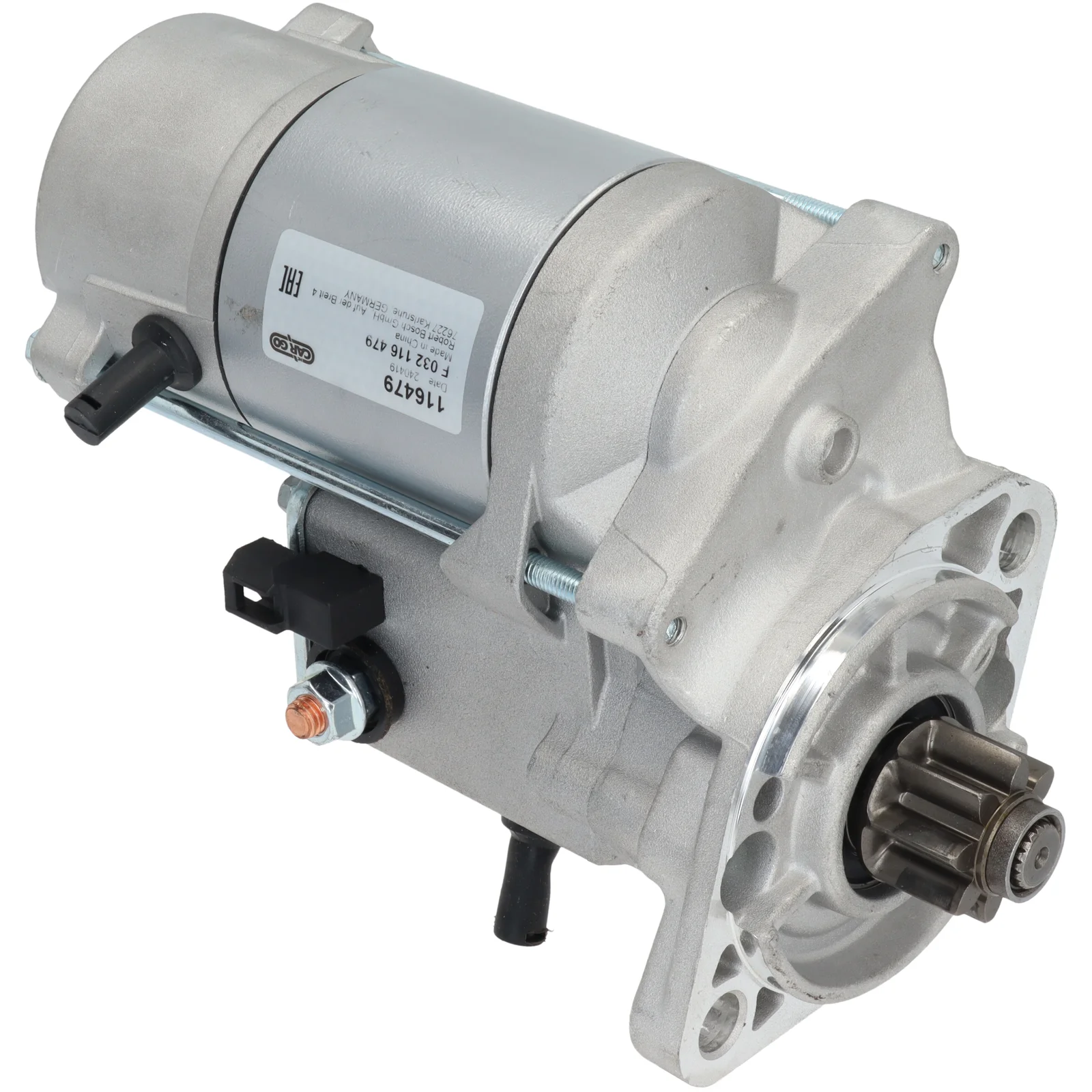

HC-Cargo Startmotor
HC-Cargo Startmotor
Artikelnr: F032116479

HC-Cargo Startmotor

Teknisk info:

Voltage: 12, kW: 2.0, No./teeth: 8, Rotation: CW

Beskrivning

Voltage: 12
kW: 2.0
Mount. flange: 82.50
Drive dist.: 29.50
Mount. hole 2 mm: 11.00
Mount. hole 1 mm: 11.00
Dist./front: 37.00
No./teeth: 8
B+: M8
Terminal 50: 6.30
Gear type: GR
Dist. mm: 105.00
Rotation: CW
Total length mm: 219.00
No./mount. holes: 2 (0)

Filer

Specifikation

B+ M8
No./teeth 8
Mount. flange 82.50
No./mount. holes 2 (0)
Rotation CW
Dist./front 37.00
Drive dist. 29.50
Gear type GR
kW 2.0
Terminal 50 6.30
Voltage 12
Total length 219.00 mm
Dist. 105.00 mm
Mount. hole 2 11.00 mm
Mount. hole 1 11.00 mm

  • OEM
    F032116479, 1J730-63010, 1J730-63011, 428000-6940, 428080-6940

  • Konkurrentreferens
    DSN2124, 690.558.082, 30579, 255367

  • Normaliserat artikelnummer
    dsn2124, f032116479, 1j73063010, 1j73063011, 30579, 255367, 690558082, 4280006940, 4280806940

  • Passar modeller
    Kubota Model: KX057-4 Model series: KX057-4 Model type: Excavators Brand of engine: V2607-DI Approved: Yes
    Kubota Model: KX57-6 Model series: KX57-6 Model type: Excavators Brand of engine: V2607-DI Approved: Yes
    Kubota Model: U40-6 Model series: U40-6 Model type: Excavators Brand of engine: V2607-DI Approved: Yes
    Kubota Model: U48-4 Model series: U48-4 Model type: Excavators Brand of engine: V2607-DI Approved: Yes
    Kubota Model: U55 Model series: U55 Model type: Excavators Brand of engine: V2607-DI Approved: Yes
    Kubota Model: U55-6 Model series: U55-6 Model type: Excavators Brand of engine: V2607-DI Approved: Yes
    1 / 2
  • Beskrivning
    Voltage: 12
    kW: 2.0
    Mount. flange: 82.50
    Drive dist.: 29.50
    Mount. hole 2 mm: 11.00
    Mount. hole 1 mm: 11.00
    Dist./front: 37.00
    No./teeth: 8
    B+: M8
    Terminal 50: 6.30
    Gear type: GR
    Dist. mm: 105.00
    Rotation: CW
    Total length mm: 219.00
    No./mount. holes: 2 (0)

    Filer

  • Specifikation
    B+ M8
    No./teeth 8
    Mount. flange 82.50
    No./mount. holes 2 (0)
    Rotation CW
    Dist./front 37.00
    Drive dist. 29.50
    Gear type GR
    kW 2.0
    Terminal 50 6.30
    Voltage 12
    Total length 219.00 mm
    Dist. 105.00 mm
    Mount. hole 2 11.00 mm
    Mount. hole 1 11.00 mm
  • Fordonsmatchning

    • OEM
      F032116479, 1J730-63010, 1J730-63011, 428000-6940, 428080-6940

    • Konkurrentreferens
      DSN2124, 690.558.082, 30579, 255367

    • Normaliserat artikelnummer
      dsn2124, f032116479, 1j73063010, 1j73063011, 30579, 255367, 690558082, 4280006940, 4280806940

    • Passar modeller
      Kubota Model: KX057-4 Model series: KX057-4 Model type: Excavators Brand of engine: V2607-DI Approved: Yes
      Kubota Model: KX57-6 Model series: KX57-6 Model type: Excavators Brand of engine: V2607-DI Approved: Yes
      Kubota Model: U40-6 Model series: U40-6 Model type: Excavators Brand of engine: V2607-DI Approved: Yes
      Kubota Model: U48-4 Model series: U48-4 Model type: Excavators Brand of engine: V2607-DI Approved: Yes
      Kubota Model: U55 Model series: U55 Model type: Excavators Brand of engine: V2607-DI Approved: Yes
      Kubota Model: U55-6 Model series: U55-6 Model type: Excavators Brand of engine: V2607-DI Approved: Yes
