Artikelnr: F032114100

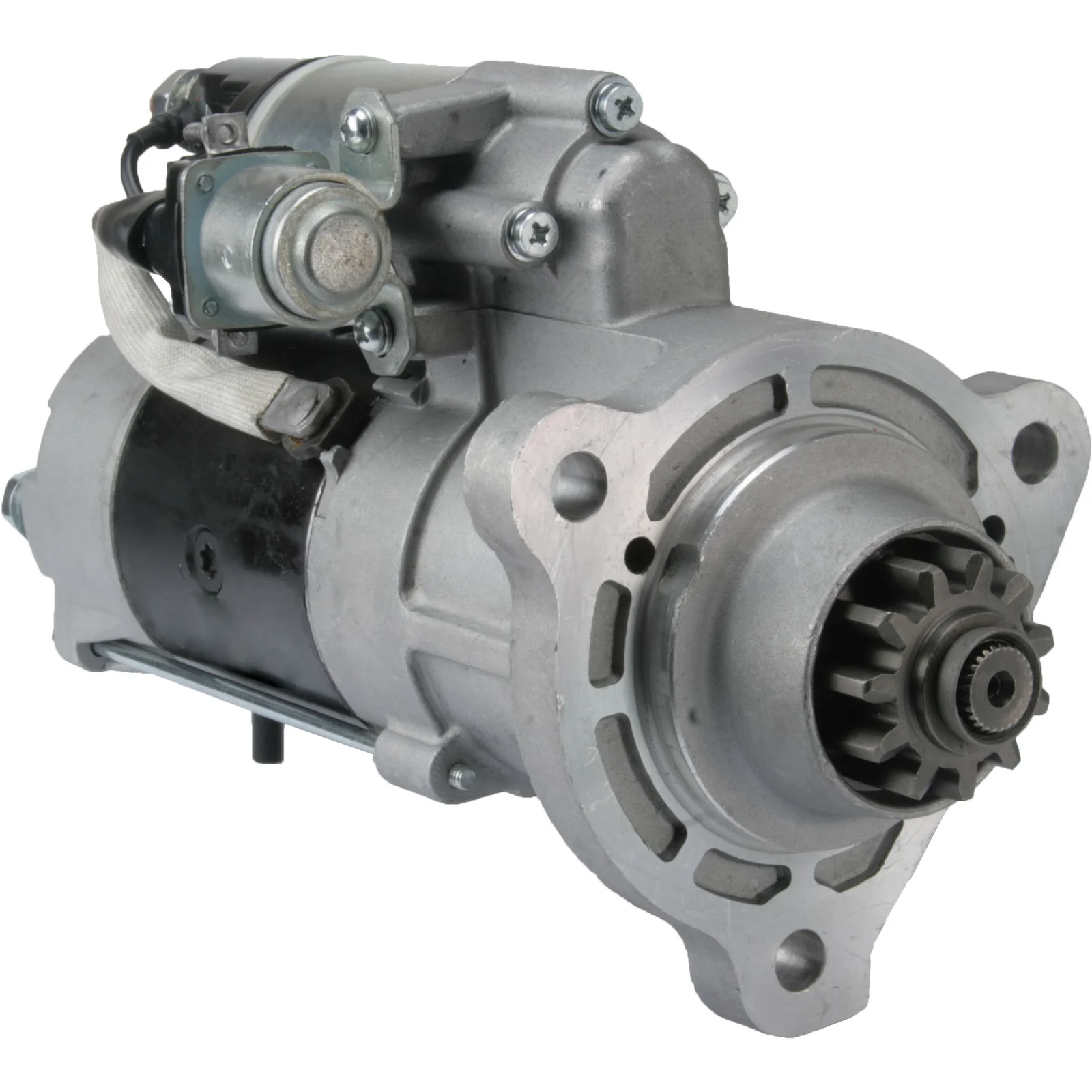

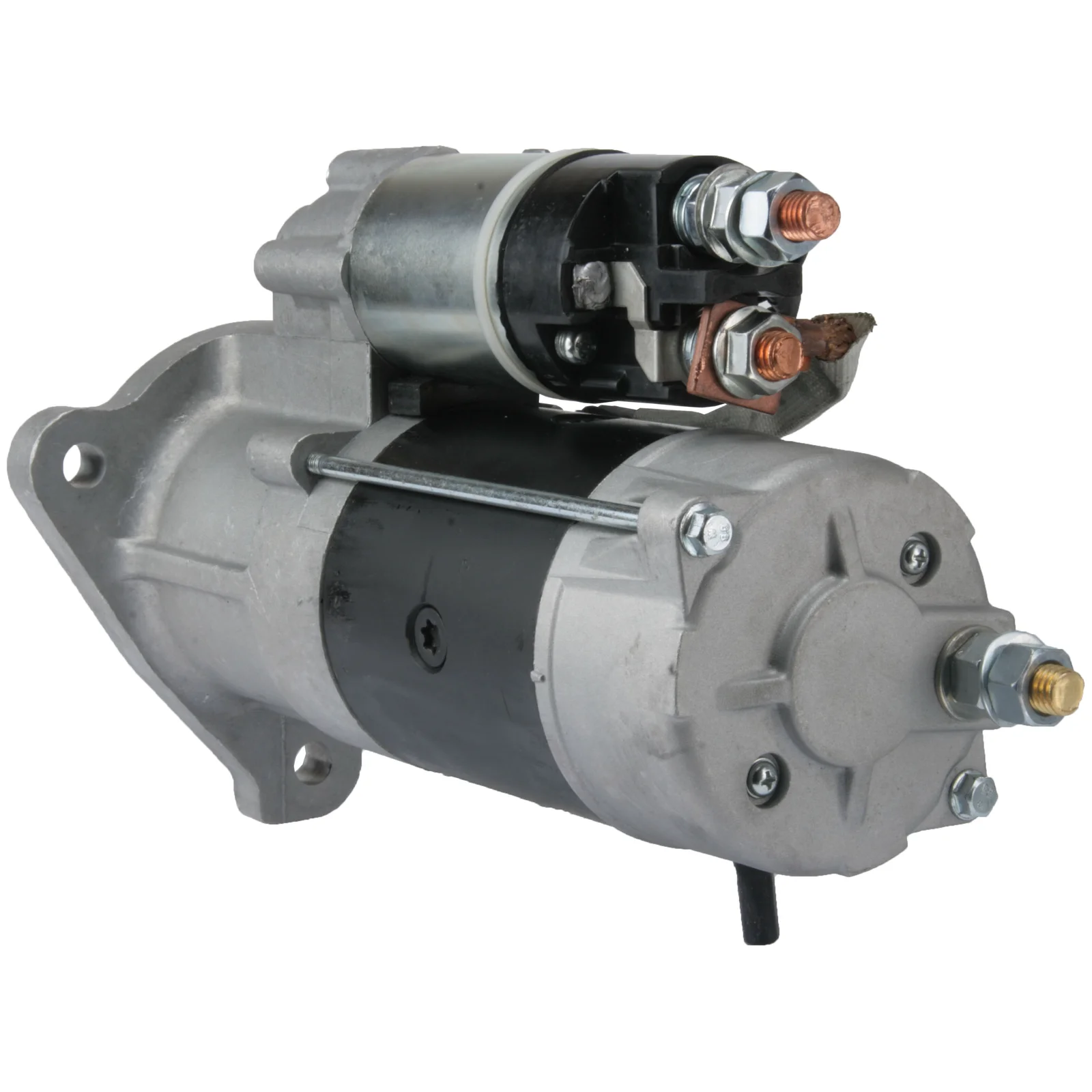

HC-Cargo Startmotor

Teknisk info:

Voltage: 24, kW: 7.5, No./teeth: 11, Rotation: CW

Beskrivning

Voltage: 24
kW: 7.5
Mount. flange: 92.00
Drive dist.: 47.00
Mount. hole 3 mm: 14.00
Mount. hole 2 mm: 14.00
Mount. hole 1 mm: 14.00
Dist./back: 286.50
Dist./front: 60.00
No./teeth: 11
B+: M12
Position/50: 15
Terminal 50: M4
Gear type: GR
Dist. 2: 126.50
Dist. 3: 126.50
Dist. mm: 126.50
Rotation: CW
Total length mm: 380.00
Prod. info: BN
No./mount. holes: 3 (0)

Specifikation

B+ M12
No./teeth 11
Mount. flange 92.00
No./mount. holes 3 (0)
Position/50 15
Prod. info BN
Dist. 2 126.50
Dist. 3 126.50
Rotation CW
Dist./back 286.50
Dist./front 60.00
Drive dist. 47.00
Gear type GR
kW 7.5
Terminal 50 M4
Voltage 24
Total length 380.00 mm
Dist. 126.50 mm
Mount. hole 3 14.00 mm
Mount. hole 2 14.00 mm
Mount. hole 1 14.00 mm
  • OEM

    cs1497, d13hp613, d13hp709, F032114100, M009T80071, M9T80071, M9T80272, 5001853716, 5010306631, 5010480432, 5010508382, 5010853716
  • Konkurrentreferens

    CST15604, CST35611, DRS0127, DRS0466, LRS02258, MITM9T80272, MS884, nd172, S3034, S5029, S5030, 8ea737677-001, 45-2488, 45-3429, 630.015.114, 4602, 19979N, 30251N, 106390, 106434, 220259, 220259A, 220567, 220567A, 220568, 220568A, 455723, 8212249, 11024450, 0986024450
  • Normaliserat artikelnummer

    cs1497, cst15604, cst35611, d13hp613, d13hp709, drs0127, drs0466, f032114100, lrs02258, m009t80071, m9t80071, m9t80272, mitm9t80272, ms884, nd172, s3034, s5029, s5030, 8ea737677001, 4602, 19979n, 30251n, 106390, 106434, 220259, 220259a, 220567, 220567a, 220568, 220568a, 452488, 453429, 455723, 8212249, 11024450, 630015114, 0986024450, 5001853716, 5010306631, 5010480432, 5010508382, 5010853716
  • Passar modeller

    Renault V.I. Model: Magnum Model series: 400.18 Size of motor: 12.0 Brand of engine: MACKE.TECHA/46 Type description: E.tech Body: Platform / Chassis From date: 01-05-2000 Fuel: Diesel Approved: Yes
    Renault V.I. Model: Magnum Model series: 400.18 Size of motor: 12.0 Brand of engine: MACKE.TECHA/46 Type description: E.tech Body: Semi-Trailer From date: 01-05-2000 Fuel: Diesel Approved: Yes
    Renault V.I. Model: Magnum Model series: 400.24 Size of motor: 12.0 Brand of engine: MACKE.TECHA/46 Type description: E.tech Body: Platform / Chassis From date: 01-05-2000 Fuel: Diesel Approved: Yes
    Renault V.I. Model: Magnum Model series: 400.26 Size of motor: 12.0 Brand of engine: MACKE.TECHA/46 Type description: E.tech Body: Platform / Chassis From date: 01-05-2000 Fuel: Diesel Approved: Yes
    Renault V.I. Model: Magnum Model series: 440.18 Size of motor: 12.0 Brand of engine: MACKE.TECHB/46 Type description: E.tech Body: Platform / Chassis From date: 01-05-2000 Fuel: Diesel Approved: Yes
    Renault V.I. Model: Magnum Model series: 440.18 Size of motor: 12.0 Brand of engine: MACKE.TECHB/46 Type description: E.tech Body: Semi-Trailer From date: 01-05-2000 Fuel: Diesel Approved: Yes
    Renault V.I. Model: Magnum Model series: 440.24 Size of motor: 12.0 Brand of engine: MACKE.TECHB/46 Type description: E.tech Body: Platform / Chassis From date: 01-05-2000 Fuel: Diesel Approved: Yes
    Renault V.I. Model: Magnum Model series: 440.26 Size of motor: 12.0 Brand of engine: MACKE.TECHB/46 Type description: E.tech Body: Platform / Chassis From date: 01-05-2000 Fuel: Diesel Approved: Yes
    Renault V.I. Model: Magnum Model series: 440.26 Size of motor: 12.0 Brand of engine: MACKE.TECHB/46 Type description: E.tech Body: Semi-Trailer From date: 01-05-2000 Fuel: Diesel Approved: Yes
    Renault V.I. Model: Magnum Model series: 480.18 Size of motor: 12.0 Brand of engine: MACKE.TECHC/46 Type description: E.tech Body: Platform / Chassis From date: 01-05-2000 Fuel: Diesel Approved: Yes
    Renault V.I. Model: Magnum Model series: 480.18 Size of motor: 12.0 Brand of engine: MACKE.TECHC/46 Type description: E.tech Body: Semi-Trailer From date: 01-05-2000 Fuel: Diesel Approved: Yes
    Renault V.I. Model: Magnum Model series: 480.24 Size of motor: 12.0 Brand of engine: MACKE.TECHC/46 Type description: E.tech Body: Platform / Chassis From date: 01-05-2000 Fuel: Diesel Approved: Yes
    Renault V.I. Model: Magnum Model series: 480.26 Size of motor: 12.0 Brand of engine: MACKE.TECHC/46 Type description: E.tech Body: Platform / Chassis From date: 01-05-2000 Fuel: Diesel Approved: Yes
    Renault V.I. Model: Magnum Model series: 480.26 Size of motor: 12.0 Brand of engine: MACKE.TECHC/46 Type description: E.tech Body: Semi-Trailer From date: 01-05-2000 Fuel: Diesel Approved: Yes
    1 / 3
  • Beskrivning
    Voltage: 24
    kW: 7.5
    Mount. flange: 92.00
    Drive dist.: 47.00
    Mount. hole 3 mm: 14.00
    Mount. hole 2 mm: 14.00
    Mount. hole 1 mm: 14.00
    Dist./back: 286.50
    Dist./front: 60.00
    No./teeth: 11
    B+: M12
    Position/50: 15
    Terminal 50: M4
    Gear type: GR
    Dist. 2: 126.50
    Dist. 3: 126.50
    Dist. mm: 126.50
    Rotation: CW
    Total length mm: 380.00
    Prod. info: BN
    No./mount. holes: 3 (0)
  • Specifikation
    B+ M12
    No./teeth 11
    Mount. flange 92.00
    No./mount. holes 3 (0)
    Position/50 15
    Prod. info BN
    Dist. 2 126.50
    Dist. 3 126.50
    Rotation CW
    Dist./back 286.50
    Dist./front 60.00
    Drive dist. 47.00
    Gear type GR
    kW 7.5
    Terminal 50 M4
    Voltage 24
    Total length 380.00 mm
    Dist. 126.50 mm
    Mount. hole 3 14.00 mm
    Mount. hole 2 14.00 mm
    Mount. hole 1 14.00 mm
  • Fordonsmatchning
    • OEM

      cs1497, d13hp613, d13hp709, F032114100, M009T80071, M9T80071, M9T80272, 5001853716, 5010306631, 5010480432, 5010508382, 5010853716
    • Konkurrentreferens

      CST15604, CST35611, DRS0127, DRS0466, LRS02258, MITM9T80272, MS884, nd172, S3034, S5029, S5030, 8ea737677-001, 45-2488, 45-3429, 630.015.114, 4602, 19979N, 30251N, 106390, 106434, 220259, 220259A, 220567, 220567A, 220568, 220568A, 455723, 8212249, 11024450, 0986024450
    • Normaliserat artikelnummer

      cs1497, cst15604, cst35611, d13hp613, d13hp709, drs0127, drs0466, f032114100, lrs02258, m009t80071, m9t80071, m9t80272, mitm9t80272, ms884, nd172, s3034, s5029, s5030, 8ea737677001, 4602, 19979n, 30251n, 106390, 106434, 220259, 220259a, 220567, 220567a, 220568, 220568a, 452488, 453429, 455723, 8212249, 11024450, 630015114, 0986024450, 5001853716, 5010306631, 5010480432, 5010508382, 5010853716
    • Passar modeller

      Renault V.I. Model: Magnum Model series: 400.18 Size of motor: 12.0 Brand of engine: MACKE.TECHA/46 Type description: E.tech Body: Platform / Chassis From date: 01-05-2000 Fuel: Diesel Approved: Yes
      Renault V.I. Model: Magnum Model series: 400.18 Size of motor: 12.0 Brand of engine: MACKE.TECHA/46 Type description: E.tech Body: Semi-Trailer From date: 01-05-2000 Fuel: Diesel Approved: Yes
      Renault V.I. Model: Magnum Model series: 400.24 Size of motor: 12.0 Brand of engine: MACKE.TECHA/46 Type description: E.tech Body: Platform / Chassis From date: 01-05-2000 Fuel: Diesel Approved: Yes
      Renault V.I. Model: Magnum Model series: 400.26 Size of motor: 12.0 Brand of engine: MACKE.TECHA/46 Type description: E.tech Body: Platform / Chassis From date: 01-05-2000 Fuel: Diesel Approved: Yes
      Renault V.I. Model: Magnum Model series: 440.18 Size of motor: 12.0 Brand of engine: MACKE.TECHB/46 Type description: E.tech Body: Platform / Chassis From date: 01-05-2000 Fuel: Diesel Approved: Yes
      Renault V.I. Model: Magnum Model series: 440.18 Size of motor: 12.0 Brand of engine: MACKE.TECHB/46 Type description: E.tech Body: Semi-Trailer From date: 01-05-2000 Fuel: Diesel Approved: Yes
      Renault V.I. Model: Magnum Model series: 440.24 Size of motor: 12.0 Brand of engine: MACKE.TECHB/46 Type description: E.tech Body: Platform / Chassis From date: 01-05-2000 Fuel: Diesel Approved: Yes
      Renault V.I. Model: Magnum Model series: 440.26 Size of motor: 12.0 Brand of engine: MACKE.TECHB/46 Type description: E.tech Body: Platform / Chassis From date: 01-05-2000 Fuel: Diesel Approved: Yes
      Renault V.I. Model: Magnum Model series: 440.26 Size of motor: 12.0 Brand of engine: MACKE.TECHB/46 Type description: E.tech Body: Semi-Trailer From date: 01-05-2000 Fuel: Diesel Approved: Yes
      Renault V.I. Model: Magnum Model series: 480.18 Size of motor: 12.0 Brand of engine: MACKE.TECHC/46 Type description: E.tech Body: Platform / Chassis From date: 01-05-2000 Fuel: Diesel Approved: Yes
      Renault V.I. Model: Magnum Model series: 480.18 Size of motor: 12.0 Brand of engine: MACKE.TECHC/46 Type description: E.tech Body: Semi-Trailer From date: 01-05-2000 Fuel: Diesel Approved: Yes
      Renault V.I. Model: Magnum Model series: 480.24 Size of motor: 12.0 Brand of engine: MACKE.TECHC/46 Type description: E.tech Body: Platform / Chassis From date: 01-05-2000 Fuel: Diesel Approved: Yes
      Renault V.I. Model: Magnum Model series: 480.26 Size of motor: 12.0 Brand of engine: MACKE.TECHC/46 Type description: E.tech Body: Platform / Chassis From date: 01-05-2000 Fuel: Diesel Approved: Yes
      Renault V.I. Model: Magnum Model series: 480.26 Size of motor: 12.0 Brand of engine: MACKE.TECHC/46 Type description: E.tech Body: Semi-Trailer From date: 01-05-2000 Fuel: Diesel Approved: Yes
