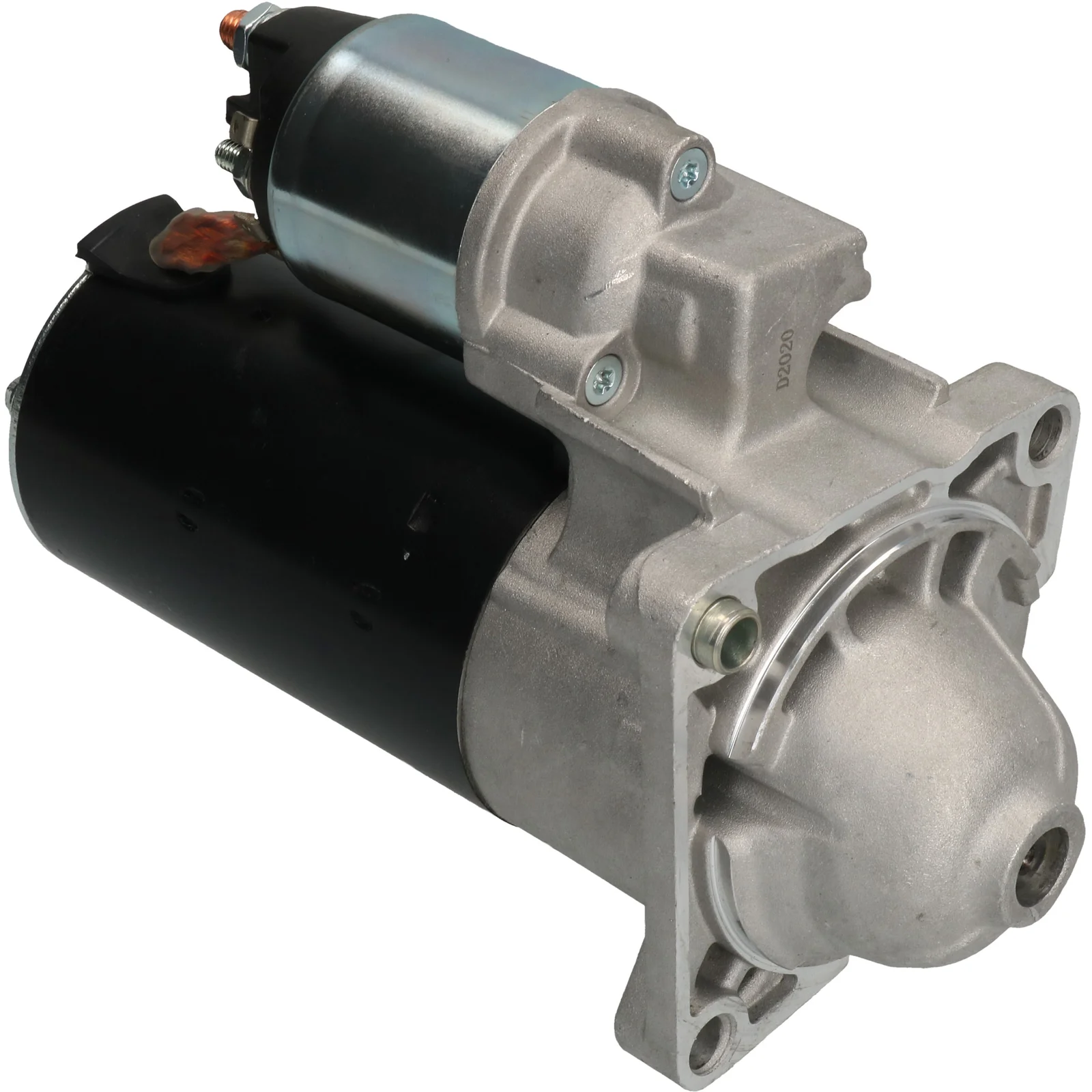

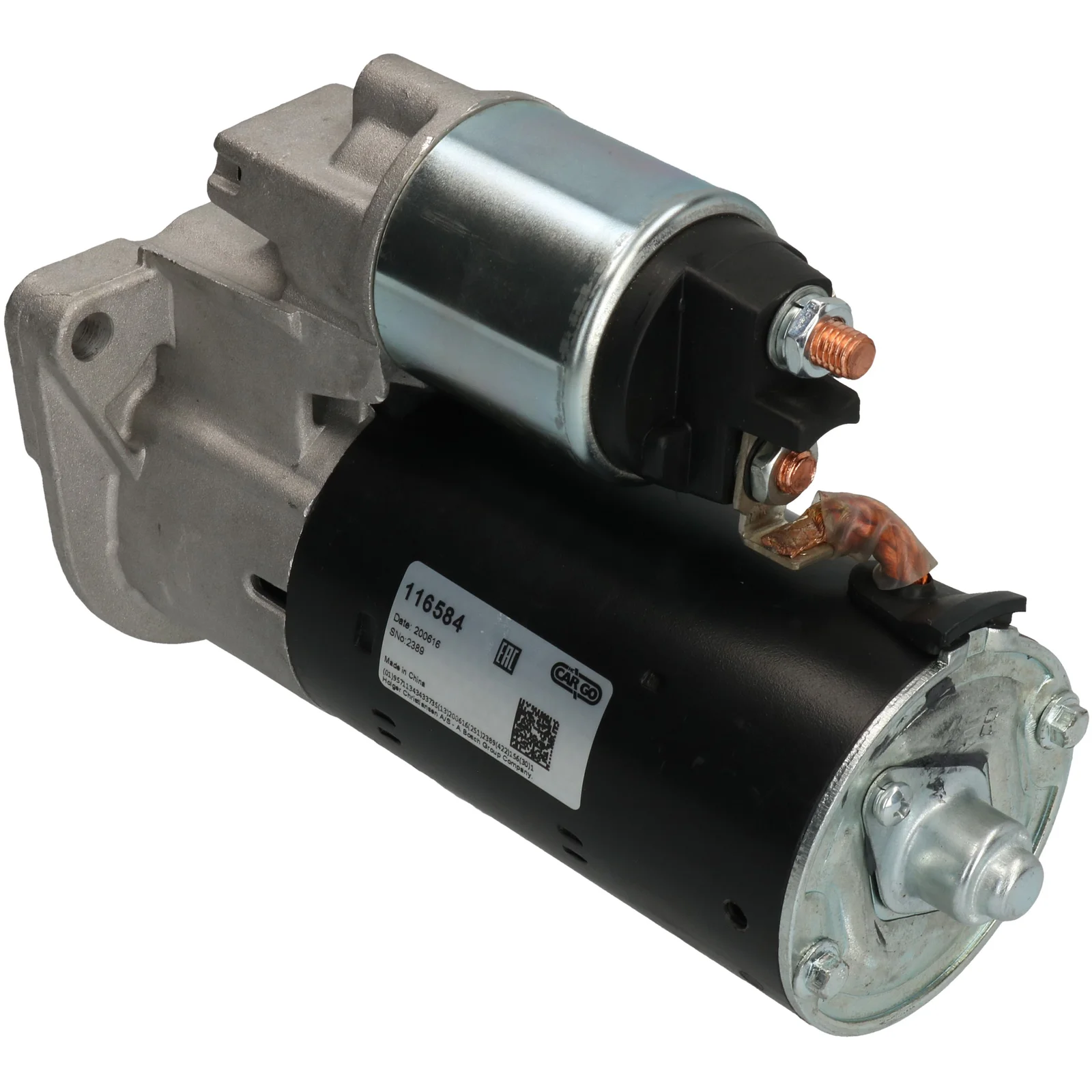

HC-Cargo Startmotor
HC-Cargo Startmotor
Artikelnr: F032116584

HC-Cargo Startmotor

Teknisk info:

Voltage: 12, kW: 2.2, No./teeth: 11, Rotation: CW

Beskrivning

HC-Cargo Startmotor 12V - 2.2kW, 11k

Voltage: 12
kW: 2.2
Mount. flange: 82.00
Drive dist.: 4.50
Mount. hole 3 mm: 8.40
Mount. hole 2 mm: 9.50
Mount. hole 1 mm: 9.50
Dist./back: 197.50
Dist./front: 39.50
No./teeth: 11
B+: M8
Position/B+: 60
Position/50: 15
Terminal 50: M6
Gear type: GR
Dist. 2: 82.50
Dist. 3: 82.50
Dist. mm: 116.00
Rotation: CW
Total length mm: 237.00
No./mount. holes: 3 (0)

Filer

Specifikation

B+ M8
No./teeth 11
Mount. flange 82.00
No./mount. holes 3 (0)
Position/50 15
Position/B+ 60
Dist. 2 82.50
Dist. 3 82.50
Rotation CW
Dist./back 197.50
Dist./front 39.50
Drive dist. 4.50
Gear type GR
kW 2.2
Terminal 50 M6
Voltage 12
Total length 237.00 mm
Dist. 116.00 mm
Mount. hole 3 8.40 mm
Mount. hole 2 9.50 mm
Mount. hole 1 9.50 mm

  • OEM
    F032116584, 0001 148 003, 0001 148 004, 1986S00860, 116584, 0001148003, 0001148004, 1202216, 55572065

  • Konkurrentreferens
    CST10534, DRS0549, LRS02591, S0621S, 25-4263, 130.563.113, 328.071.112, 19241N, 220806, 220806A, 255278, 438573, 11090192, 42025550, 0986025550

  • Bilmärken
    Opel

  • Normaliserat artikelnummer
    cst10534, drs0549, f032116584, lrs02591, s0621s, 1986s00860, 19241n, 116584, 220806, 220806a, 254263, 255278, 438573, 0001148003, 0001148004, 1202216, 11090192, 42025550, 55572065, 130563113, 328071112, 0986025550

  • Passar modeller
    Opel Model: Astra Model series: Astra J GTC Model type: CDTI (08) Type of engine: Diesel Size of motor: 2.0 Brand of engine: A20DTH Body: Hatchback Fuel: Diesel Approved: Yes
    Opel Model: Astra Model series: Astra J Model type: CDTi Type of engine: Diesel Size of motor: 2.0 Brand of engine: A20DTH Type description: P10 Body: Hatchback Fuel: Diesel Approved: Yes
    Opel Model: Astra Model series: Astra J Model type: Sports Tourer Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTH Body: Estate From date: 01-08-2011 To date: 01-10-2015 Fuel: Diesel Approved: Yes Manufacture type: Sports Tou
    Opel Model: Astra Model series: Astra J Model type: Sports tourer Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTH Type description: P10 Body: Estate From date: 01-01-2014 To date: 01-10-2015 Fuel: Diesel Approved: Yes Manufacture type: Sports tou
    Opel Model: Astra Model series: Astra J Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTH Type description: P10 Body: Box Body / Estate From date: 01-10-2012 To date: 01-10-2015 Fuel: Diesel Approved: Yes
    Opel Model: Insignia Model series: Insignia Country Tourer Model type: 4x4 Type of engine: CDTI Size of motor: 2.0 Brand of engine: A20DTH Type description: G09 Body: Estate From date: 01-09-2013 To date: 01-03-2017 Fuel: Diesel Approved: Yes Manufacture type: Country To
    Opel Model: Insignia Model series: Insignia Country Tourer Model type: 4x4 Type of engine: CDTI Size of motor: 2.0 Brand of engine: A20DTR Type description: G09 Body: Estate From date: 01-09-2013 To date: 01-03-2017 Fuel: Diesel Approved: Yes Manufacture type: Country To
    Opel Model: Insignia Model series: Insignia Country Tourer Type of engine: CDTI Size of motor: 2.0 Brand of engine: A20DT Type description: G09 Body: Estate From date: 01-07-2008 To date: 01-03-2017 Fuel: Diesel Approved: Yes Manufacture type: Country To
    Opel Model: Insignia Model series: Insignia Country Tourer Type of engine: CDTI Size of motor: 2.0 Brand of engine: A20DTE Type description: G09 Body: Estate From date: 01-03-2012 To date: 01-03-2017 Fuel: Diesel Approved: Yes Manufacture type: Country To
    Opel Model: Insignia Model series: Insignia Country Tourer Type of engine: CDTI Size of motor: 2.0 Brand of engine: A20DTH Type description: G09 Body: Estate From date: 01-07-2014 To date: 01-03-2017 Fuel: Diesel Approved: Yes Manufacture type: Country To
    Opel Model: Insignia Model series: Insignia Country Tourer Type of engine: CDTI Size of motor: 2.0 Brand of engine: A20DTJ Type description: G09 Body: Estate From date: 01-07-2008 To date: 01-03-2017 Fuel: Diesel Approved: Yes Manufacture type: Country To
    Opel Model: Insignia Model series: Insignia Model type: Sports Tourer Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTE Body: Estate From date: 01-07-2013 To date: 01-06-2015 Fuel: Diesel Approved: Yes Manufacture type: Sports tou
    Opel Model: Insignia Model series: Insignia Type of engine: CDTI Size of motor: 2.0 Brand of engine: A20DTE Body: Estate From date: 01-03-2012 To date: 01-06-2015 Fuel: Diesel Approved: Yes Manufacture type: Sports Tou
    Opel Model: Insignia Model series: Insignia Type of engine: CDTI Size of motor: 2.0 Brand of engine: A20DTE Body: Hatchback From date: 01-03-2012 To date: 01-03-2017 Fuel: Diesel Approved: Yes
    Opel Model: Insignia Model series: Insignia Type of engine: CDTI Size of motor: 2.0 Brand of engine: A20DTE From date: 01-03-2012 To date: 01-03-2017 Fuel: Diesel Approved: Yes
    Opel Model: Insignia Model series: Insignia Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTH Body: Hatchback From date: 01-07-2013 To date: 01-03-2017 Fuel: Diesel Approved: Yes
    Opel Model: Zafira Tourer C Van Model series: Zafira Tourer C Van Model type: 75 Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DT,Z20DTJ,Y20DTJ Type description: P12 Body: Van From date: 01-01-2012 Fuel: Diesel Approved: Yes
    Opel Model: Zafira Tourer C Van Model series: Zafira Tourer C Van Model type: 75 Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTH Type description: P12 Body: Van From date: 01-01-2013 Fuel: Diesel Approved: Yes
    Opel Model: Zafira Tourer C Van Model series: Zafira Tourer C Van Model type: 75 Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTL Type description: P12 Body: Van From date: 01-01-2013 Fuel: Diesel Approved: Yes
    Opel Series: Astra Sports Tourer Model: 2.0 CDTI Engine volume: 2.0 Engine type: A 20 DTH Year: 08.11-10.15
    Opel Series: ASTRA J GTC Model: 2.0 CDTI Engine volume: 2.0 Engine type: A 20 DTH Year: 01.12-10.15
    Opel Series: ASTRA J Skåp / kombi Model: 2.0 CDTi Engine volume: 2.0 Engine type: A 20 DTH Year: 10.12-10.15
    Opel Series: ASTRA J Sports Toure Model: 2.0 CDTI (35) Engine volume: 2.0 Engine type: A 20 DTH Year: 01.14-10.15
    Opel Series: INSIGNIA A Country Model: 2.0 CDTi 4x4 Engine volume: 2.0 Engine type: A 20 DTH Year: 09.13-03.17
    Opel Series: INSIGNIA A Country Model: 2.0 CDTi 4x4 Engine volume: 2.0 Engine type: A 20 DTR Year: 09.13-03.17
    Opel Series: INSIGNIA A Country Model: 2.0 CDTi Engine volume: 2.0 Engine type: A 20 DT/A 20 DTJ Year: 07.08-03.17
    Opel Series: INSIGNIA A Country Model: 2.0 CDTi Engine volume: 2.0 Engine type: A 20 DTE Year: 03.12-03.17
    Opel Series: INSIGNIA A Country Model: 2.0 CDTi Engine volume: 2.0 Engine type: A 20 DTH Year: 07.14-03.17
    Opel Series: INSIGNIA A Model: 2.0 CDTI Engine volume: 2.0 Engine type: A 20 DTE Year: 03.12-03.17
    Opel Series: INSIGNIA A SEDAN Model: 2.0 CDTI Engine volume: 2.0 Engine type: A 20 DTE Year: 03.12-03.17
    Opel Series: INSIGNIA A Sprt Tour Model: 2.0 CDTI (35) Engine volume: 2.0 Engine type: A 20 DTE Year: 03.12-06.15
    Opel Series: Insignia Model: 2.0 CDTI Engine volume: 2.0 Engine type: A 20 DTH Year: 07.13-03.17
    Opel Series: Insignia Sports Tour Model: 2.0 CDTI Engine volume: 2.0 Engine type: A 20 DTE Year: 07.13-06.15
    Opel Series: ZAFIRA TOURER C VAN Model: 2.0 CDTI Engine volume: 2.0 Engine type: A 13 DTH Year: 01.13-
    Opel Series: Zafira Tourer C VAN Model: 2.0 CDTI Engine volume: 2.0 Engine type: A 20 DTL Year: 01.13-
    Opel Series: ZAFIRA TOURER C VAN Model: 2.0 CDTi Engine volume: 2.0 Engine type: A20DT/Y20DTJ/Z20DTJ Year: 01.12-
    Vauxhall Model: Insignia Model series: Insignia MK I Model type: 4x4 Type of engine: Biturbo Size of motor: 2.0 Brand of engine: A20DTR Type description: A G09 Body: Estate From date: 01-09-2013 To date: 01-05-2017 Fuel: Diesel Approved: Yes Manufacture type: Country To
    Vauxhall Model: Insignia Model series: Insignia MK I Model type: 4x4 Type of engine: CDTI Size of motor: 2.0 Brand of engine: A20DTH Type description: A G09 Body: Estate From date: 01-07-2013 To date: 01-05-2017 Fuel: Diesel Approved: Yes Manufacture type: Country To
    Vauxhall Model: Insignia Model series: Insignia MK I Type of engine: CDTI Size of motor: 2.0 Brand of engine: A20DTH Type description: A G09 Body: Estate From date: 01-07-2013 To date: 01-05-2017 Fuel: Diesel Approved: Yes Manufacture type: Country To
    Vauxhall Model: Insignia Model series: Insignia Model type: Sports tourer Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTE Body: Estate From date: 01-07-2013 To date: 01-05-2017 Fuel: Diesel Approved: Yes Manufacture type: Sports tou
    Vauxhall Model: Insignia Model series: Insignia Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTE Body: Hatchback From date: 01-07-2013 To date: 01-05-2017 Fuel: Diesel Approved: Yes
    1 / 9
  • Beskrivning
    HC-Cargo Startmotor 12V - 2.2kW, 11k

    Voltage: 12
    kW: 2.2
    Mount. flange: 82.00
    Drive dist.: 4.50
    Mount. hole 3 mm: 8.40
    Mount. hole 2 mm: 9.50
    Mount. hole 1 mm: 9.50
    Dist./back: 197.50
    Dist./front: 39.50
    No./teeth: 11
    B+: M8
    Position/B+: 60
    Position/50: 15
    Terminal 50: M6
    Gear type: GR
    Dist. 2: 82.50
    Dist. 3: 82.50
    Dist. mm: 116.00
    Rotation: CW
    Total length mm: 237.00
    No./mount. holes: 3 (0)

    Filer

  • Specifikation
    B+ M8
    No./teeth 11
    Mount. flange 82.00
    No./mount. holes 3 (0)
    Position/50 15
    Position/B+ 60
    Dist. 2 82.50
    Dist. 3 82.50
    Rotation CW
    Dist./back 197.50
    Dist./front 39.50
    Drive dist. 4.50
    Gear type GR
    kW 2.2
    Terminal 50 M6
    Voltage 12
    Total length 237.00 mm
    Dist. 116.00 mm
    Mount. hole 3 8.40 mm
    Mount. hole 2 9.50 mm
    Mount. hole 1 9.50 mm
  • Fordonsmatchning

    • OEM
      F032116584, 0001 148 003, 0001 148 004, 1986S00860, 116584, 0001148003, 0001148004, 1202216, 55572065

    • Konkurrentreferens
      CST10534, DRS0549, LRS02591, S0621S, 25-4263, 130.563.113, 328.071.112, 19241N, 220806, 220806A, 255278, 438573, 11090192, 42025550, 0986025550

    • Bilmärken
      Opel

    • Normaliserat artikelnummer
      cst10534, drs0549, f032116584, lrs02591, s0621s, 1986s00860, 19241n, 116584, 220806, 220806a, 254263, 255278, 438573, 0001148003, 0001148004, 1202216, 11090192, 42025550, 55572065, 130563113, 328071112, 0986025550

    • Passar modeller
      Opel Model: Astra Model series: Astra J GTC Model type: CDTI (08) Type of engine: Diesel Size of motor: 2.0 Brand of engine: A20DTH Body: Hatchback Fuel: Diesel Approved: Yes
      Opel Model: Astra Model series: Astra J Model type: CDTi Type of engine: Diesel Size of motor: 2.0 Brand of engine: A20DTH Type description: P10 Body: Hatchback Fuel: Diesel Approved: Yes
      Opel Model: Astra Model series: Astra J Model type: Sports Tourer Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTH Body: Estate From date: 01-08-2011 To date: 01-10-2015 Fuel: Diesel Approved: Yes Manufacture type: Sports Tou
      Opel Model: Astra Model series: Astra J Model type: Sports tourer Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTH Type description: P10 Body: Estate From date: 01-01-2014 To date: 01-10-2015 Fuel: Diesel Approved: Yes Manufacture type: Sports tou
      Opel Model: Astra Model series: Astra J Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTH Type description: P10 Body: Box Body / Estate From date: 01-10-2012 To date: 01-10-2015 Fuel: Diesel Approved: Yes
      Opel Model: Insignia Model series: Insignia Country Tourer Model type: 4x4 Type of engine: CDTI Size of motor: 2.0 Brand of engine: A20DTH Type description: G09 Body: Estate From date: 01-09-2013 To date: 01-03-2017 Fuel: Diesel Approved: Yes Manufacture type: Country To
      Opel Model: Insignia Model series: Insignia Country Tourer Model type: 4x4 Type of engine: CDTI Size of motor: 2.0 Brand of engine: A20DTR Type description: G09 Body: Estate From date: 01-09-2013 To date: 01-03-2017 Fuel: Diesel Approved: Yes Manufacture type: Country To
      Opel Model: Insignia Model series: Insignia Country Tourer Type of engine: CDTI Size of motor: 2.0 Brand of engine: A20DT Type description: G09 Body: Estate From date: 01-07-2008 To date: 01-03-2017 Fuel: Diesel Approved: Yes Manufacture type: Country To
      Opel Model: Insignia Model series: Insignia Country Tourer Type of engine: CDTI Size of motor: 2.0 Brand of engine: A20DTE Type description: G09 Body: Estate From date: 01-03-2012 To date: 01-03-2017 Fuel: Diesel Approved: Yes Manufacture type: Country To
      Opel Model: Insignia Model series: Insignia Country Tourer Type of engine: CDTI Size of motor: 2.0 Brand of engine: A20DTH Type description: G09 Body: Estate From date: 01-07-2014 To date: 01-03-2017 Fuel: Diesel Approved: Yes Manufacture type: Country To
      Opel Model: Insignia Model series: Insignia Country Tourer Type of engine: CDTI Size of motor: 2.0 Brand of engine: A20DTJ Type description: G09 Body: Estate From date: 01-07-2008 To date: 01-03-2017 Fuel: Diesel Approved: Yes Manufacture type: Country To
      Opel Model: Insignia Model series: Insignia Model type: Sports Tourer Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTE Body: Estate From date: 01-07-2013 To date: 01-06-2015 Fuel: Diesel Approved: Yes Manufacture type: Sports tou
      Opel Model: Insignia Model series: Insignia Type of engine: CDTI Size of motor: 2.0 Brand of engine: A20DTE Body: Estate From date: 01-03-2012 To date: 01-06-2015 Fuel: Diesel Approved: Yes Manufacture type: Sports Tou
      Opel Model: Insignia Model series: Insignia Type of engine: CDTI Size of motor: 2.0 Brand of engine: A20DTE Body: Hatchback From date: 01-03-2012 To date: 01-03-2017 Fuel: Diesel Approved: Yes
      Opel Model: Insignia Model series: Insignia Type of engine: CDTI Size of motor: 2.0 Brand of engine: A20DTE From date: 01-03-2012 To date: 01-03-2017 Fuel: Diesel Approved: Yes
      Opel Model: Insignia Model series: Insignia Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTH Body: Hatchback From date: 01-07-2013 To date: 01-03-2017 Fuel: Diesel Approved: Yes
      Opel Model: Zafira Tourer C Van Model series: Zafira Tourer C Van Model type: 75 Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DT,Z20DTJ,Y20DTJ Type description: P12 Body: Van From date: 01-01-2012 Fuel: Diesel Approved: Yes
      Opel Model: Zafira Tourer C Van Model series: Zafira Tourer C Van Model type: 75 Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTH Type description: P12 Body: Van From date: 01-01-2013 Fuel: Diesel Approved: Yes
      Opel Model: Zafira Tourer C Van Model series: Zafira Tourer C Van Model type: 75 Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTL Type description: P12 Body: Van From date: 01-01-2013 Fuel: Diesel Approved: Yes
      Opel Series: Astra Sports Tourer Model: 2.0 CDTI Engine volume: 2.0 Engine type: A 20 DTH Year: 08.11-10.15
      Opel Series: ASTRA J GTC Model: 2.0 CDTI Engine volume: 2.0 Engine type: A 20 DTH Year: 01.12-10.15
      Opel Series: ASTRA J Skåp / kombi Model: 2.0 CDTi Engine volume: 2.0 Engine type: A 20 DTH Year: 10.12-10.15
      Opel Series: ASTRA J Sports Toure Model: 2.0 CDTI (35) Engine volume: 2.0 Engine type: A 20 DTH Year: 01.14-10.15
      Opel Series: INSIGNIA A Country Model: 2.0 CDTi 4x4 Engine volume: 2.0 Engine type: A 20 DTH Year: 09.13-03.17
      Opel Series: INSIGNIA A Country Model: 2.0 CDTi 4x4 Engine volume: 2.0 Engine type: A 20 DTR Year: 09.13-03.17
      Opel Series: INSIGNIA A Country Model: 2.0 CDTi Engine volume: 2.0 Engine type: A 20 DT/A 20 DTJ Year: 07.08-03.17
      Opel Series: INSIGNIA A Country Model: 2.0 CDTi Engine volume: 2.0 Engine type: A 20 DTE Year: 03.12-03.17
      Opel Series: INSIGNIA A Country Model: 2.0 CDTi Engine volume: 2.0 Engine type: A 20 DTH Year: 07.14-03.17
      Opel Series: INSIGNIA A Model: 2.0 CDTI Engine volume: 2.0 Engine type: A 20 DTE Year: 03.12-03.17
      Opel Series: INSIGNIA A SEDAN Model: 2.0 CDTI Engine volume: 2.0 Engine type: A 20 DTE Year: 03.12-03.17
      Opel Series: INSIGNIA A Sprt Tour Model: 2.0 CDTI (35) Engine volume: 2.0 Engine type: A 20 DTE Year: 03.12-06.15
      Opel Series: Insignia Model: 2.0 CDTI Engine volume: 2.0 Engine type: A 20 DTH Year: 07.13-03.17
      Opel Series: Insignia Sports Tour Model: 2.0 CDTI Engine volume: 2.0 Engine type: A 20 DTE Year: 07.13-06.15
      Opel Series: ZAFIRA TOURER C VAN Model: 2.0 CDTI Engine volume: 2.0 Engine type: A 13 DTH Year: 01.13-
      Opel Series: Zafira Tourer C VAN Model: 2.0 CDTI Engine volume: 2.0 Engine type: A 20 DTL Year: 01.13-
      Opel Series: ZAFIRA TOURER C VAN Model: 2.0 CDTi Engine volume: 2.0 Engine type: A20DT/Y20DTJ/Z20DTJ Year: 01.12-
      Vauxhall Model: Insignia Model series: Insignia MK I Model type: 4x4 Type of engine: Biturbo Size of motor: 2.0 Brand of engine: A20DTR Type description: A G09 Body: Estate From date: 01-09-2013 To date: 01-05-2017 Fuel: Diesel Approved: Yes Manufacture type: Country To
      Vauxhall Model: Insignia Model series: Insignia MK I Model type: 4x4 Type of engine: CDTI Size of motor: 2.0 Brand of engine: A20DTH Type description: A G09 Body: Estate From date: 01-07-2013 To date: 01-05-2017 Fuel: Diesel Approved: Yes Manufacture type: Country To
      Vauxhall Model: Insignia Model series: Insignia MK I Type of engine: CDTI Size of motor: 2.0 Brand of engine: A20DTH Type description: A G09 Body: Estate From date: 01-07-2013 To date: 01-05-2017 Fuel: Diesel Approved: Yes Manufacture type: Country To
      Vauxhall Model: Insignia Model series: Insignia Model type: Sports tourer Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTE Body: Estate From date: 01-07-2013 To date: 01-05-2017 Fuel: Diesel Approved: Yes Manufacture type: Sports tou
      Vauxhall Model: Insignia Model series: Insignia Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTE Body: Hatchback From date: 01-07-2013 To date: 01-05-2017 Fuel: Diesel Approved: Yes
      1 / 9
