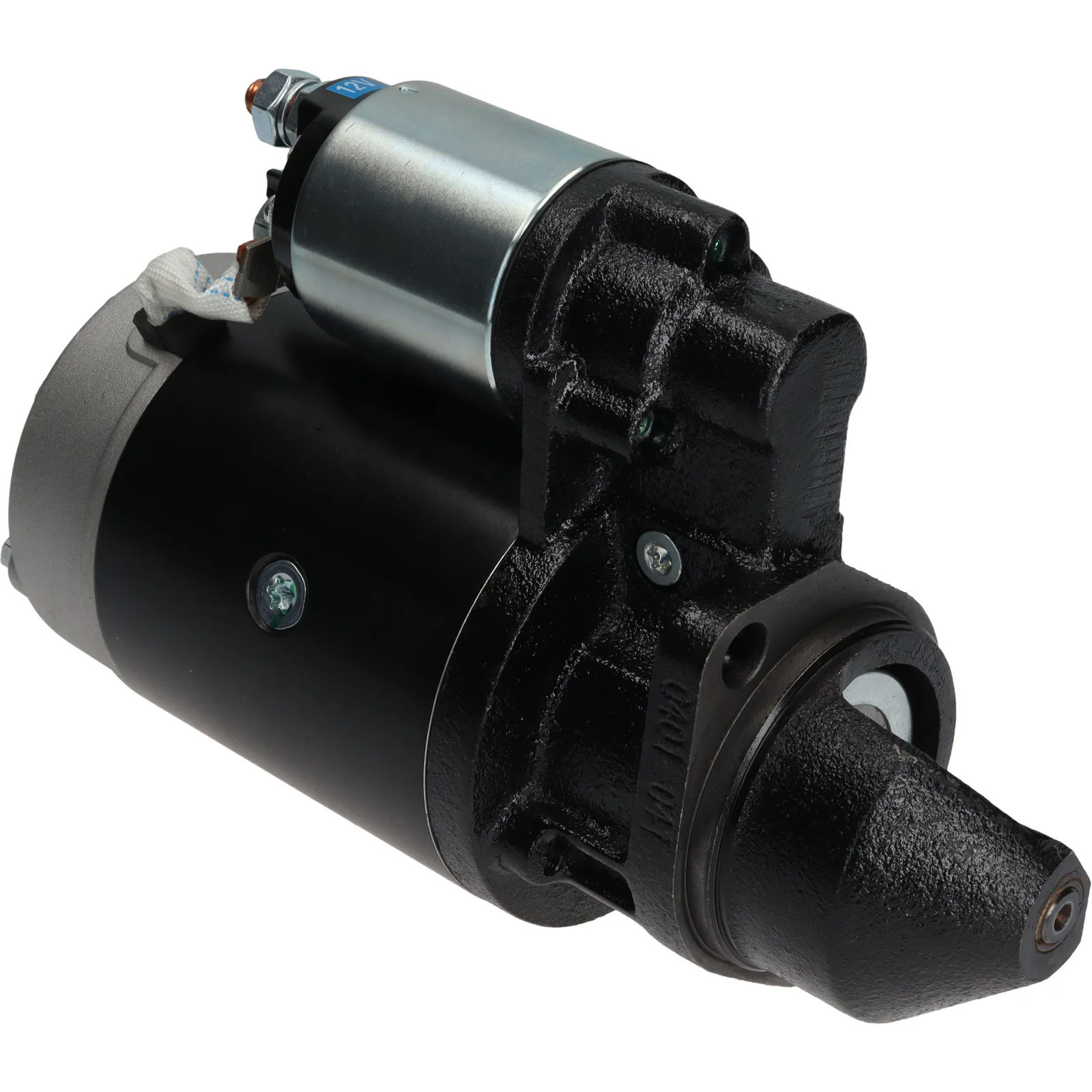

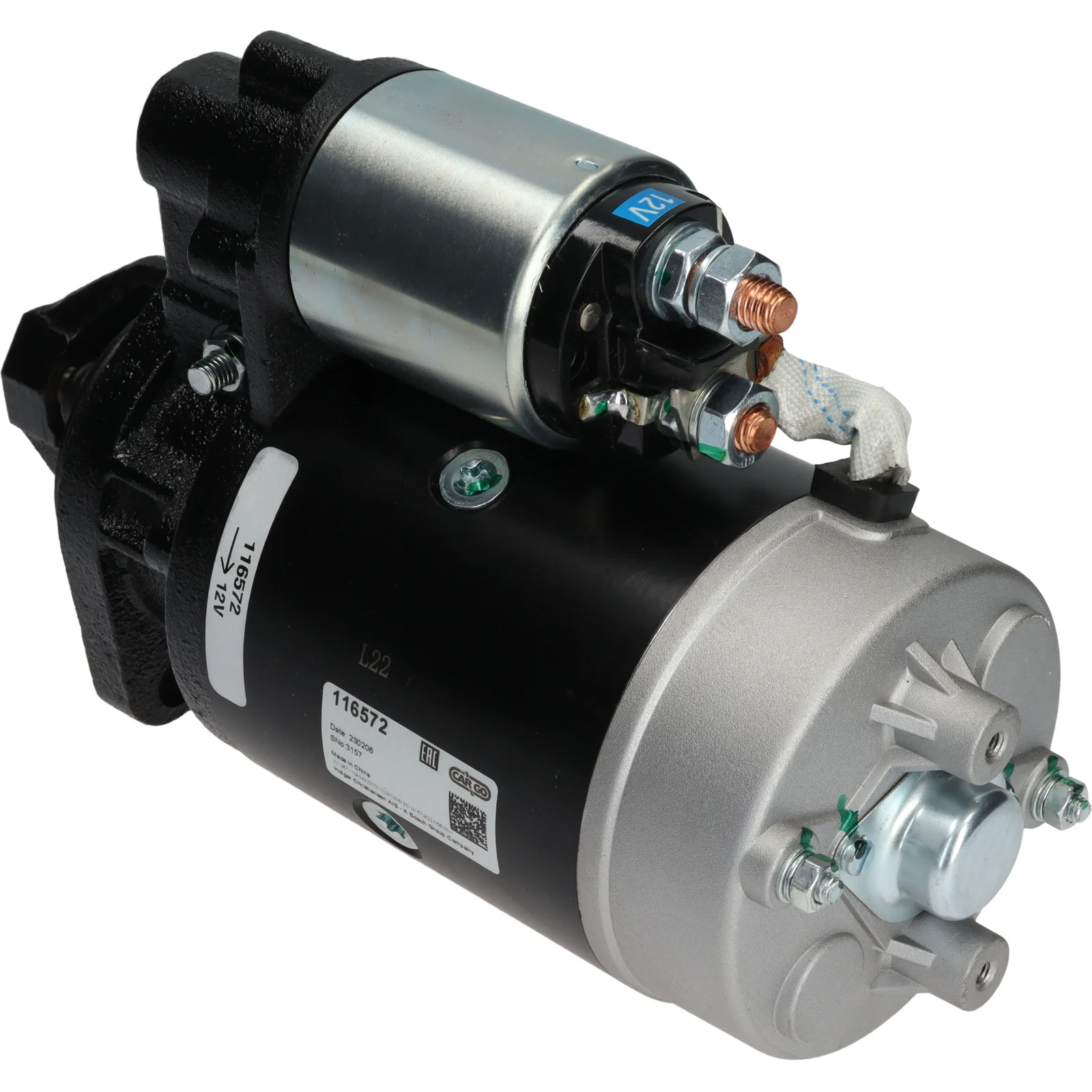

HC-Cargo Startmotor
HC-Cargo Startmotor
Artikelnr: F032116572

HC-Cargo Startmotor

Teknisk info:

Voltage: 12, kW: 2.4, No./teeth: 9, Rotation: CW

Beskrivning

Voltage: 12
kW: 2.4
Mount. flange: 82.50
Drive dist.: 22.00
Mount. hole 2 mm: 13.50
Mount. hole 1 mm: 13.50
Dist./back: 226.50
Dist./front: 67.50
No./teeth: 9
B+: M10
Position/B+: 60
Position/50: 15
Terminal 50: M4
Gear type: GR
Dist. mm: 105.00
Rotation: CW
Total length mm: 294.00
No./mount. holes: 2 (0)

Filer

Specifikation

B+ M10
No./teeth 9
Mount. flange 82.50
No./mount. holes 2 (0)
Position/50 15
Position/B+ 60
Rotation CW
Dist./back 226.50
Dist./front 67.50
Drive dist. 22.00
Gear type GR
kW 2.4
Terminal 50 M4
Voltage 12
Total length 294.00 mm
Dist. 105.00 mm
Mount. hole 2 13.50 mm
Mount. hole 1 13.50 mm

  • OEM
    F032116572, 01162510, 1162510, 01164414, 1164414, 0001362013, 0001362024, 0001362041

  • Konkurrentreferens
    CST10322, drs1010, lrs00567, MSR736, S0582, 8ea730223-001, 25-0251, 88-11.010, 510.506.092, 688.005.092, 4106, 10707, 33366, 103424, 8811010, 11011010, 943252275, 0986011010, 0986011017

  • Normaliserat artikelnummer
    cst10322, drs1010, f032116572, lrs00567, msr736, s0582, 8ea730223001, 4106, 10707, 33366, 103424, 250251, 01162510, 1162510, 01164414, 1164414, 0001362013, 0001362024, 0001362041, 8811010, 11011010, 510506092, 688005092, 943252275, 0986011010, 0986011017

  • Passar modeller
    Deutz-Fahr Model: D06 Model series: D2506 Size of motor: 1.9 Brand of engine: F2L912 Body: Tractor From date: 01-01-1968 To date: 01-12-1982 Fuel: Diesel Approved: Yes
    Deutz-Fahr Model: D07 Model series: D2807 Size of motor: 1.9 Brand of engine: F2L912 Body: Tractor From date: 01-01-1982 To date: 01-12-1984 Fuel: Diesel Approved: Yes
    Deutz-Fahr Model: D07 Model series: D3607 Size of motor: 1.9 Brand of engine: F2L912 Body: Tractor From date: 01-01-1982 To date: 01-12-1984 Fuel: Diesel Approved: Yes
    Deutz-Fahr Model: DX Model series: 3.60 Size of motor: 3.8 Brand of engine: F4L912 Body: Tractor From date: 01-01-1986 To date: 01-12-1995 Fuel: Diesel Approved: Yes
    Deutz-Fahr Model: DX Model series: 3.70 Size of motor: 3.8 Brand of engine: F4L912 Body: Tractor From date: 01-01-1985 To date: 01-12-1989 Fuel: Diesel Approved: Yes
    Kramer Model: KL-Serie Model series: KL 260 Size of motor: 1.9 Brand of engine: F2L912 Body: Tractor From date: 01-01-1968 To date: 01-12-1969 Fuel: Diesel Approved: Yes
    Kramer Model: KL-Serie Model series: KL 300 Size of motor: 1.9 Brand of engine: F2L912 Body: Tractor From date: 01-01-1968 To date: 01-12-1970 Fuel: Diesel Approved: Yes
    1 / 2
  • Beskrivning
    Voltage: 12
    kW: 2.4
    Mount. flange: 82.50
    Drive dist.: 22.00
    Mount. hole 2 mm: 13.50
    Mount. hole 1 mm: 13.50
    Dist./back: 226.50
    Dist./front: 67.50
    No./teeth: 9
    B+: M10
    Position/B+: 60
    Position/50: 15
    Terminal 50: M4
    Gear type: GR
    Dist. mm: 105.00
    Rotation: CW
    Total length mm: 294.00
    No./mount. holes: 2 (0)

    Filer

  • Specifikation
    B+ M10
    No./teeth 9
    Mount. flange 82.50
    No./mount. holes 2 (0)
    Position/50 15
    Position/B+ 60
    Rotation CW
    Dist./back 226.50
    Dist./front 67.50
    Drive dist. 22.00
    Gear type GR
    kW 2.4
    Terminal 50 M4
    Voltage 12
    Total length 294.00 mm
    Dist. 105.00 mm
    Mount. hole 2 13.50 mm
    Mount. hole 1 13.50 mm
  • Fordonsmatchning

    • OEM
      F032116572, 01162510, 1162510, 01164414, 1164414, 0001362013, 0001362024, 0001362041

    • Konkurrentreferens
      CST10322, drs1010, lrs00567, MSR736, S0582, 8ea730223-001, 25-0251, 88-11.010, 510.506.092, 688.005.092, 4106, 10707, 33366, 103424, 8811010, 11011010, 943252275, 0986011010, 0986011017

    • Normaliserat artikelnummer
      cst10322, drs1010, f032116572, lrs00567, msr736, s0582, 8ea730223001, 4106, 10707, 33366, 103424, 250251, 01162510, 1162510, 01164414, 1164414, 0001362013, 0001362024, 0001362041, 8811010, 11011010, 510506092, 688005092, 943252275, 0986011010, 0986011017

    • Passar modeller
      Deutz-Fahr Model: D06 Model series: D2506 Size of motor: 1.9 Brand of engine: F2L912 Body: Tractor From date: 01-01-1968 To date: 01-12-1982 Fuel: Diesel Approved: Yes
      Deutz-Fahr Model: D07 Model series: D2807 Size of motor: 1.9 Brand of engine: F2L912 Body: Tractor From date: 01-01-1982 To date: 01-12-1984 Fuel: Diesel Approved: Yes
      Deutz-Fahr Model: D07 Model series: D3607 Size of motor: 1.9 Brand of engine: F2L912 Body: Tractor From date: 01-01-1982 To date: 01-12-1984 Fuel: Diesel Approved: Yes
      Deutz-Fahr Model: DX Model series: 3.60 Size of motor: 3.8 Brand of engine: F4L912 Body: Tractor From date: 01-01-1986 To date: 01-12-1995 Fuel: Diesel Approved: Yes
      Deutz-Fahr Model: DX Model series: 3.70 Size of motor: 3.8 Brand of engine: F4L912 Body: Tractor From date: 01-01-1985 To date: 01-12-1989 Fuel: Diesel Approved: Yes
      Kramer Model: KL-Serie Model series: KL 260 Size of motor: 1.9 Brand of engine: F2L912 Body: Tractor From date: 01-01-1968 To date: 01-12-1969 Fuel: Diesel Approved: Yes
      Kramer Model: KL-Serie Model series: KL 300 Size of motor: 1.9 Brand of engine: F2L912 Body: Tractor From date: 01-01-1968 To date: 01-12-1970 Fuel: Diesel Approved: Yes
      1 / 2
