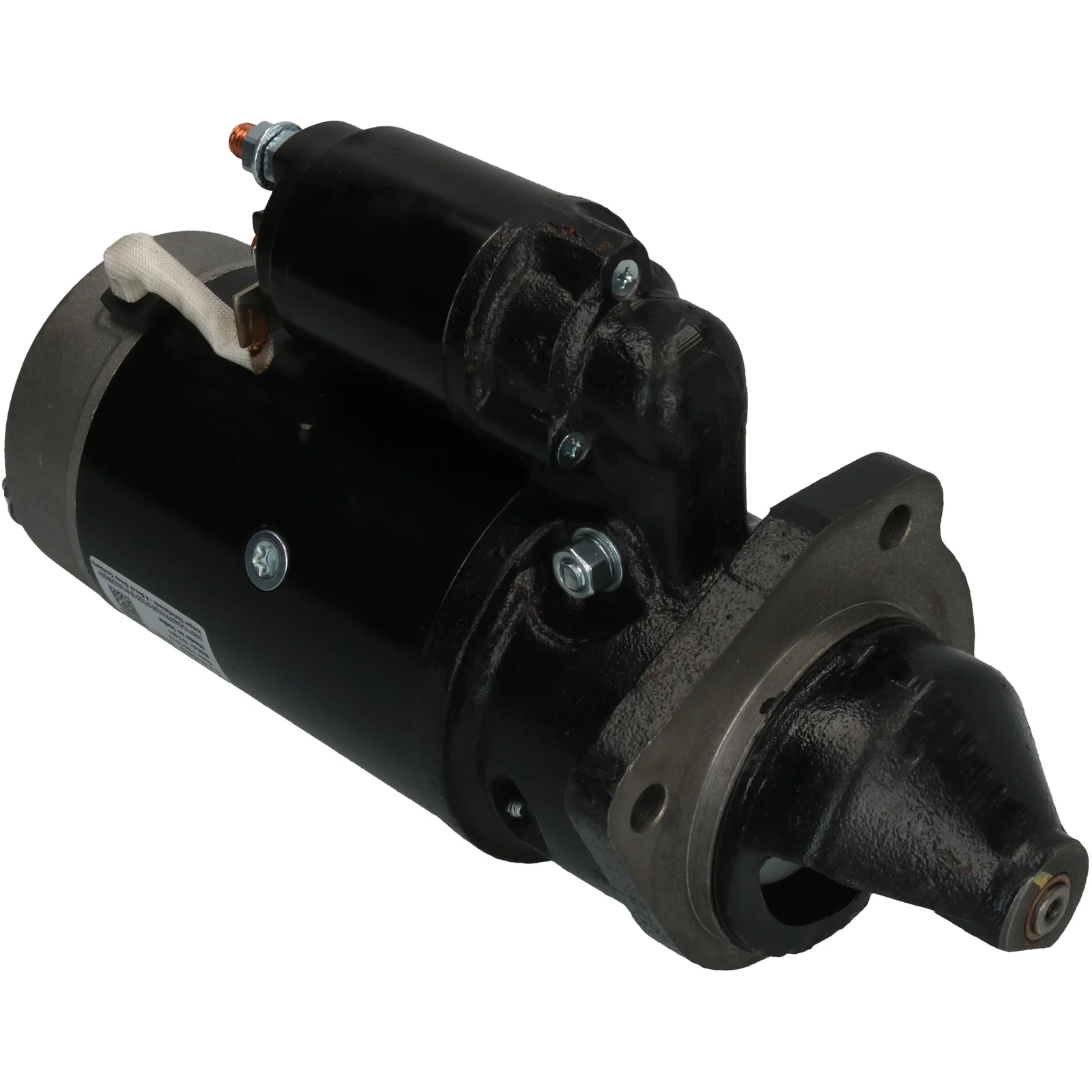

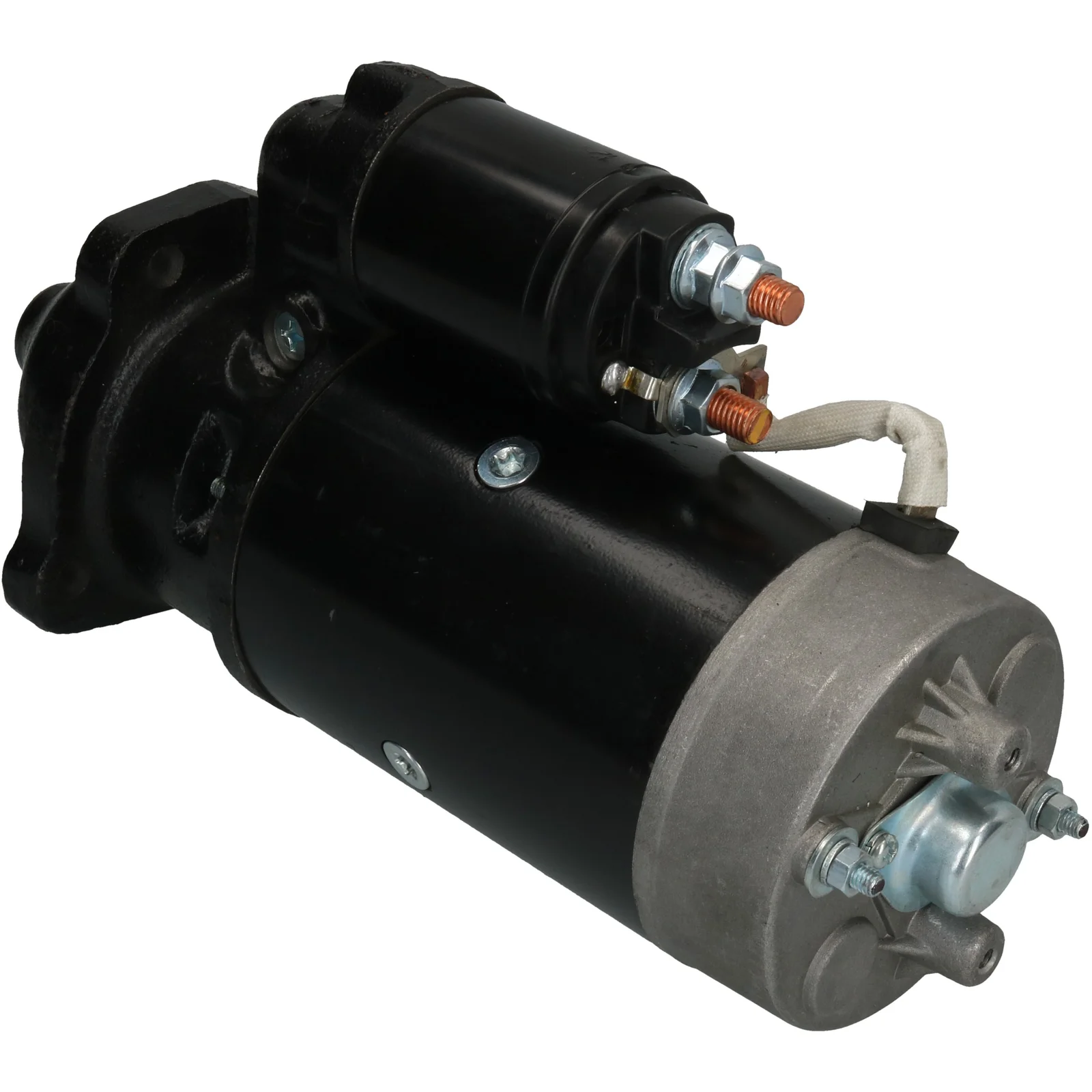

HC-Cargo Startmotor
HC-Cargo Startmotor
Artikelnr: F032116496

HC-Cargo Startmotor

Teknisk info:

Voltage: 12, kW: 3.0, No./teeth: 9, Rotation: CW

Beskrivning

Voltage: 12
kW: 3.0
Mount. flange: 89.00
Drive dist.: 21.00
Mount. hole 3 mm: 11.50
Mount. hole 2 mm: 11.50
Mount. hole 1 mm: 11.50
Dist./back: 273.00
Dist./front: 70.00
No./teeth: 9
B+: M10
Position/B+: 60
Position/50: 15
Terminal 50: M4
Gear type: DD
Dist. 2: 127.00
Dist. 3: 90.00
Dist. mm: 90.00
Rotation: CW
Total length mm: 343.00
No./mount. holes: 3 (0)

Filer

Specifikation

B+ M10
No./teeth 9
Mount. flange 89.00
No./mount. holes 3 (0)
Position/50 15
Position/B+ 60
Dist. 2 127.00
Dist. 3 90.00
Rotation CW
Dist./back 273.00
Dist./front 70.00
Drive dist. 21.00
Gear type DD
kW 3.0
Terminal 50 M4
Voltage 12
Total length 343.00 mm
Dist. 90.00 mm
Mount. hole 3 11.50 mm
Mount. hole 2 11.50 mm
Mount. hole 1 11.50 mm

  • OEM
    F032116496, 0001367007, 605720100083

  • Konkurrentreferens
    CST10240, DRS1210, IS0670, LRS00566, LRS01069, MRS740, S0469, 25-0337, 88-11.210, 500.562.093, 681.007.092, 33445, 8811210, 42011210, 42369017, 943252282, 0986011210

  • Normaliserat artikelnummer
    cst10240, drs1210, f032116496, is0670, lrs00566, lrs01069, mrs740, s0469, 33445, 250337, 0001367007, 8811210, 42011210, 42369017, 500562093, 681007092, 943252282, 0986011210, 605720100083

  • Passar modeller
    Case IH Model: CS78 Model series: CS78 Model type: Ag Tractors Brand of engine: TD226-4 Approved: Yes
    Case IH Model: CS86 Model series: CS86 Model type: Ag Tractors Brand of engine: TD226-4 Approved: Yes
    Case IH Model: CS94 Model series: CS94 Model type: Ag Tractors Brand of engine: TD226-4 Approved: Yes
    Fendt Model: Farmer Model series: 105 S Size of motor: 3.4 Brand of engine: D225-4 Body: Tractor From date: 01-01-1972 To date: 01-12-1996 Fuel: Diesel Approved: Yes
    Fendt Model: Farmer Model series: 106 S Size of motor: 3.4 Brand of engine: D225-4 Body: Tractor From date: 01-01-1972 To date: 01-12-1996 Fuel: Diesel Approved: Yes
    Fendt Model: Farmer Model series: 108 S Size of motor: 4.2 Brand of engine: D226-4 Body: Tractor From date: 01-01-1975 To date: 01-12-1996 Fuel: Diesel Approved: Yes
    Renault Model: 103-54 Model series: 103-54 Model type: Ag Tractors Brand of engine: TD226-4 Approved: Yes
    Steyr Model: M9078 Model series: M9078 Model type: Ag Tractors Brand of engine: TD226-4 Approved: Yes
    Steyr Model: M9078A Model series: M9078A Model type: Ag Tractors Brand of engine: TD226-4 Approved: Yes
    Steyr Model: M9086A Model series: M9086A Model type: Ag Tractors Brand of engine: TD226-4 Approved: Yes
    Steyr Model: M9094A Model series: M9094A Model type: Ag Tractors Brand of engine: TD226-4 Approved: Yes
